PRODUCT SUMMARY:
Jimy tool boxes are career spanning and built to last! Jimy’s diagnostic tool carts are the perfect middleman between your toolbox and your job! A necessary convenience for working in any workshop or even just for a small storage area at home. With a complete internal locking system, ensure complete security for your tools on the job.
PRODUCT SPECIFICATIONS:

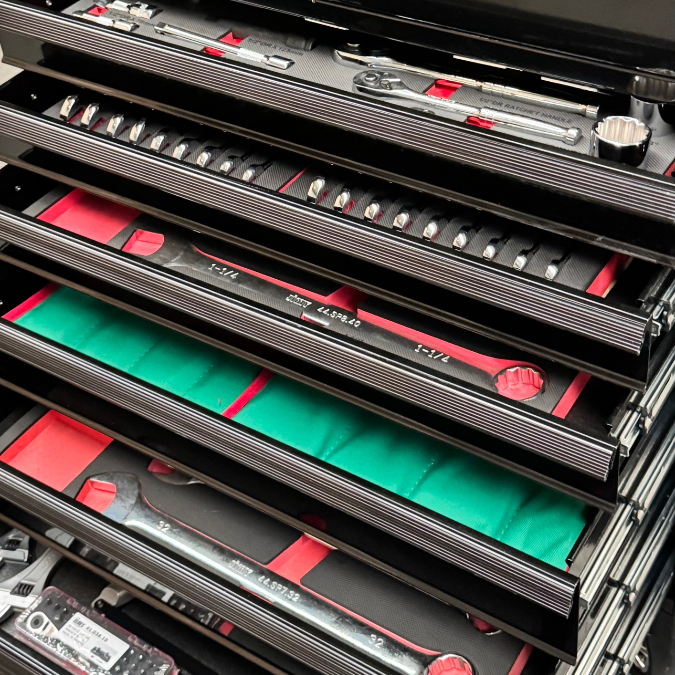

- Full drawer extension capabilities

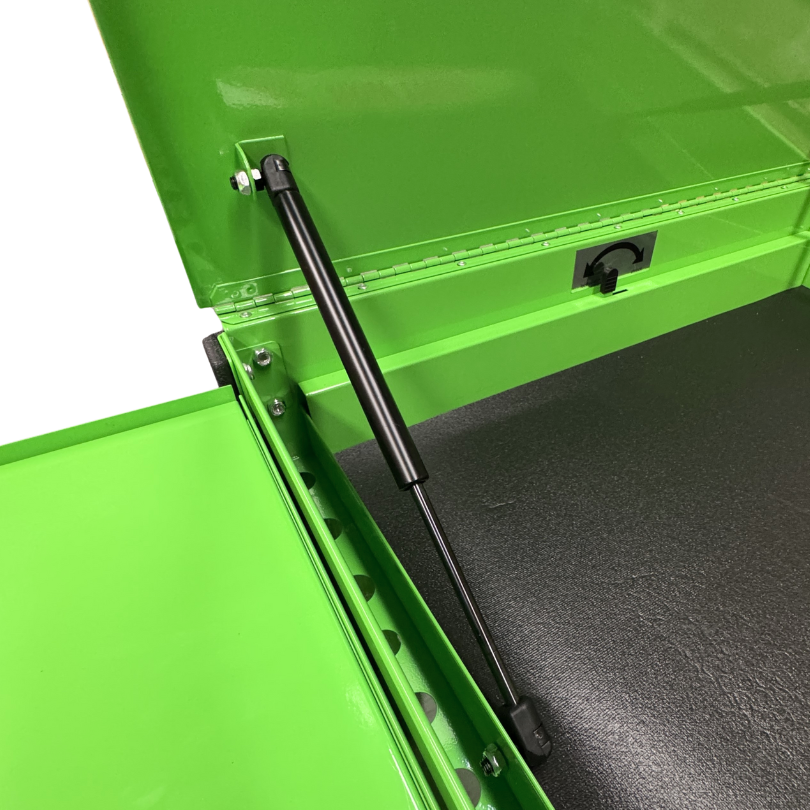

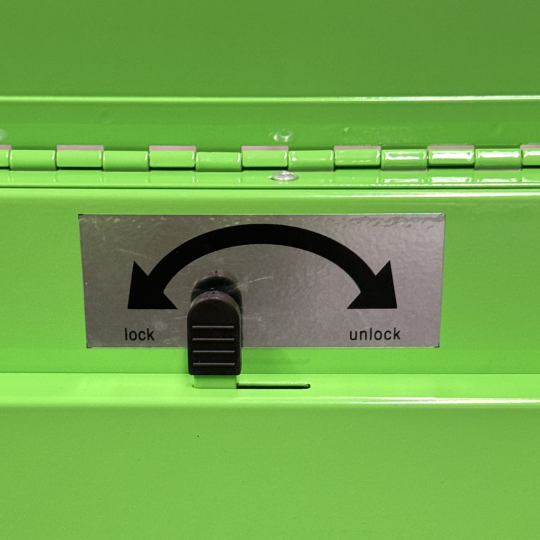

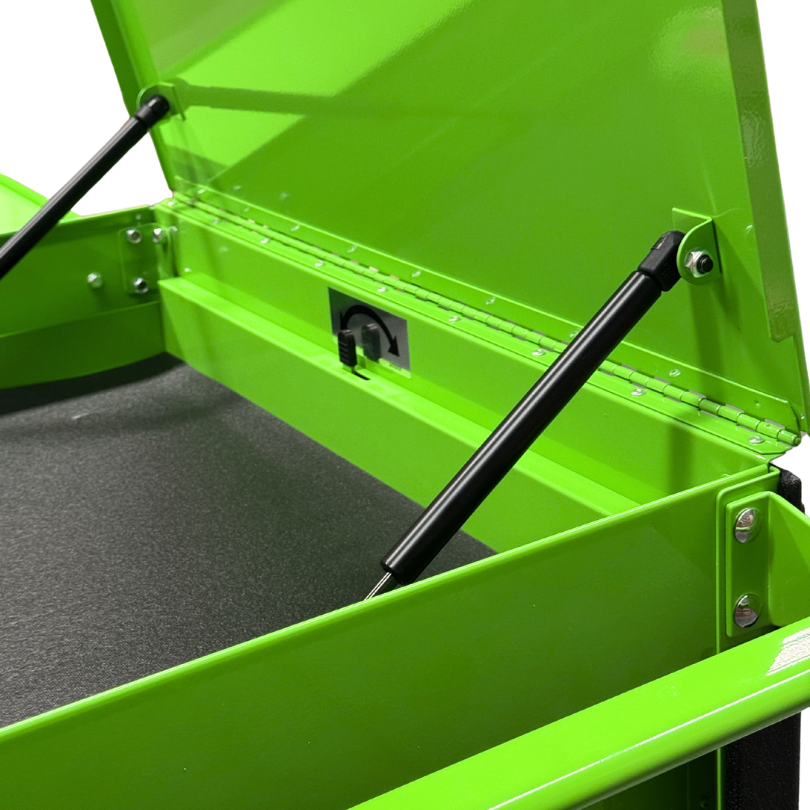

- Internal locking system for extra security
- Heavy duty ball bearing drawer slides

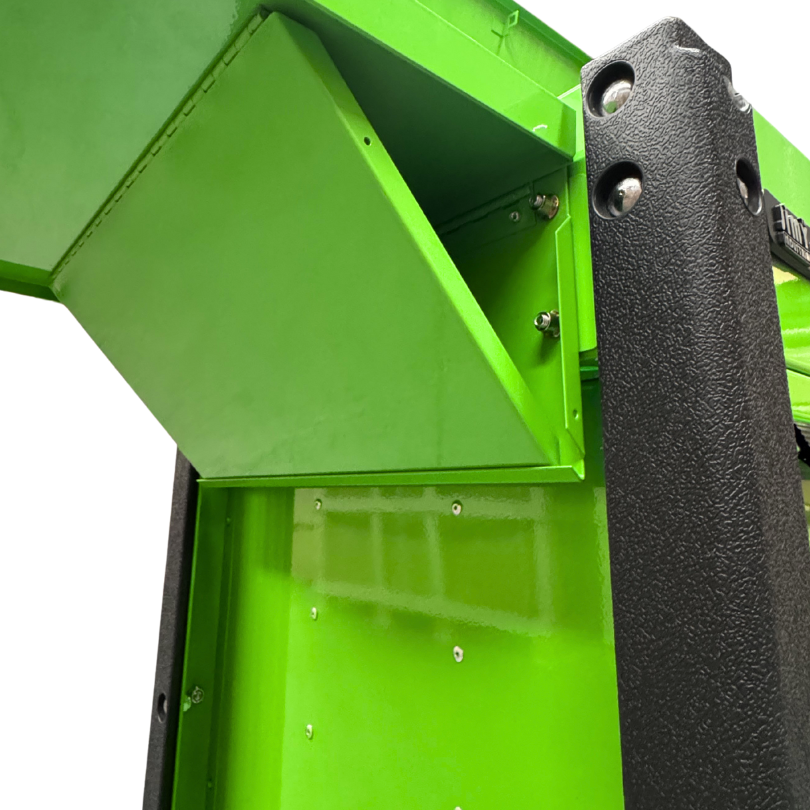

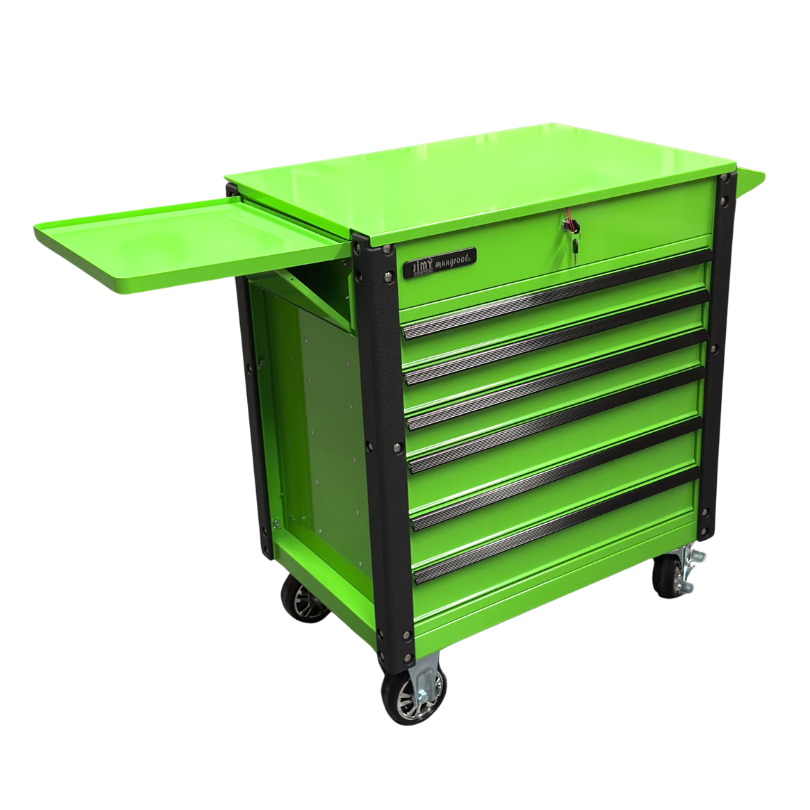

- Convenient foldable side table
- Robust wall construction
- Double powder coating resists scratching

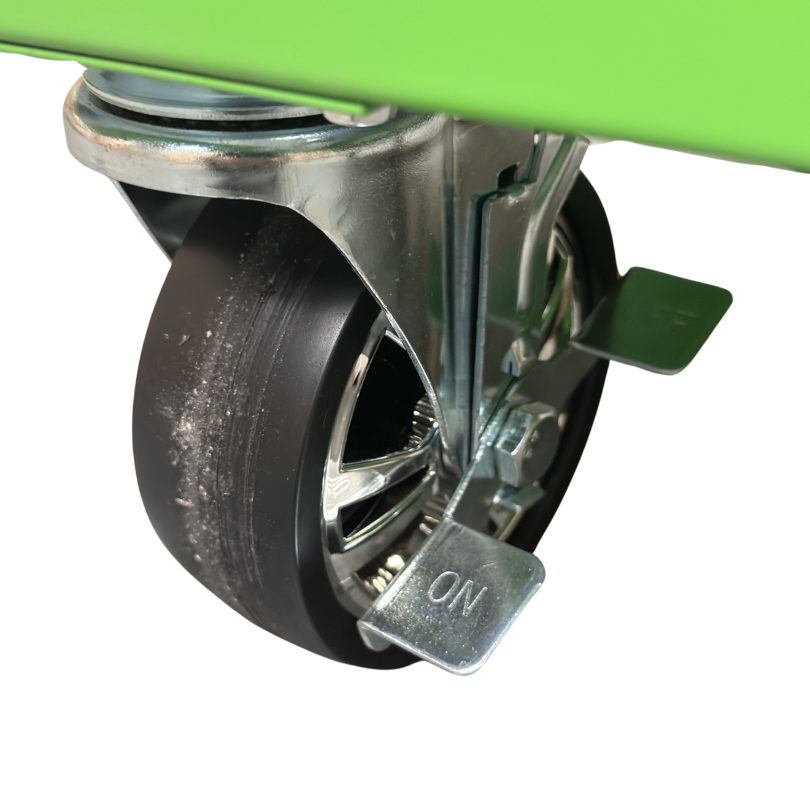

- 2x Lockable Heavy Duty Swivel Castors + 2 Fixed
|

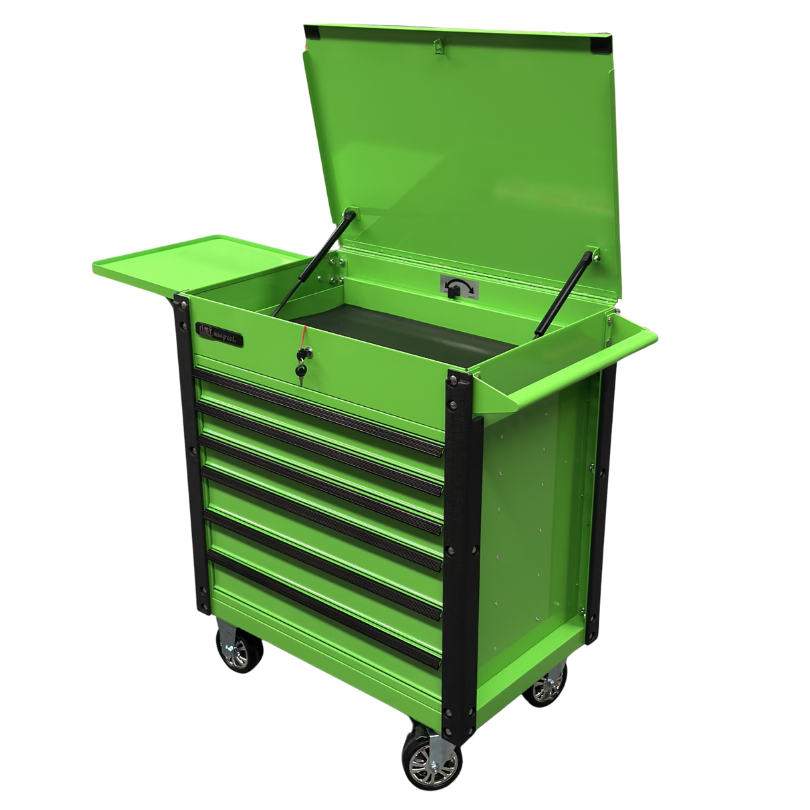

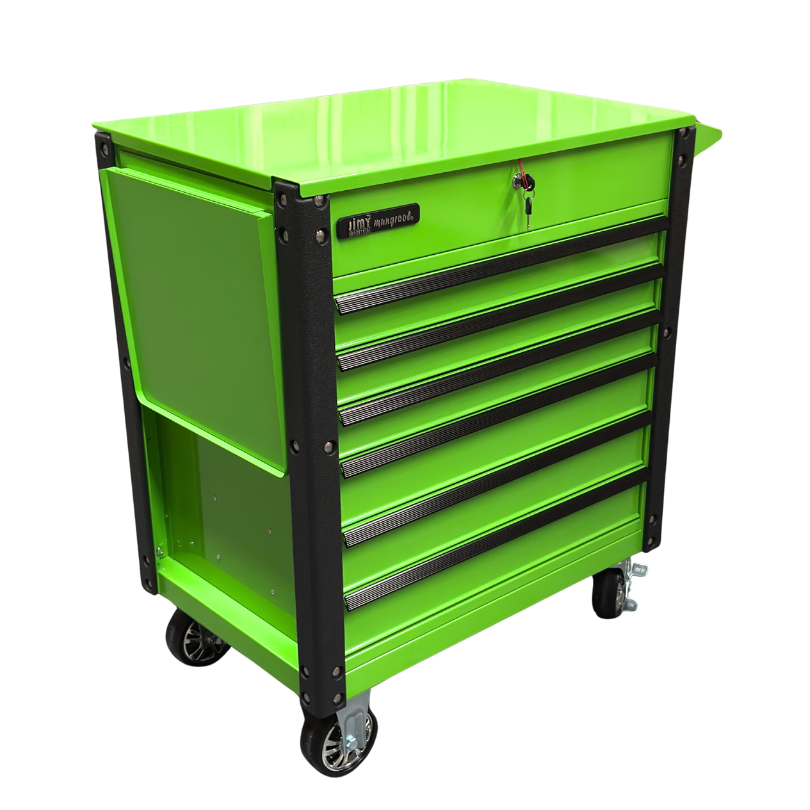

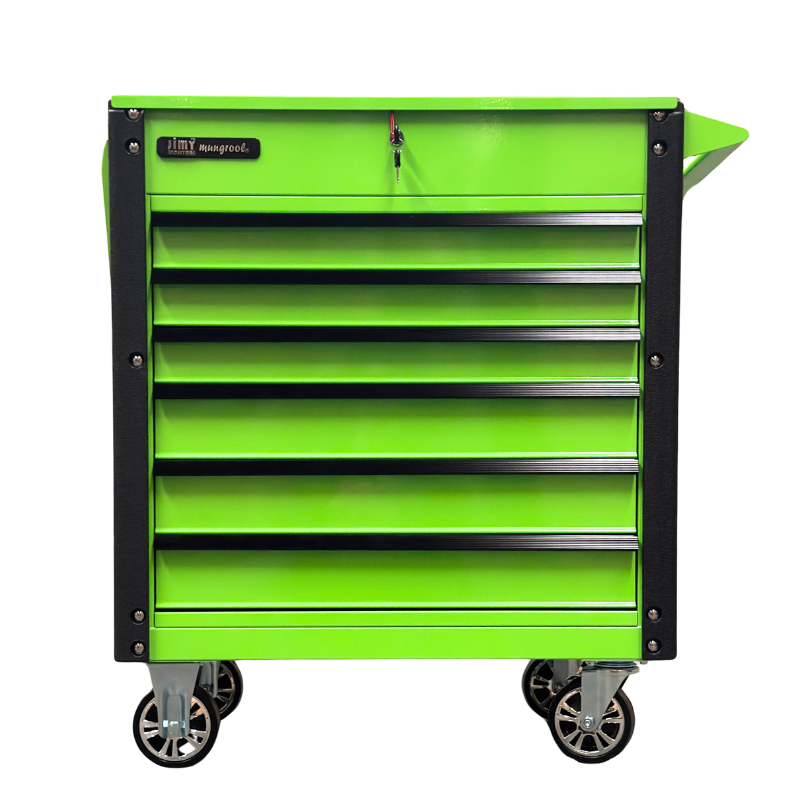

6 DRAWER 33″ DIAGNOSTIC TROLLEY CART |
|
|
No. |
DESCRIPTION |
|
41.TBC.06 |
6 DRAWER 33″ DIAGNOSTIC TROLLEY CART. |
|
|
OVERALL SIZE: WIDTH: 883.5MM (W)-(Not including side table) or 1241.6MM – (including side table) LENGTH: 513MM HEIGHT: 784.77MM (H) – (Not including castors) |
|
|
TOP 3 DRAWER SIZES: 652 (W) X 450 (L) X 75MM (H) |
|
|
BOTTOM 3 DRAWER SIZES: 652 (W) X 450 (L) X 102MM (H) |
|
|
BALL BEARING SLIDES |
|
|
2 FIXED AND 2 SWIVEL CASTORS |
|
|
TOOL BOX NET WEIGHT: 74KGS |

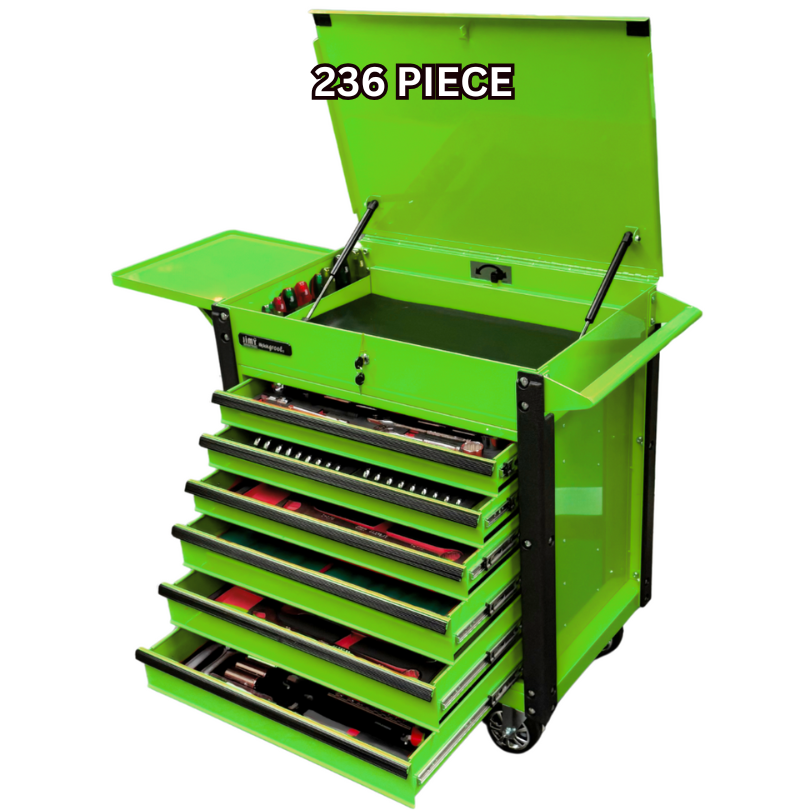

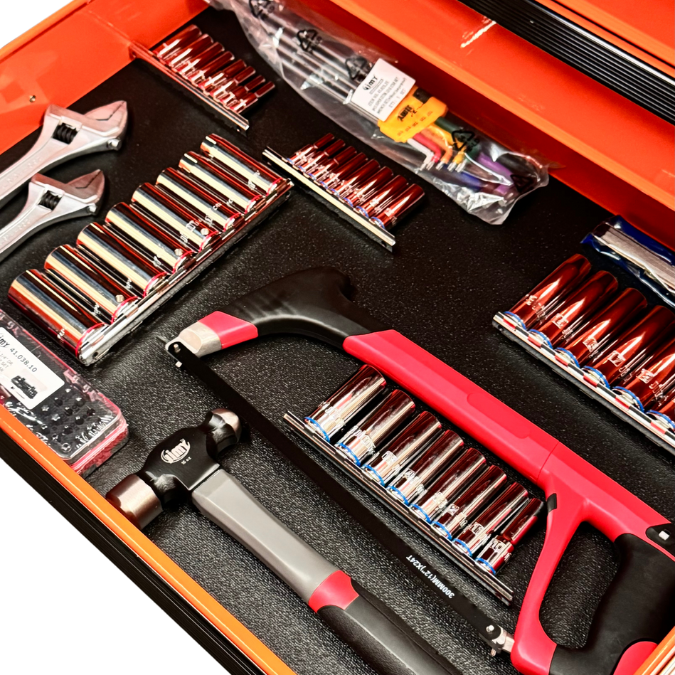

DIAGNOSTIC CART TOOL KIT
| STOCK CODE | DESCRIPTION |
|---|---|

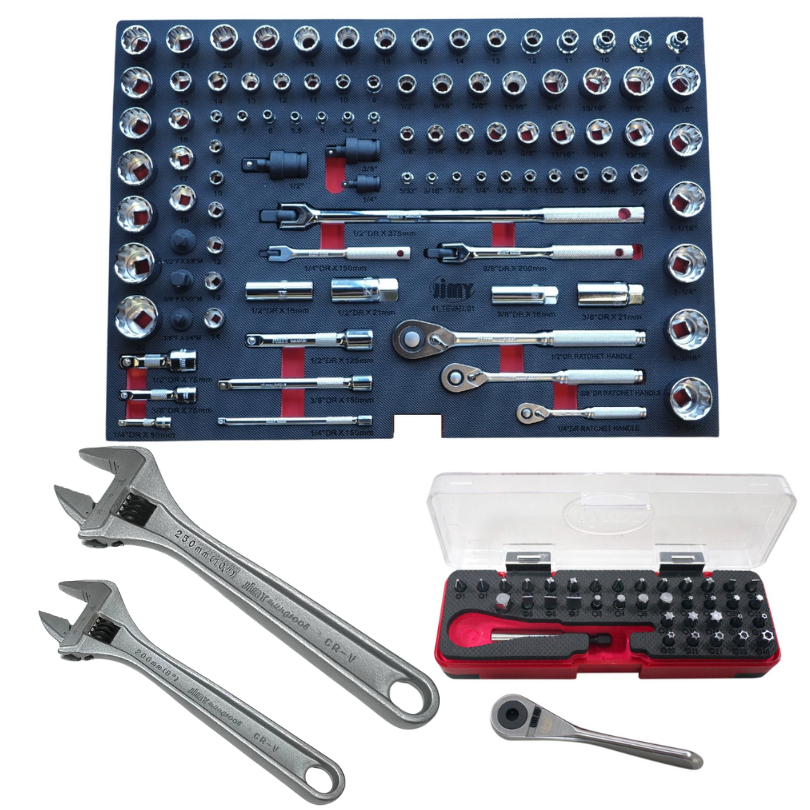

| 41.TEVAD.01F | 97PC SOCKET ACCESSORY TRAY |
| 1/4" Dr Sockets (4-14mm & 5/32"-1/2") | |
| 3/8" Dr Sockets (9-19mm & 3/8"-13/16") | |
| 1/2" Dr Sockets (8-32mm & 1/2"-1 1/4") | |
| 3x Breaker Bars (1/2" Dr x 375mm, 3/8" Dr x 200mm, 1/4" Dr x 150mm) | |
| 6x Extension Bars (1/2" Dr x 125mm & 75mm, 3/8" Dr x 150mm & 75mm, 1/4" Dr x 150mm & 50mm) | |
| 3 x Ratchet Handles (1/4" Dr, 3/8"Dr, 1/2"Dr) | |
| 3 x Impact Adaptors (1/2"F x 3/8"M, 3/8"F x 1/2"M &3/8"F x 1/4"M) | |
| 4 Spark Plug Sockets (1/2"Dr 16mm & 21mm, 3/8"Dr 16mm & 21mm) | |
| 3 x Uni Joints (1/2"Dr, 3/8"Dr & 1/4"Dr) | |

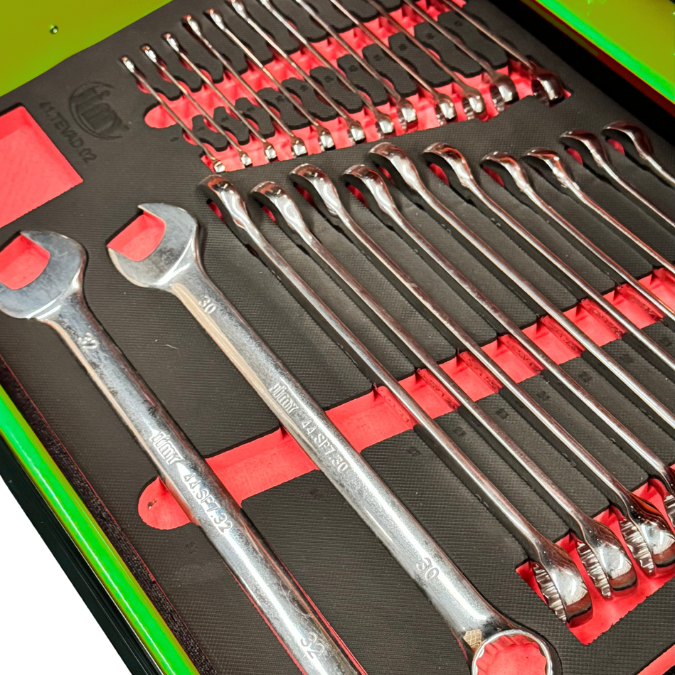

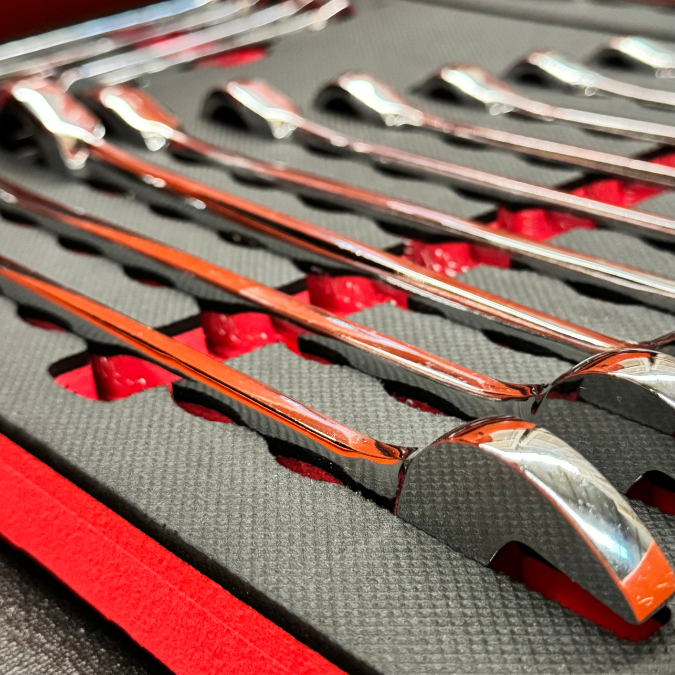

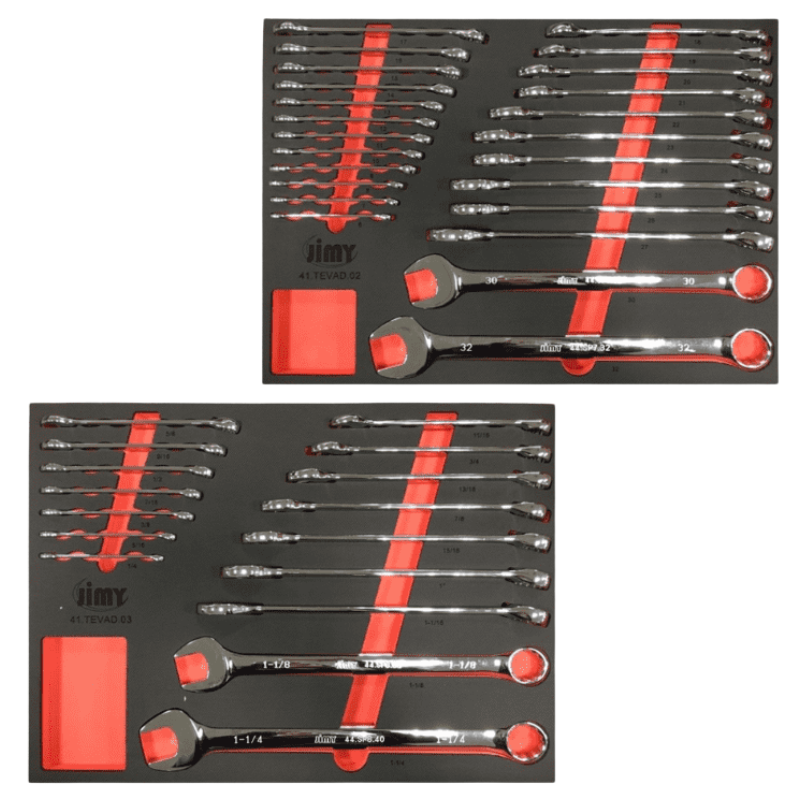

| 41.TEVAD.02F | 24PC METRIC RING OPEN END SPANNER EVA TRAY |
| 6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,30,32mm | |
| 41.TEVAD.03F | 16 PIECE SAE RING OPEN END SPANNER EVA TRAY |
| 1/4″,5/16″,3/8″,7/16″,1/2″,9/16″,5/8″,11/16″,3/4″,13/16″,7/8″,15/16″,1″,1-1/16″,1-1/8″,1-1/4″ | |

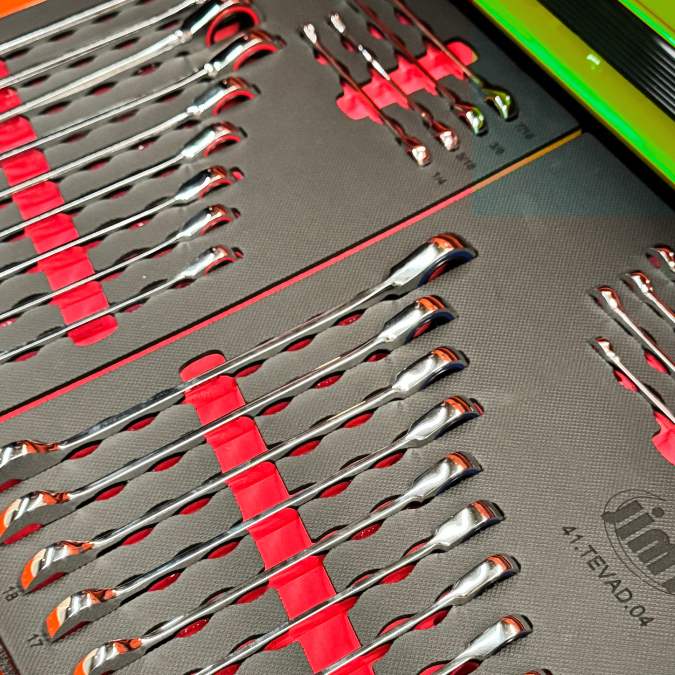

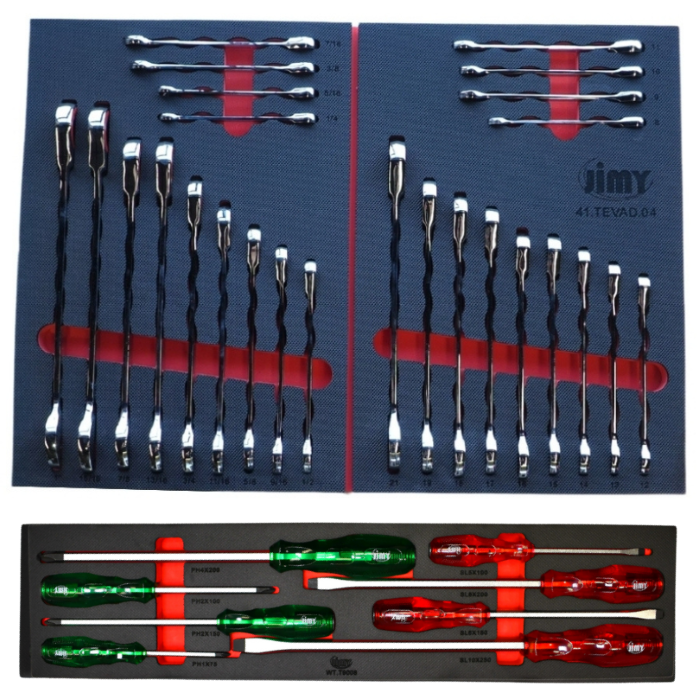

| 41.TEVAD.04F | 26PC METRIC/SAE RATCHETING SPANNER EVA TRAY |
| 8,9,10,11,12,13,14,15,16,17,18,19 & 21mm | |
| 1/4″,5/16″,3/8″,7/16″,1/2″,9/16″,5/8″,11/16″,3/4″,13/16″,7/8″,15/16 & 1″ | |

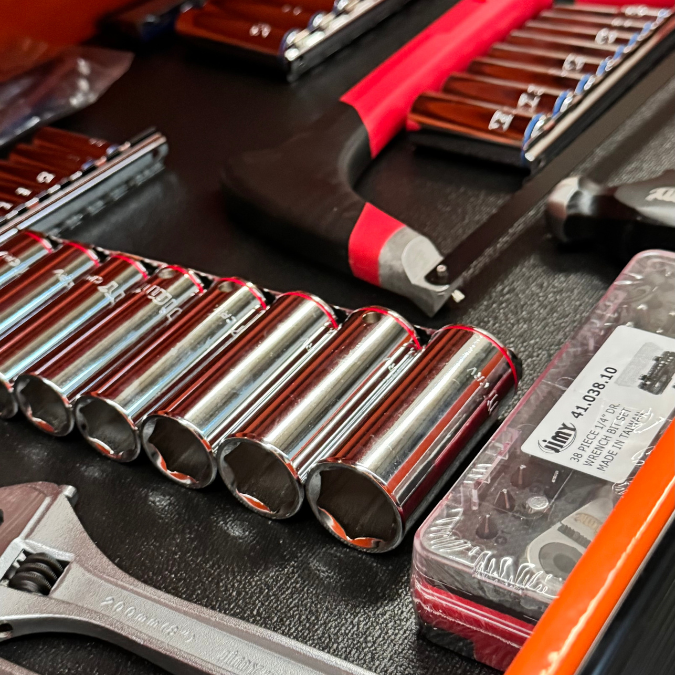

| 41.2014.08M | 8PC DEEP 1/4″DR SOCKET SET RAIL - METRIC |
| 5.5, 6, 7, 8, 9, 10, 11, 12mm | |
| 41.2014.08S | 8PC DEEP 1/4″DR SOCKET SET RAIL - SAE |
| 3/16″, 7/32″,1/4″,9/32″,5/16″,11/32″,3/8″ & 7/16″ | |
| 41.2038.08M | 8PC DEEP 3/8″DR SOCKET SET RAIL - METRIC |
| 10, 11, 12, 13, 14, 16, 17, 19mm | |
| 41.2038.08S | 8PC DEEP 3/8″DR SOCKET SET RAIL – SAE |
| 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″ | |
| 41.2012.08M | 8PC DEEP 1/2″DR SOCKET SET RAIL - METRIC |
| 13, 14, 16, 17, 19, 21, 22, 24mm | |
| 41.2012.08S | 8PC DEEP 1/2″DR SOCKET SET RAIL – SAE |
| 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |

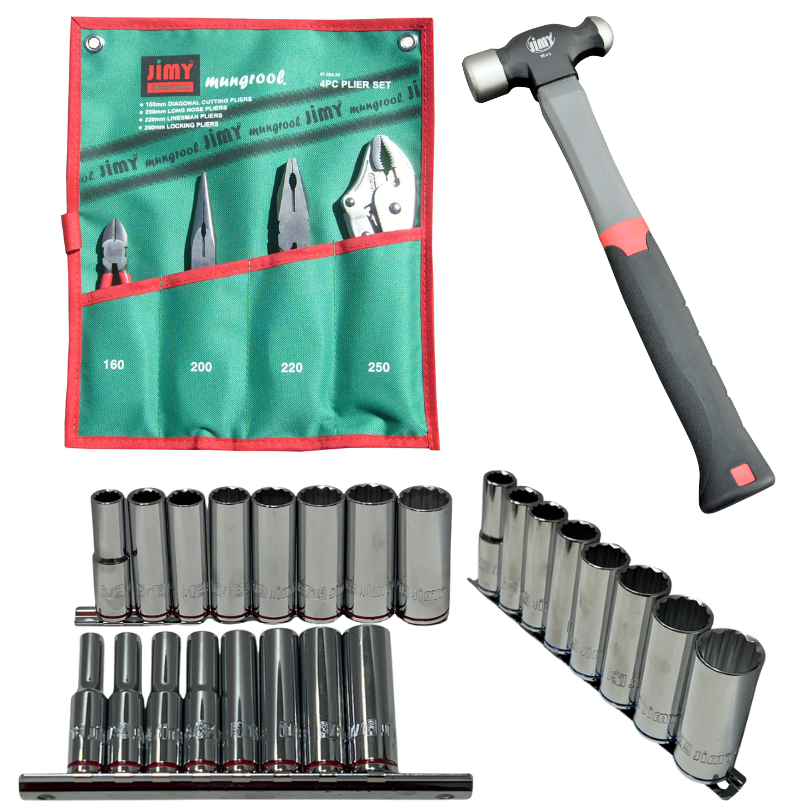

| 41.004.20 | 4PC PLIER SET |
| Combination (Linesman) Pliers 220mm, Diagonal Side Cutting Plier 150mm, Curved Jaw Locking Plier 250mm, & Long Nose Pliers 200mm | |
| 41.3110.10 | 10" MULTI GRIP |
| 41.2610.16 | BALL PEIN HAMMER 16OZ |
| 41.AW04.08 | 8" ADJUSTABLE WRENCH |
| 41.AW04.12 | 12" ADJUSTABLE WRENCH |

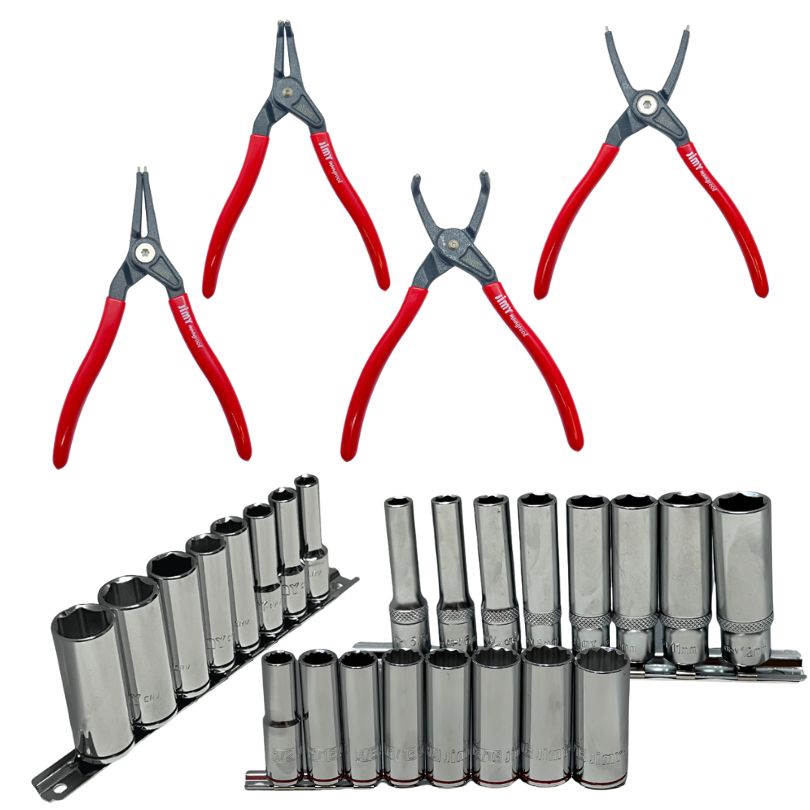

| 41.004.30 | 4PC INTERNAL/ EXTERNAL STRAIGHT/BENT CIRCLIP PLIER SET |
| External Straight 7", External Bent 7", Internal Straight 7" & Internal Bent 7" | |
| 41.038.10 | 38PC SECURITY BIT SET 1/4" |
| 51.285.36M | 36PC COMBO FEELER GAUGE SET |

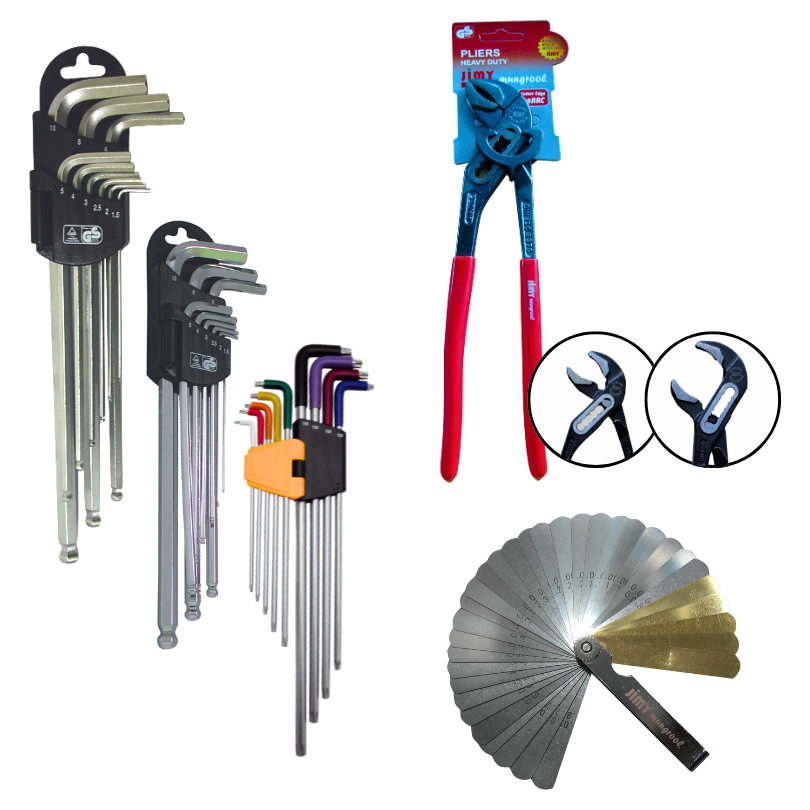

| 41.009.50 | 9PC LONG HANDLE BALL NOSE HEX KEY SET (ALLEN KEYS) |
| 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm | |
| 41.009.55 | 9PC LONG HANDLE HEX KEY SET (ALLEN KEYS) SAE |
| 1/8”, 5/64”, 3/32”, 1/8”, 5/32”, 3/16”, 1/4”, 5/16”, 3/8” | |
| 41.025.35 | 9PC EXTRA LONG STANDARD TORX KEYS |
| T10- 135mm, T15- 150mm, T20- 168mm, T25- 189mm, T27- 210mm, T30-240mm, T40-270mm, T45-300mm and T50-336mm |
