PRODUCT SUMMARY:
Reach the absolute peak of professional tooling with the 808PC 96? Dozer Expert Level Tool Kit in the striking Mungrool Red Black design. Built as a complete “one stop shop” solution, this monster workstation is engineered for elite mechanics, heavy-vehicle technicians, diesel specialists and workshops that demand serious capacity, organisation and durability.
This massive setup includes 1/4”, 3/8”, 1/2” and 3/4” drive systems, complete with breaker bars, ratchets, extension bars, ring/open-end spanners, ratchet spanners, crows foot spanners, pliers, screwdrivers, air tools and more. Foam inlay drawer inserts provide fast tool identification and help prevent tools being left behind during jobs.

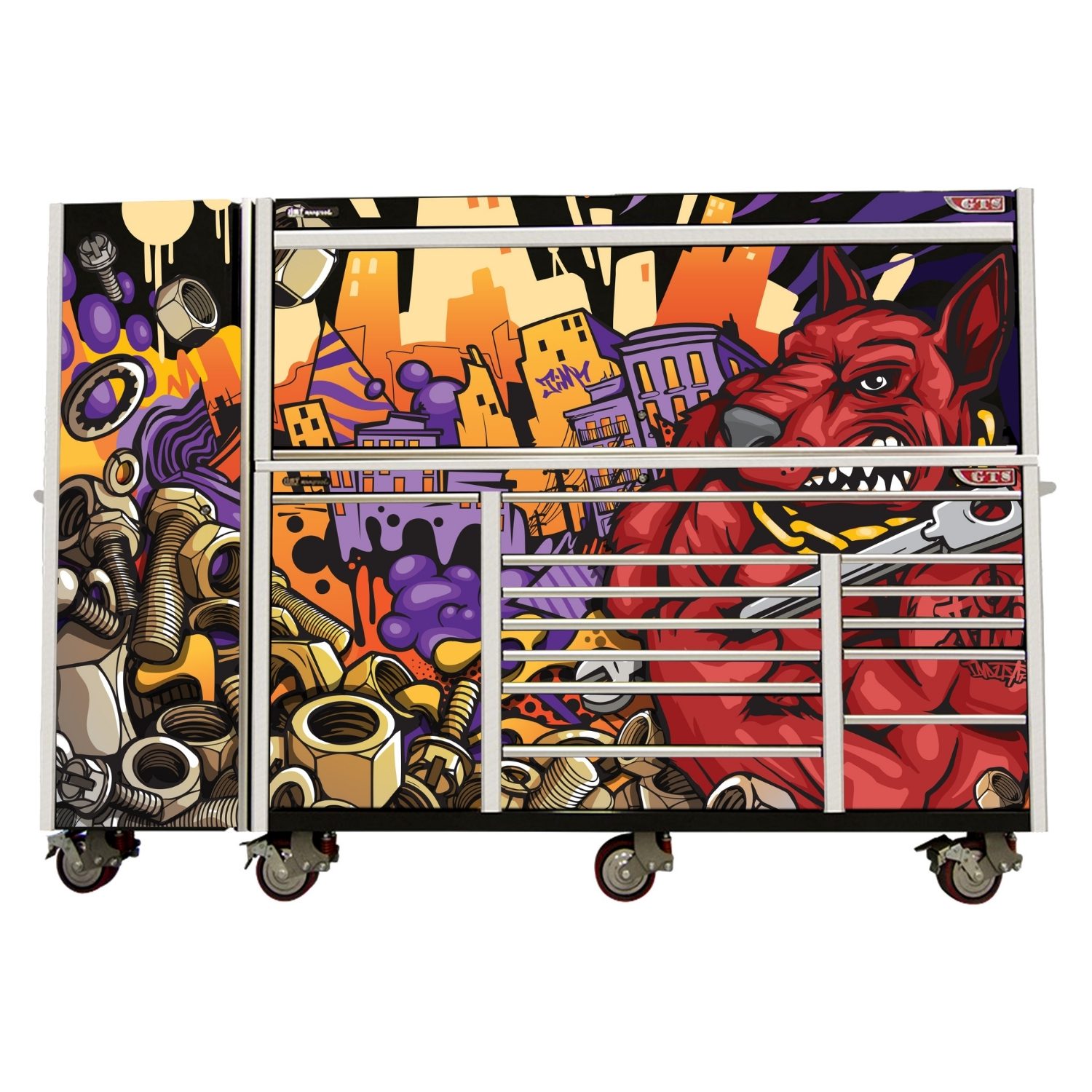

The workstation features a 96? Dozer roller cabinet, a 76? folding top chest, and a 20? full-height side cabinet, delivering unmatched storage flexibility. The dedicated hutch space is perfect for diagnostic tools, laptops, manuals and even entertainment setups.
Jimy tool boxes are built for a lifetime of use with 1.2mm industrial-grade steel, tough powder-coated protection, full locking systems and smooth ball-bearing slide rails. Deeper drawers feature twin slide rails, giving them load capacities of over 100kg per drawer.
Jimy Tools sockets, wrenches and spanners are engineered to exceed international quality standards, ensuring reliability in the harshest workshop environments. Trade-grade quality, performance and value — all in one elite package.
PRODUCT SPECIFICATIONS:
Tool Box Dimensions:
- 13 Drawer Roller Cabinet – 1930mm(L) x 770mm(W) x 1110mm(H) inc Castor Wheels
- 4 Drawer Side Locker – 530mm(L) x 770mm(W) x 1780mm(H) inc Castor Wheels
- Hutch Closed – 1930mm(L) x 770mm(W) x 670mm(H)
- Hutch Open – 1930mm(L) x 770mm(W) x 1270mm(H)
- Click Lock Drawer System
- Tough Industrial Powder Coating
- Heavy Duty Stainless Steel Benchtop
- 1.2mm Gauge Steel Thickness
- Fully Lockable
- Ball Bearing Slide Drawers with Twin Slides on the Deeper Drawers
INTRODUCTORY LEVEL
| STOCK CODE | DESCRIPTION |
|---|---|
| 41.TEVAW.02F | 142PC SOCKET AND ACCESSORY FILLED EVA TRAY mm/SAE |
| 1/4" DR Sockets (4-14mm & 5/32"-1/2") | |
| 3/8" DR Sockets (9-19mm & 3/8"-13/16") | |
| 1/2" DR Sockets (8-32mm & 1/2"-1 1/4") | |
| 3x Ratchet Handles (1/2" DR, 3/8" DR, 1/4" DR) | |
| 3x Uni Joints (1/2" DR, 3/8" DR, 1/4" DR) | |
| 1/2"DR Extension Bars x 900mm, 125mm, 75mm | |
| 3/8" DR Extension Bars x 900mm, 150mm, 75mm | |
| 1/4" DR Extension Bars x 150mm, 75mm | |
| 1/2" DR Spark Plug Sockets (16mm & 21mm) | |
| 3/8" DR Spark Plug Sockets (16mm & 21mm) | |
| 1/2" DR Breaker Bar x 600mm | |
| 3/8" DR Breaker Bar x 200mm | |
| 1/4" DR Breaker Bar x 150mm | |
| 1/2"F x 3/8"M Impact Adaptor | |
| 3/8"F x 1/4"M Impact Adaptor | |
| 3/8"F x 1/2"M Impact Adaptor | |
| 4PC Plier Set | |
| Combination (Linesman) Pliers 220mm, Diagonal Side Cutting Plier 150mm, Curved Jaw Locking Plier 250mm, & Long Nose Pliers 200mm | |
| 2x Adjustable Wrenches (6" & 8") | |
| 38PC Security Bit Set With 1/4" Ratchet | |
| 41.TEVA.03F | 26 PIECE METRIC/SAE RING OPEN ENDED SPANNER EVA INSERT TRAY |
| 7,8,9,10,11,12,13,14,15,16,17,18,19,21mm | |
| 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |
| 41.TEVAF.01F | 8PC ACETATE SCREWDRIVER TRAY |
| Flathead (-) 5mm x 100mm, 6mm x 150mm, 8mm x 200mm, 10mm x 250mm) | |
| Phillips (+) #1 x 75mm, #2 x 100mm, #2 x 150mm, #4 x 200mm | |
| 41.2014.08M | 8PC DEEP 1/4″DR SOCKET SET RAIL – Metric |
| 5.5, 6, 7, 8, 9, 10, 11, 12mm | |
| 41.2038.08M | 8PC DEEP 3/8″DR SOCKET SET RAIL – Metric |
| 10, 11, 12, 13, 14, 16, 17, 19mm | |
| 41.2012.08M | 8PC DEEP 1/2″DR SOCKET SET RAIL – Metric |
| 13, 14, 16, 17, 19, 21, 22, 24mm | |
| 41.2014.08S | 8PC DEEP 1/4″DR SOCKET SET RAIL – SAE |
| 3/16″, 7/32″,1/4″,9/32″,5/16″,11/32″,3/8″ & 7/16″ | |
| 41.2038.08S | 8PC DEEP 3/8″DR SOCKET SET RAIL – SAE |
| 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″ | |
| 41.2012.08S | 8PC DEEP 1/2″DR SOCKET SET RAIL – SAE |
| 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |
| 41.004.30 | 4PC INTERNAL/EXTERNAL STRAIGHT/BENT CIRCLIP PLIER SET |
| External Straight 7", External Bent 7", Internal Straight 7" & Internal Bent 7" | |
| 41.2610.16 | BALL PEIN HAMMER 16OZ |
| 41.2394.30 | CLUB HAMMER 1.5KG (3.3LBS) |
| 41.009.50 | 9PC LONG HANDLE BALL NOSE HEX KEY SET (ALLEN KEYS) METRIC |
| 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm | |
| 41.009.55 | 9PC LONG HANDLE HEX KEY SET (ALLEN KEYS) SAE |
| 1/8”, 5/64”, 3/32”, 1/8”, 5/32”, 3/16”, 1/4”, 5/16”, 3/8” | |
| 41.025.35 | 9PC EXTRA LONG STANDARD TORX KEYS |
| T10- 135mm, T15- 150mm, T20- 168mm, T25- 189mm, T27- 210mm, T30-240mm, T40-270mm, T45-300mm and T50-336mm | |
| 41.993.10 | UTILITY KNIFE |
INTERMEDIATE LEVEL
| STOCK CODE | DESCRIPTION |
|---|---|
| BP-41.EVA2501F | 3 PIECE LONG HANDLE FLEX RATCHET TRAY - SQUARE DR (1/4”, 3/8” 1/2”) |
| 41.TEVAD.04F | 26PC METRIC/SAE RATCHETING SPANNER TRAY |
| 8,9,10,11,12,13,14,15,16,17,18,19 & 21mm | |
| 1/4″,5/16″,3/8″,7/16″,1/2″,9/16″,5/8″,11/16″,3/4″,13/16″,7/8″,15/16 & 1″ | |
| 41.TEVAD.06F | 28PC METRIC/SAE SPECIALISED SPANNER TRAY |
| 7 Piece Flat Type Ring Spanner Set – Metric (8×10, 12×14, 13×15, 16×18, 17×19, 21×23, 22x24mm) | |
| 5 Piece Flare Nut Spanner Set – Metric (8×10, 11×13, 12×14, 16×18, 17x19mm) | |
| 4 Piece Flare Nut Spanner Set – SAE (3/8”x7/16”, ½”x9/16”, 5/8”x11/16”, ¾”x7/8”) | |
| 12 Piece Stubby Ratcheting Spanner Set – Metric (8,9,10,11,12,13,14,15,16,17,18 & 19mm) | |
| 41.TEVAD.07F | 42 PIECE 1/2" DR - METRIC DEEP & STANDARD IMPACT SOCKET TRAY |
| 9, 10,11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30 & 32mm | |
| 1x Impact Universal Joint & 1x Impact Extension Bar 125mm | |
| 41.4005DIS.A | 5PC DEEP IMPACT SOCKET SET - SAE 1/2" DR ( 7/16”, 1/2”, 9/16”, 5/8”, 11/16") |
| 41.4005DIS.B | 5PC DEEP IMPACT SOCKET SET - SAE 1/2" DR (3/4”, 13/16”, 7/8”, 15/16”, 1”) |
| 41.SSCF.07 | 7PC 3/8" DR CROWS FOOT SPANNER SET - SAE (3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16” & 3/4”) |
| 41.SSCF.10 | 10PC 3/8" DR CROWS FOOT SPANNER SET - Metric (10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm) |
| 41.009.92 | 8PC IN-HEX IMPACT SOCKET SET 1/2” SQUARE DRIVE - Metric |
| 60mm long H10, H11, H12, H13, H14 | |
| 78mm long H15, H17, H19 | |
| 41.009.93 | 8PC IN-HEX IMPACT SOCKET SET 1/2” SQUARE DRIVE - SAE |
| 60mm long 1/4”, 5/16”, 3/8”, 7/16”, 1/2” | |
| 78mm long 9/16”, 5/8”, 3/4” | |
| 41.2569.40 | DEAD BLOW HAMMER 49OZ (1.4KG) |
| 41.BC02.08 | MINI BOLT CUTTERS 200mm |
| 41.054.10 | 54PC MECHANICS BIT SET |
| 51.285.36M | 36PC COMBO FEELER GAUGE SET |
| 41.2720.10 | 10PC PIN PUNCH AND COLD CHISEL SET (PUNCH -2, 3, 4, 5, 6, 8 & 10mm x CHISEL -12, 20 & 24mm) |
| 51.010.35 | UNIVERSAL LIFT SUPPORT CLAMP |
| 51.342.04 | 20PC DRAIN PLUG SET |
| 51.999.10 | OIL FILTER WRENCH - 1/2" DR |
| 51.200.10 | LONG PROBE CIRCUIT TESTER |
| 51.006.15 | 2 IN 1 PICK UP TOOL |
| 51.007.10 | 150mm MAGNETIC TRAY |
| 41.2544.04 | 4PC PRY BAR SET (8", 12", 18" & 24") |
| 41.TW04.10 | TORQUE WRENCH - 1/2" SQUARE DR (40-210 Nm) |
| 41.AW04.12 | 12" ADJUSTABLE WRENCH |
| 41.005.05 | MAG WHEEL NUT IMPACT SOCKET SET 1/2" DR (17, 19, 21, 22 and 27mm) |
ADVANCED LEVEL
| STOCK CODE | DESCRIPTION |
|---|---|
| 41.TEVAD.023F | 12 PIECE METRIC/SAE UPGRADED LARGER SPANNER SET TRAY |
| 22,23,24,25,26,27,30,32mm | |
| 1″,1-16″,1-1/8″, 1-1/4″ | |
| 41.3027.20 | 27PC SOCKET SET 3/4" SQUARE DR Metric/SAE |
| 22, 24, 27, 30, 32, 36, 38, 41, 46, 50mm | |
| 7/8”, 15/16”, 1, 1-1/8”, 1-3/16”, 1-5/16”, 1-3/8”, 1-7/16”, 1-5/8”, 1-3/4”, 1-7/8”& 2” | |
| Heavy Duty 3/4" DR Ratchet Handle | |
| Sliding T-bar 450mm | |
| 2x Extension Bars (100mm & 200mm Long) | |
| 41.4025.05 | 8PC DEEP IMPACT SOCKET SET 3/4" SQUARE DR - Metric |
| 27, 30, 32, 33, 34, 36, 38 & 41mm | |
| 41.4025.10 | 8PC DEEP IMPACT SOCKET SET 3/4" DR - SAE |
| 1″, 1-1/16″ ,1-1/8″, 1-1/4″ ,1-5/16″, 1-3/8″, 1-7/16″ & 1-1/2″ | |
| 41.SA3.34L | BREAKER BAR 3/4" SQUARE DR 1050mm LONG |
| 41.2610.32 | BALL PEIN HAMMER 32OZ |
| 41.003.05 | 3PC LONG HANDLE PLIER SET 280mm (STRAIGHT, 45 DEGREE & 90 DEGREE LONG NOSE) |
| BP-41.500.TD75A | 75PC TAP AND DIE NUT SET SAE/METRIC |
| 41.500.52 | 25PC SCREW EXTRACTOR DRILL SET |
| 41.500.91 | GO THROUGH NUT SIZE (8-21MM) |
| 51.210.20 | WIRE STRIPPER |
| 51.210.06 | CRIMPING PLIER KIT RACHET MULTI HEAD QUICK CHANGE COPPER CUTTER/STRIPPER |
| 41.TW02.10 | TORQUE WRENCH - 1/4" SQUARE DR (6-30Nm) |
| 41.TW03.10 | TORQUE WRENCH - 3/8" SQUARE DR (19-110Nm) |
| 41.AW04.15 | 15" ADJUSTABLE WRENCH |
| 51.010.30 | TRIM TOOL REMOVER |
| 51.342.05 | SEAL PULLER REMOVER |
| BP-51.010.32 | 5PC UNI CLIP REMOVER SET |
| 51.903.17 | 1.5L OIL TRANSFER SYRINGE |
| 41.995.18 | 300mm BI METAL BLADE - 18 TPI (INNER PK 10) |
| 41.995.24 | 300mm BI METAL BLADE - 24 TPI (INNER PK 10) |
EXPERT LEVEL
| STOCK CODE | DESCRIPTION |
|---|---|
| K41.SP9.12 | 12 PIECE JUMBO SPANNER SET METRIC/SAE |
| 34, 36, 38, 41, 46 & 50mm | |
| 1-3/8”, 1-1/2”, 1-5/8”,1-3/4”, 1-7/8” & 2” | |
| 41.SA1.34ED | 3/4” DRIVE EXTENDABLE RATCHET HANDLE (495-775MM) |
| 41.3250.16 | 2PC 16” (400MM) JUMBO CIRCLIP PLIER SET |
| 41.025.42 | 13PC EXTRA LONG JUMBO BALL END ALLEN KEY SET METRIC |
| 2, 2.5, 3, 4, 5, 6, 7, 8, 10, 12, 14, 17 and 19mm | |
| 41.025.44 | 13PC EXTRA LONG JUMBO ALLEN KEY SET - SAE |
| 5/64”, 3/32”, 1/8”, 5/32”, 3/16”,7/32”, 1/4”, 5/16”, 3/8”, 1/2", 9/16”, 5/8”, 3/4" | |
| 41.TW06.10 | TORQUE WRENCH - 3/4” |
| BP-WT.LDX07 | 7 PC AUTO BODY REPAIR TOOL SET |
| BP-TM450 | Torque Multiplier 3/8" Dr - 450Nm |
| BP-TM600 | Torque Multiplier 1/2" Dr - 600Nm |
| BP-AM905005 | HEAVY DUTY RATCHETING CRIMPER 245MM |
| 41.TBC.04 | 4 DRAWER 33” DIAGNOSTIC TOOL CART |
WHY BUY A JIMY TOOL?
| • Jimy Tools has been an Australia family business since 1993 |
| • Jimy Tools has mastered the fine balance between high quality tools and competitive prices. With Jimy Tools, you get both a great tool and a great price |
| • Jimy Tools has years of tool innovation, testing, and sourcing experience behind their strong line-up of tools |
| • Jimy hand tools come with a lifetime warranty |
| • Jimy air tools and workshop equipment also come with a 12 month warranty |
| • All Jimy Tools are manufactured to meet or exceed international quality standards |
| • Jimy tools love to work. You don’t need to be afraid to put them to the toughest tests. You won’t be disappointed! |
