PRODUCT SUMMARY:
HAMMERHEAD QUICK LIFT JACK
The Hammerhead portable quick lift jack makes vehicle maintenance on and off the track convenient and lighting fast. The quick lift jack can go anywhere and is easily stowed in the truck of back seat of most cars.
The quicklift jack replaces clumsy floor jacks and unstable jack stands with a safe, durable and convenient vehicle jacking and support system. Simply position the lightweight jack frames under the vehicle, push the raise button on the hand held pendant control and in seconds the entire car is about 460mm off the ground, ready for tyre changes, chassis tuning or other maintenance.
The ruggedly built frames collapse to a low three inch profile, so they fit where other jacks and lifts don’t. With the hammerhead quick lift jack, practicality and portability become a reality.
This exceptional unit provides total undercar access and can be installed at a width that best suits the vehicle being raised.
Features:
- Lightweight frame design for easy use
- Occupies less space and is easy to carry
- Single frame independent hydraulic design for fast lifting
- Single frame independent safety lock rod design for safe use
- Equipped with roller, it can move vertically and horizontally and adjust position easily and quickly!
Specifications:
Max Lifting Weight | 2500kg |
Max Lifting Height | 460mm |
Lifting (Descent) time | 33s/50s |
Power supply | 220V (1ph) |
Power | 0.75kw |
Hydraulic Capacity | 4L |
TYRE CHANGER
Car Tyre Changer up to a 24” wheel with semi-automatic side swing arm.
You can also purchase a Motorbike Wheel Adapter as an accessory for this machine.
Specifications:
External Locking Rim Dimensions | 10-21″ |
Internal Locking Rim Dimensions | 12-24″ |
Max. Wheel Diameter | 1040mm (41″) |
Max. Wheel Width | 355mm (14″) |
Working Pressure | 8-10bar |
Power Supply | 220V (1 ph) |
Optional Motor Power | 0.75/1.1kw |
Max. Rotating Torque (Turntable) | 1078 Nm |
Overall Dimension | 96*76*93cm |
Noise Level | 75 Db |
WHEEL BALANCER
An imbalanced wheel will make the wheel jump and steering wheel wobble while driving. It can baffle the driver to drive, aggrandize the cleft of the combined area of the steering system, damage the vibration damper and steering parts and increase the probability of traffic accidents. A balanced wheel will avoid all of these problems.
This equipment adopts the new LSI (Large Scale Intregrated circuit) to constitute the hardware system that acquires processes and calculates information at the high speed.
Features:
- Adopt 9 LED display – has flexible indicator operating function
- Various balancing modes can carry out counterweights to stick, clamp, or hidden stick etc
- Input data of rim automatically by measure scale
- Intelligent self-calibrating and measure scale self-labeling function
- Self fault diagnosis and protection function
- Application for various rims of steel structure and duralumin structure.
Specifications:
Max Wheel Weight | 65kg |
Motor Power | 200W |
Power Supply | 240V/(1ph) |
Rotating Speed | 200r/min |
Cycle Time | 8s |
Rim Diameter | 10-24″ (256mm-610mm) |
Rim Width | 1.5″-20″ (40mm-510mm) |
Noise | <70dB |
Net Weight | 98kg |
Dimensions | 915mm x 760mm x 1180mm |

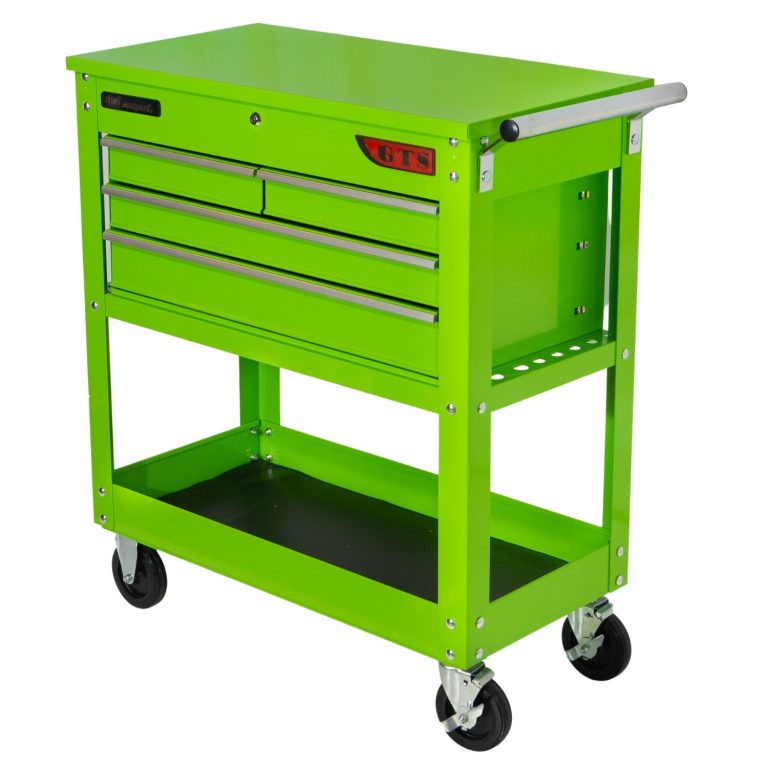

4 DRAWER 33” DIAGNOSTIC TOOL CART
Jimy tool boxes are career spanning and built to last! Jimy’s diagnostic tool carts are the perfect middleman between your toolbox and your job! A necessary convenience for working in any workshop or even just for a small storage area at home. With a complete internal locking system, ensure complete security for your tools on the job.
- Full drawer extension capabilities
- Internal locking system for extra security

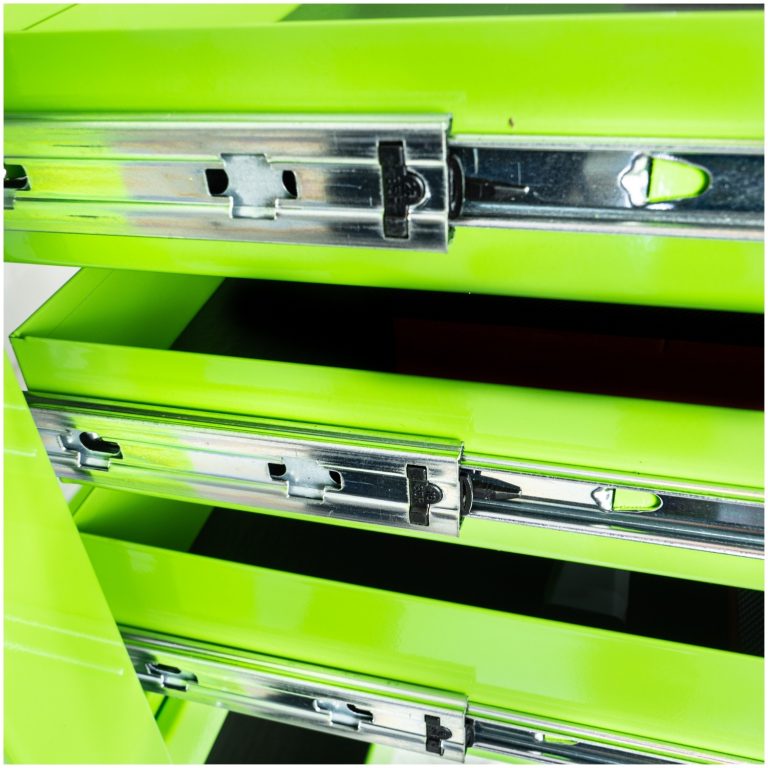

- Heavy duty ball bearing drawer slides
- Robust wall construction
- Double powder coating resists scratching
- 2x Lockable Heavy Duty Swivel Castors
PRODUCT SPECIFICATIONS:
4 DRAWER 33″ DIAGNOSTIC TROLLEY CART | |
No. | DESCRIPTION |
41.TBC.04 | 4 DRAWER 33″ DIAGNOSTIC TROLLEY CART. |
SIZE: 455MM (W) X 850MM (L) X 900MM (H) | |
BALL BEARING SLIDES | |
2 FIXED AND 2 SWIVEL CASTORS | |
