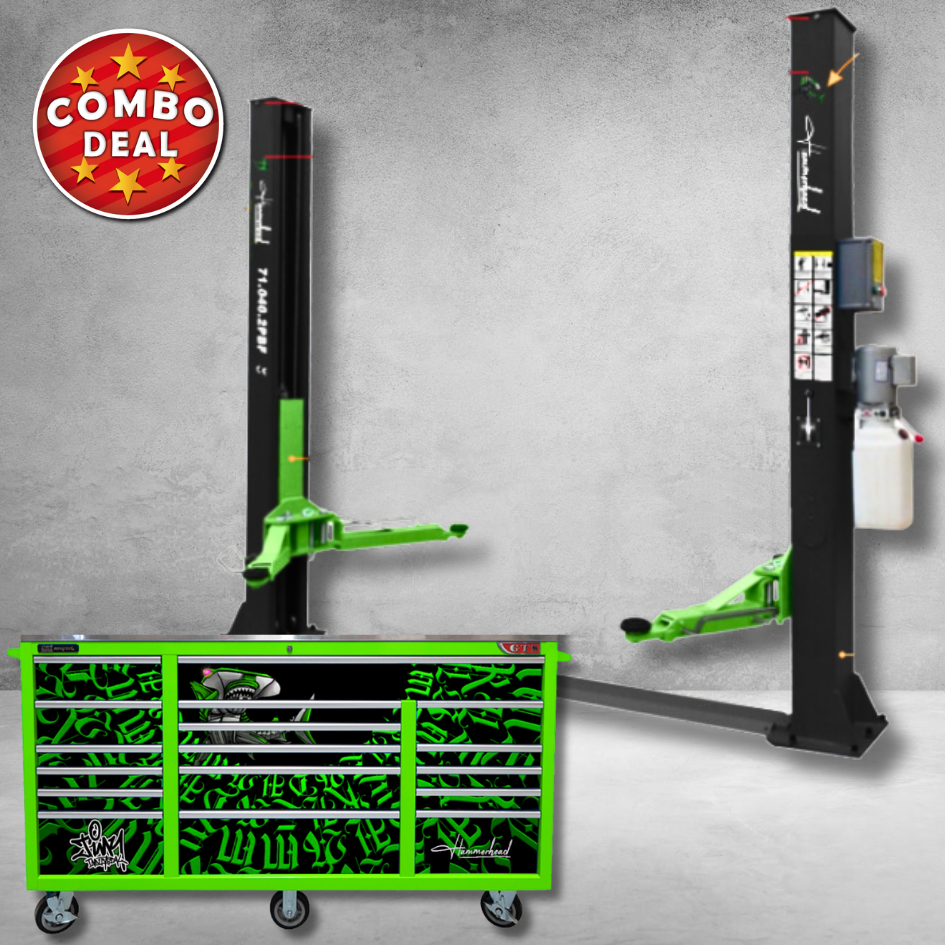

PRODUCT SUMMARY:

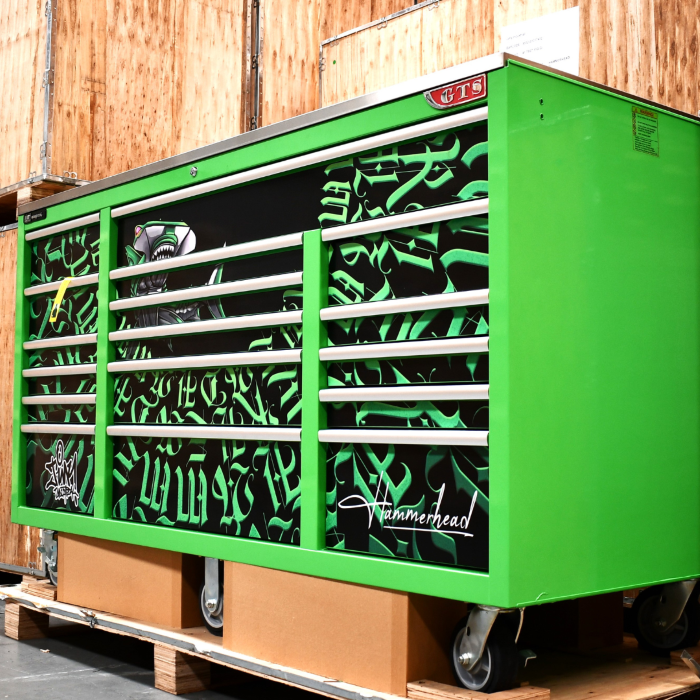

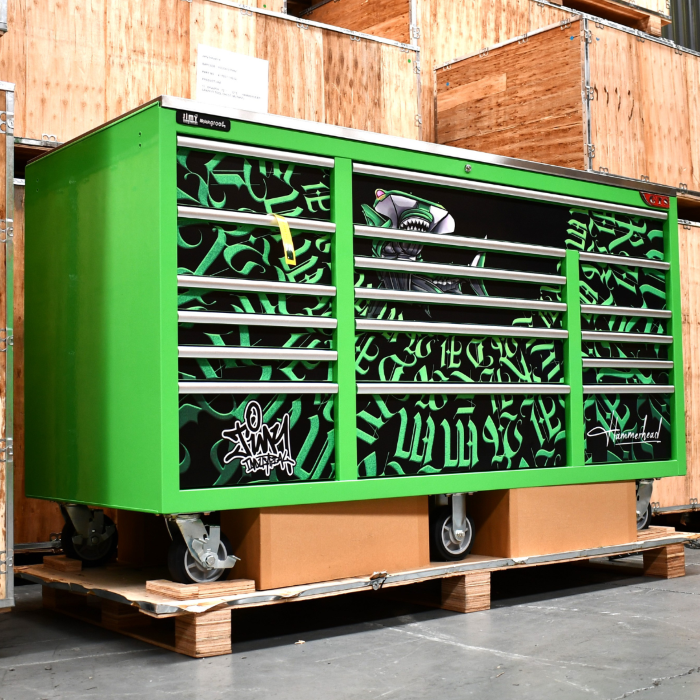

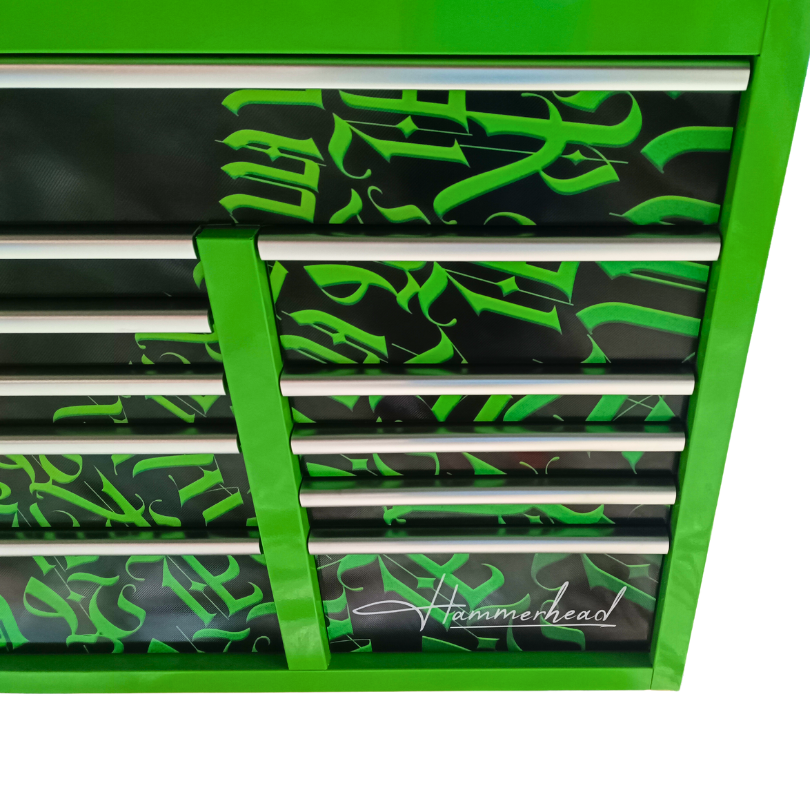

17 DRAWER 72” HAMMERHEAD TOOL BOX
Tool Box Dimensions:
- Roller Cabinet -1850(W) x 760(D) x 890(H)mm
- Stainless Steel Top Bench on Roller Cabinet
- Tough Industrial Powder Coating
- 1.2mm Gauge Steel Thickness
- Fully Lockable

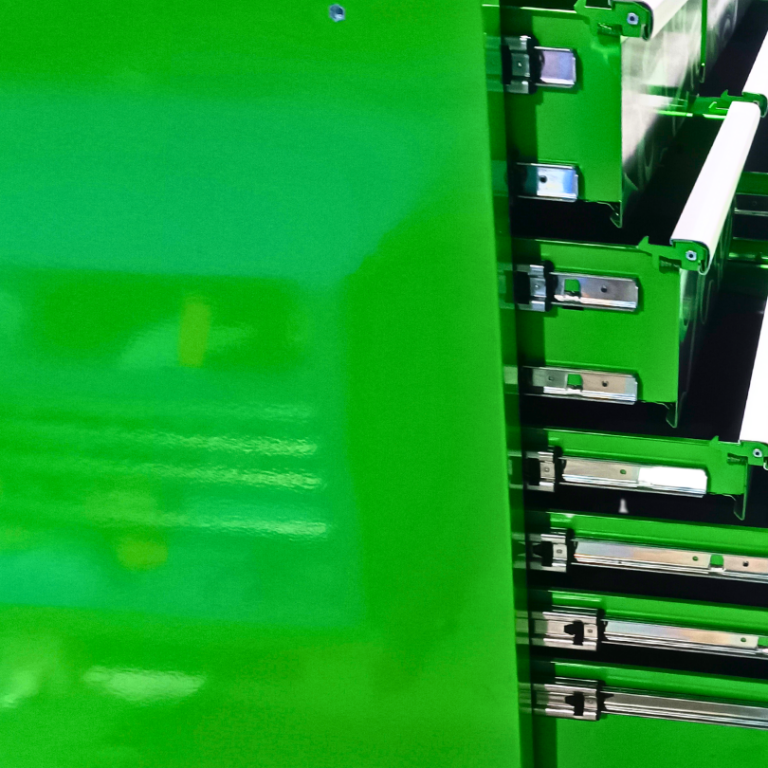

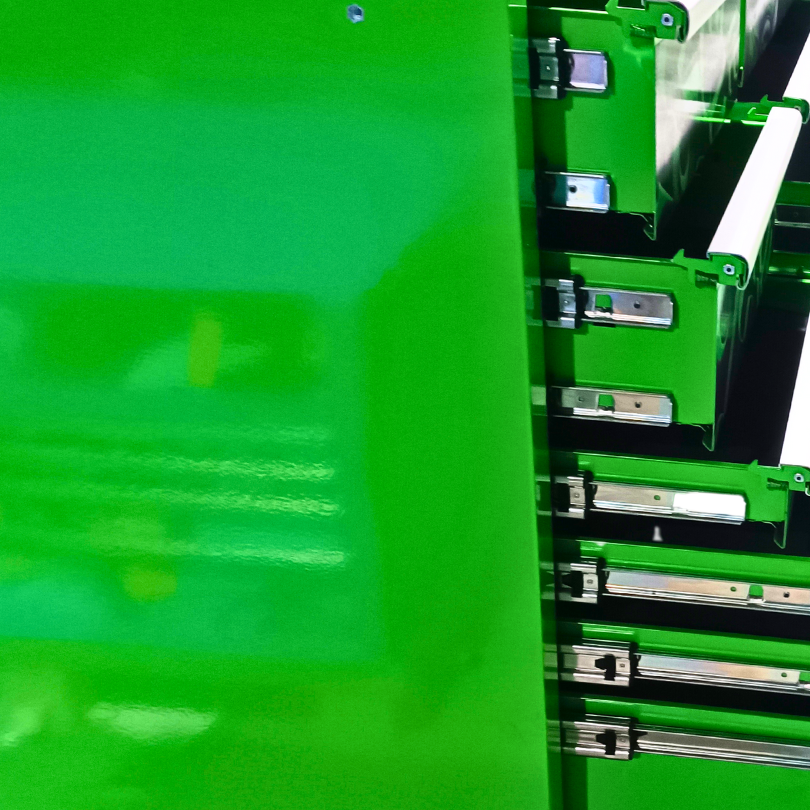

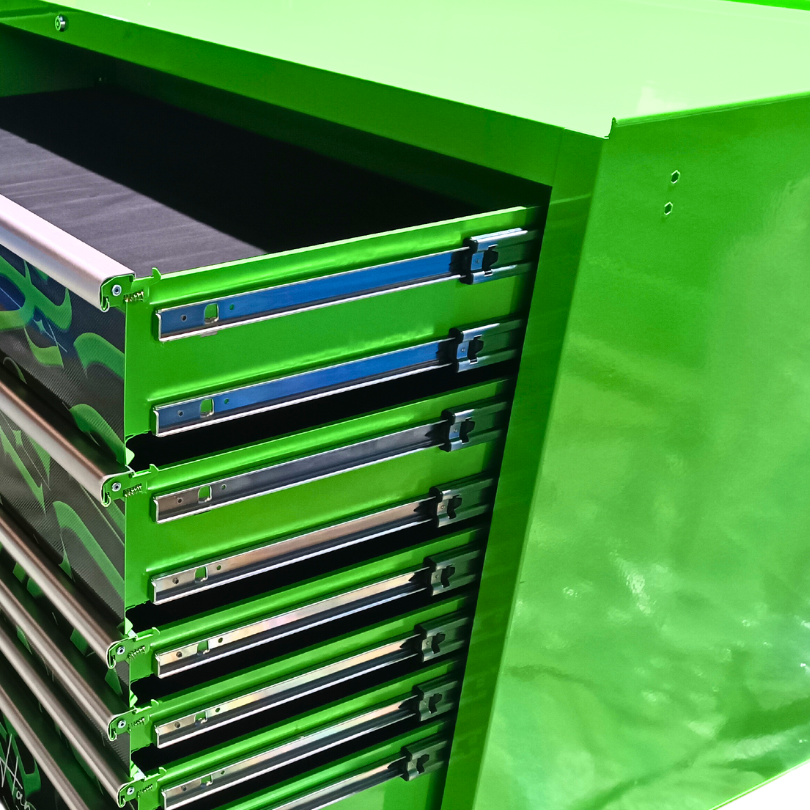

- Ball Bearing Slide Drawers with Twin Slides on the Deeper Drawers
- Click-Lock Drawers
- 6 x Heavy Duty 6” Castors
PRODUCT SPECIFICATIONS:
|
17 DRAWER 72″ HAMMERHEAD ROLLER CABINET |
|
|
No. |
DESCRIPTION |
|
41.TB07.17G(G) |
17 DRAWER 72″ SUPER DEEP HAMMERHEAD ROLLER CABINET |
|
|
Product dimension 1850mm (W) x 760mm (D) x 890mm (H) |
|
|
Drawer inner dimension 1 – 1268mm (W) x 700mm (D) x 150mm (H) |
|
|
3 – 774mm (W) x 700mm (D) x 72mm (H) |
|
|
1 – 774mm (W) x 700mm (D) x 150mm (H) |
|
|
1 – 774mm (W) x 700mm (D) x 228mm (H) |
|
|
2 – 436mm (W) x 700mm (D) x 228mm (H) |
|
|
3 – 436mm (W) x 700mm (D) x 150mm (H) |
|
|
6 – 436mm (W) x 700mm (D) x 72mm (H) |
|
|
Capacity of slide 110 KG per pair of slides |
|
|
Smoothy rolling, 6″x2″ polyurethane caster allow easy quite mobility |
|
|
Stainless steel workbench |
|
|
Size of workbench: 1840mm (W) x 760mm (D) x 28mm (H) |

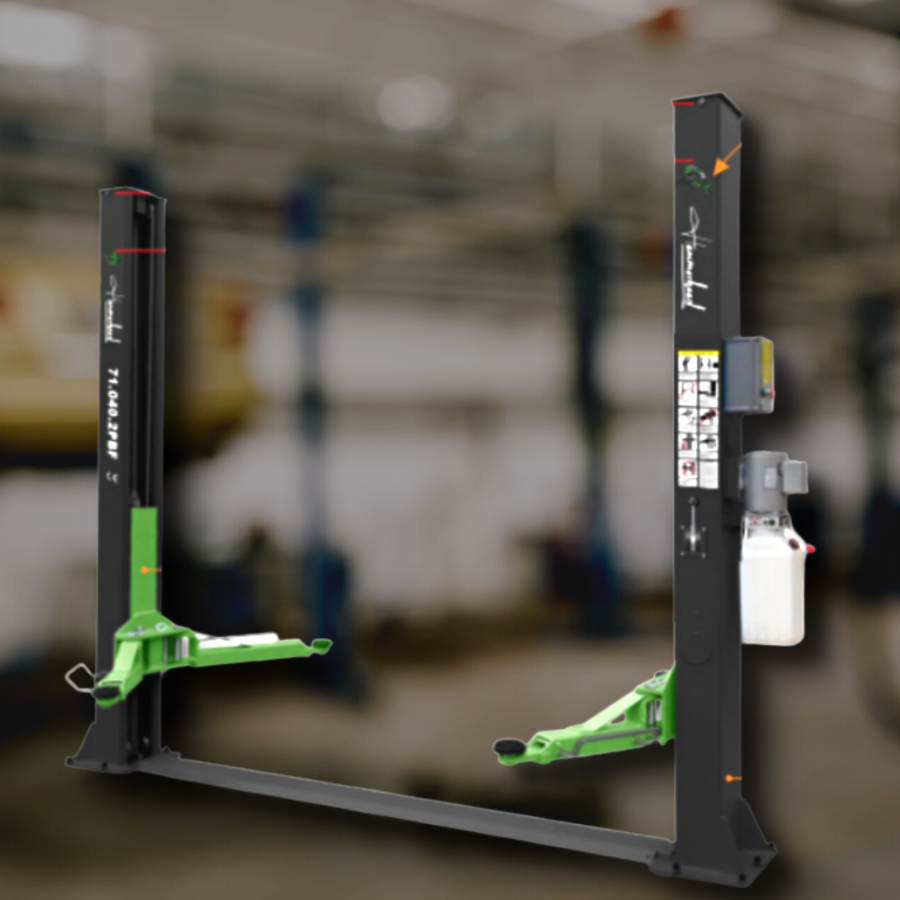

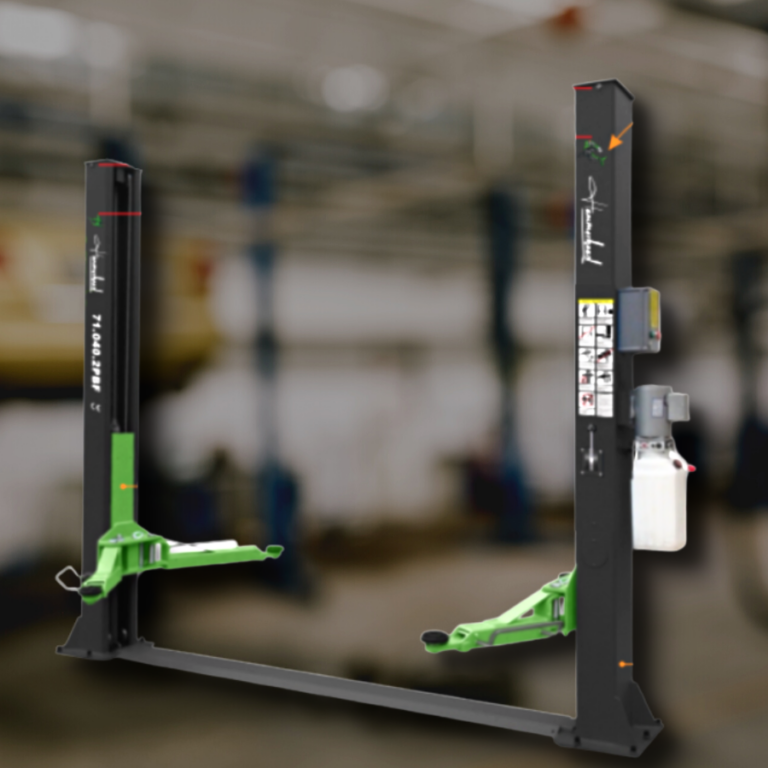

HAMMERHEAD 4.0T BASE FRAME TWO POST LIFT HOIST
Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Perfect for busy workshops, professional garages, and dedicated home enthusiasts, the Hammerhead 4.0 Ton 2 Post Baseframe Hoist is engineered for general servicing, mechanical repairs, wheel and suspension work, and more.
The Hammerhead 4.0 Ton 2 Post Baseframe Hoist offers robust lifting capability with a 4,000 kg (4.0 ton / 8,800 lbs) capacity, making it ideal for sedans, SUVs, 4WDs, and light commercial vehicles. This baseframe model features a low profile 50mm base plate. Suitable for low ceiling heights with only a 2820mm max height!
Its symmetrical post configuration ensures balanced lifting and easy positioning of vehicles, while the dual hydraulic cylinders and durable chain-driven system ensure smooth and reliable performance every time. Whether you’re a professional mechanic or a serious car enthusiast, the Hammerhead 2 Post Baseframe Hoist delivers the strength, safety, and performance you can trust.
Base Plate Hoist Features
- 4000kg / 4 tonne safe load limit
- Lifting height of 1.93m
- Dual hydraulic cylinders with chain driven carriages
- Adjustable screw pads and 4 additional raising adapters are included
- Strong single piece column design
- Durable powder coated finish
- Rubber door protectors
- Symmetric two and three stage arms
- Low profile 50mm high base plate
Safety Features
- Manual safety locking system with safety latches in each column
- Dual point release system
- Heavy duty 5mm thick columns ,6mm carriages
- 9.3mm steel wire rope equalising cables
- Sub-frame design provides additional safety
What’s included?
- 2 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Concrete anchor bolts
What’s Not Included?
- Power Plug
- Installation of unit
- Hydraulic Oil
Area Requirements
- 150mm deep concrete
- Minimum Ceiling Height – 3 Metres
Warranty & Certifications
- Australian Worksafe Registered Design
- 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
- CE Certified
|
SPECIFICATIONS |
|
|
Motor |
240V Single Phase |
|
Lifting Height |
1930MM |
|
Total Height |
2824MM |
|
Total Width |
3365MM |
|
Drive Through Clearance |
2500MM |
|
Base Plate Drive Over Length |
50MM |
|
Lifting Arm Min. Length |
2 stage arm min: 820mm |
|
Lifting Arm Max. Length |
2 stage arm max: 1260mm |
|
Lifting Pad Min. Height |
90MM |
|
Lifting Pad Max. Height |
125MM |
|
Lifting Time |
50 Seconds |
|
Net Weight/Gross Weight |
585KGS |
|
Min. Concrete Thickness |
150MM |
|
MATERIALS |
|
|
Cable Thickness |
9.3MM |
|
Column Thickness |
5MM |
|
Carriage Thickness |
6MM |
