PRODUCT SUMMARY:

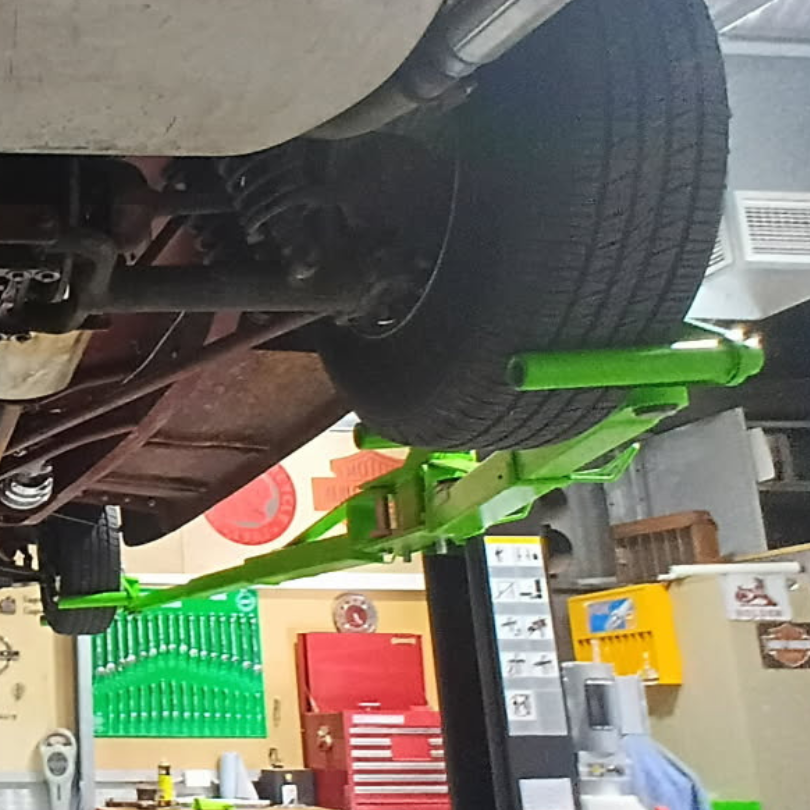

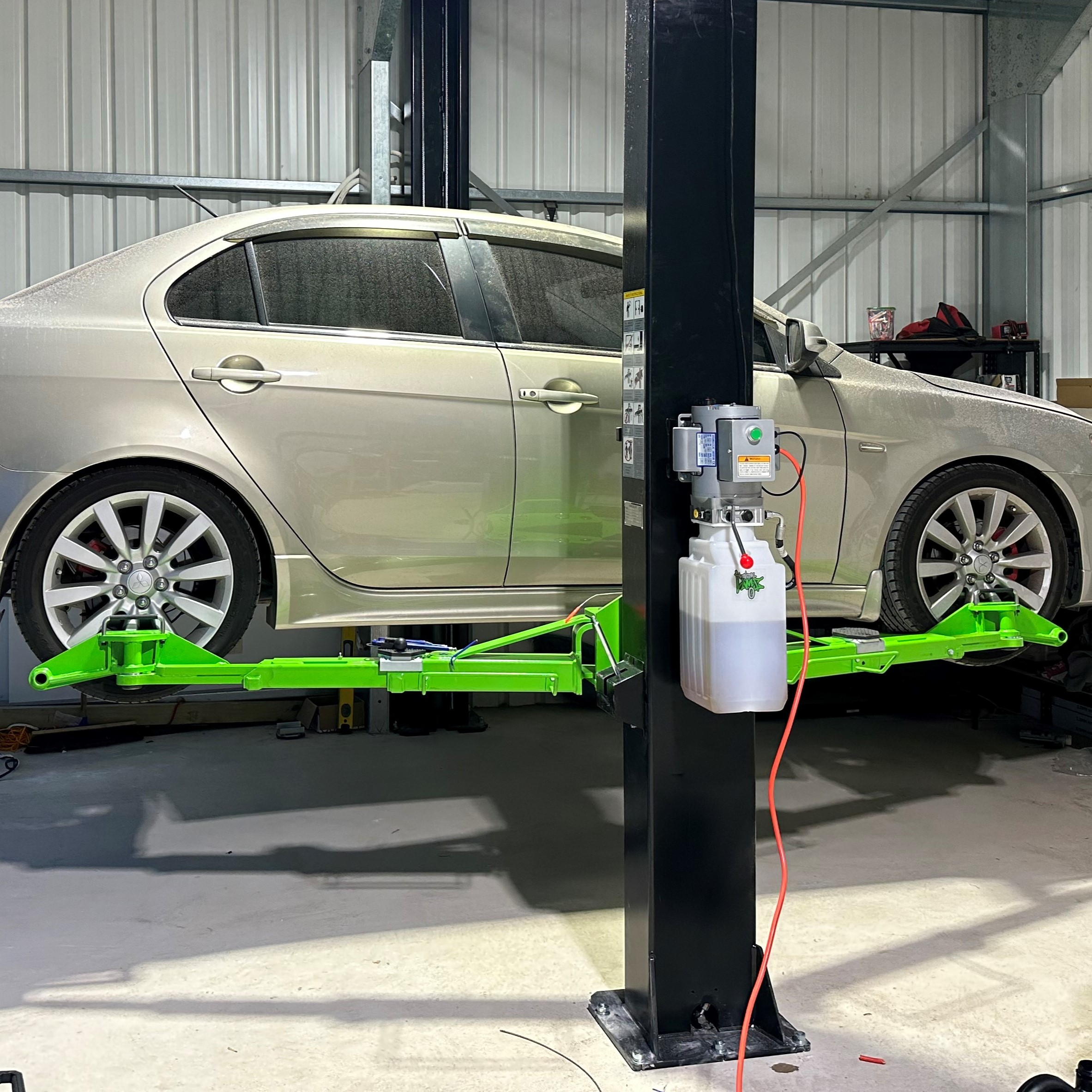

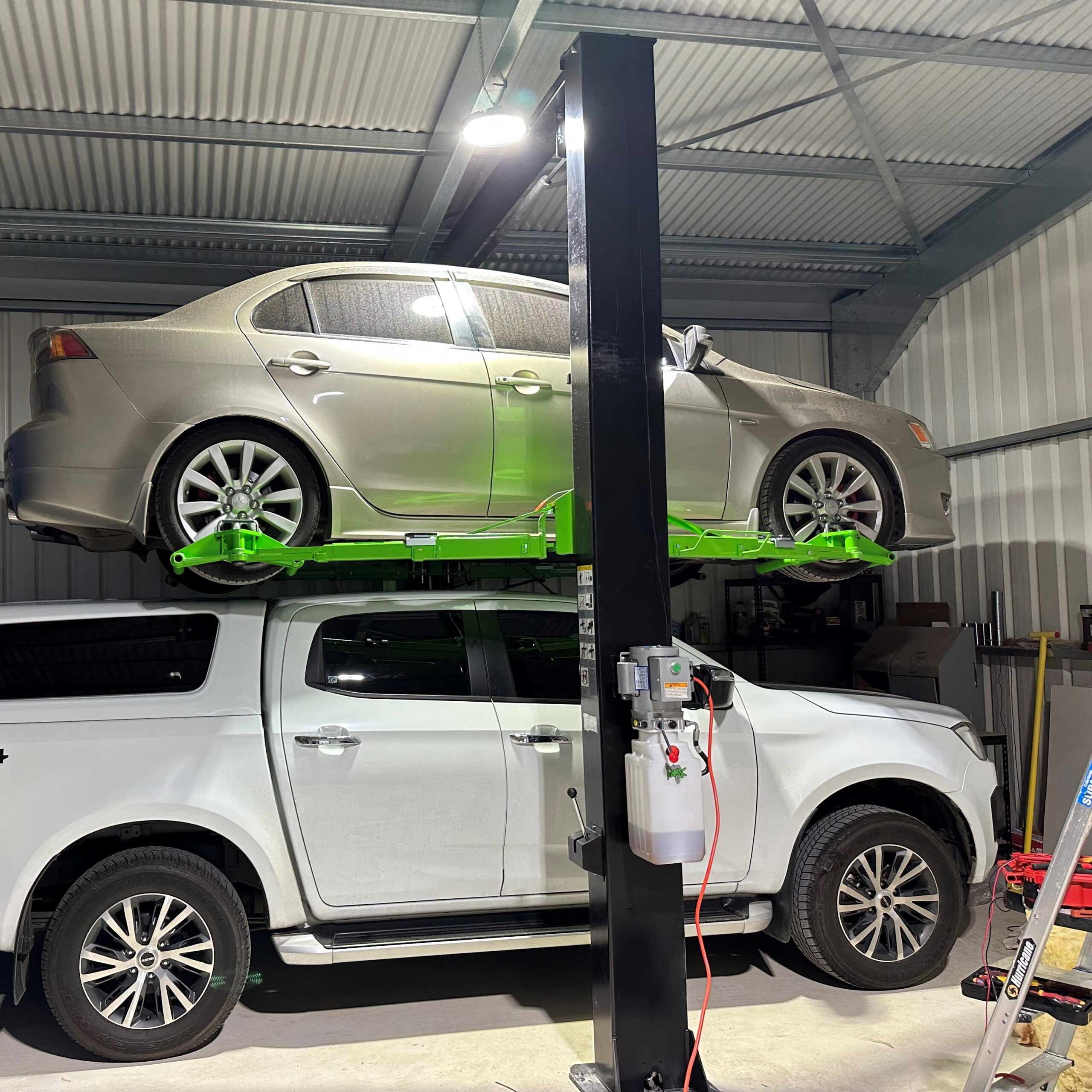

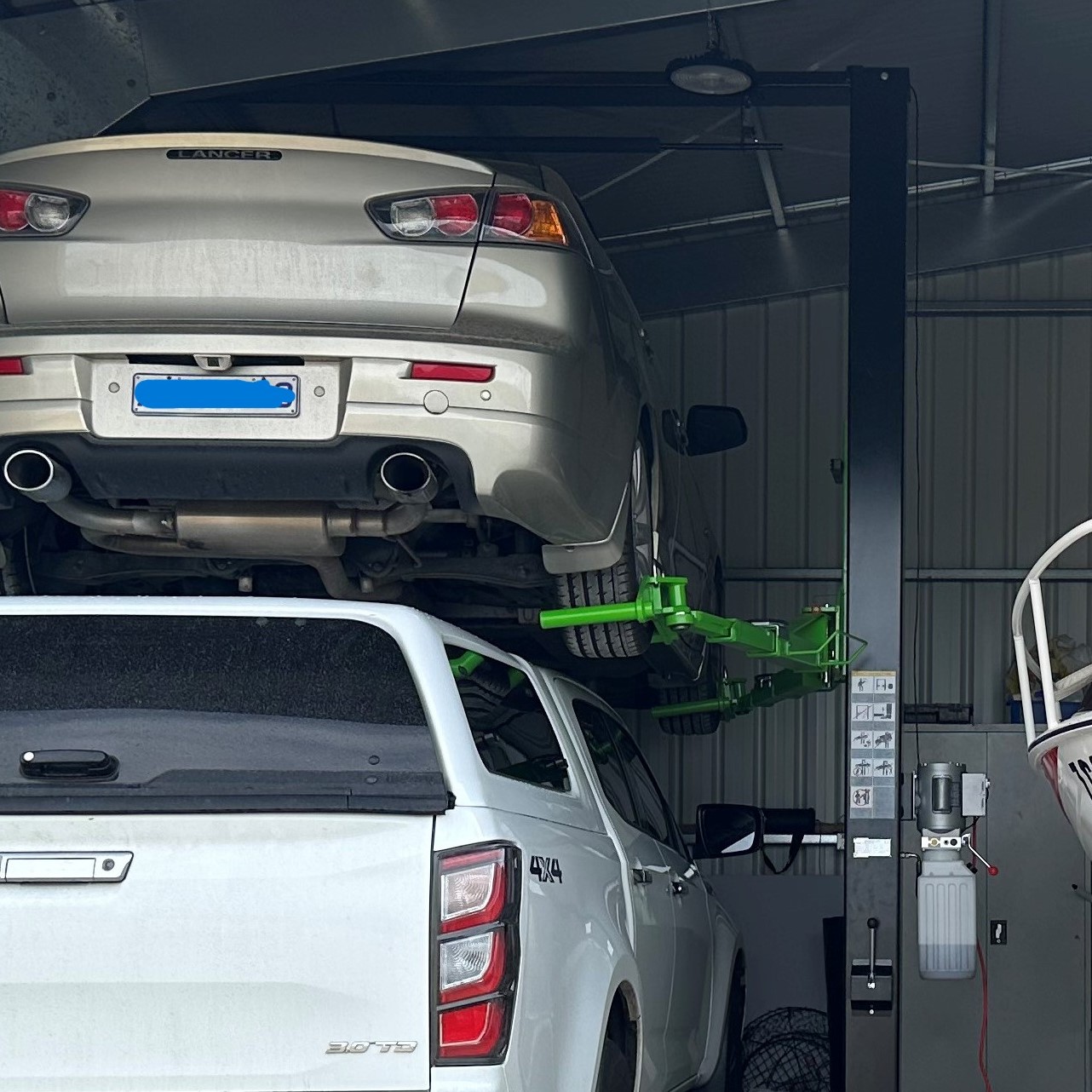

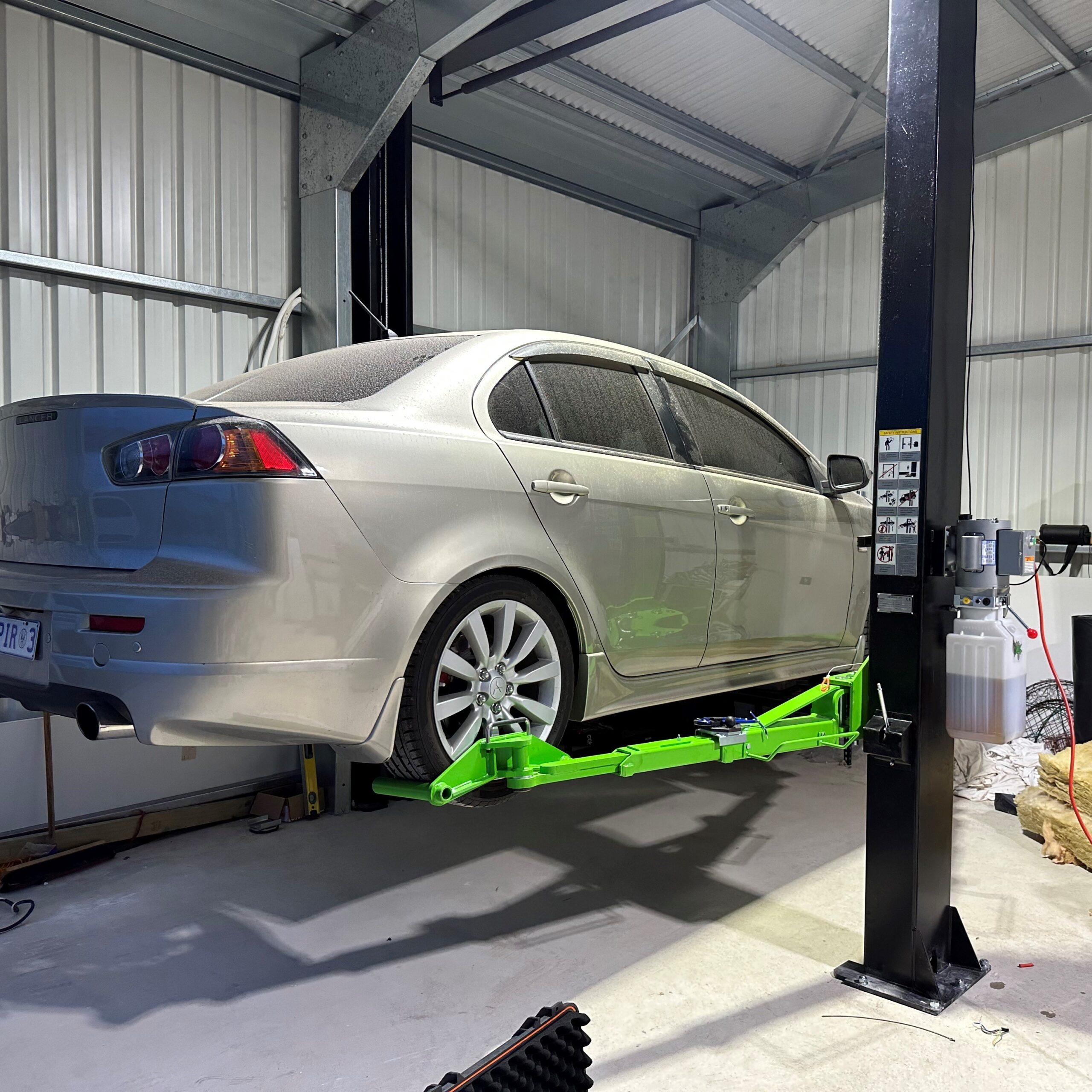

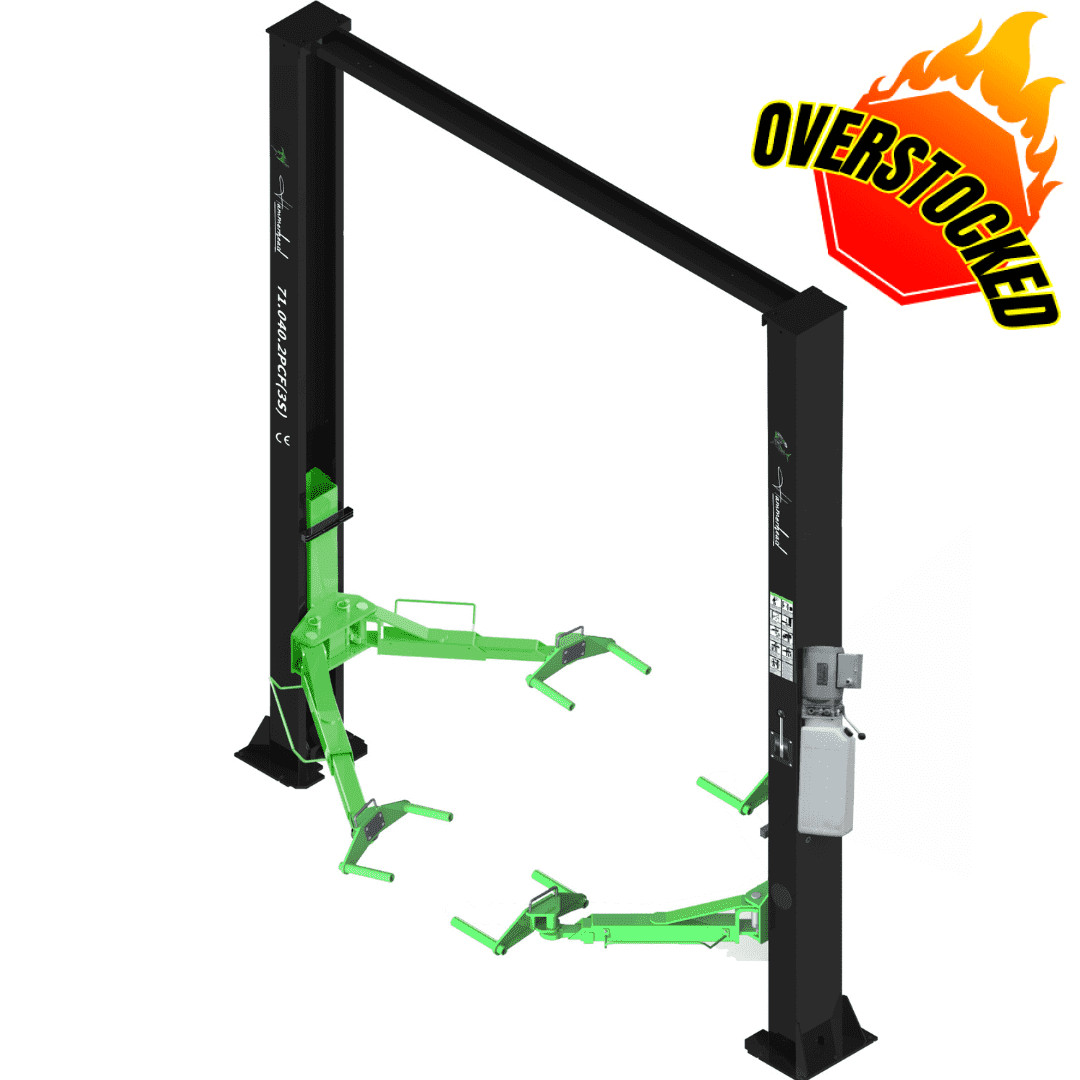

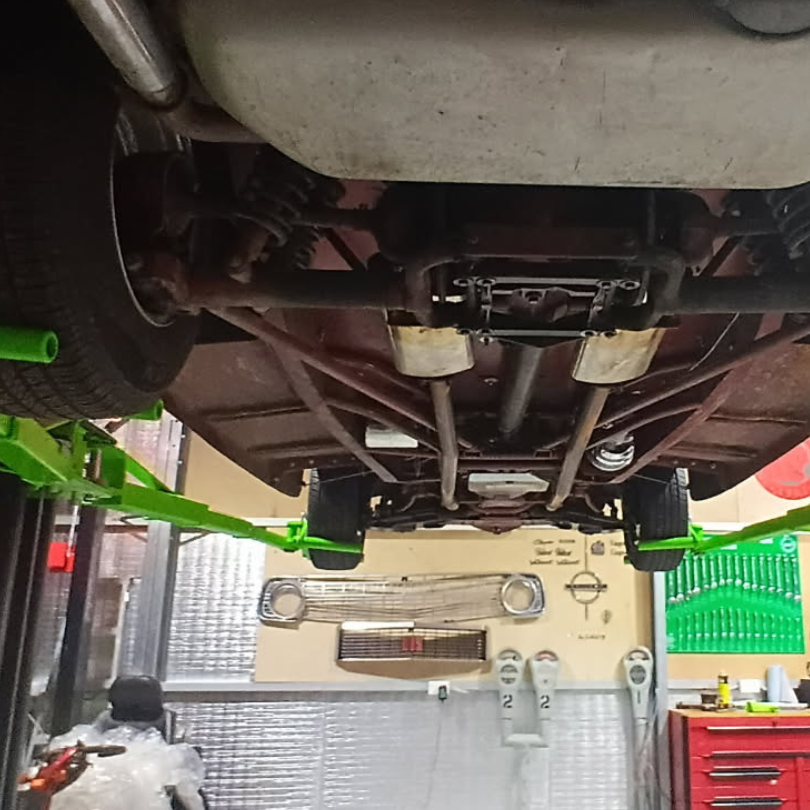

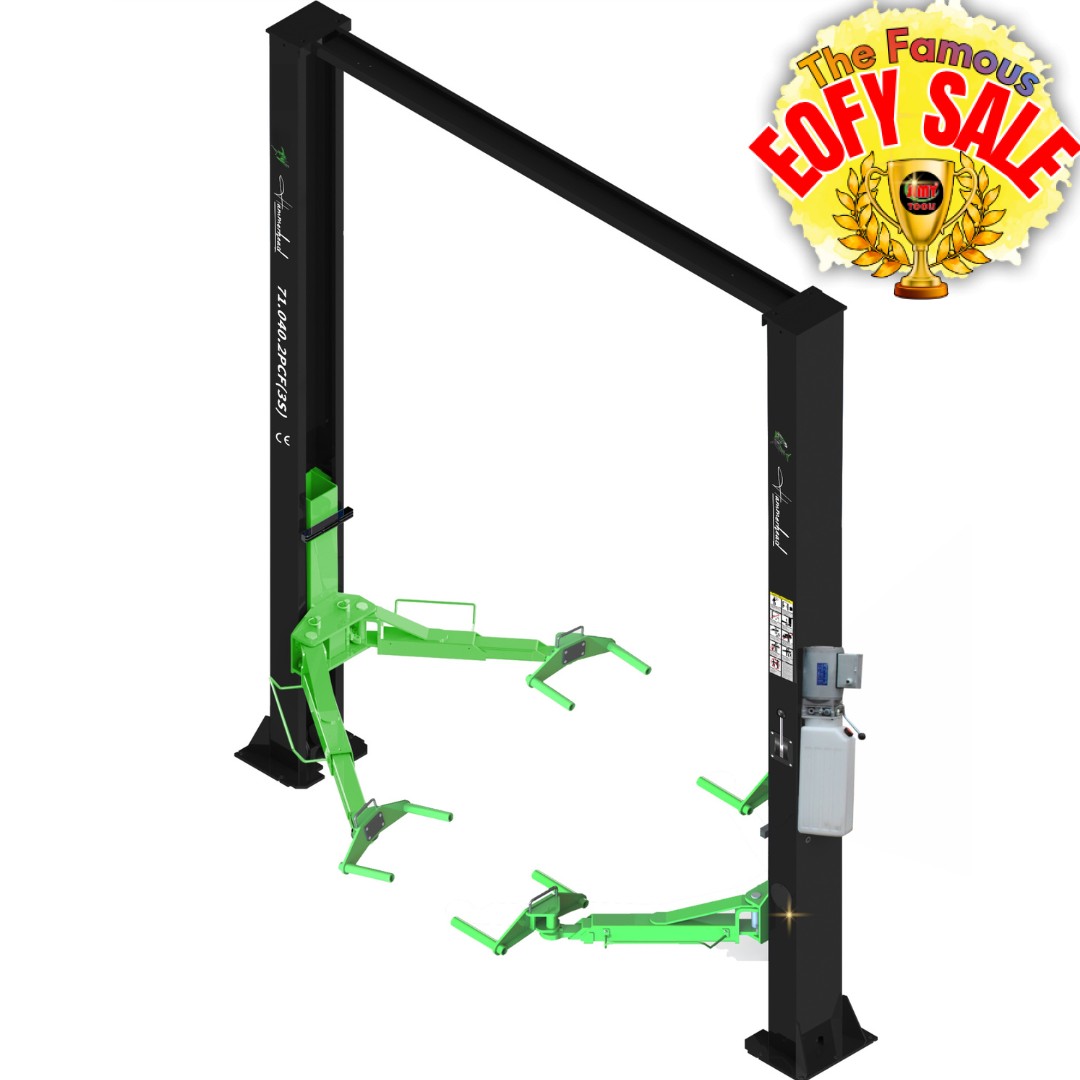

The Hammerhead 4 Ton Clear Floor Hoists now with Wheel Adaptors. These Wheel Adaptors are helpful when lifting electric vehicles or storing cars by allowing the vehicle to be lifted by the wheels themselves rather than the chassis. In most scenarios, this will also allow for a slightly higher lift as the pick up point of the wheels will be lower than the pick up point of the chassis.

Clear Floor Hoist Features

• 4000kg / 4.0 tonne safe load limit
• Lifting height of 1.93m
• Dual hydraulic cylinders lift the carriages by direct hydraulic force
• Adjustable screw pads and 4 additional raising adapters are included

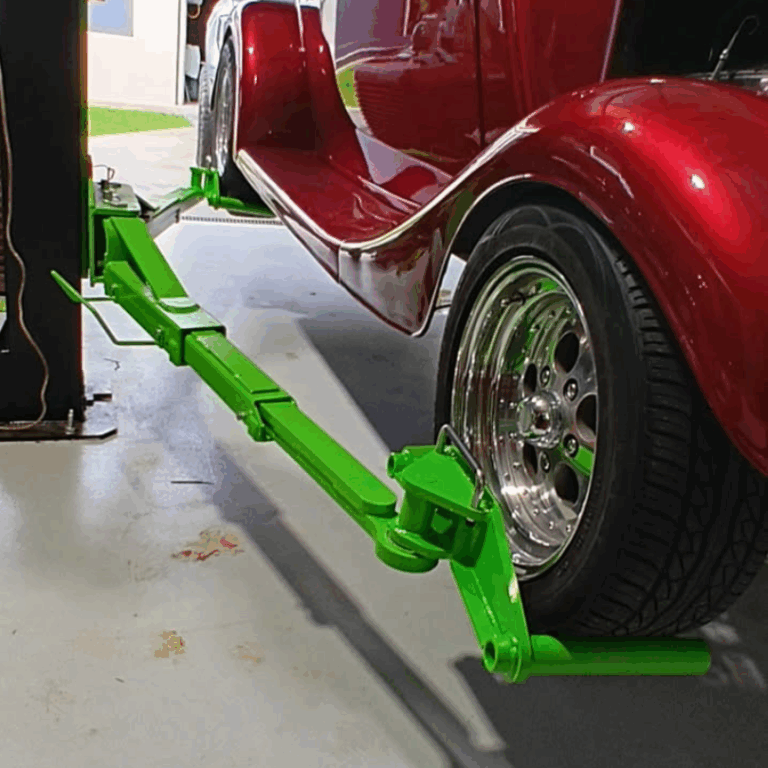

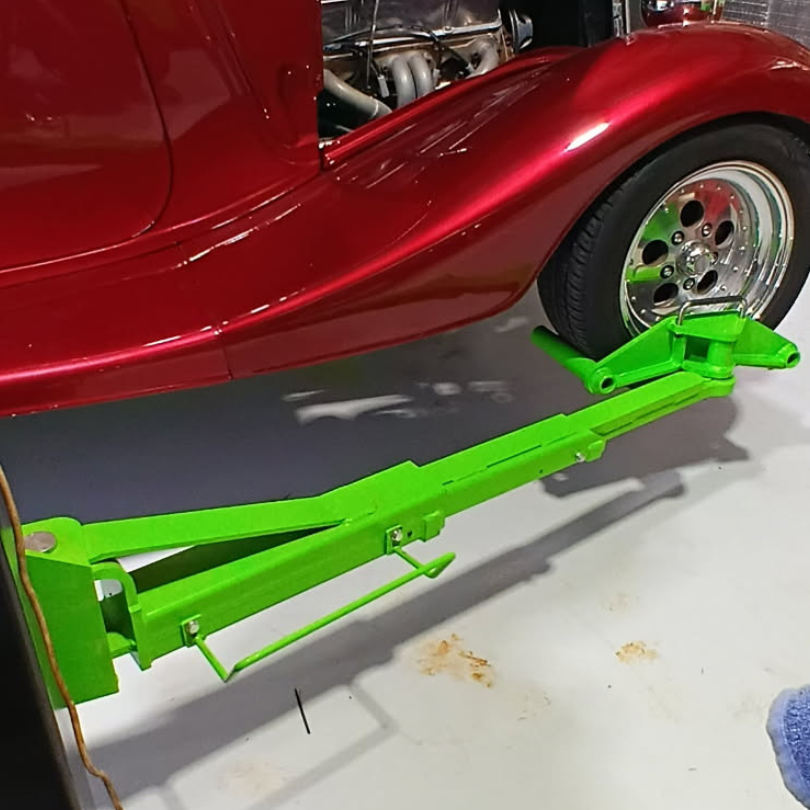

• 4 Piece Wheel Adaptor Attachment
• Strong single piece column design
• Durable powder coated finish
• Rubber door protectors
• Three stage arms
• No floor plate restrictions

Safety Features

• Manual safety locking system with safety latches in each column
• Manual single point release system
• Heavy duty 5mm thick columns 6mm carriages
• 9.3mm steel wire rope equalising cables

What’s Included?

• 2 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts

What’s Not Included?

• Power Plug
• Installation of unit

Area Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 3.8 Metres

Warranty & Certifications

• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified

Hoist Related Questions

• What is the recommend ceiling height of a hoist?
  • The recommended ceiling height of a hoist is based on being able to physically install the hoist. You’ll also need to consider how much space you’ll have to work with underneath the vehicle once lifted from the hoist.
  • The height of your vehicle from the jacking point to the roof + the maximum lifting height of the hoist is the maximum ceiling height that would be required to lift your vehicle.
  • Most people will not need to lift the hoist to the maximum lifting height to work on a vehicle comfortably and in most situations, you’ll be able to work underneath the vehicle as long as your shed meets the minimum ceiling height requirement.
• Which hoist is the best option for me?
  • The main factors for selecting a hoist are. The area that you’ll be storing the hoist, the weight of your vehicles and what you’ll be using the hoists for. If you know the answer to all of these, call our helpful team at 08 8269 9700 and we can assist you with the right hoist for you.
• Is my concrete appropriate for a hoist?
  • We recommend a minimum of 150mm of concrete thickness to safely fix our hoists. If you are laying new concrete, please check with a professional regarding appropriate times to drill into the fresh concrete.
• What about Warranty or Spare Parts?
  • We offer 3 Year Warranty on all Structural, Hydraulic & Electronics. We keep stock of main components if you need a replacement part, otherwise we will organise another option for you.
• How can I get a freight quote?
  • For some Metro delivery areas, freight will be calculated automatically, but in some circumstances, our team will contact you to organise the best freight option for you.
  • If you would like to contact our team, we can send you a quote to give you a full price overview.
