Product Summary:

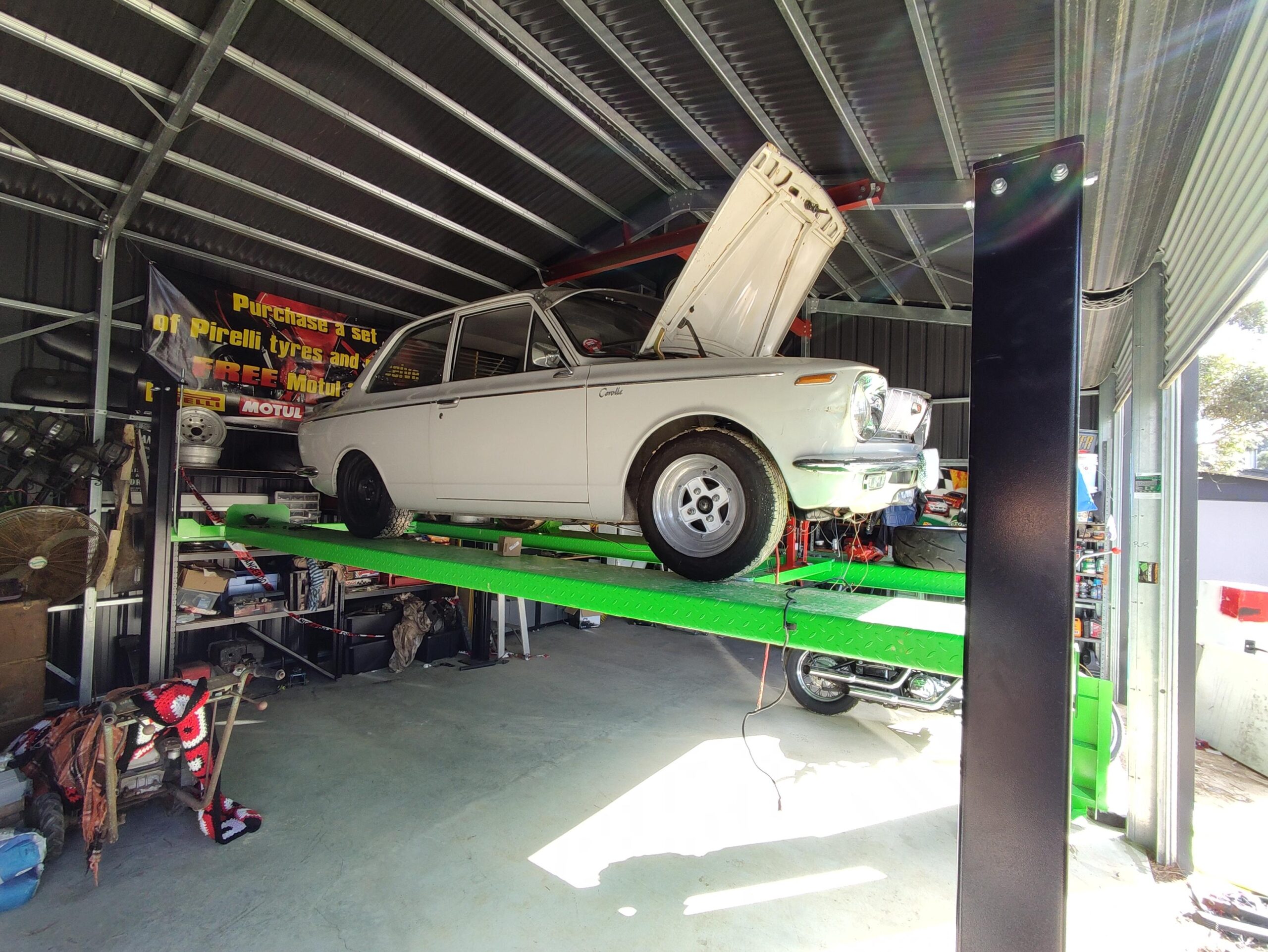

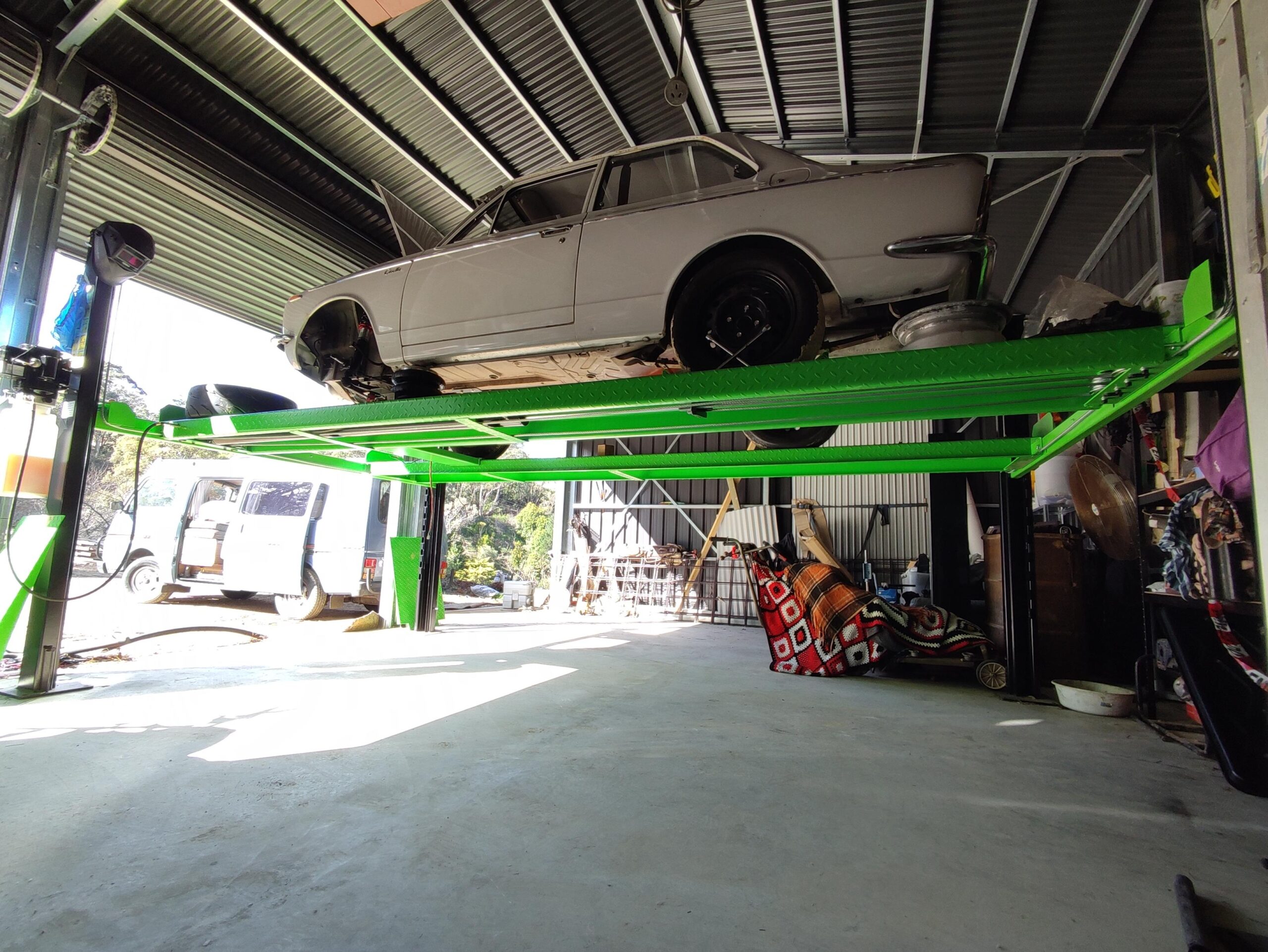

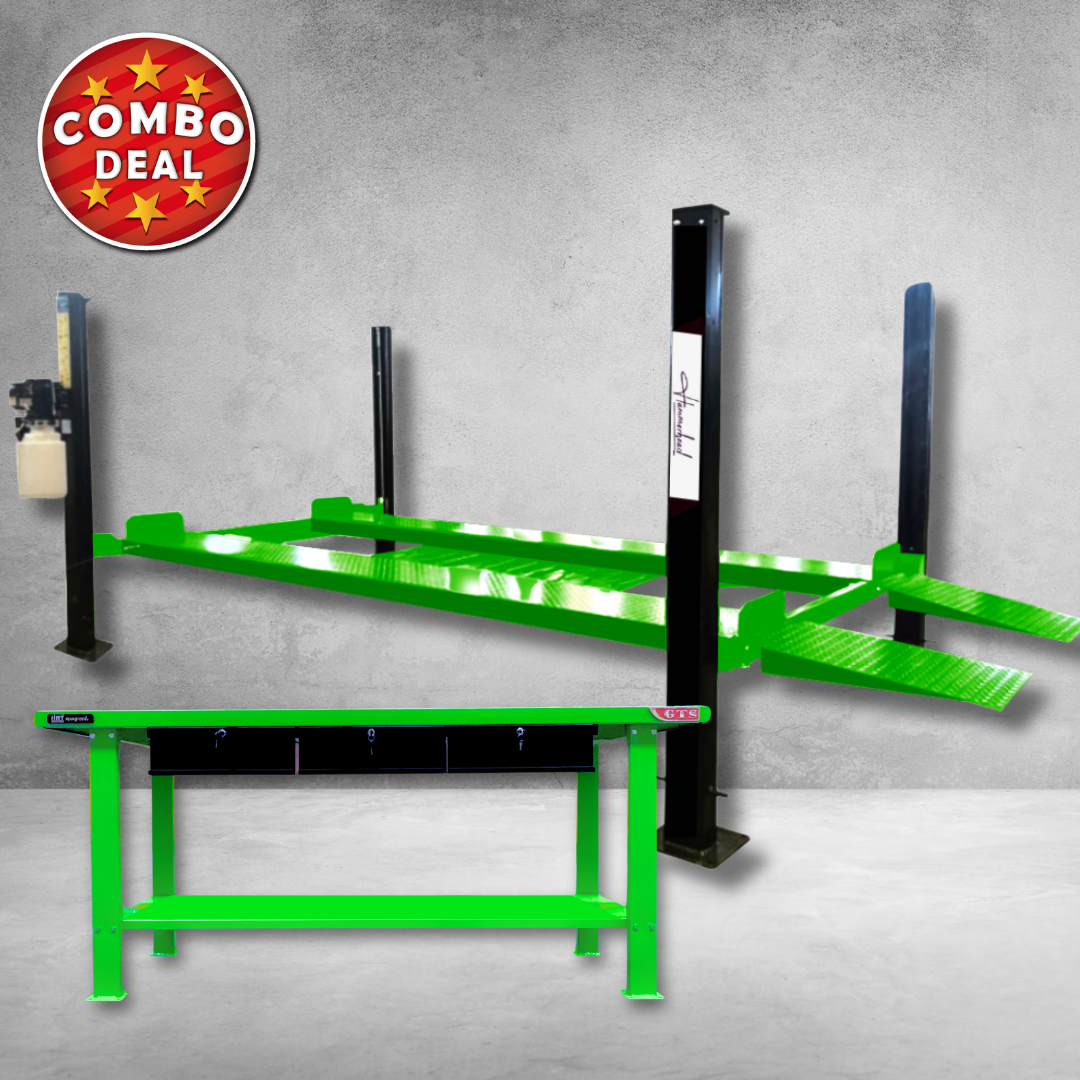

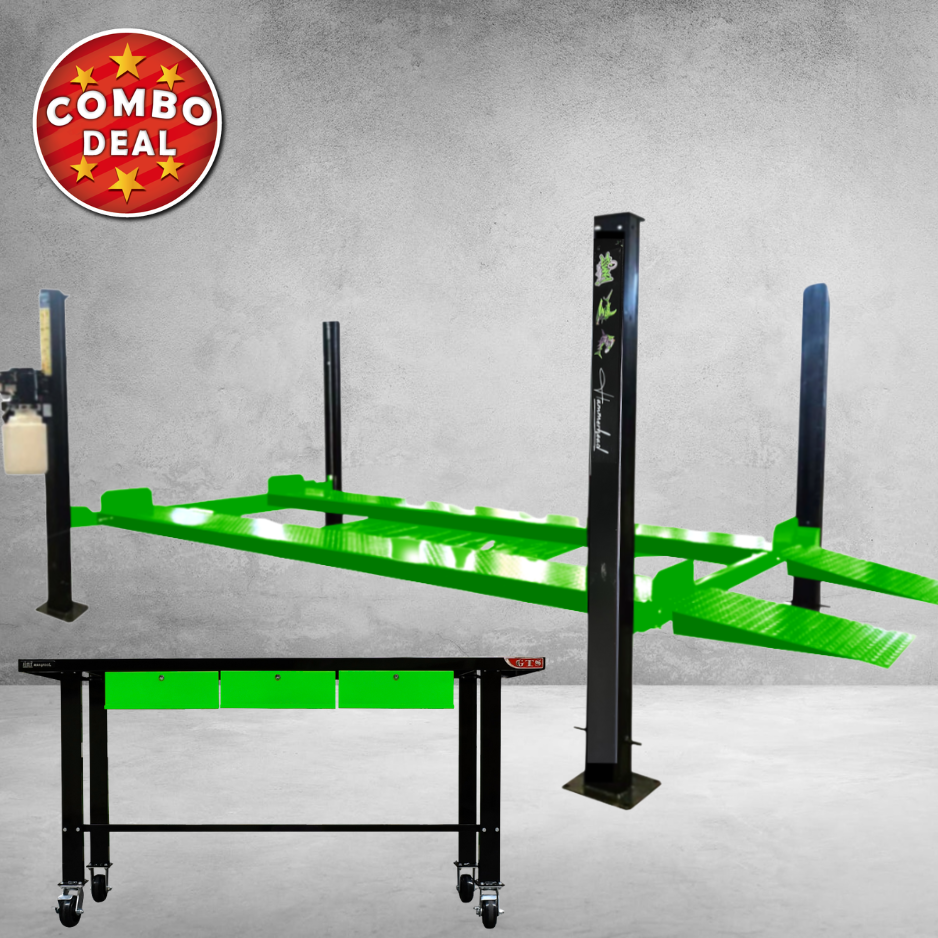

HAMMERHEAD 4.0T FOUR POST PARKING LIFT HOIST
Australia’s Newest Best Value 4 Post Parking Lift has arrived. It’s perfect for recreational or home use. Our Hammerhead Hoists have got you covered.
- FEATURES
- 4000KG / 4.0 Tonne Load Limit
- Powder Coated Finish
- Adjustable lifting height with maximum height of 2.0 m
- One side release for safety locks, easy for descent operation
- External Locking
Safety Features
- 4-point pneumatic safety lock releases
- Additional secondary safety lock when weight comes off the cables
- Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
- Heavy duty 6mm thick cross beams and 5mm thick runways
- 9.53mm steel wire rope equalising cables
- Anti-surge valve
What’s Included?
- 4 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Casters, Jack Tray , Drop Tray
- Detailed installation instructions
Shed Requirements
- 150mm deep concrete at 32mpa
- Minimum ceiling height of 3.6m
Warranty & Certifications
- 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
- CE Certified
|
SPECIFICATIONS |
||
|
Motor |
240V 20A Single Phase |
|
|
Lifting Height |
2000MM |
|
|
Total Height |
2328MM |
|
|
Total Width |
3080MM |
|
|
Overall Length Not Including Ramps |
4831MM |
|
|
Overall Length Including Ramps Down |
5572MM |
|
|
Lifting Time |
50 Seconds |
|
|
Weight |
815KG |
|
|
Min. Concrete Thickness |
150MM |
|
|
MATERIALS |
||
|
Cable Thickness |
10MM |
|
|
Column Thickness |
6MM |
|
|
Carriage Thickness |
6MM |
|
3 DRAWER 79” HEAVY DUTY WORKBENCH (MUTANT)
Colour: Green/Black
Product Description:
Jimy Tools NEW Workshop Benches are the perfect new addition to your workspace! These workbenches have plenty of storage space in our fully lockable drawers and a good workspace on the worktop. The tough high gloss enamel paint finish is designed to provide years of protection against normal wear and tear. This large workbench can be bolted into the floor to be extra secure.
Also perfectly suited to colour match all Hammerhead Hoists & Workshop Equipment
Description:
- 53 Litre Storage Capacity
- 3x Lockable Drawers
- Oil, grease and dirt resistant paint for easy clean up
- Load Capacity: 450 kg
Dimensions
Workbench Dimensions:
- 2000mm (W) x 640 (L) x 865mm (H)
3x Drawers Dimensions (Each):
- 449mm (W) x 391 (L) x 142mm (H)
Weight:
- 73kg
Warranty:
12 Months Warranty
