PRODUCT SUMMARY:

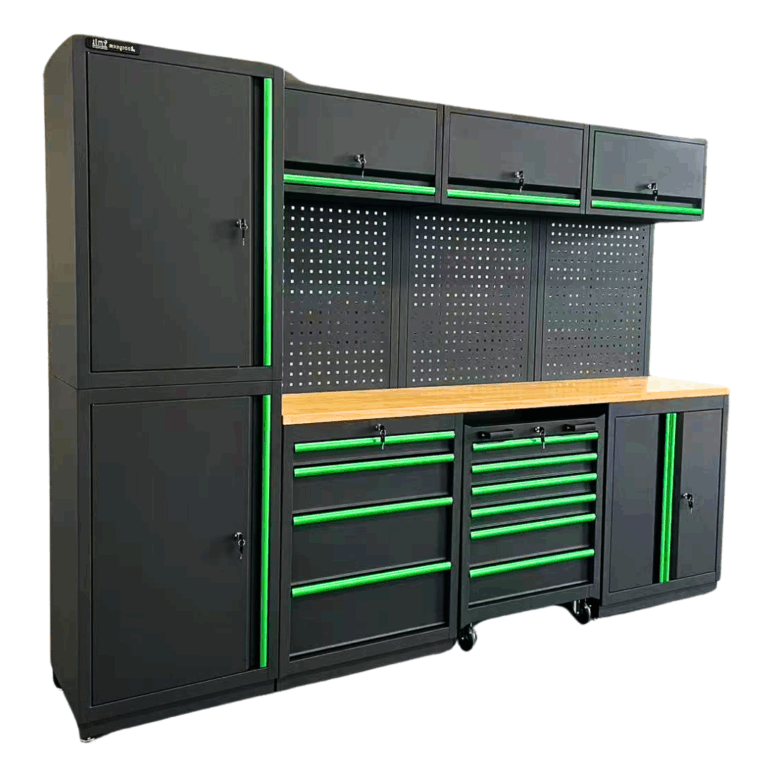

10 DRAWER 98″ GARAGE SERIES WORKSTATION
Part number: 41.TBWS.20
PRODUCT SUMMARY:
The Jimy Tools Garage Series Workstation is a premium storage and organisation solution designed to elevate your home garage or shed. Built with a full welded steel structure and finished in a scratch and stain-resistant black powder coat with green trim, this workstation is as tough as it is stylish.
For convenience and safety, the workstation includes magnetic door latches, , adjustable levelling legs and back slots for wall anchoring to prevent tipping. Delivered pre-assembled on pallets, setup is fast and straightforward.
This workstation blends functionality, durability, and professional-grade design, making it an essential for any work area.
KEY FEATURES:
- 1215KG Total Weight Capacity
- Scratch and stain resistant powder coated finish
- Full welded structure
- Shelves are adjustable in 100mm increments
- Each cabinet is fully lockable
- Magnetic door latches
- Adjustable leveling legs to keep the cabinets level and grounded
- Back slots for connecting to the wall to prevent the cabinets from tipping
- Ball bearing slides for the drawer cabinets, the drawer slides are rated to 45KG
- 30mm rubber wood work top
- Pre-assembled and delivered on pallets
SPECIFICATIONS:
|
BOX COLOUR |
Black |
|
TRIM COLOUR |
Green |
|
STEEL THICKNESS |
0.6-0.7mm |
|
OVERALL WIDTH |
2485mm (98″) |
|
OVERALL HEIGHT |
1900mm |
|
BENCH |
L: 1800mm |
|
LOCKERS (2 Pieces) |
W: 685mm |
|
WALL CABINETS |
W: 1800mm |
|
WHAT’S INCLUDED? |
Carton 1: Wall Cabinet, Standing Cabinet Top (Left), Standing Cabinet Bottom (Left) |
|
|
Carton 2: Wall Cabinet |
|
|
Carton 3: Wall Cabinet, Double Door Cabinet |
|
|
Carton 4: 6 Drawer Cabinet |
|
|
Carton 5: 4 Drawer Cabinet |
|
|
Carton 6: Pegboard, Standing Column |
|
|
Carton 7: Wood Bench Top |
|
|
|
|
Freight Information: |
|
|
|
|
|
PACKAGE SIZE |
TBA |
|
TOTAL WEIGHT |
Gross Weight: 255kgs |
JIMY TOOLS HAMMERHEAD 4.0T FOUR POST PARKING LIFT HOIST
Part number: 71.040.4PN
PRODUCT SUMMARY:
Australia’s Newest Best Value 4 Post Parking Lift has arrived. It’s perfect for recreational or home use. Our Hammerhead Hoists have got you covered.
- FEATURES
- 4000KG / 4.0 Tonne Load Limit
- Powder Coated Finish
- Adjustable lifting height with maximum height of 2.0 m
- One side release for safety locks, easy for descent operation
- External Locking
Safety Features
- 4-point pneumatic safety lock releases
- Additional secondary safety lock when weight comes off the cables
- Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
- Heavy duty 6mm thick cross beams and 5mm thick runways
- 9.53mm steel wire rope equalising cables
- Anti-surge valve
What’s Included?
- 4 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Oil Drip Trays are available to keep your area clean from any spills.
- Castor Wheels available upon request
What’s Not Included?
- Power Plug
- Installation of unit
Shed Requirements
- 150mm deep concrete
- Minimum Ceiling Height – 2.4 Metres
Warranty & Certifications
- 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
- CE Certified
|
SPECIFICATIONS |
|
|
Motor |
240V Single Phase |
|
Lifting Height |
2000MM |
|
Total Height |
2328MM |
|
Total Width |
3080MM |
|
Overall Length Not Including Ramps |
4831MM |
|
Overall Length Including Ramps Down |
5572MM |
|
Lifting Time |
~50 Seconds |
|
Weight |
815KG |
|
Min. Concrete Thickness |
150MM |
|
MATERIALS |
|
|
Cable Thickness |
10MM |
|
Column Thickness |
6MM |
|
Carriage Thickness |
6MM |
