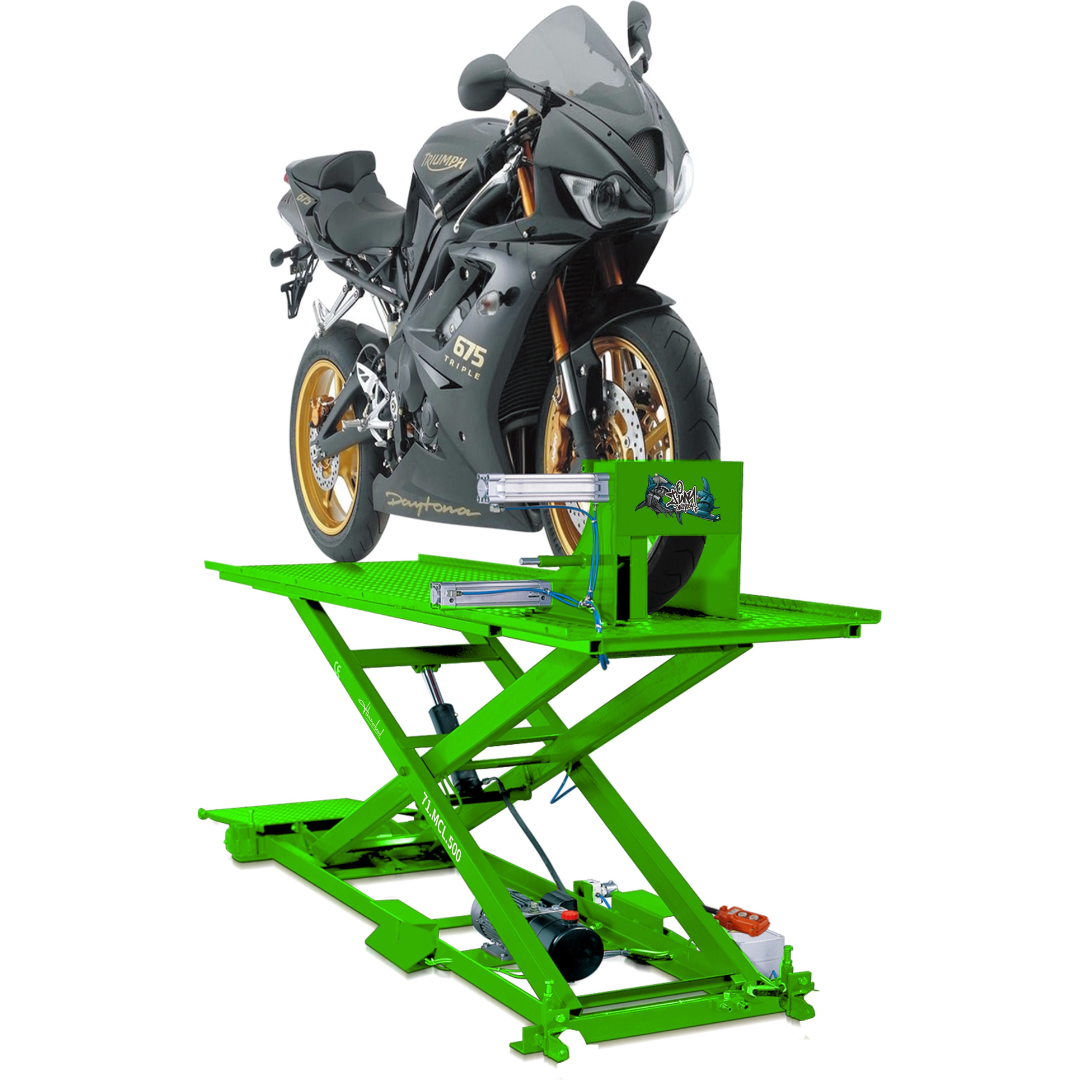

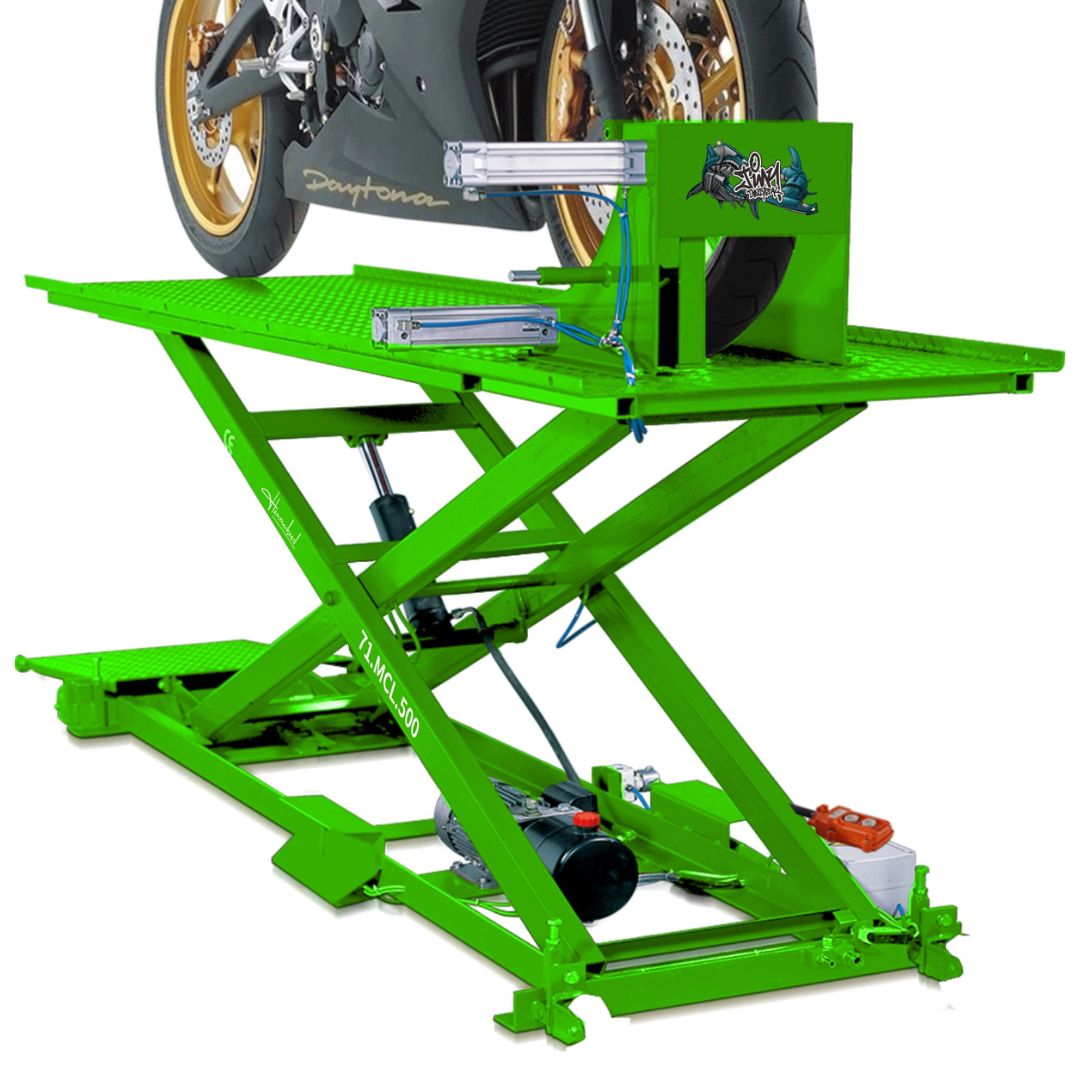

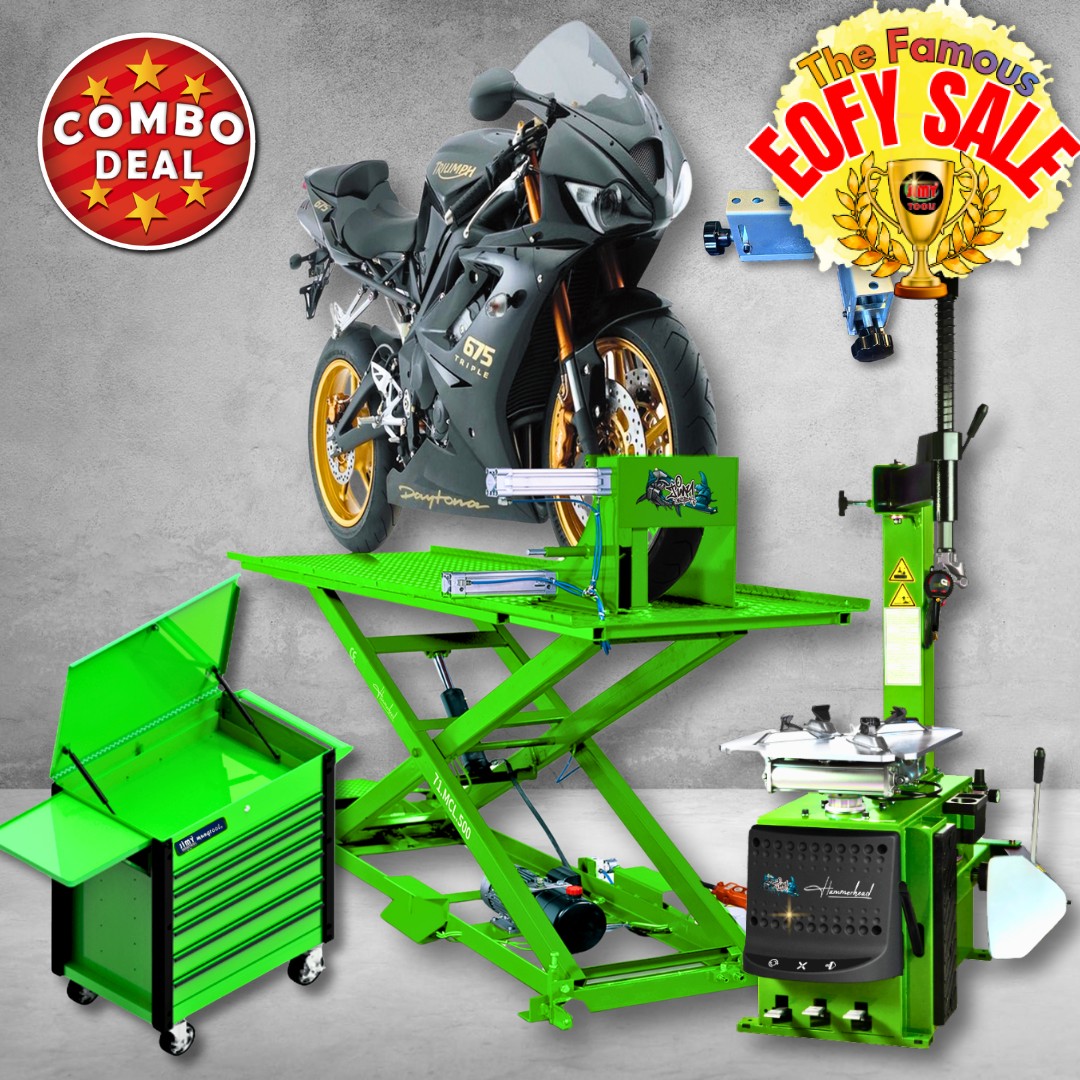

Product Summary:
The Hammerhead Motorcycle Scissor Lift is the ideal lift for working on most types of Motorcycles. With a lifting capacity of 500KG and a lifting height of 1200mm – This lift suits a majority of these vehicles.
Features:
- 500KG Safe Load Limit
- Lifting height of 1200mm
- Convenient and portable structure, for tyre and wheelbase maintenance
- Electrically Drive with Pneumatic Unlock
- Double safety devices, hydraulic locking and mechanical safety clamp, ensure stability
- Two pedal switches to control the pneumatic front tyre clamp.
Specifications:
|
Max Lifting Weight |
500kg |
|
Minimum Height |
200mm |
|
Max Lifting Height |
1200mm |
|
Table Size |
2480 (L) x 720 (W) MM |
|
Ramp Size |
690 (L) x 545 (W)MM |
|
Net Weight of Lift |
230KG |
Warranty & Certifications
- 3 Year Australian Warranty – Includes Structure & pneumatics
- CE Certified
HAMMERHEAD CAR TYRE CHANGER
Product Summary:
The semi-automatic tyre changer is especially designed for demounting & mounting tyres from wheel rims. Includes bead breaker & Tyre Inflator.
Car Tyre Changer fitting up to a 24” wheel with semi-automatic side swing arm.
You can also purchase a Motorbike Wheel Adapter as an accessory for this machine.
Complete your workshop setup with Jimy Tools’ Digital Wheel Balancer and Hoist Range
Specifications:
|
External Locking Rim Dimensions |
10-21″ |
|
Internal Locking Rim Dimensions |
12-24″ |
|
Max. Wheel Diameter |
1040mm (41″) |
|
Max. Wheel Width |
355mm (14″) |
|
Working Pressure |
8-10bar |
|
Power Supply |
220V / (1 ph) / 15A Plug |
|
Optional Motor Power |
0.75/1.1kw |
|
Max. Rotating Torque (Turntable) |
1078 Nm |
|
Overall Dimension |
960 x 760 x 930 mm |
|
Net Weight |
172kg |
|
Noise Level |
75 Db |
Warranty:
12 Months Warranty

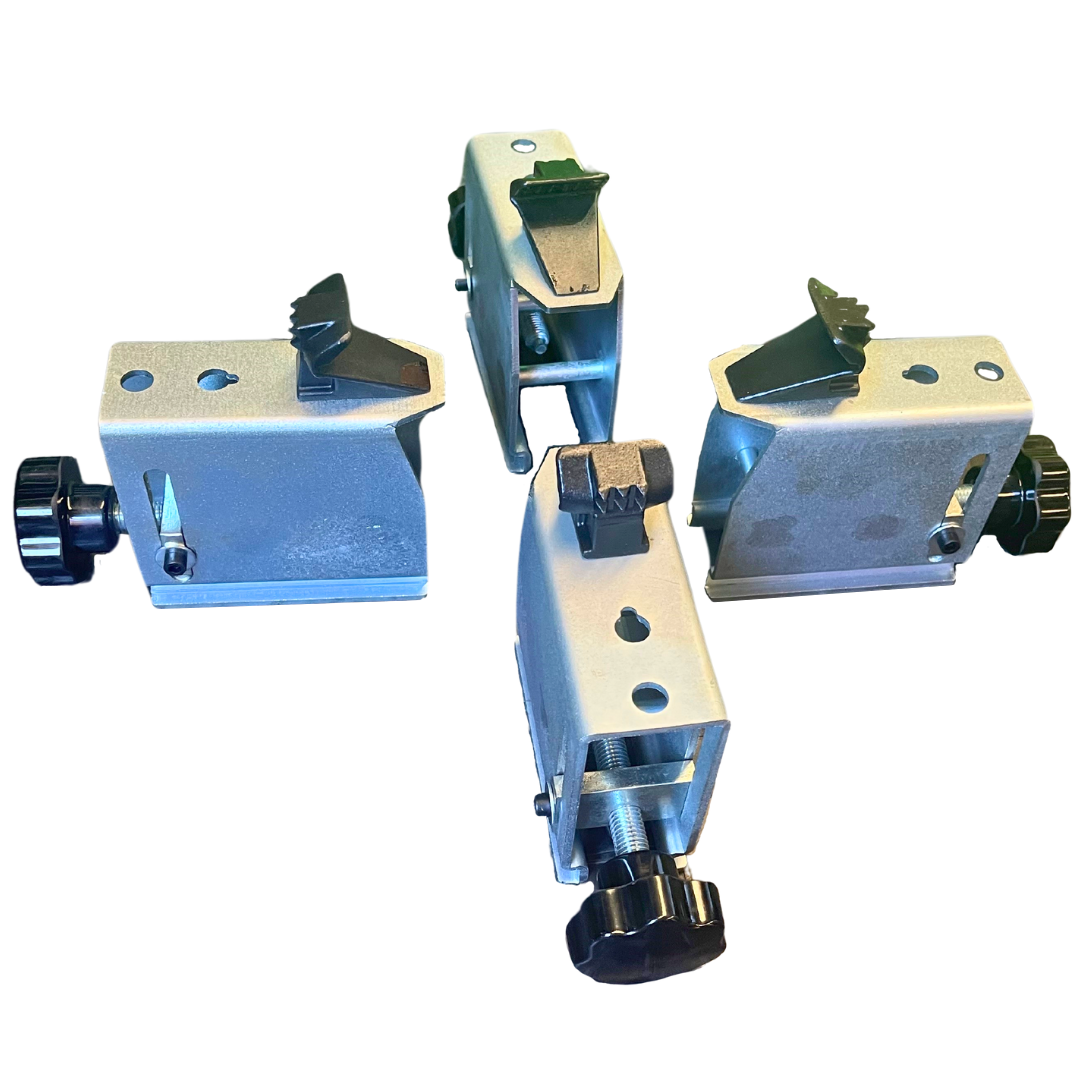

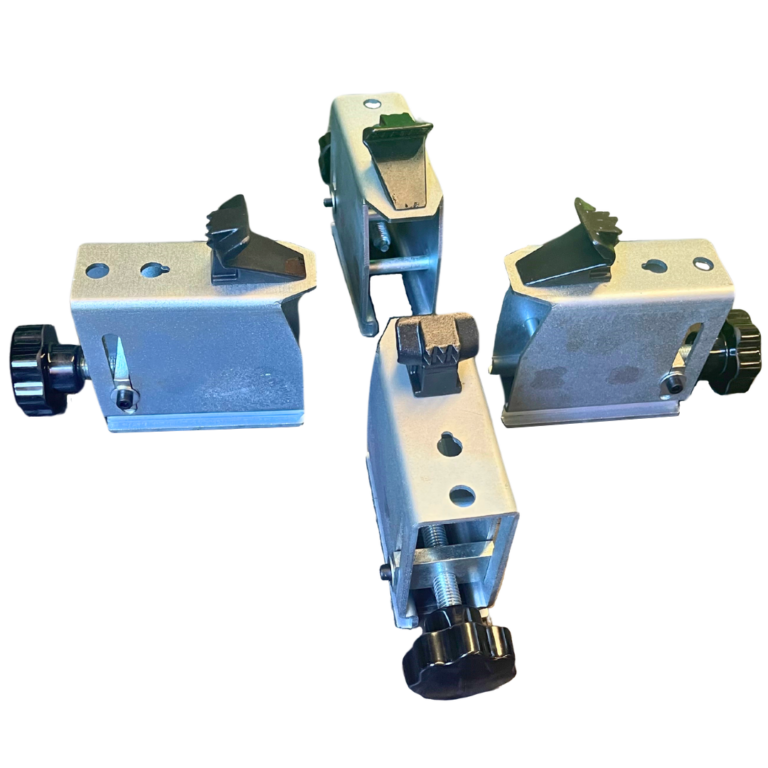

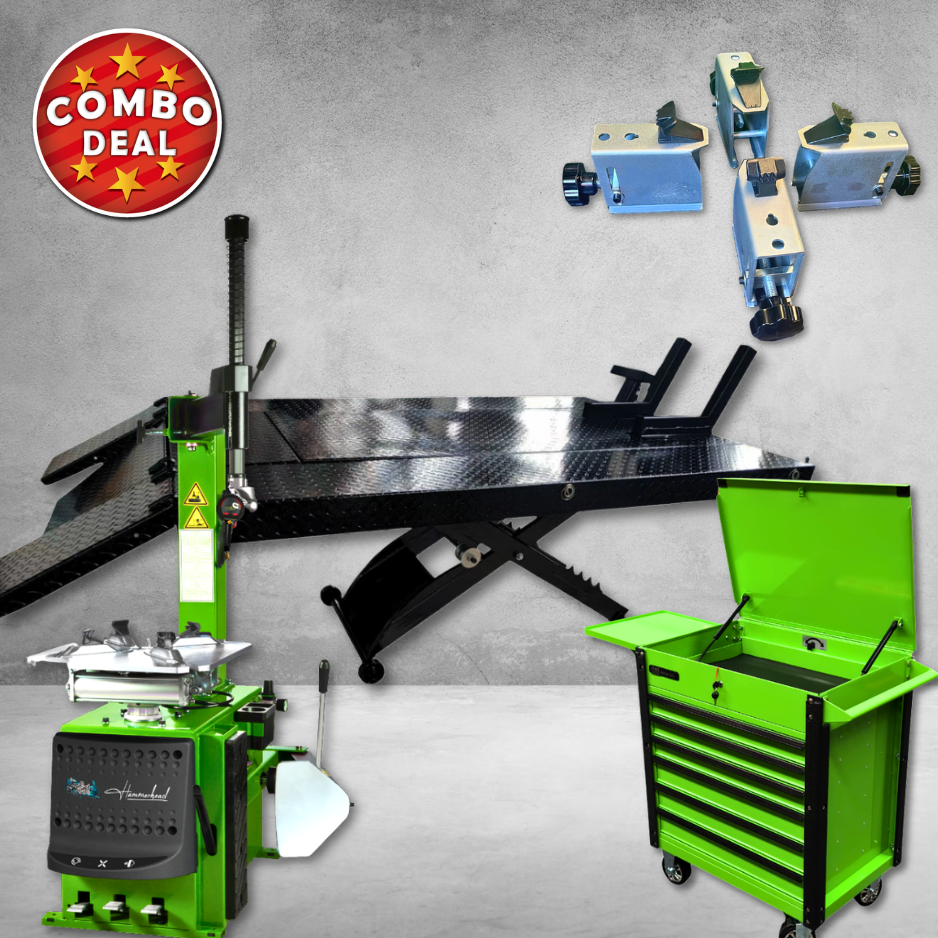

MOTORCYCLE TYRE CHANGER ADAPTOR
Product Summary:
These motorbike wheel adaptors are an accessory for our Hammerhead Car Tyre Changer in both Standard and Professional versions – 71.CTC & 71.CTC-PRO
Easy to install and remove when necessary.
Specifications:
|
Internal Rim Clamping Capacity |
8” – 20” |
|
External Rim Clamping Capacity |
7” – 18” |
|
Height From Table To Rim |
140mm |

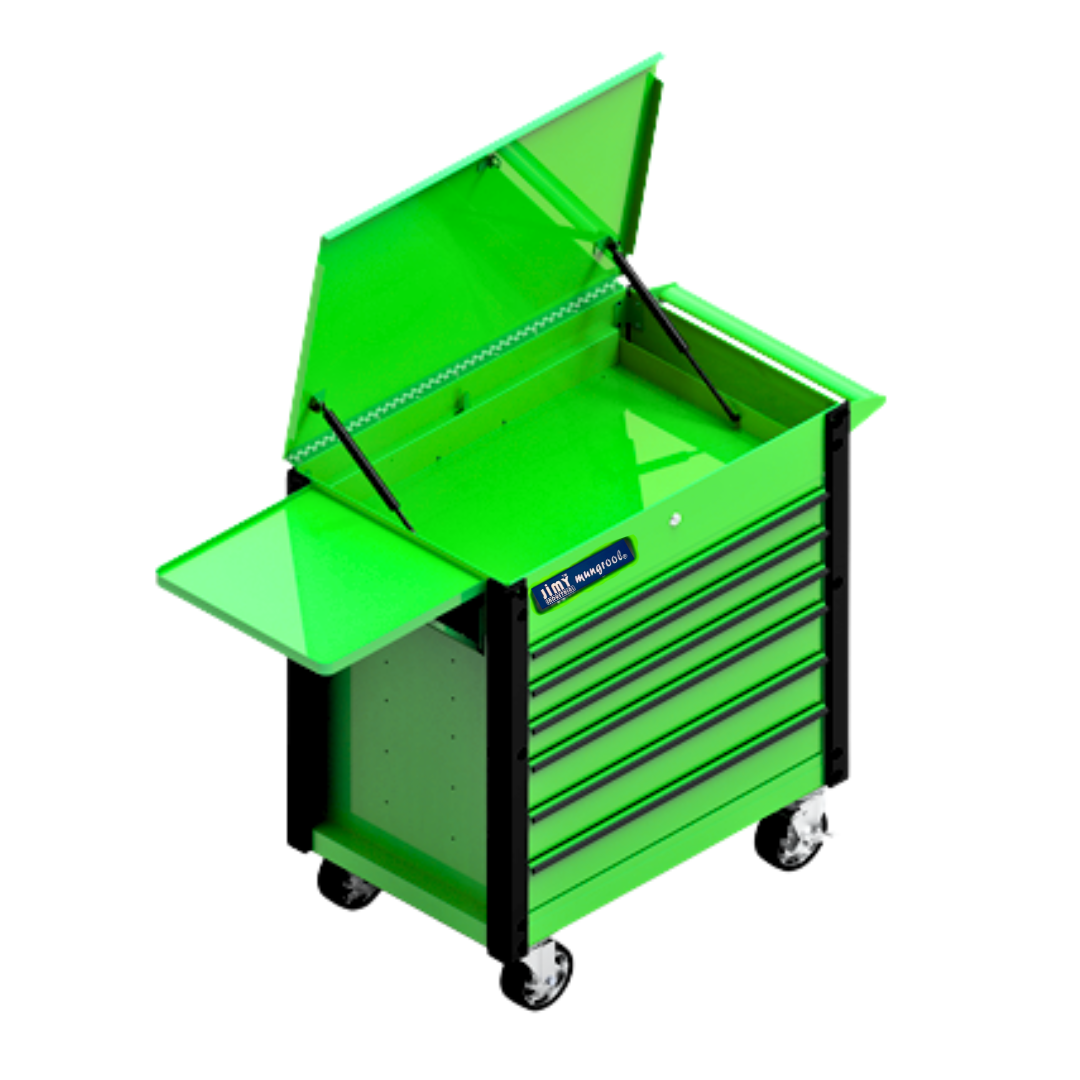

6 DRAWER 33” DIAGNOSTIC TOOL CART (GREEN)
Part number: 41.TBC.06(G)
PRODUCT SUMMARY:
Jimy tool boxes are career spanning and built to last! Jimy’s diagnostic tool carts are the perfect middleman between your toolbox and your job! A necessary convenience for working in any workshop or even just for a small storage area at home. With a complete internal locking system, ensure complete security for your tools on the job.
- Full drawer extension capabilities
- Internal locking system for extra security
- Heavy duty ball bearing drawer slides
- Convenient foldable side table
- Robust wall construction
- Double powder coating resists scratching
- 2x Lockable Heavy Duty Swivel Castors + 2 Fixed
PRODUCT SPECIFICATIONS:
|
6 DRAWER 33″ DIAGNOSTIC TROLLEY CART |
|
|
No. |
DESCRIPTION |
|
41.TBC.06 |
6 DRAWER 33″ DIAGNOSTIC TROLLEY CART. |
|
|
OVERALL SIZE: WIDTH: 883.5MM (W)-(Not including side table) or 1241.6MM – (including side table) LENGTH: 513MM HEIGHT: 784.77MM (H) – (Not including castors) |
|
|
TOP 3 DRAWER SIZES: 652 (W) X 450 (L) X 75MM (H) |
|
|
BOTTOM 3 DRAWER SIZES: 652 (W) X 450 (L) X 102MM (H) |
|
|
BALL BEARING SLIDES |
|
|
2 FIXED AND 2 SWIVEL CASTORS |
|
|
BOX NET WEIGHT: 74KGS |
