71.CTC-TILT-Manual (HAMMERHEAD PRO FULLY AUTOMATIC TILT)Product Summary:
The HAMMERHEAD PRO Automatic Tilt Tyre Changer is a premium, fully automatic tyre changer featuring a tilt-back column and an integrated Help Arm System, engineered for high-efficiency, safe, and ergonomic tyre handling in busy automotive workshops. Built for strength and precision, this machine simplifies the mounting and demounting of modern tyre assemblies including run-flats and low-profile tyres.
Key Features & Functional Advantages

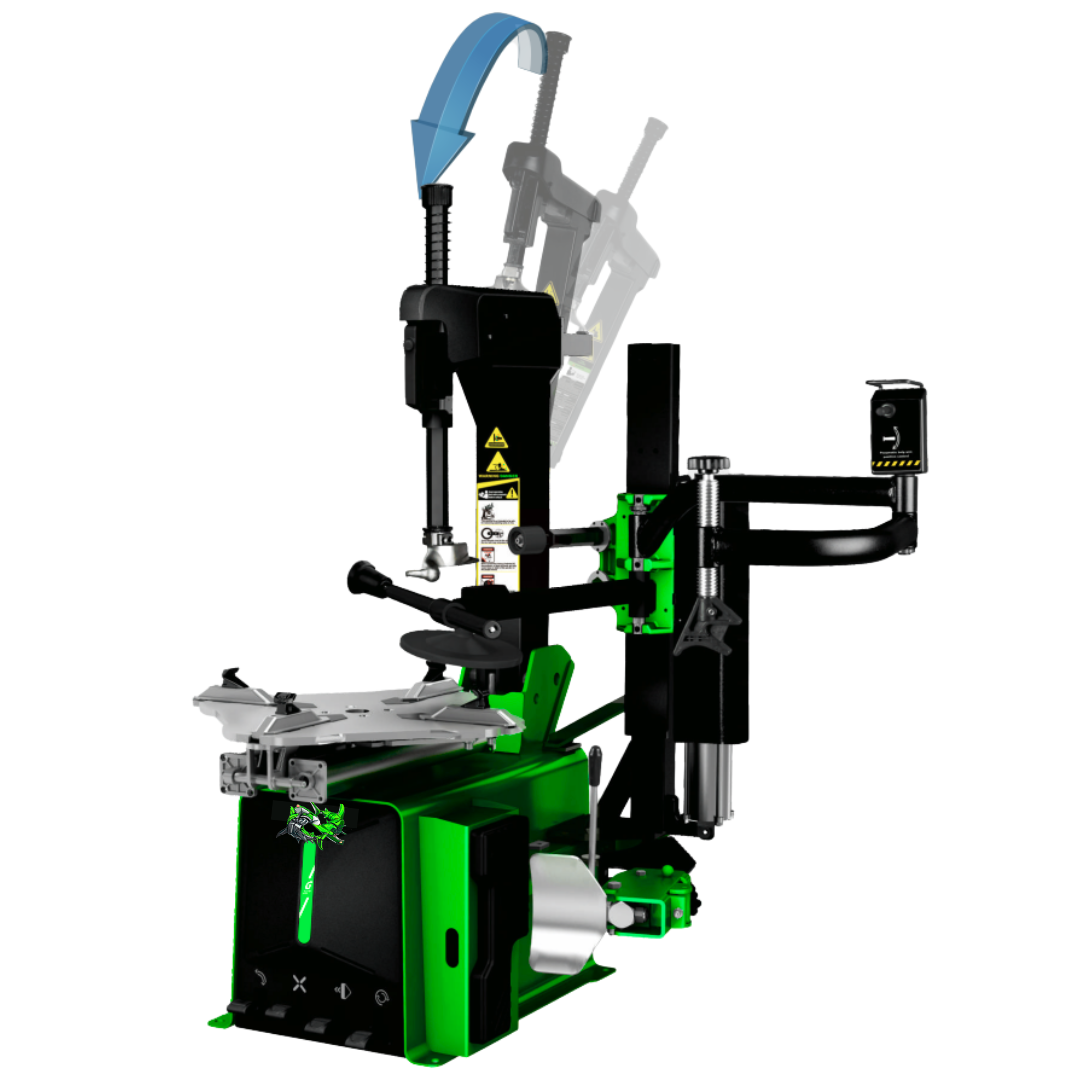

- Tilt-Back Design:
Offers enhanced clearance and operator space. Unlike side-swing models, tilt-back arms automatically retract, allowing faster wheel changes and minimizing rim contact risks. - Help Arm System:
A powerful multi-function assist arm with a rotating arm, bead pressing roller, tyre lifting roller, and pressing head. Ideal for mounting/demounting stiff or performance tyres. - Heavy-Duty Bead Breaker:
Four-position adjustable bead breaker with a strong shovel and safety buffer to handle wide and high-profile tyres easily. - User-Friendly Operation Pedals:
Four pneumatic pedals control jaw clamping, turntable direction, bead breaking, and tilt-back mechanisms—all foot-operated for hands-free convenience.
Advantages of Tilt-Back Over Side-Swing Arm Tyre Changers
- Faster Setup: No manual repositioning of the column after every tyre—just tilt back and go.
- Better Clearance: Easier access for larger rims and deep-dish wheels.
- Improved Ergonomics: Reduces bending and strain, improving operator comfort.
- Higher Throughput: Ideal for high-volume shops with frequent tyre changes.
Technical Specifications
| Feature | Specification |
| Rim Clamping (External) | 12–26” |
| Rim Clamping (Internal) | 15–28” |
| Max Wheel Diameter | 1143 mm (45”) |
| Max Wheel Width | 406 mm (16”) |
| Working Pressure | 8–10 bar |
| Power Supply | 240V (1ph) |
| Motor Power | 0.37 kW |
| Max Turntable Torque | 1078 Nm |
| Noise Level | <75 dB |
| Overall Dimensions (L×W×H) | 1130 × 900 × 1030 mm |
| Weight (Net/Gross) | Approx. 246 kg / 276 kg |
Operational Highlights
- Bead Breaking:
Pedal-controlled shovel compresses tyre bead safely; suitable for both sides of the tyre. - Mounting & Demounting:
Uses a lifting lever and assist arm to securely work around tight tyre beads with minimal rim contact. - Inflation System:
Safe tyre inflation process includes air pressure monitoring and safety guards—compliant with strict industry standards. - Maintenance Friendly:
Daily and monthly cleaning routines extend equipment lifespan. Oil-fog system for pneumatic tools included.
Safety Features
- Clear warning labels and grounding requirements.
- Secure locking systems on the vertical and horizontal arms.
- Strict installation guidelines to avoid electrical and pneumatic hazards.
