71.CTC-PRO – Professional Tyre Changer – ManualProduct Summary:

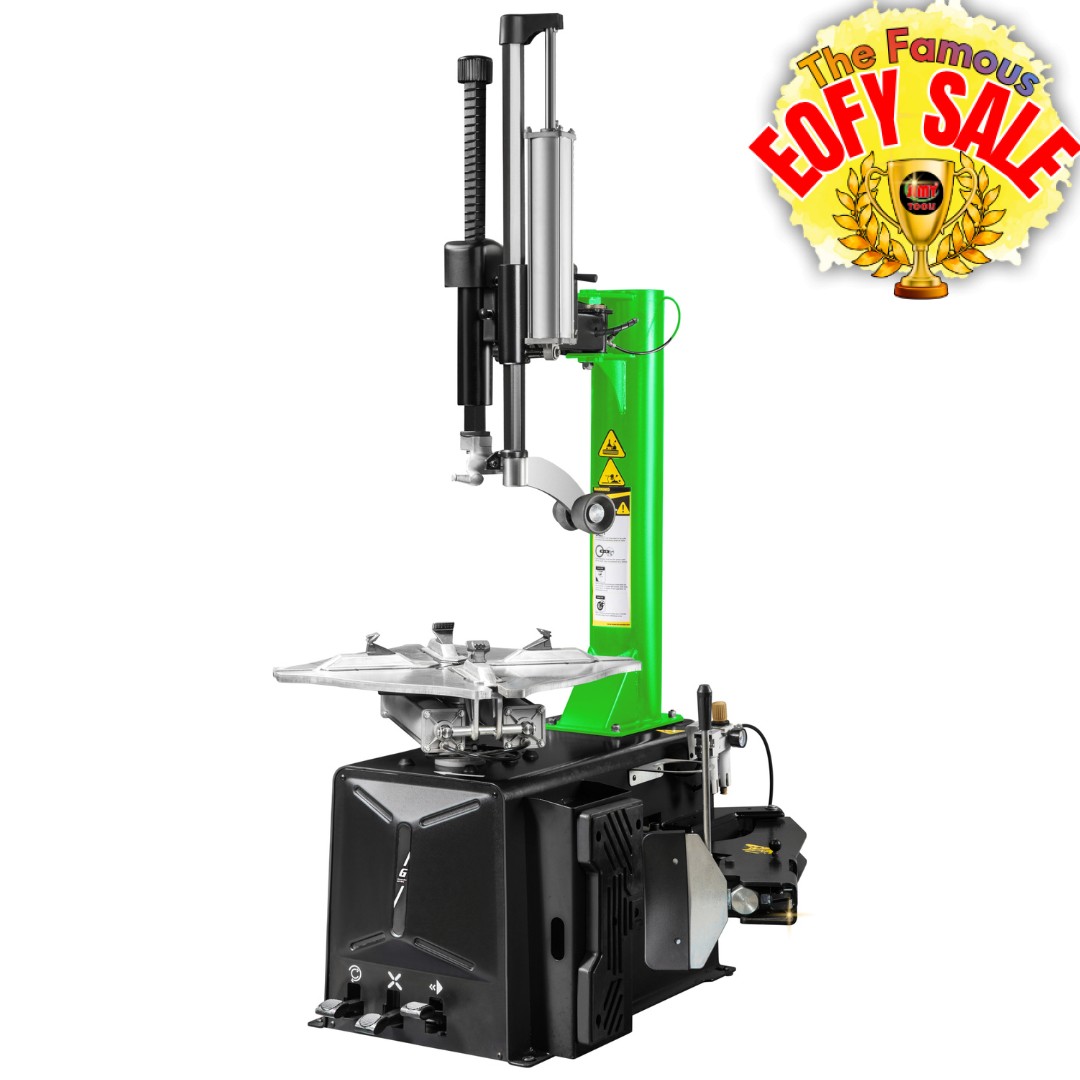

The semi-automatic tyre changer is especially designed for demounting & mounting tyres from wheel rims.
The Hammerhead Professional Car Tyre Changer includes a pneumatic tyre lifting device and 360° rotary tyre pressing arm.

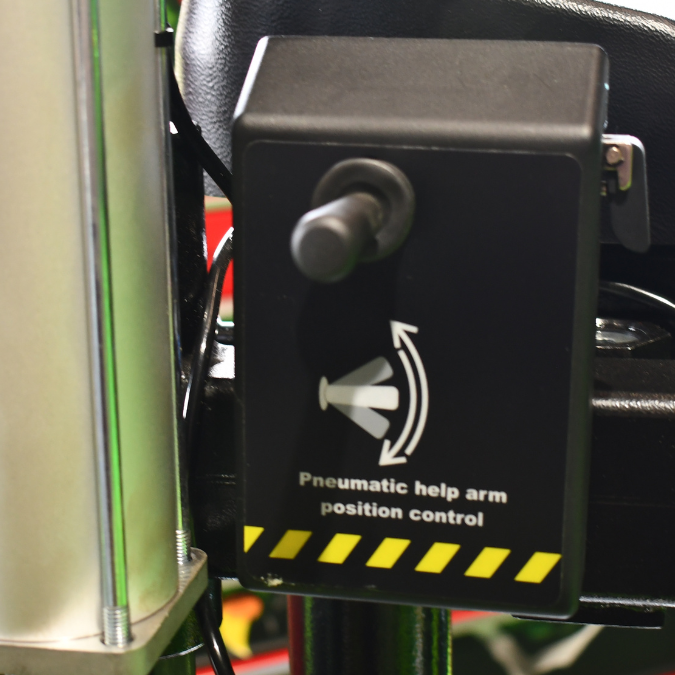

Car Tyre Changer fitting up to a 26” wheel with semi-automatic helper arm.
You can also purchase a Motorbike Wheel Adapter as an accessory for this machine.
Complete your workshop setup with Jimy Tools’ Digital Wheel Balancer and Hoist Range
Specifications:
|
External Locking Rim Dimensions |
12-26” (Jaw’s Protector for 12”) |
|
Internal Locking Rim Dimensions |
15-28” |
|
Max. Wheel Diameter |
1143mm (45″) |
|
Max. Wheel Width |
457mm (18″) |
|
Working Pressure |
8-10 BAR |
|
Power Supply |
220V / (1 ph) / 15A Plug |
|
Optional Motor Power |
0.75/1.1kw |
|
Max. Rotating Torque (Turntable) |
1078 Nm |
|
Overall Dimension |
960 x 760 x 930 mm |
|
Noise Level |
75 Db |
Warranty:
12 Months Warranty
