PRODUCT SUMMARY:

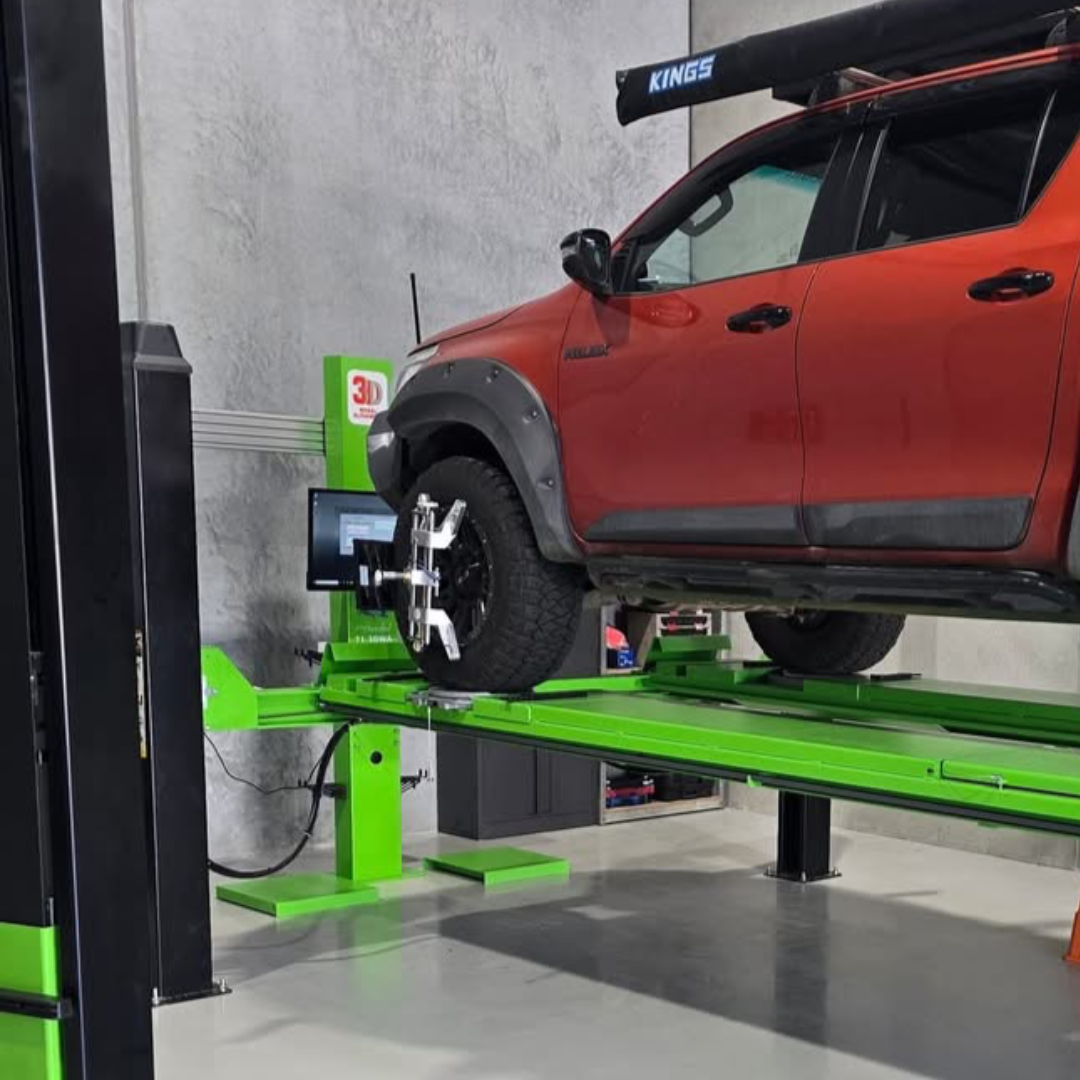

3D WHEEL ALIGNMENT MACHINE

Jimy Tools Hammerhead Wheel Alignment Machine is used to detect the wheel alignment parameters of your car and compare them with the standard parameters designed by the original vehicle manufacturers.

Features:

• Fast & Accurate Readings with advanced 3D image acquisition technology

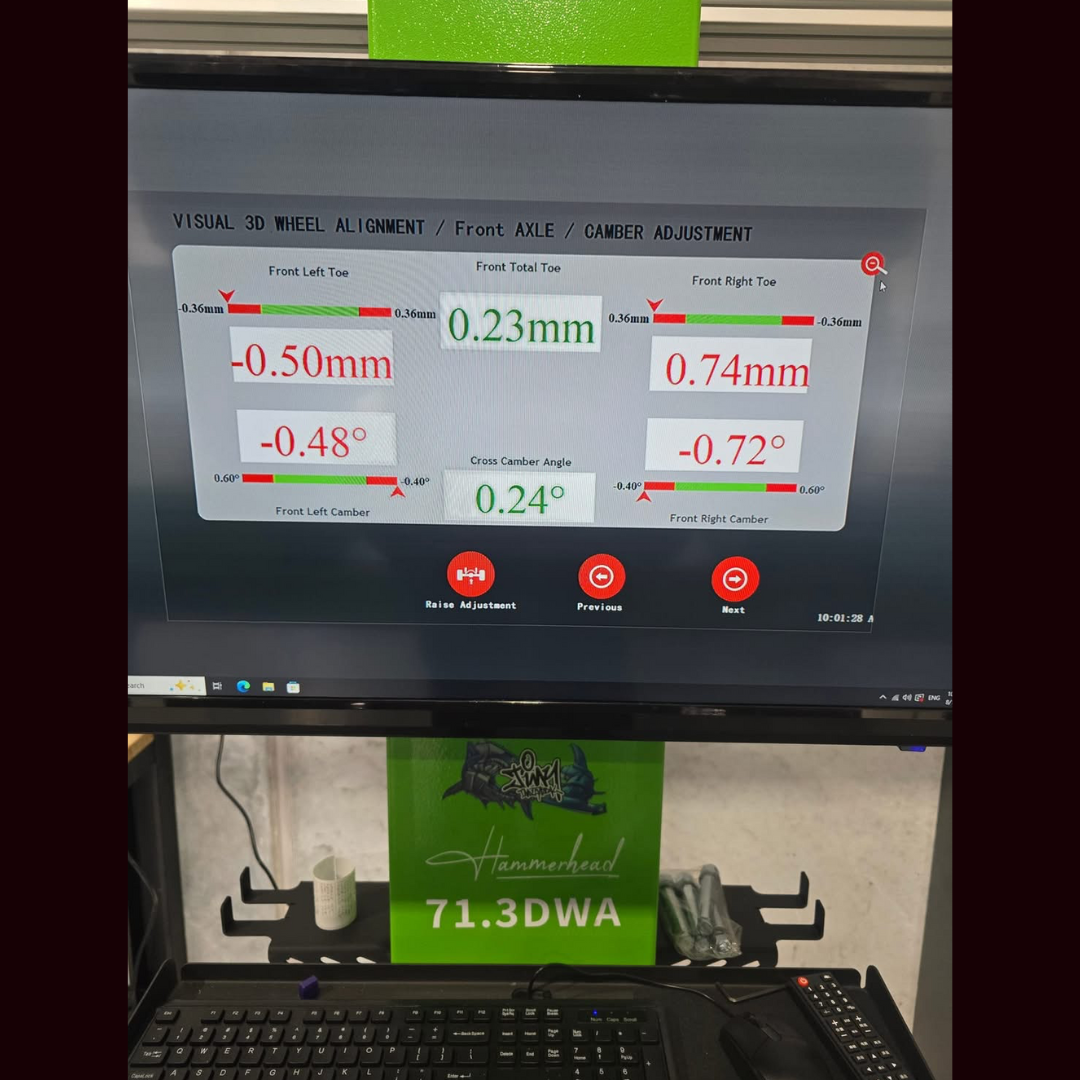

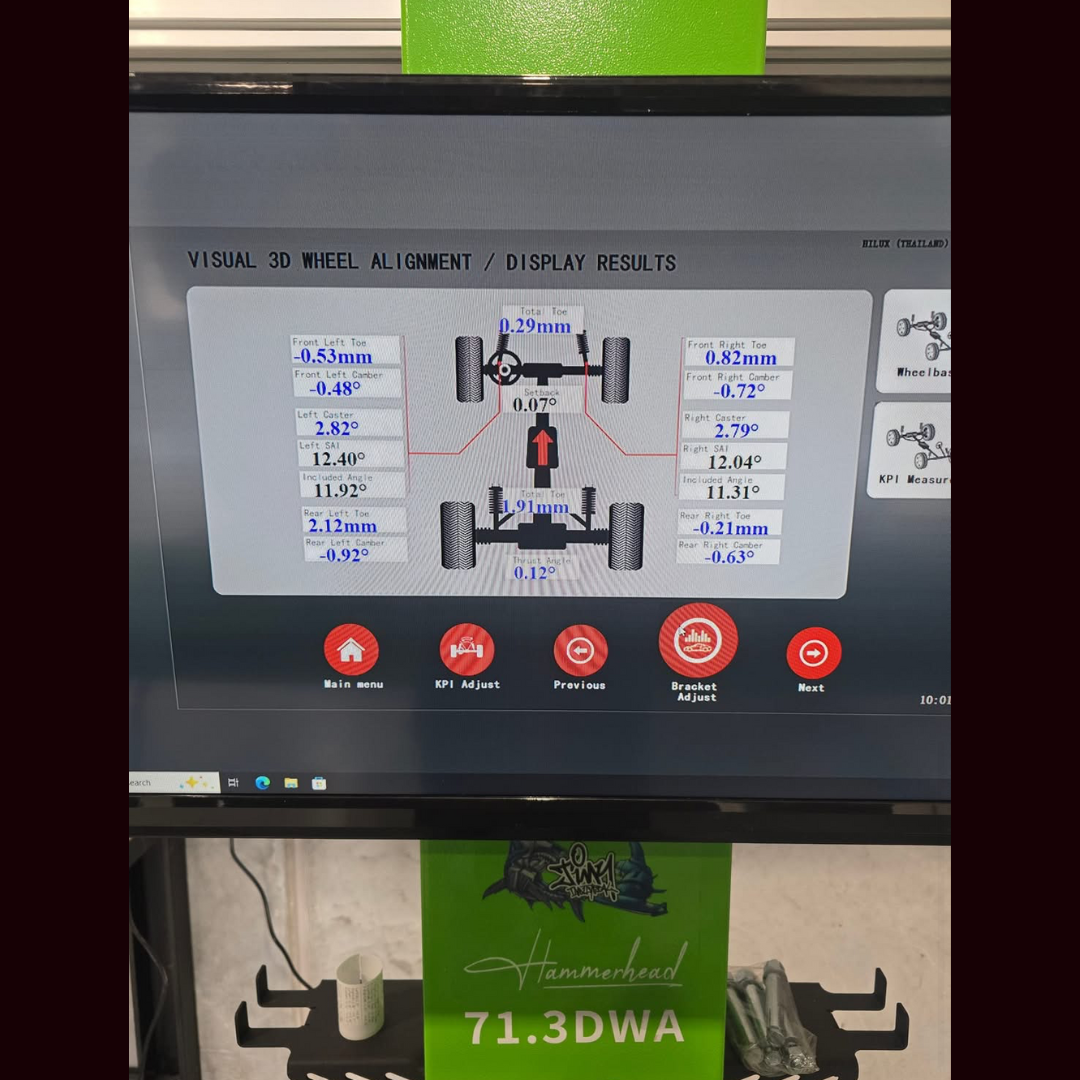

• Easy to operate software interface with step-by-step instructions
• Programmed with up to 40,000 types of vehicle wheel alignment data with the option to download input or download new data as needed
• Equipped with printer to print out measurement results
• Historical functionality to store user information which can be printed out at a later date

Specifications:

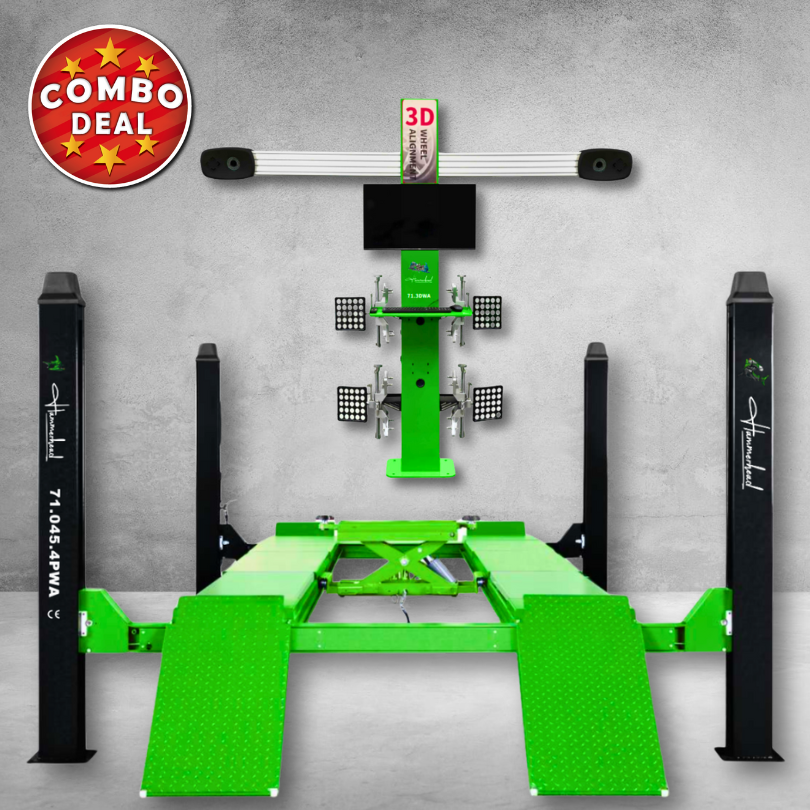

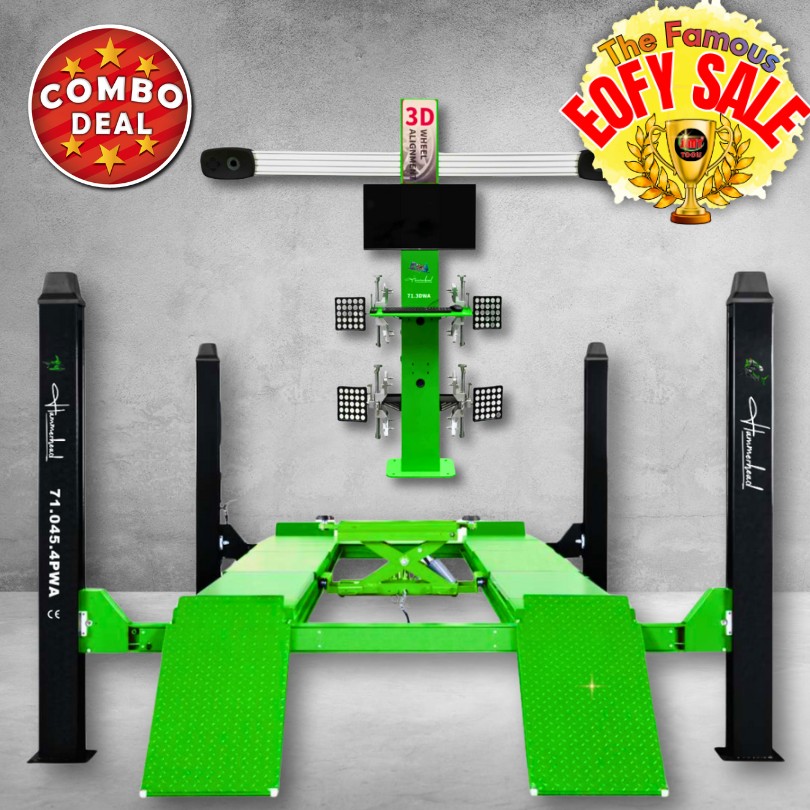

4.5 TON 4 POST WHEEL ALIGNMENT HOIST

Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Engineered for professional workshops, alignment specialists, and high-end service centers, the Hammerhead 4.5 Ton 4 Post Wheel Alignment Hoist is the ultimate solution for precision vehicle servicing and diagnostics.

Designed for accurate and efficient wheel alignments, this heavy-duty hoist boasts a 4,500 kg (4.5 ton / 9,900 lbs) lifting capacity, making it suitable for a wide range of vehicles, including sedans, SUVs, 4WDs, and light commercial trucks. Whether you’re performing suspension work, alignment checks, or underbody inspections, this hoist is built to deliver.

The integrated electric secondary lift allows for easy lifting of all four wheels off the runways, enabling wheel-free work without repositioning the vehicle. Equipped with precision turntables and sliding rear slip plates, it ensures smooth and accurate alignment adjustments with minimal effort.

With a durable four-post structure and spacious drive-on design, the Hammerhead 4.5T Wheel Alignment Hoist offers unmatched stability, accessibility, and efficiency—making it a must-have for any workshop focused on alignment and advanced vehicle maintenance.

• FEATURES
  • 4500KG / 4.5 Tonne Load Limit
  • Powder Coated Finish
  • Adjustable lifting height with maximum height of 1.75m
  • One side release for safety locks, easy for descent operation
  • External Locking

Safety Features

• Additional secondary safety lock when weight comes off the cables
• Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
• Heavy duty 6mm thick cross beams and 4mm thick runways
• 9mm steel wire rope equalising cables
• Anti-surge valve

What’s Included?

• Electric Secondary Lifting Jack (Optional Additional Pneumatic Secondary Lift)
• Turntables
• 4 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit

What’s Not Included?

• Hydraulic Oil
• Power Plug
• Installation of unit

Shed Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 4 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified
