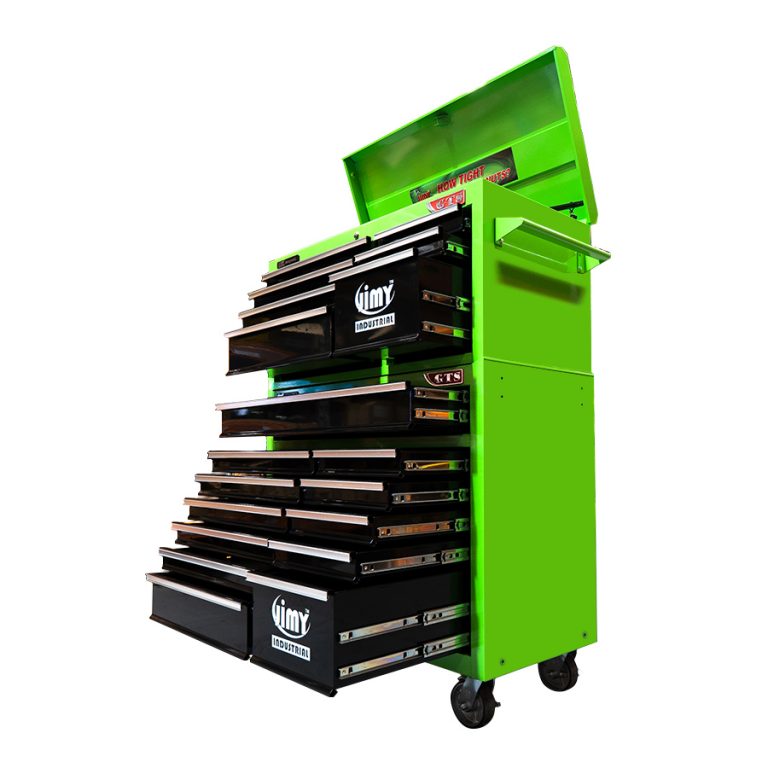

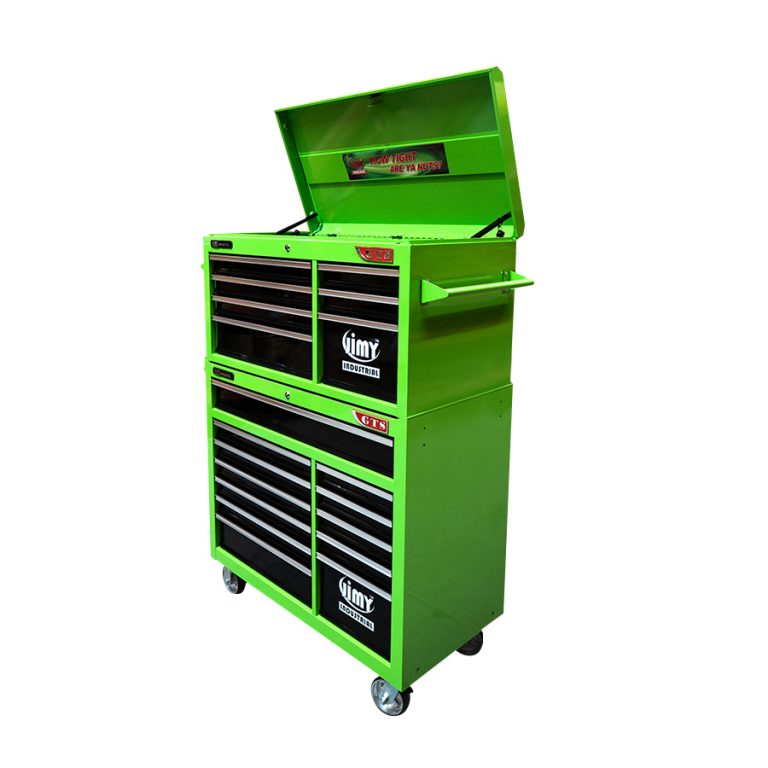

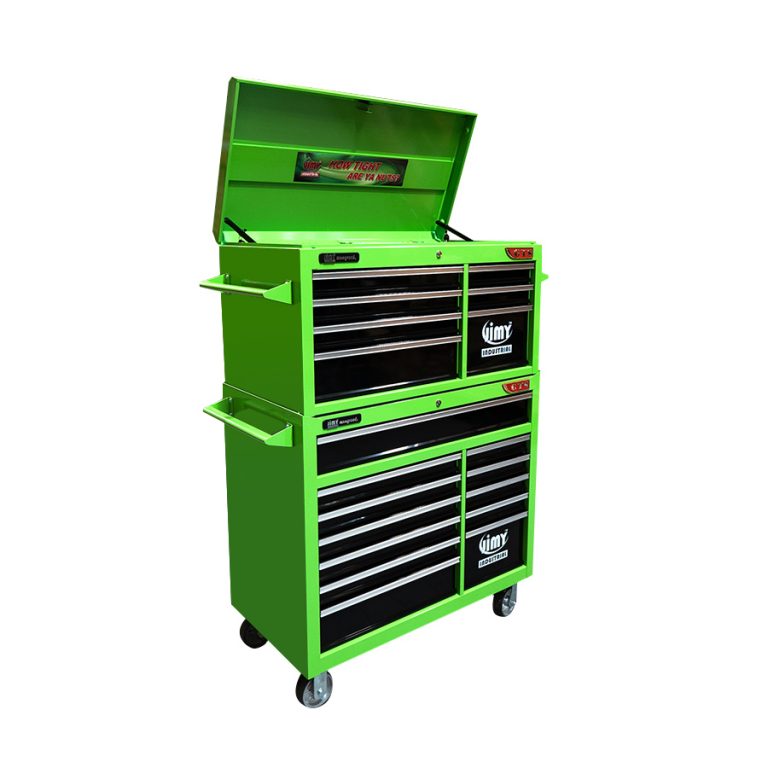

PRODUCT SUMMARY:
- Modular design provides a consistent and sleek look and fitment across all add on box options. An ability to expand your storage space over time with top chests, side cabinets and side lockers.

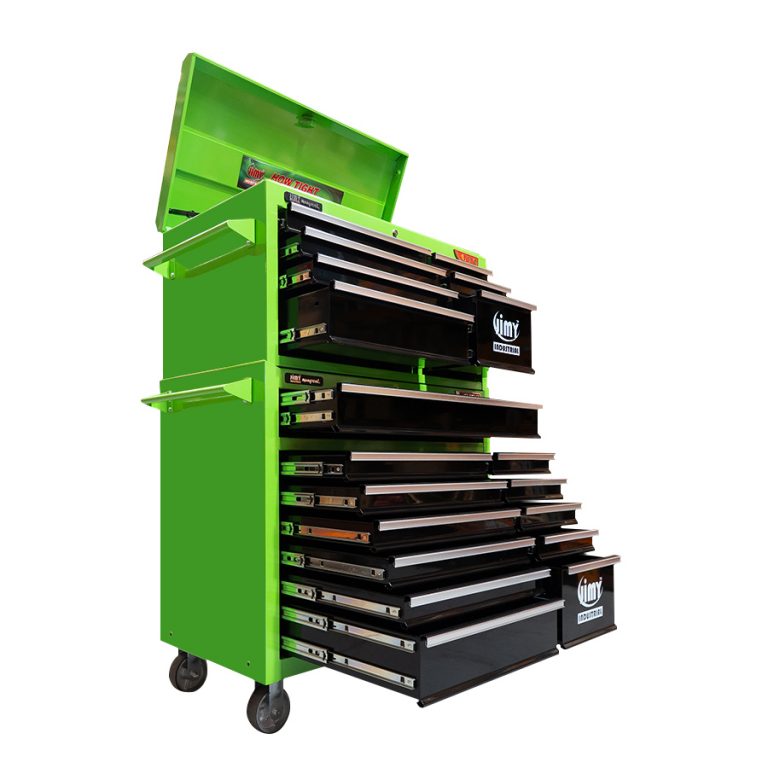

- Durable full-extension ball bearing drawer slides support up to 60kgs per pair and 120kgs per dual pair slides.
- 1930kgs total box weight load capacity

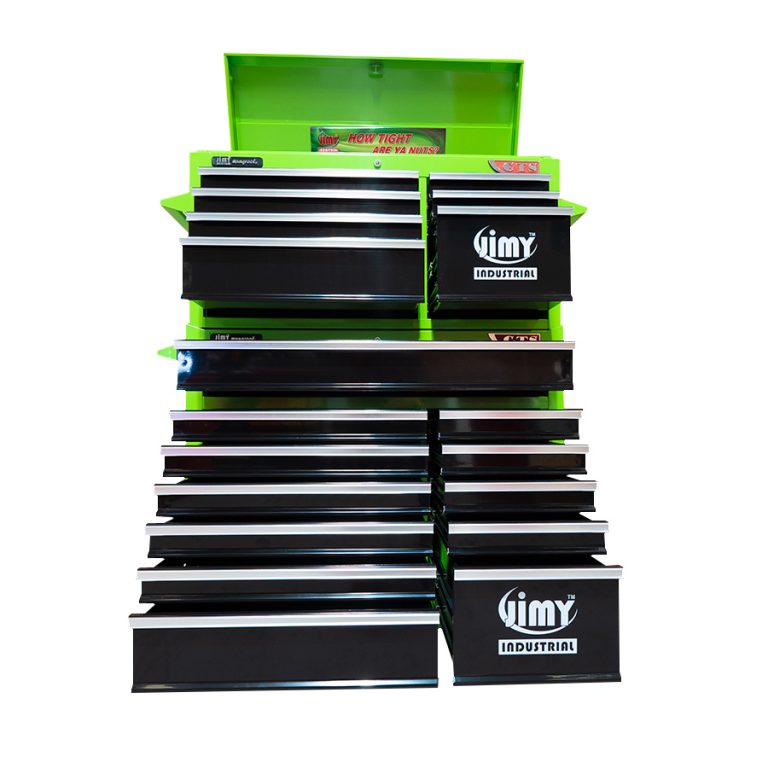

- 19 drawers for easy organisation of hand tools and everything else you need. Drawers are easily removable.
- Multi-gauge, welded case design for superior strength
- Full-width drawer handles allow for easy opening from anywhere on the drawer
- Snap shut drawers for stronger drawer retention and convenience

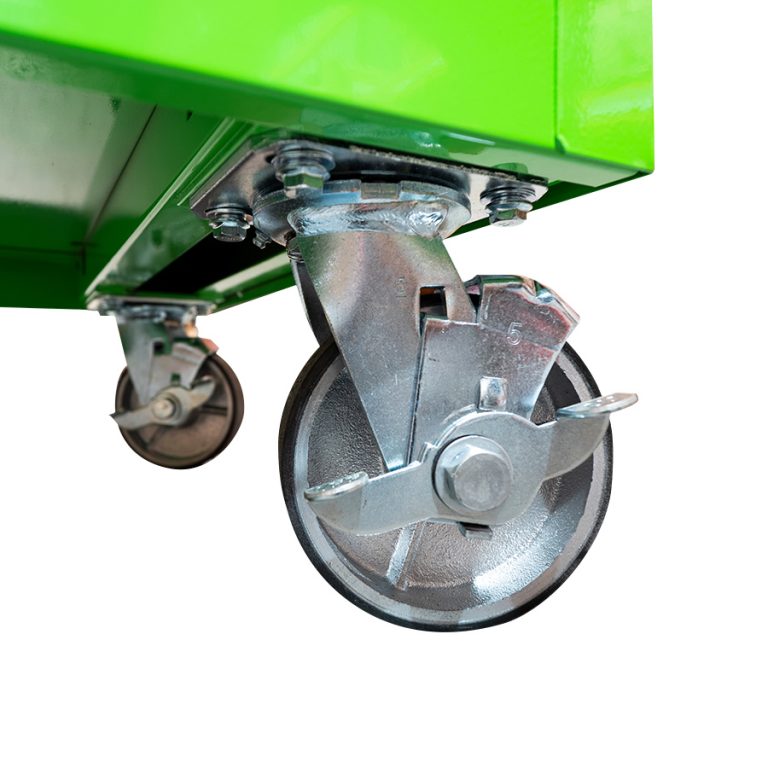

- 5” high casters wheels and 2” wide (2 fixed, 2 locking swivel) provide easy mobility when fully loaded
- Robust push handle
- Integrated single keyhole barrel lock system keeps tools safe and secure.
- Tough powder-coated gloss finish for wear and rust resistance
- Pre-cut drawer liners
PRODUCT SPECIFICATIONS:
|
12 DRAWER 42” WIDE ROLLER CABINET |
||
|
No. |
DESCRIPTION |
|
|
41.TB04.12 |
12 DRAWER 42” WIDE ROLLER CABINET |
|
|
|

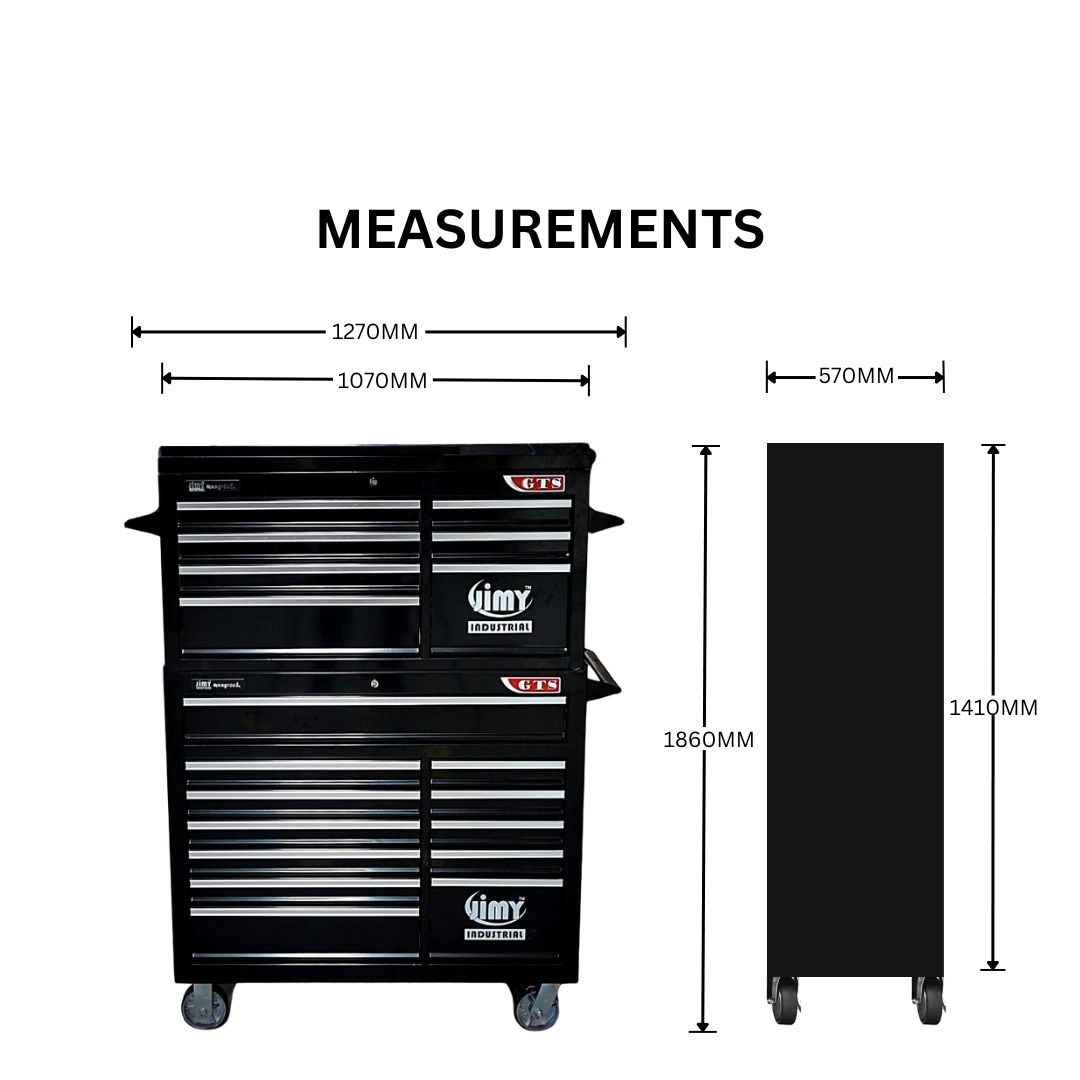

BOX DIMENSIONS: 1070MM (W) X 570MM (L) X 1010MM inc Castor Wheels (H) |
|
|
|
850MM exc Castor Wheels (H) |
|
|
|
1 DRAWER: 959 X 501 X 122MM |
|
|
|
5 DRAWERS: 570 X 501 X 75MM |
|
|
|
1 DRAWER: 570 X 501 X 154MM |
|
|
|
4 DRAWER: 313 X 501 X 75MM |
|
|
|
1 DRAWER: 313 X 501 X 233MM (JIMY LOGO) |
|
|
|
N.W.: 138KGS |
|
|
|
STEEL THICKNESS |
|
|
|
BODY: 1.0MM |
|
|
|
DRAWER: 0.8MM |
|
|
|
Capacity of slide 60kgs per pair of slides |
|
|
7 DRAWER 42″ TOOL CHEST |
||
|
No. |
DESCRIPTION |
|
|
41.TB04.07 |
7 DRAWER 42″ TOOL CHEST |
|
|
|
7 DRAWER TOP TOOL BOX. BOX SIZE: 1070MM (W) X 570MM (L) X 560MM (H) |
|
|
|
TOP TRAY: 1042 X 539 X 110MM |
|
|
|
3 DRAWERS: 570 X 501 X 75MM |
|
|
|
1 DRAWER: 570 X 501 X 154MM |
|
|
|
2 DRAWERS: 313 X 501 X 75MM |
|
|
|
1 DRAWER: 313 X 501 X 233MM |
|
|
|
Net Weight: 85KGS |
|
|
|
STEEL THICKNESS |
|
|
|
BODY: 1.0MM |
|
|
|
DRAWER: 0.8MM |
|
|
|
Capacity of slide 60kgs per pair of slides |
|
