Product Summary:

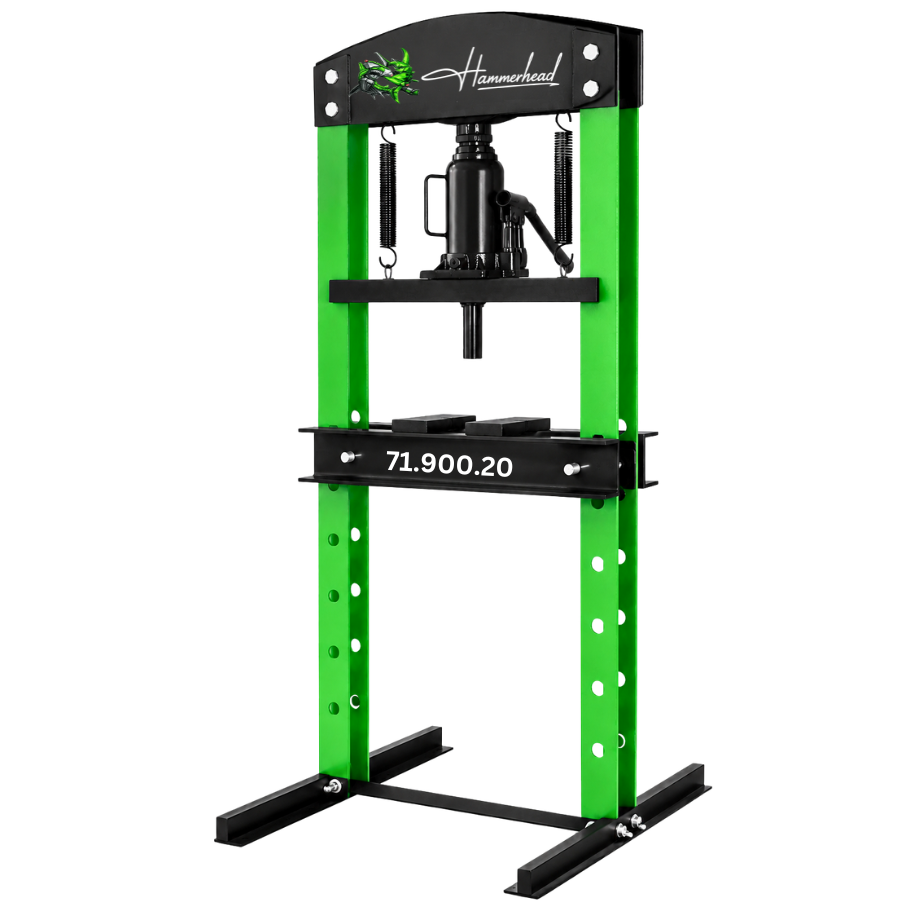

The Jimy Tools Hammerhead 20,000kg Hydraulic Workshop Press provides reliable pressing power for automotive, mechanical and general workshop applications.

Its manually operated hydraulic system offers straightforward and controlled operation without requiring electricity or compressed air. The multi-position working bed provides an adjustable working-height range of 0–790mm, allowing components of various sizes to be accommodated.

With 540mm clear width between the uprights, a 190mm-deep working bed and a 145mm hydraulic ram stroke, this compact freestanding press is suitable for pressing, straightening, bending and installing or removing common mechanical components.

KEY FEATURES

• Heavy-duty 20,000kg (20-tonne) pressing capacity
• Manual hydraulic operation
• No electricity or compressed air required
• Multi-position adjustable working bed
• 0–790mm working-height range
• 145mm hydraulic ram stroke
• 35mm press-head diameter
• 540mm clear width between uprights
• 190mm working-bed depth
• 95mm bed gap
• Heavy-duty freestanding steel frame
• Compact workshop design
• Suitable for pressing, straightening and bending
• Ideal for installing and removing bearings, bushes, gears, shafts and similar mechanical components
• Net weight: 75kg
• Gross weight: 77kg

SPECIFICATIONS

COMMON APPLICATIONS

Suitable for:

• Bearing installation and removal
• Bush installation and removal
• Gear removal
• Shaft pressing
• Straightening bent components
• Metal bending and forming
• General automotive repairs
• Mechanical servicing
• Agricultural equipment maintenance
• General fabrication work

OPERATION

1. Position and securely support the workpiece on the press bed.
2. Adjust the working bed to the required height.
3. Centre the workpiece beneath the press head wherever possible.
4. Close the hydraulic release valve.
5. Operate the manual pump until the ram contacts the workpiece.
6. Apply pressure gradually. Never exceed the press’s rated capacity.
7. Once the task is complete, slowly open the release valve to release the pressure and retract the ram.
8. Ensure the workpiece remains stable as the pressure is released.
9. Remove the workpiece only after the ram has fully retracted.

SAFETY INFORMATION

• This press should only be operated by trained and experienced users.
• Never exceed the 20-tonne rated capacity.
• Inspect the press before each use and tighten any loose fasteners.
• Do not operate the press if any component is worn, damaged or leaking.
• Position the press on a firm, level and load-bearing surface.
• Always centre the load beneath the press head wherever possible.
• Ensure the workpiece is correctly supported and remains stable throughout operation.
• Never compress springs or unstable objects that may be ejected under pressure.
• Keep hands and other body parts clear of the working area and moving components.
• Apply pressure gradually during operation.
• Always wear suitable personal protective equipment, including eye protection and safety footwear.
