PRODUCT SUMMARY:

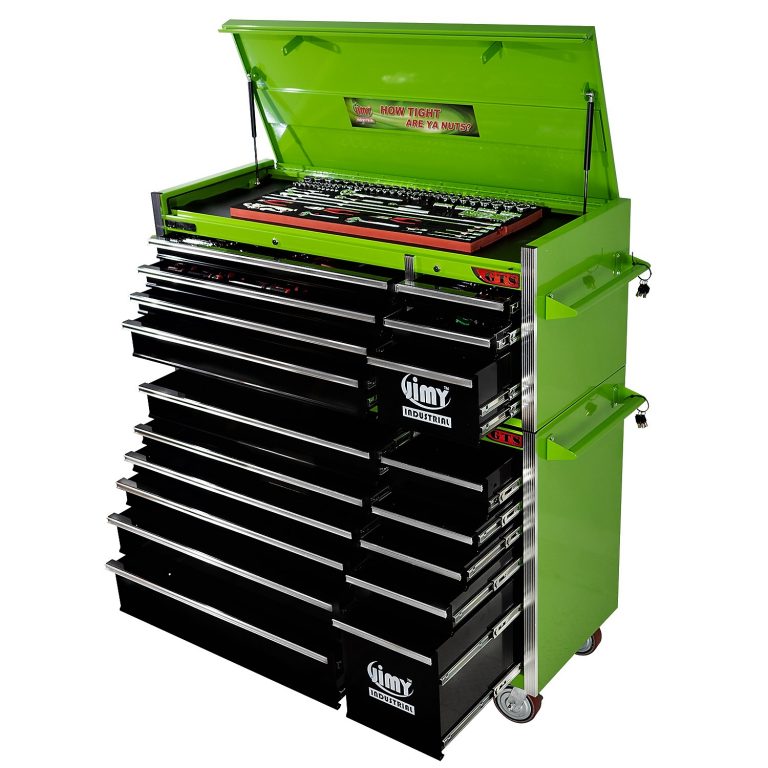

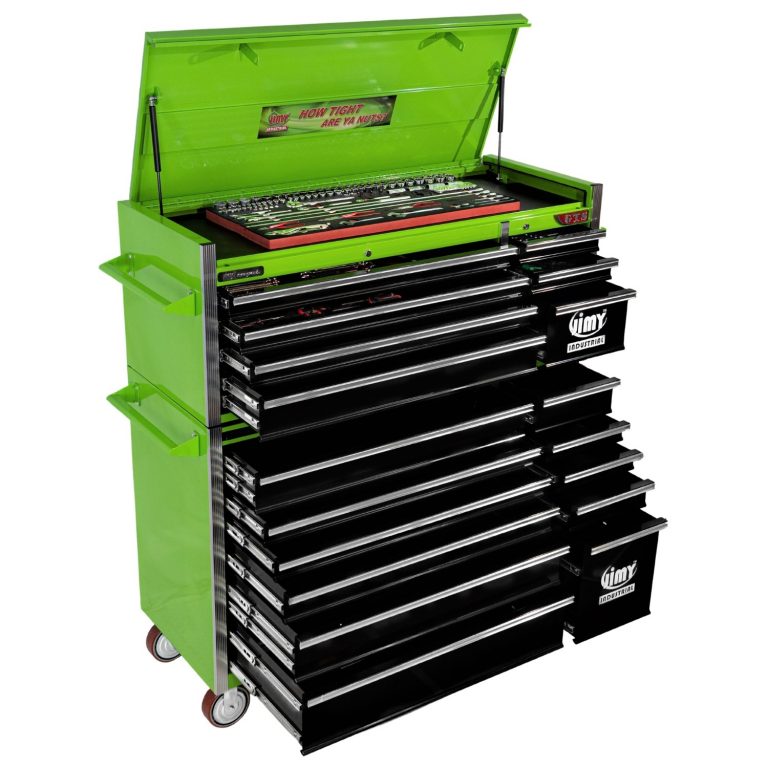

The 18 drawer roller cabinet ‘GTS’ Mechanic’s Tool Kit from Jimy Tools offers a wide range of tools for the trade’s person. The kit consists of a 7 drawer 56” ‘GTS’ tool chest and an 11 drawer 56” ‘GTS’ roller cabinet. Both the tool chest and the roller cabinet have been powder coated with a tough industrial finish and features include 1.2mm thick steel, fully lockable with rear internal locking system and ball bearing slide drawers with twin slides on the deeper drawers. The tool chest also offers a dual gas strut system for the lid.

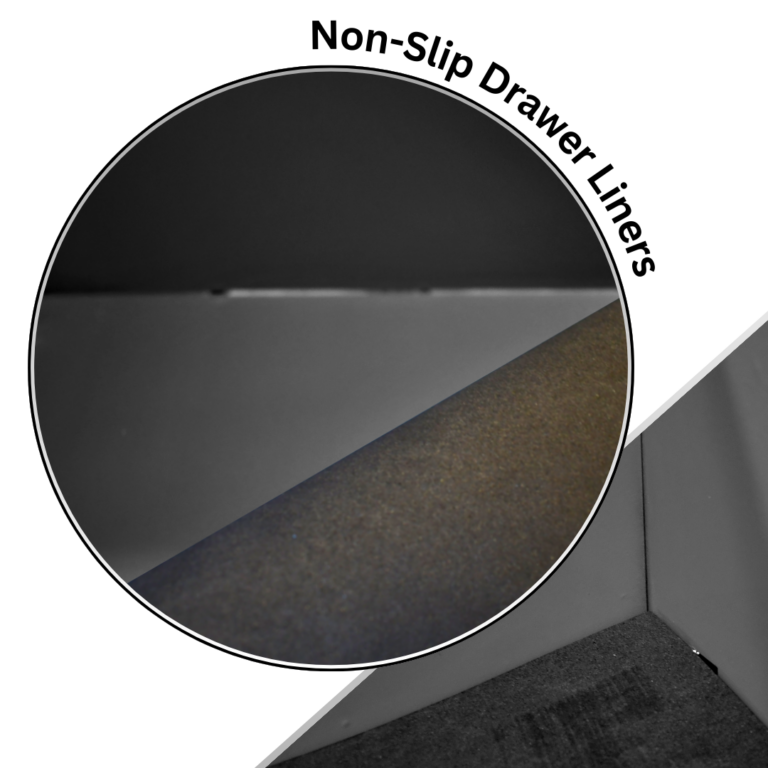

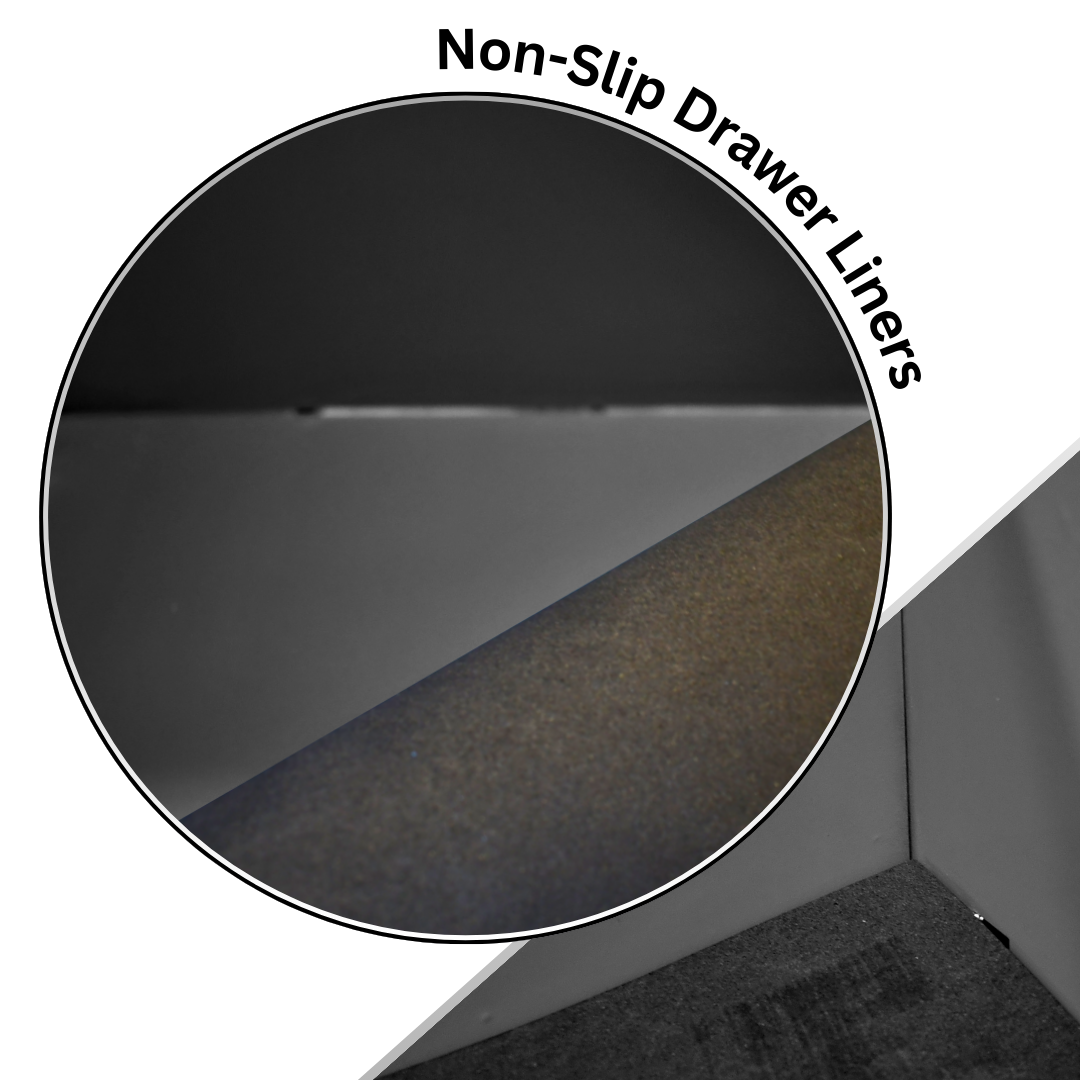

Included are metric and SAE sockets and a full complement of 1/4”, 3/8” and 1/2” drive socket accessories including ratchets, breaker bars, extensions bars from 50mm up to 900mm long plus metric and SAE impact sockets. There are ring open end ratchet and standard spanners in both Metric and SAE, screwdrivers, and pliers for the complete list of contents please check out the table below. With the high density foam drawer inserts you can easily see if you have left a tool on the job.
Jimy Tools sockets, spanners and wrenches are manufactured to meet and exceed International Quality Standards. So, you can be sure your Jimy Tools are tough enough to stand up to the harshest working environments. Trade grade quality and absolute value for money is what Jimy Tools will stand by!
PRODUCT SPECIFICATIONS:

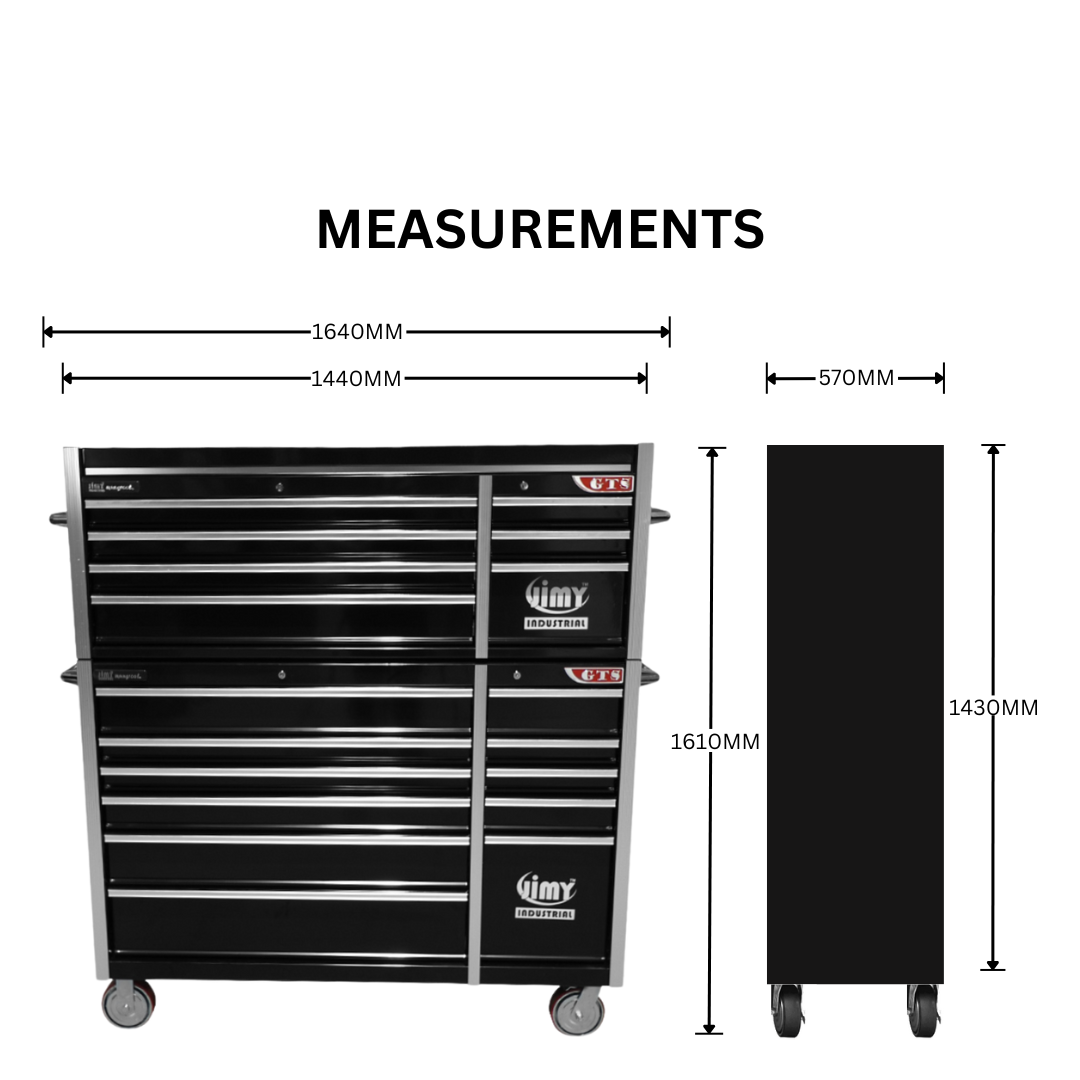

Tool Box Dimensions:

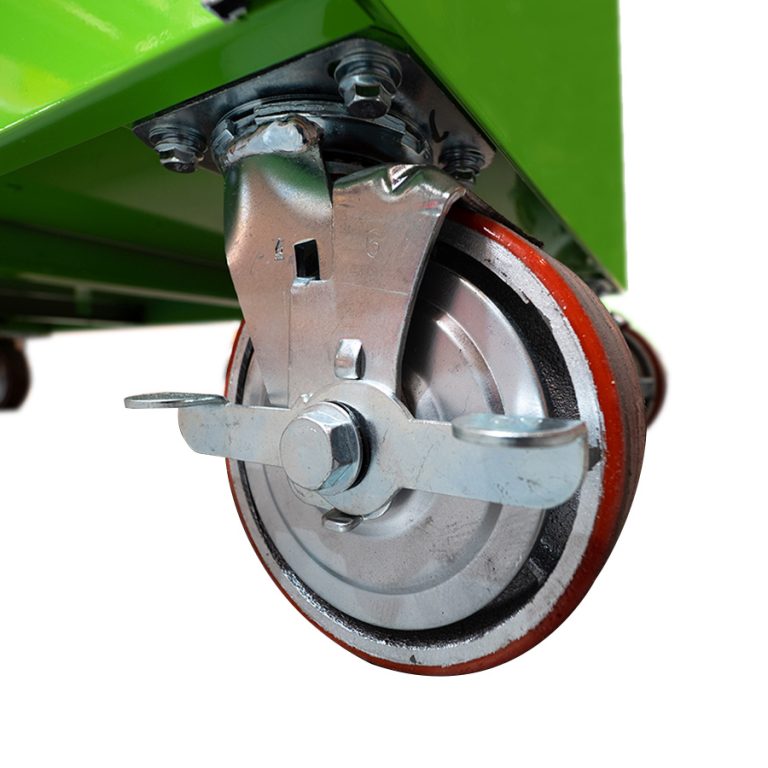

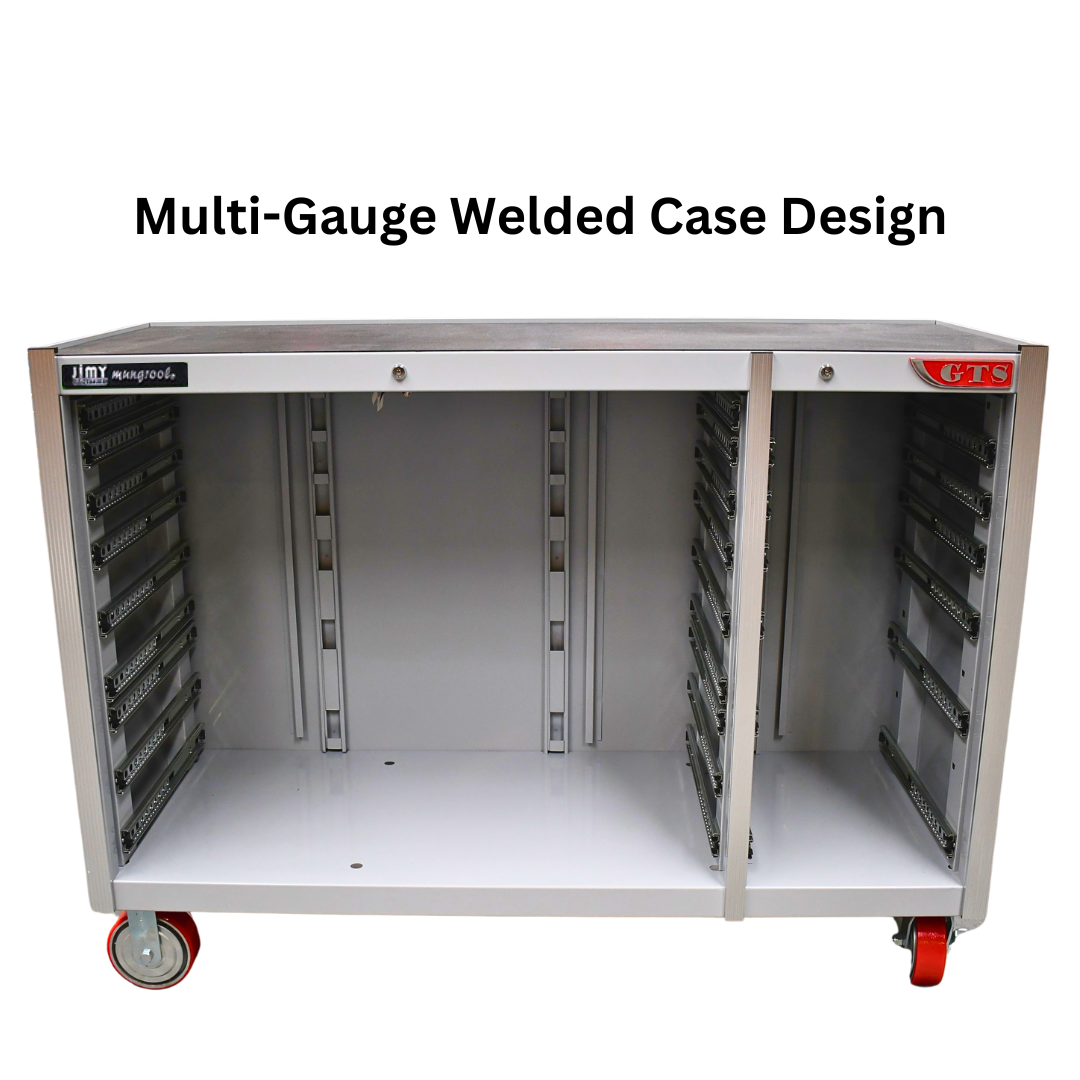

- 11 Drawer Roller Cabinet – 1440mm(L) x 570mm(W) x 1080mm(H) inc Castor Wheels
- 7 Drawer Top Chest – 1440mm(L) x 570mm(W) x 530mm(H)
- Tough Industrial Powder Coating
- 1.2mm Gauge Steel Thickness
- Fully Lockable
- Ball Bearing Slide Drawers with Twin Slides on the Deeper Drawers
INTRODUCTORY LEVEL
| STOCK CODE | DESCRIPTION |
|---|---|
| 41.TEVAW.02F | 142PC SOCKET AND ACCESSORY FILLED EVA TRAY mm/SAE |
| 1/4" DR Sockets (4-14mm & 5/32"-1/2") | |
| 3/8" DR Sockets (9-19mm & 3/8"-13/16") | |
| 1/2" DR Sockets (8-32mm & 1/2"-1 1/4") | |
| 3x Ratchet Handles (1/2" DR, 3/8" DR, 1/4" DR) | |
| 3x Uni Joints (1/2" DR, 3/8" DR, 1/4" DR) | |
| 1/2"DR Extension Bars x 900mm, 125mm, 75mm | |
| 3/8" DR Extension Bars x 900mm, 150mm, 75mm | |
| 1/4" DR Extension Bars x 150mm, 75mm | |
| 1/2" DR Spark Plug Sockets (16mm & 21mm) | |
| 3/8" DR Spark Plug Sockets (16mm & 21mm) | |
| 1/2" DR Breaker Bar x 600mm | |
| 3/8" DR Breaker Bar x 200mm | |
| 1/4" DR Breaker Bar x 150mm | |
| 1/2"F x 3/8"M Impact Adaptor | |
| 3/8"F x 1/4"M Impact Adaptor | |
| 3/8"F x 1/2"M Impact Adaptor | |
| 4PC Plier Set | |
| Combination (Linesman) Pliers 220mm, Diagonal Side Cutting Plier 150mm, Curved Jaw Locking Plier 250mm, & Long Nose Pliers 200mm | |
| 2x Adjustable Wrenches (6" & 8") | |
| 38PC Security Bit Set With 1/4" Ratchet | |
| 41.TEVA.03F | 26 PIECE METRIC/SAE RING OPEN ENDED SPANNER EVA INSERT TRAY |
| 7,8,9,10,11,12,13,14,15,16,17,18,19,21mm | |
| 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |
| 41.TEVAF.01F | 8PC ACETATE SCREWDRIVER TRAY |
| Flathead (-) 5mm x 100mm, 6mm x 150mm, 8mm x 200mm, 10mm x 250mm) | |
| Phillips (+) #1 x 75mm, #2 x 100mm, #2 x 150mm, #4 x 200mm | |
| 41.2014.08M | 8PC DEEP 1/4″DR SOCKET SET RAIL – Metric |
| 5.5, 6, 7, 8, 9, 10, 11, 12mm | |
| 41.2038.08M | 8PC DEEP 3/8″DR SOCKET SET RAIL – Metric |
| 10, 11, 12, 13, 14, 16, 17, 19mm | |
| 41.2012.08M | 8PC DEEP 1/2″DR SOCKET SET RAIL – Metric |
| 13, 14, 16, 17, 19, 21, 22, 24mm | |
| 41.2014.08S | 8PC DEEP 1/4″DR SOCKET SET RAIL – SAE |
| 3/16″, 7/32″,1/4″,9/32″,5/16″,11/32″,3/8″ & 7/16″ | |
| 41.2038.08S | 8PC DEEP 3/8″DR SOCKET SET RAIL – SAE |
| 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″ | |
| 41.2012.08S | 8PC DEEP 1/2″DR SOCKET SET RAIL – SAE |
| 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |
| 41.004.30 | 4PC INTERNAL/EXTERNAL STRAIGHT/BENT CIRCLIP PLIER SET |
| External Straight 7", External Bent 7", Internal Straight 7" & Internal Bent 7" | |
| 41.2610.16 | BALL PEIN HAMMER 16OZ |
| 41.2394.30 | CLUB HAMMER 1.5KG (3.3LBS) |
| 41.009.50 | 9PC LONG HANDLE BALL NOSE HEX KEY SET (ALLEN KEYS) METRIC |
| 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10mm | |
| 41.009.55 | 9PC LONG HANDLE HEX KEY SET (ALLEN KEYS) SAE |
| 1/8”, 5/64”, 3/32”, 1/8”, 5/32”, 3/16”, 1/4”, 5/16”, 3/8” | |
| 41.025.35 | 9PC EXTRA LONG STANDARD TORX KEYS |
| T10- 135mm, T15- 150mm, T20- 168mm, T25- 189mm, T27- 210mm, T30-240mm, T40-270mm, T45-300mm and T50-336mm | |
| 41.993.10 | UTILITY KNIFE |

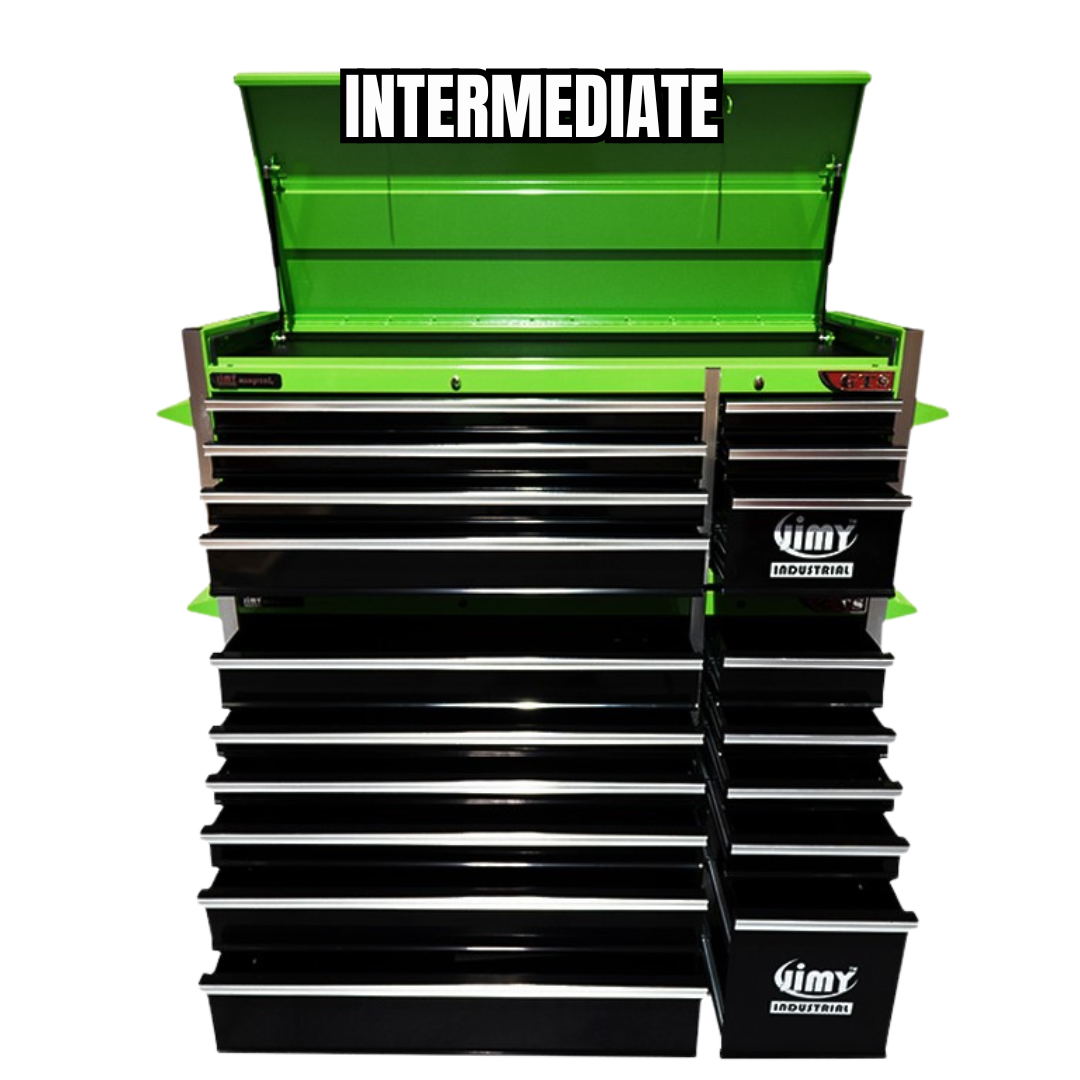

INTERMEDIATE LEVEL
| STOCK CODE | DESCRIPTION |
|---|---|
| BP-41.EVA2501F | 3 PIECE LONG HANDLE FLEX RATCHET TRAY - SQUARE DR (1/4”, 3/8” 1/2”) |
| 41.TEVAD.04F | 26PC METRIC/SAE RATCHETING SPANNER TRAY |
| 8,9,10,11,12,13,14,15,16,17,18,19 & 21mm | |
| 1/4″,5/16″,3/8″,7/16″,1/2″,9/16″,5/8″,11/16″,3/4″,13/16″,7/8″,15/16 & 1″ | |
| 41.TEVAD.06F | 28PC METRIC/SAE SPECIALISED SPANNER TRAY |
| 7 Piece Flat Type Ring Spanner Set – Metric (8×10, 12×14, 13×15, 16×18, 17×19, 21×23, 22x24mm) | |
| 5 Piece Flare Nut Spanner Set – Metric (8×10, 11×13, 12×14, 16×18, 17x19mm) | |
| 4 Piece Flare Nut Spanner Set – SAE (3/8”x7/16”, ½”x9/16”, 5/8”x11/16”, ¾”x7/8”) | |
| 12 Piece Stubby Ratcheting Spanner Set – Metric (8,9,10,11,12,13,14,15,16,17,18 & 19mm) | |
| 41.TEVAD.07F | 42 PIECE 1/2" DR - METRIC DEEP & STANDARD IMPACT SOCKET TRAY |
| 9, 10,11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 30 & 32mm | |
| 1x Impact Universal Joint & 1x Impact Extension Bar 125mm | |
| 41.4005DIS.A | 5PC DEEP IMPACT SOCKET SET - SAE 1/2" DR ( 7/16”, 1/2”, 9/16”, 5/8”, 11/16") |
| 41.4005DIS.B | 5PC DEEP IMPACT SOCKET SET - SAE 1/2" DR (3/4”, 13/16”, 7/8”, 15/16”, 1”) |
| 41.SSCF.07 | 7PC 3/8" DR CROWS FOOT SPANNER SET - SAE (3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 11/16” & 3/4”) |
| 41.SSCF.10 | 10PC 3/8" DR CROWS FOOT SPANNER SET - Metric (10, 11, 12, 13, 14, 15, 16, 17, 18 & 19mm) |
| 41.009.92 | 8PC IN-HEX IMPACT SOCKET SET 1/2” SQUARE DRIVE - Metric |
| 60mm long H10, H11, H12, H13, H14 | |
| 78mm long H15, H17, H19 | |
| 41.009.93 | 8PC IN-HEX IMPACT SOCKET SET 1/2” SQUARE DRIVE - SAE |
| 60mm long 1/4”, 5/16”, 3/8”, 7/16”, 1/2” | |
| 78mm long 9/16”, 5/8”, 3/4” | |
| 41.2569.40 | DEAD BLOW HAMMER 49OZ (1.4KG) |
| 41.BC02.08 | MINI BOLT CUTTERS 200mm |
| 41.054.10 | 54PC MECHANICS BIT SET |
| 51.285.36M | 36PC COMBO FEELER GAUGE SET |
| 41.2720.10 | 10PC PIN PUNCH AND COLD CHISEL SET (PUNCH -2, 3, 4, 5, 6, 8 & 10mm x CHISEL -12, 20 & 24mm) |
| 51.010.35 | UNIVERSAL LIFT SUPPORT CLAMP |
| 51.342.04 | 20PC DRAIN PLUG SET |
| 51.999.10 | OIL FILTER WRENCH - 1/2" DR |
| 51.200.10 | LONG PROBE CIRCUIT TESTER |
| 51.006.15 | 2 IN 1 PICK UP TOOL |
| 51.007.10 | 150mm MAGNETIC TRAY |
| 41.2544.04 | 4PC PRY BAR SET (8", 12", 18" & 24") |
| 41.TW04.10 | TORQUE WRENCH - 1/2" SQUARE DR (40-210 Nm) |
| 41.AW04.12 | 12" ADJUSTABLE WRENCH |
| 41.005.05 | MAG WHEEL NUT IMPACT SOCKET SET 1/2" DR (17, 19, 21, 22 and 27mm) |
