PRODUCT SUMMARY:

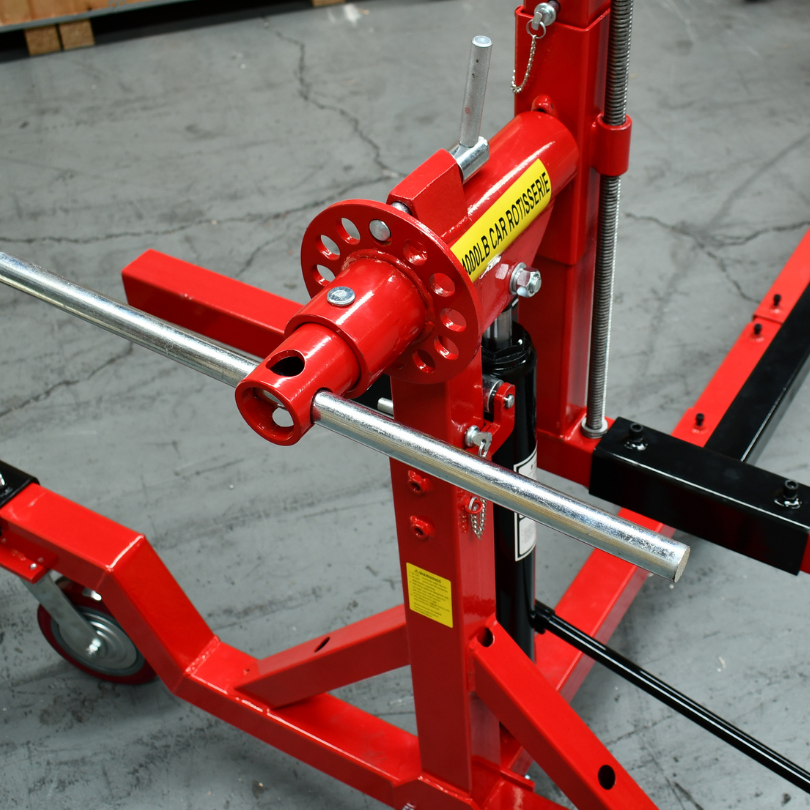

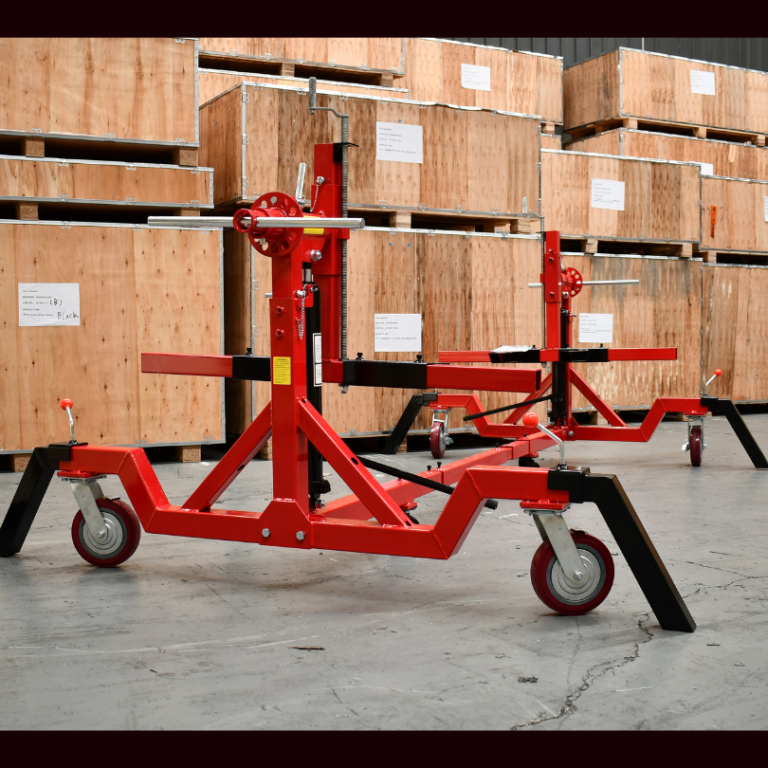

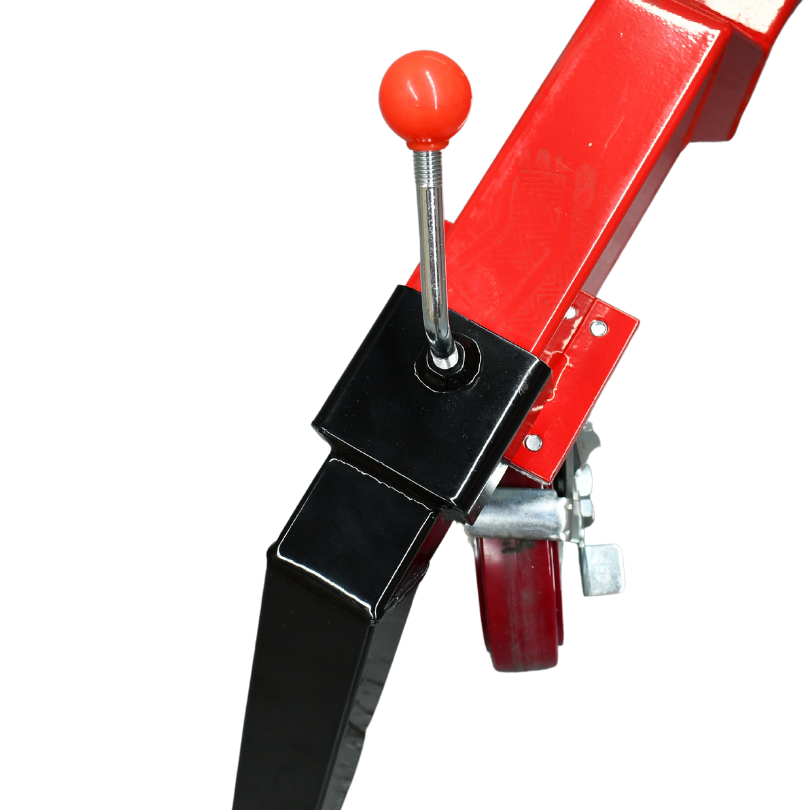

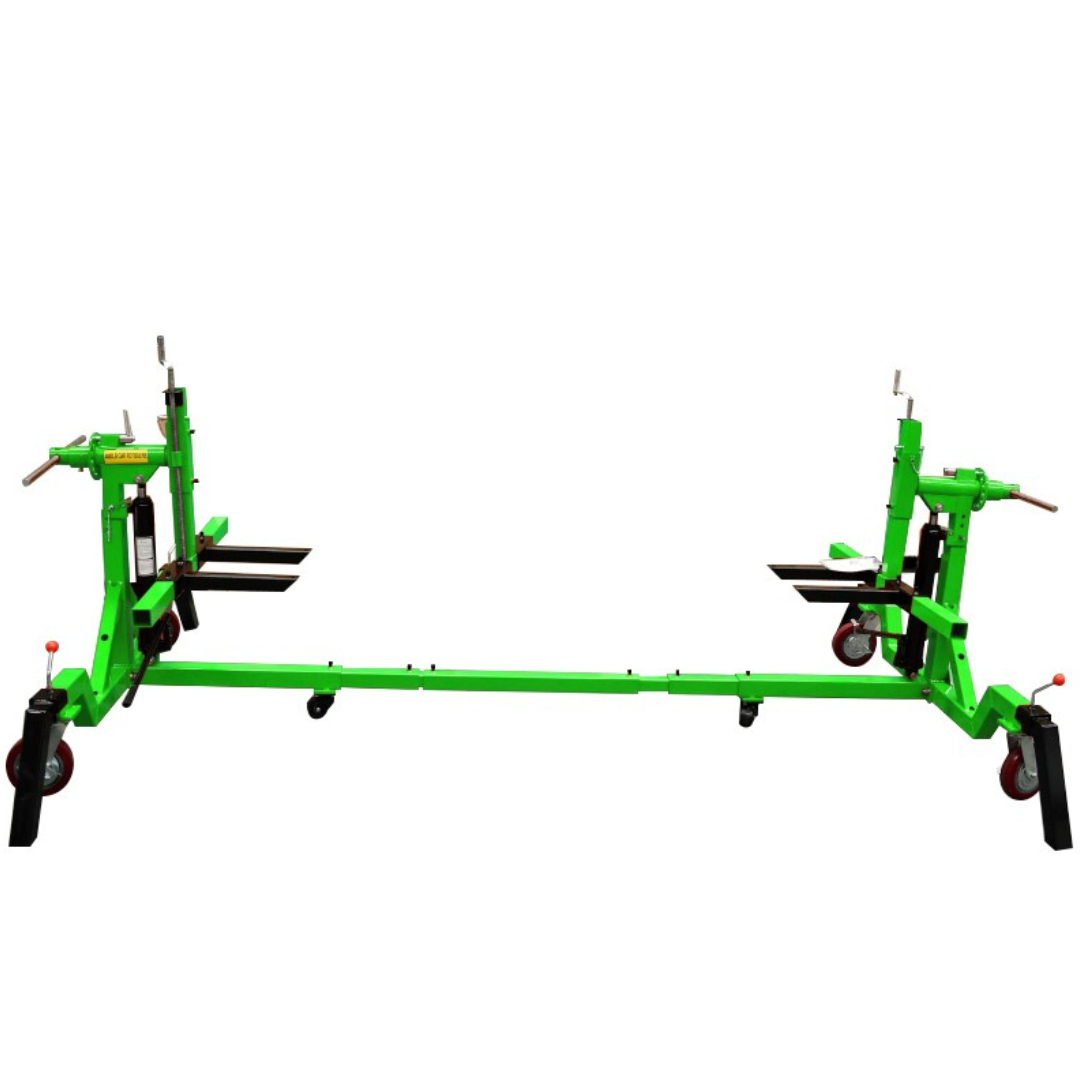

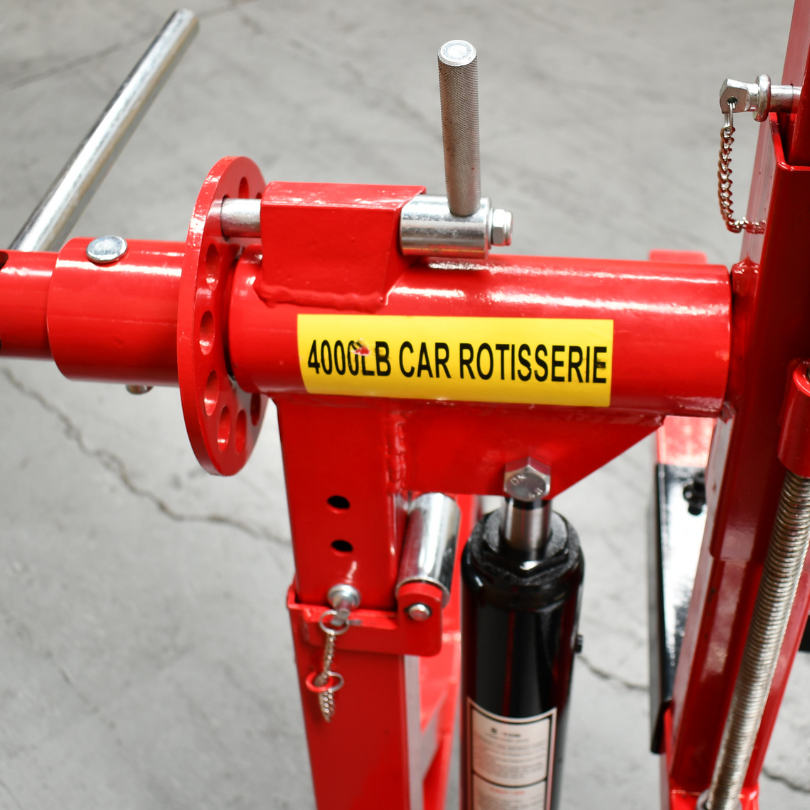

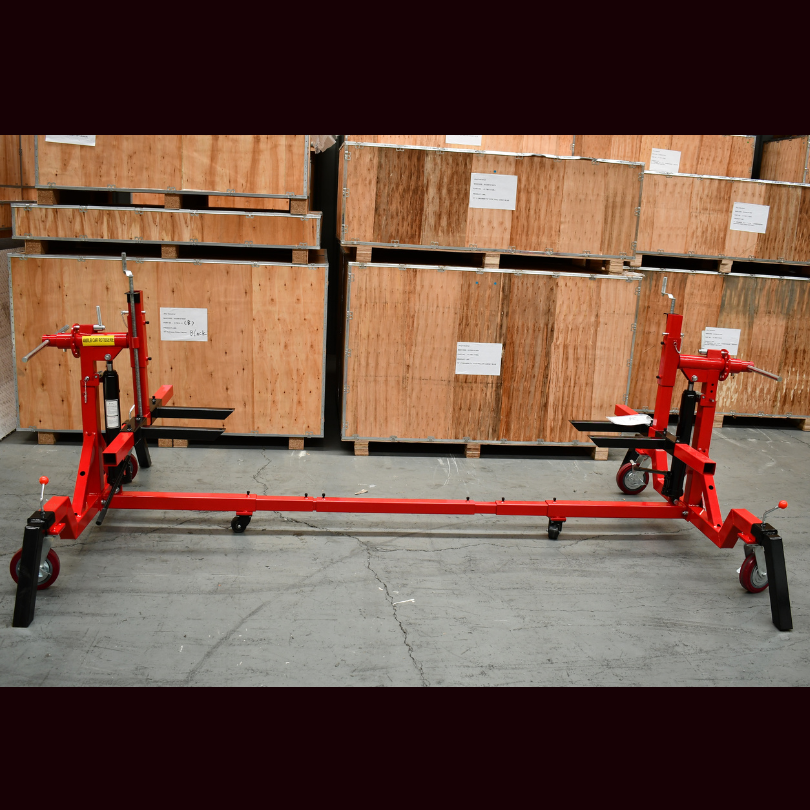

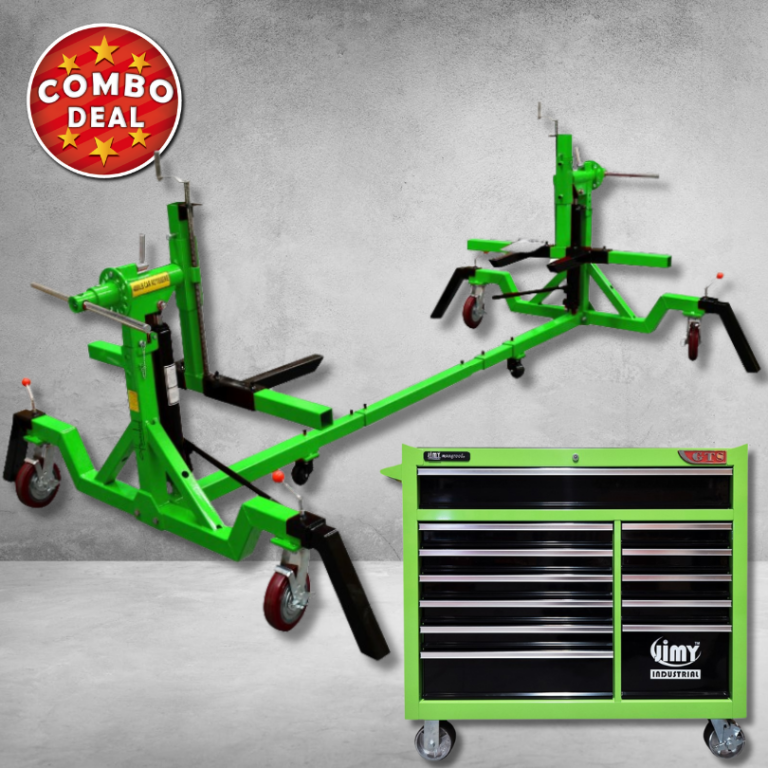

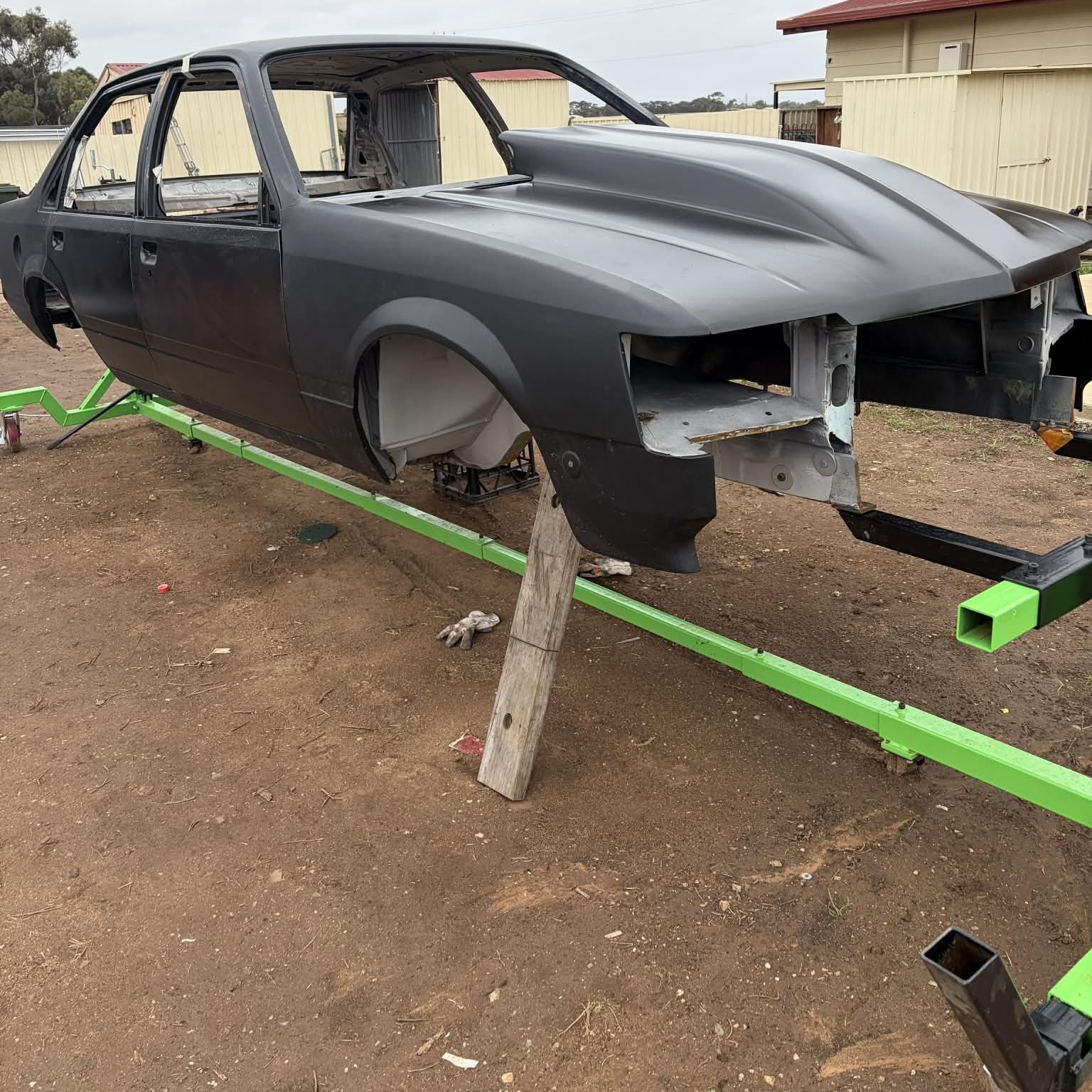

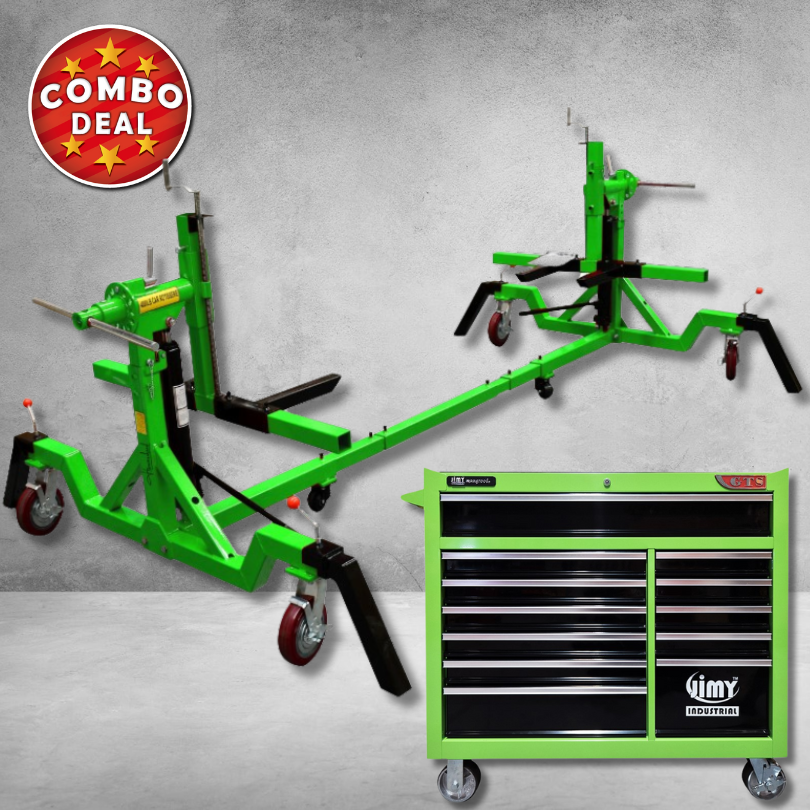

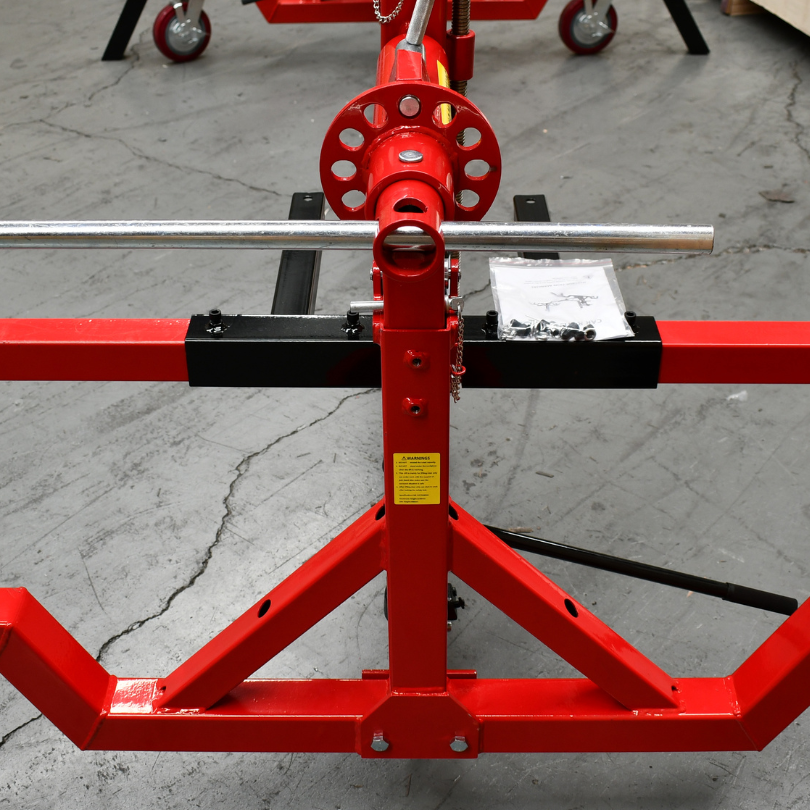

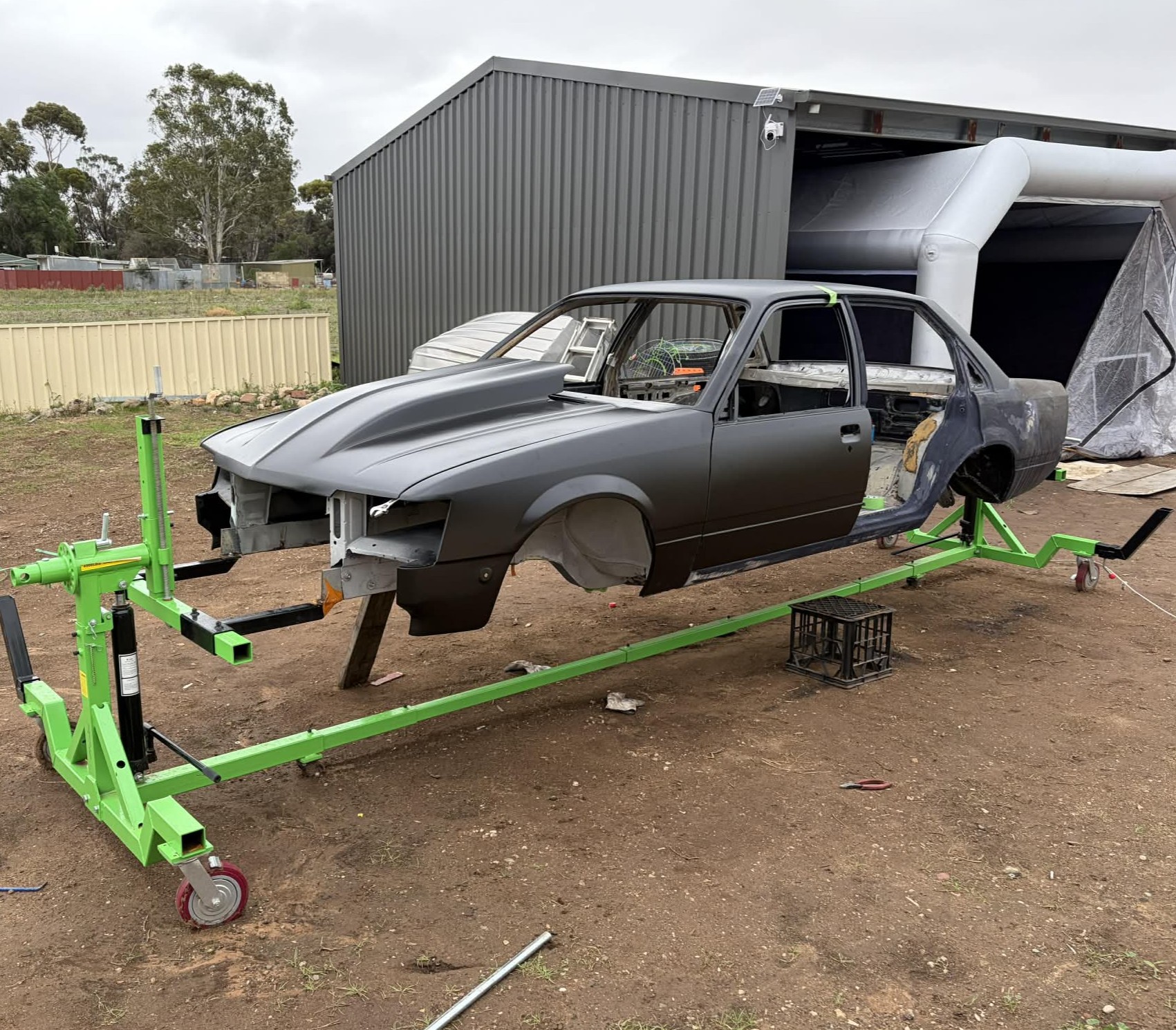

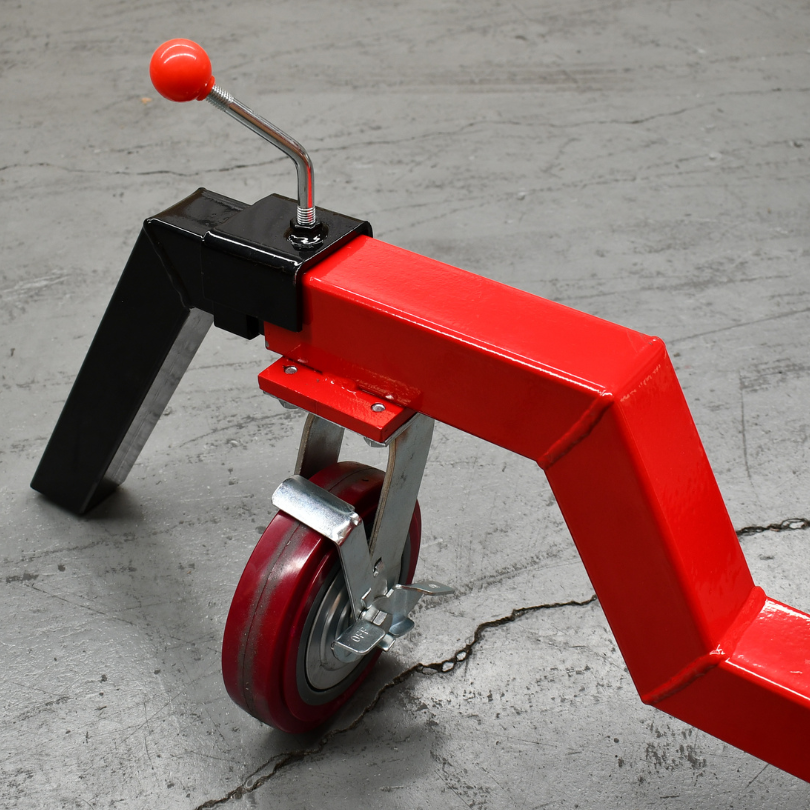

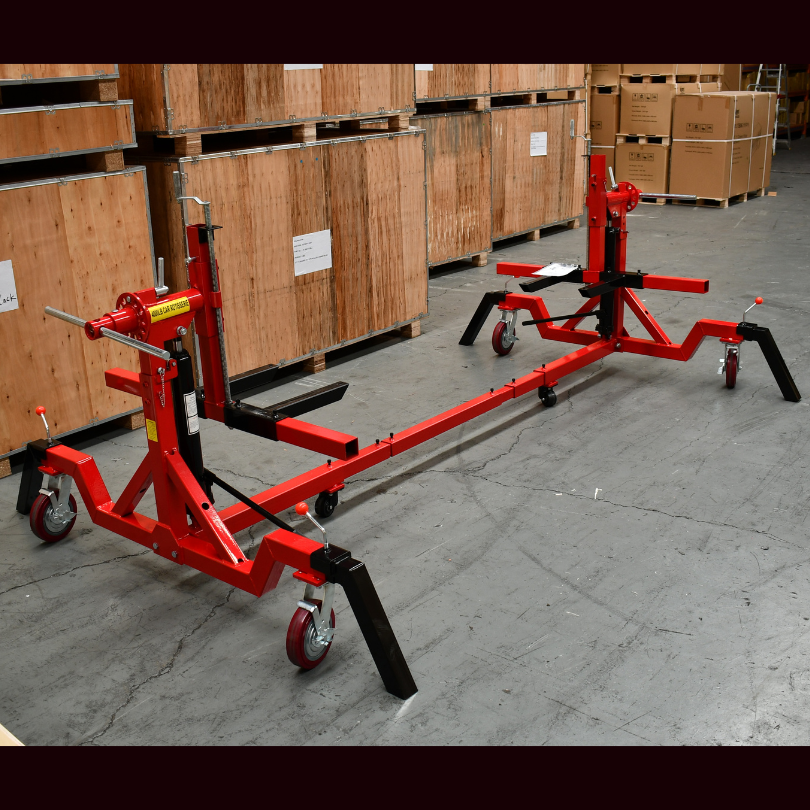

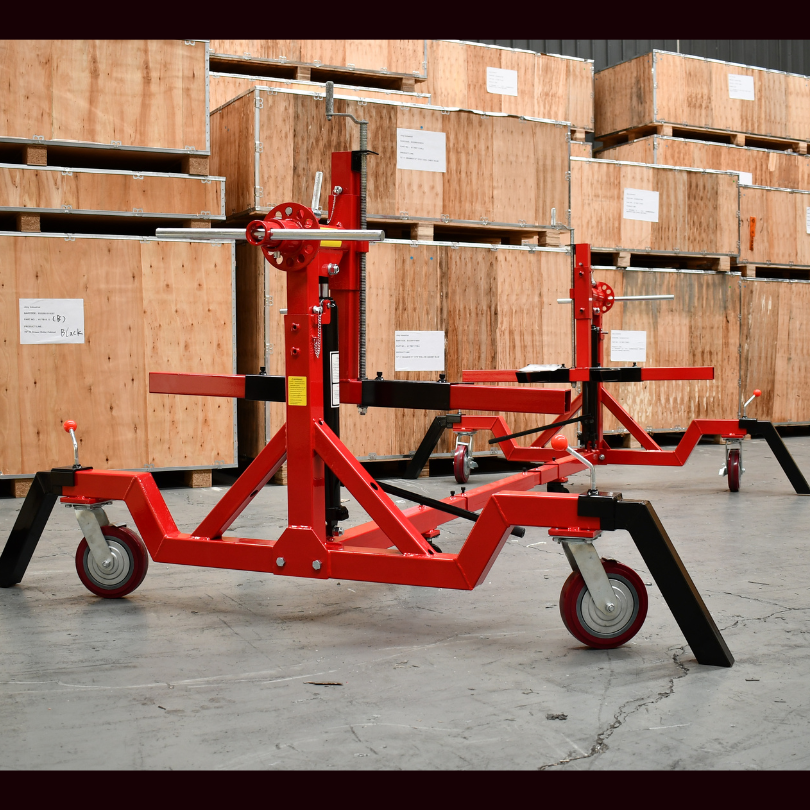

CAR ROTISSERIE
The car rotisserie is a universal restoration tool that lets the user turn the vehicle upside down with the assistance of a gearbox drive.
The vehicle can be lifted 50”and rotated 360 degrees.
The car can then be locked at any position to allow work to be done.
Whether you’re replacing rusty panels, sand blasting, painting, cleaning, or welding this vehicle rotisserie will make life much easier.
Just don’t forget to undo the locking bolts from BOTH ends first!
|
LOAD CAPACITY |
2 TON |
|
MINIMUM HEIGHT |
19.5” |
|
MAXIMUM HEIGHT |
50” |
|
WIDTH |
82” |
|
ADJUSTING LENGTH |
128” to 264.5” |
|
MIN LENGTH BETWEEN SUPPORT ARMS |
90.5” |
|
MAX LENGTH BETWEEN SUPPORT ARMS |
227” |
|
N.W./G.W. |
230KGS/250KGS |
PANEL BEATERS TOOL KIT
This 12 drawer Panel Beaters tool kit from Jimy Tools is the perfect place to start if your new to the mechanical Panel Beating trade.
- Modular design provides a consistent and sleek look and fitment across all add on box options. An ability to expand your storage space over time with top chests, side cabinets and side lockers.
- Durable full-extension ball bearing drawer slides support up to 60kgs per pair and 120kgs per dual pair slides.
- Bench top providing a weight capacity up to 350kgs
- 1250kgs total box weight load capacity
- 12 drawers for easy organisation of hand tools and everything else you need. The bottom right hand drawer is an extra large compartment for storage on bulky and heavy items such as larger power tools etc. Drawers are easily removable.
- Multi-gauge, welded case design for superior strength
- Full-width drawer handles allow for easy opening from anywhere on the drawer
- Snap shut drawers for stronger drawer retention and convenience
- 5” high casters wheels and 2” wide (2 fixed, 2 locking swivel) provide easy mobility when fully loaded
- Robust push handle
- Integrated single keyhole barrel lock system keeps tools safe and secure.
- Tough powder-coated gloss finish for wear and rust resistance
- Full top rubber matt and pre-cut drawer liners
PRODUCT SPECIFICATIONS:
|
12 DRAWER 42” WIDE ROLLER CABINET |
|
|
No. |
DESCRIPTION |
|
41.TB04.12 |
12 DRAWER 42” WIDE ROLLER CABINET |
|
|
BOX DIMENSIONS: 1070MM (W) X 570MM (L) X 1010MM inc Castor Wheels (H) |
|
|
850MM exc Castor Wheels (H) |
|
|
1 DRAWER: 959 X 501 X 122MM |
|
|
5 DRAWERS: 570 X 501 X 75MM |
|
|
1 DRAWER: 570 X 501 X 154MM |
|
|
4 DRAWER: 313 X 501 X 75MM |
|
|
1 DRAWER: 313 X 501 X 233MM (JIMY LOGO) |
|
|
N.W.: 138KGS |
|
|
STEEL THICKNESS |
|
|
BODY: 1.0MM |
|
|
DRAWER: 0.8MM |
|
|
Capacity of slide 60kgs per pair of slides |
This tool kit consists of a 12 drawer roller cabinet with a full complement of sockets in 1/4” 3/8” & 1/2” square drives with all the extension bars, ratchets and breaker bars to suit and what about that 900mm extension. Also included are ROE spanners in metric and SAE, pliers, screwdrivers, Allen keys etc. check out the full list of contents below.

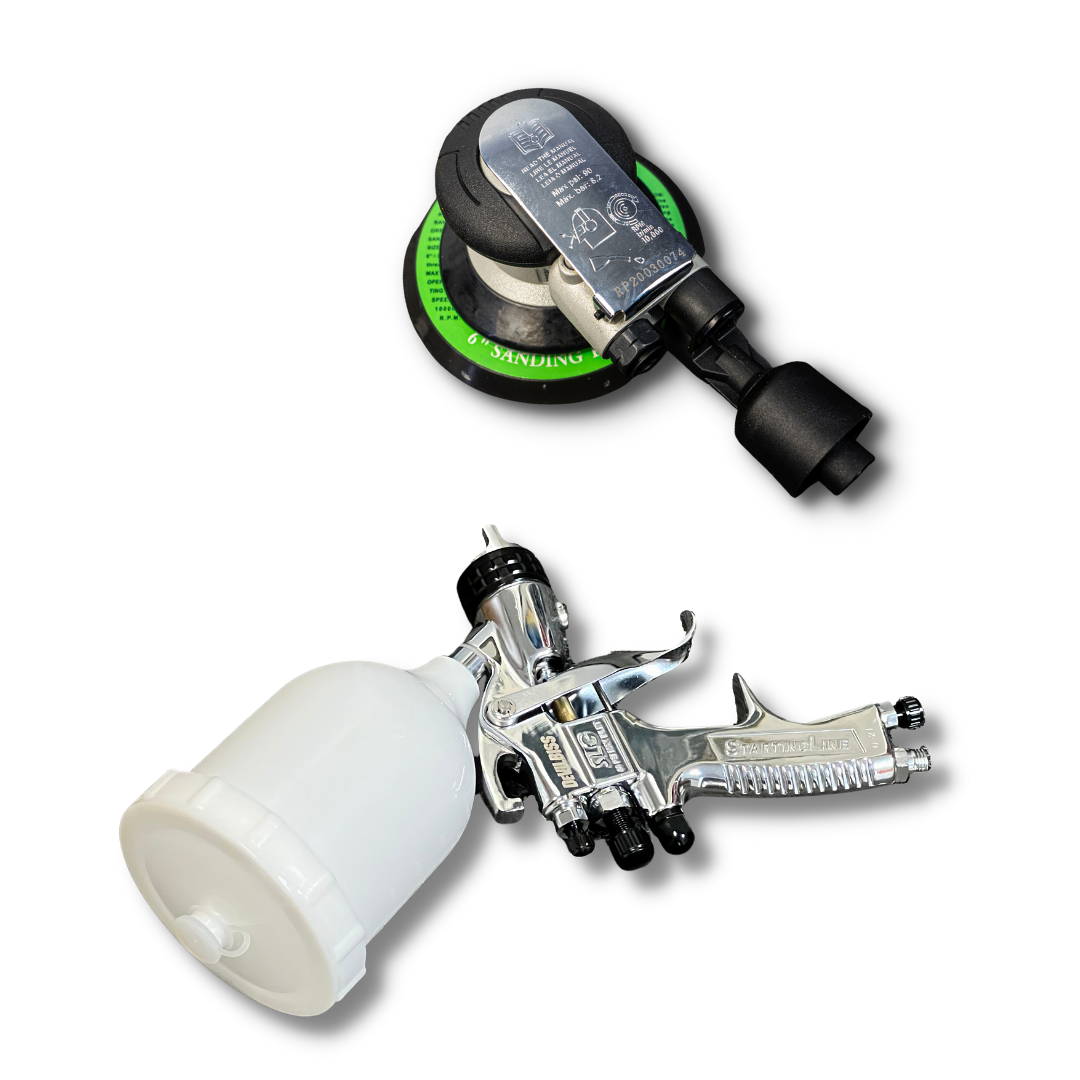

The kit also provides your basic tools to start you off in your Panel Beating trade. Extra Hammers, dolleys, trim tools removers, recognisable masks and gravity feed guns to an orbital sander.
INTRODUCTORY LEVEL PANEL BEATER TOOL KIT
| STOCK CODE | DESCRIPTION |
|---|---|
| INTRODUCTORY PANEL BEATER CONTENTS | |
| 41.TEVAW.02F | 142PC SOCKET AND ACCESORY EVA TRAY |
| 1/4" DR SOCKETS (4-14mm & 5/32"-1/2") | |
| 3/8" DR SOCKETS (9-19mm & 3/8"-13/16") | |
| 1/2" DR SOCKETS (8-32mm & 1/2"-1 1/4") | |
| 3x RATCHET HANDLES (1/4", 3/8", 1/2" DR) | |
| 8x EXTENSION BARS | |
| 4x SPARK PLUG SOCKETS (1/2" Dr 16 & 21mm - 3/8" Dr 16 & 21mm) | |
| 3x BREAKER BARS | |
| 3x IMPACT ADAPTORS | |
| 3x IMPACT UNIVERSAL JOINTS (1/4", 3/8", 1/2") | |
| 4PC PLIER SET (Long Nose, Side Cutting, Linesman & Locking Plier) | |
| 2x ADJUSTABLE WRENCHES (6" & 8") | |
| 38PC SECURITY BIT SET WITH 1/4" RATCHET | |

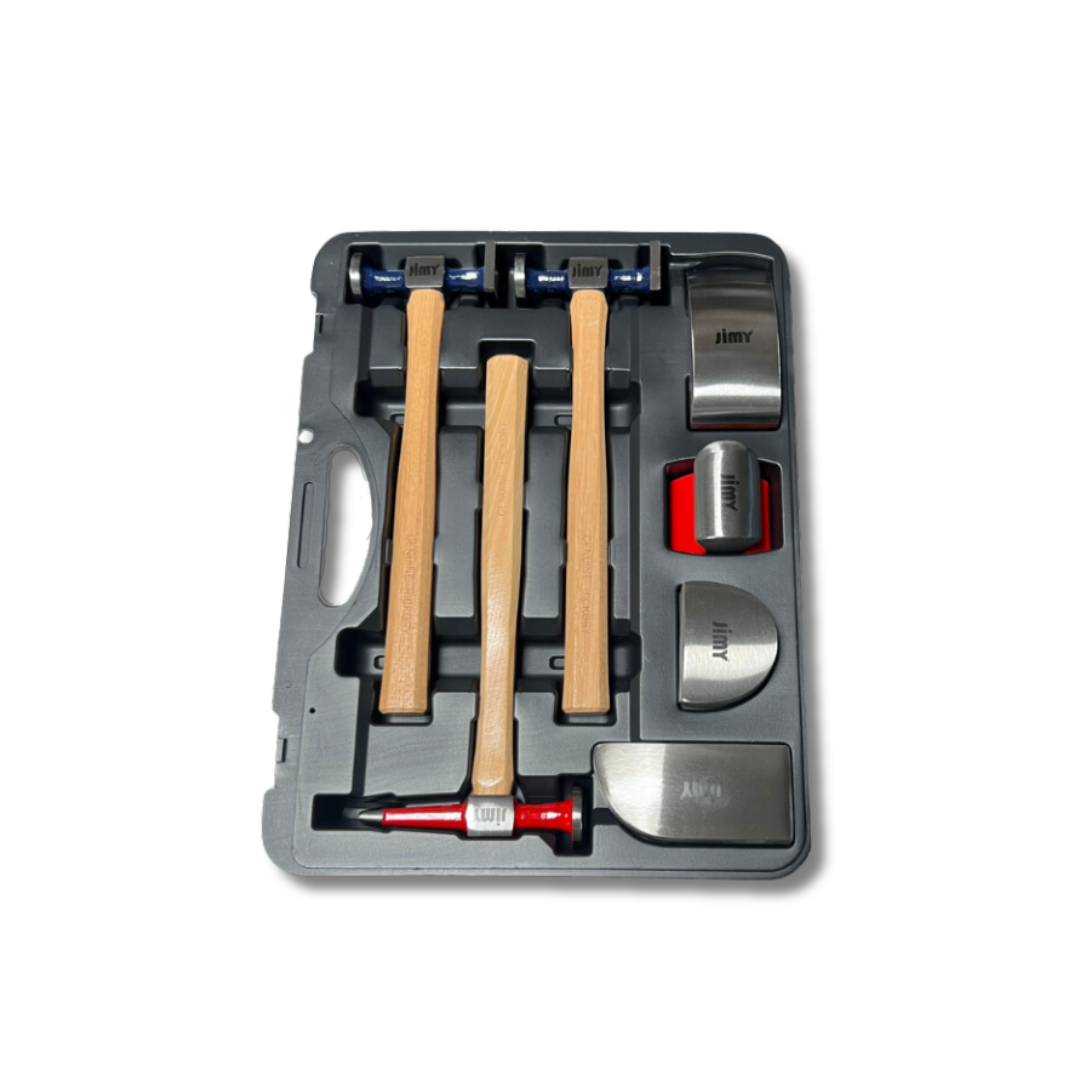

| BP-WT.LDX07 | 7PC AUTO BODY REPAIR TOOL SET |

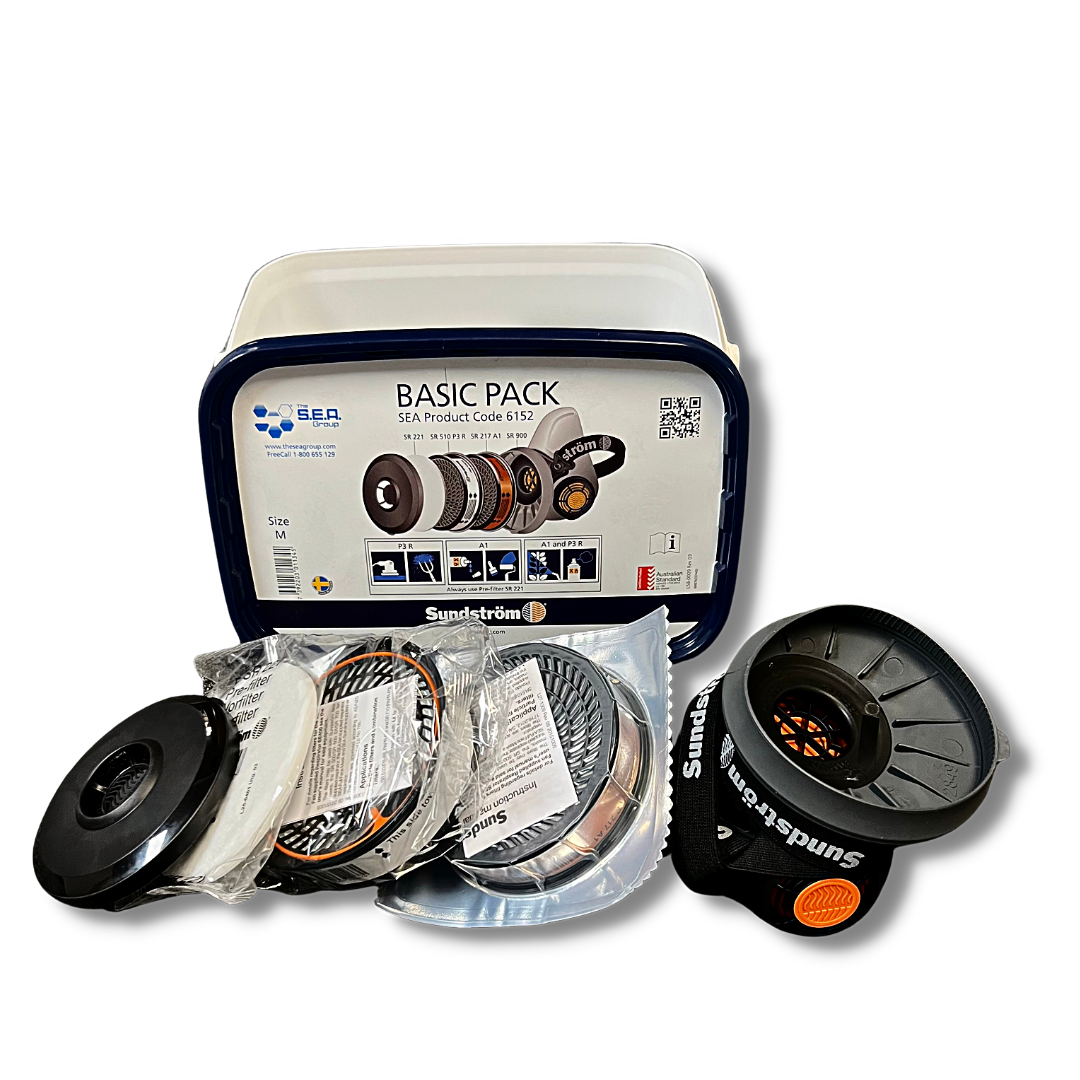

| CCS-171-06152 | SAFETY MASK |
| CCS-SLG-G620-18 | GRAVITY FEED GUN |
| CCS-RS6337 | AIR PALM SANDER 6" w/ DUST EXTRACTOR |

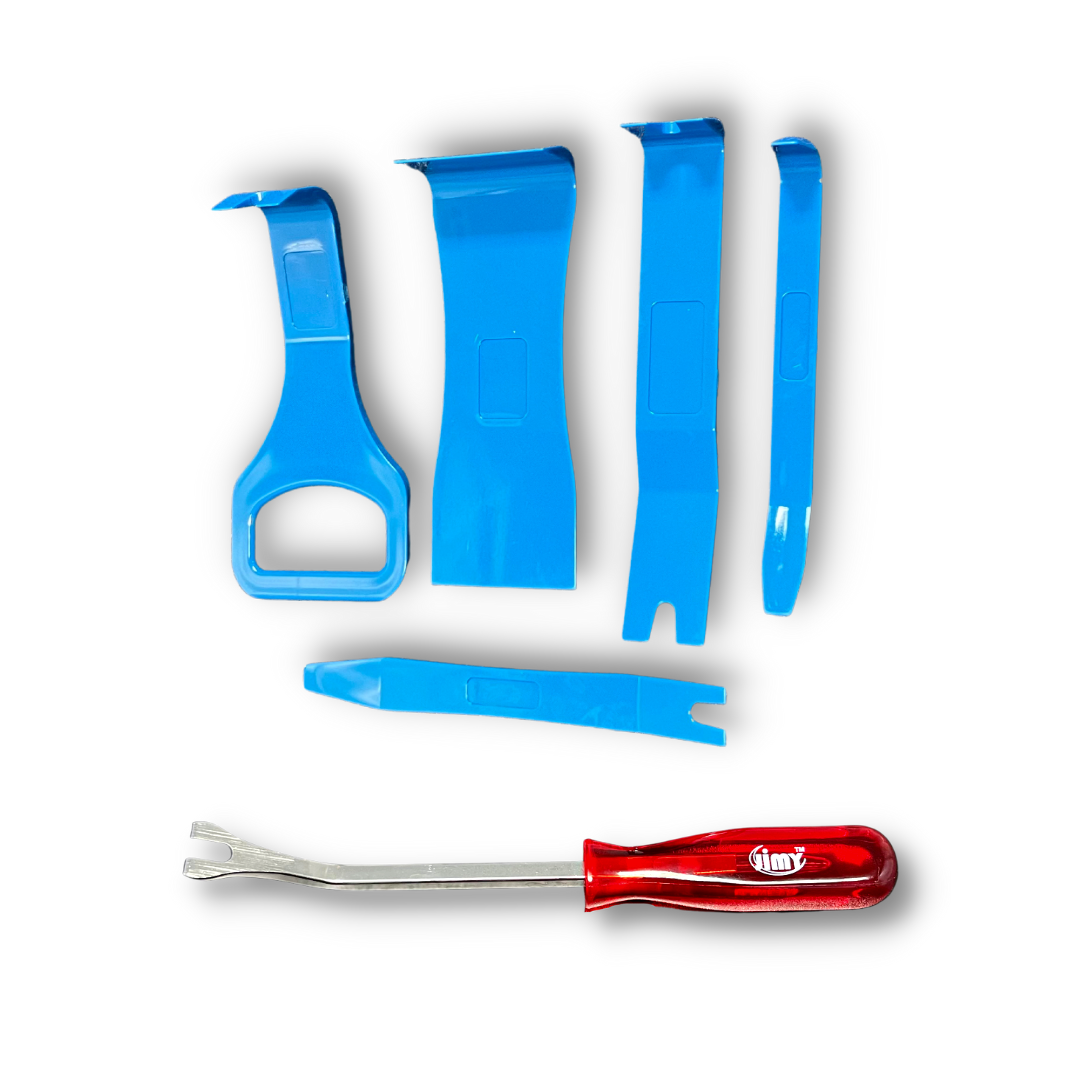

| 51.010.30 | TRIM TOOL REMOVER |
| BP-51.010.32 | 5PC UNI CLIP REMOVER SET |
| 41.TEVA.03F | 26 PC RING OPEN END SPANNER EVA TRAY - MM & SAE |
| 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 21mm | |
| 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |
| 41.TEVAF.01F | 8PC SCREWDRIVER SET |
| 41.2014.08M | 8PC DEEP 1/4″DR SOCKET SET RAIL – MM |
| 5.5, 6, 7, 8, 9, 10, 11, 12MM | |
| 41.2038.08M | 8PC DEEP 3/8″DR SOCKET SET RAIL – MM |
| 10, 11, 12, 13, 14, 16, 17, 19MM | |
| 41.2012.08M | 8PC DEEP 1/2″DR SOCKET SET RAIL – MM |
| 13, 14, 16, 17, 19, 21, 22, 24MM | |
| 41.2014.08S | 8PC DEEP 1/4″DR SOCKET SET RAIL – SAE |
| 3/16″, 7/32″,1/4″,9/32″,5/16″,11/32″,3/8″ & 7/16″ | |
| 41.2038.08S | 8PC DEEP 3/8″DR SOCKET SET RAIL – SAE |
| 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″ | |
| 41.2012.08S | 8PC DEEP 1/2″DR SOCKET SET RAIL – SAE |
| 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ | |
| 41.004.30 | 4PC INTERNAL/EXTERNAL STRAIGHT/BENT CIRCLIP PLIERS |
| 41.2610.16 | 16OZ BALL PEIN HAMMER |
| 41.2394.30 | 3LB (1.5KG) CLUB HAMMER |
| 41.009.50 | 9PC HANDLE BALL NOSE HEX KEY SET – MM |
| 41.009.55 | 9PC HANDLE BALL NOSE HEX KEY SET – SAE |
| 41.025.35 | 9PC LONG TAMPER STAR & STAR SET |
| 41.993.10 | UTILITY KNIFE |
