PRODUCT SUMMARY

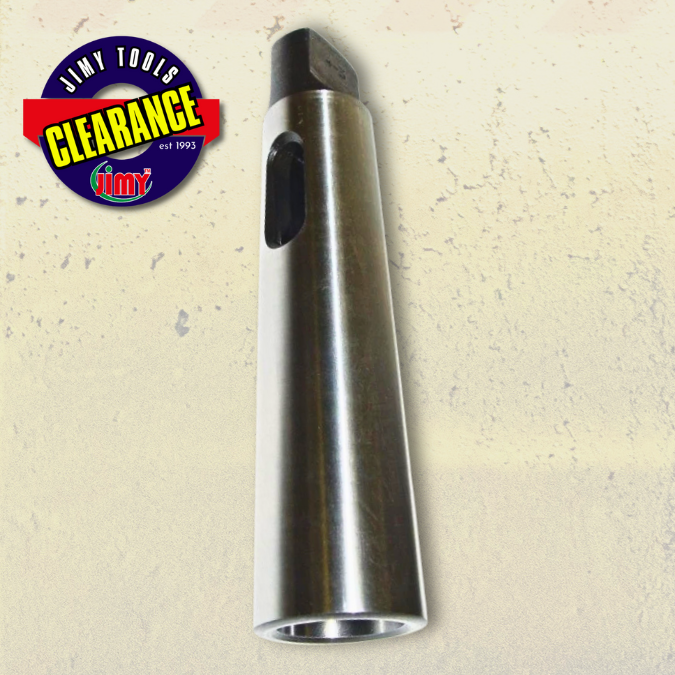

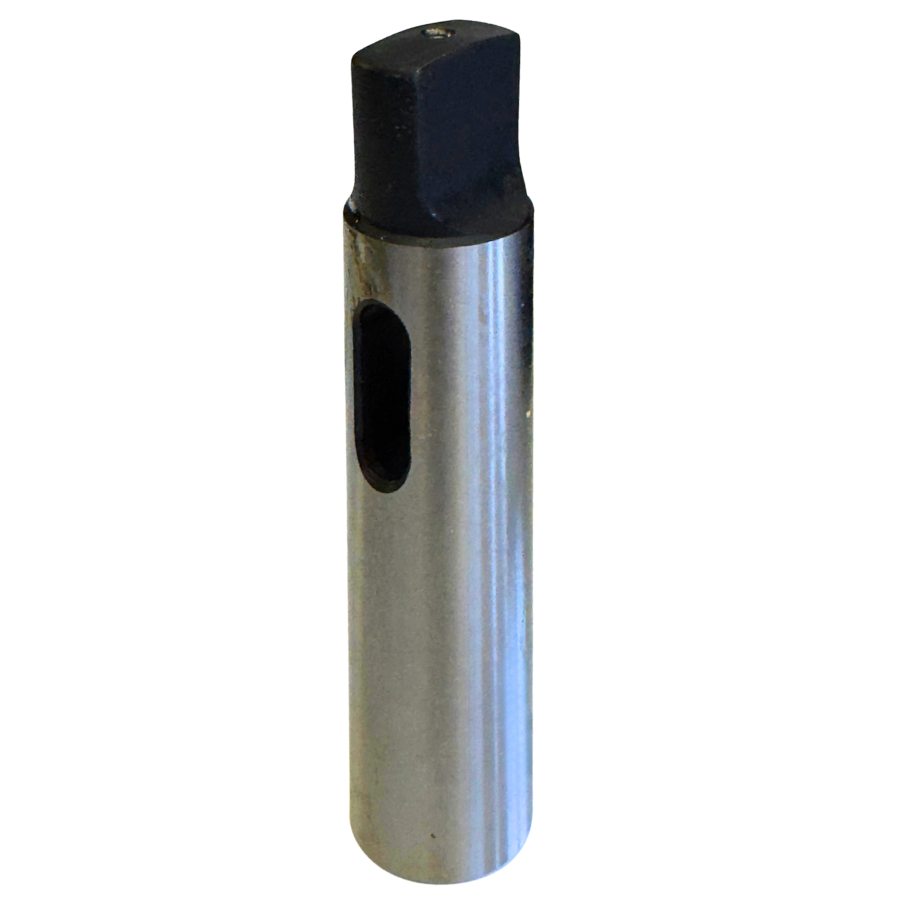

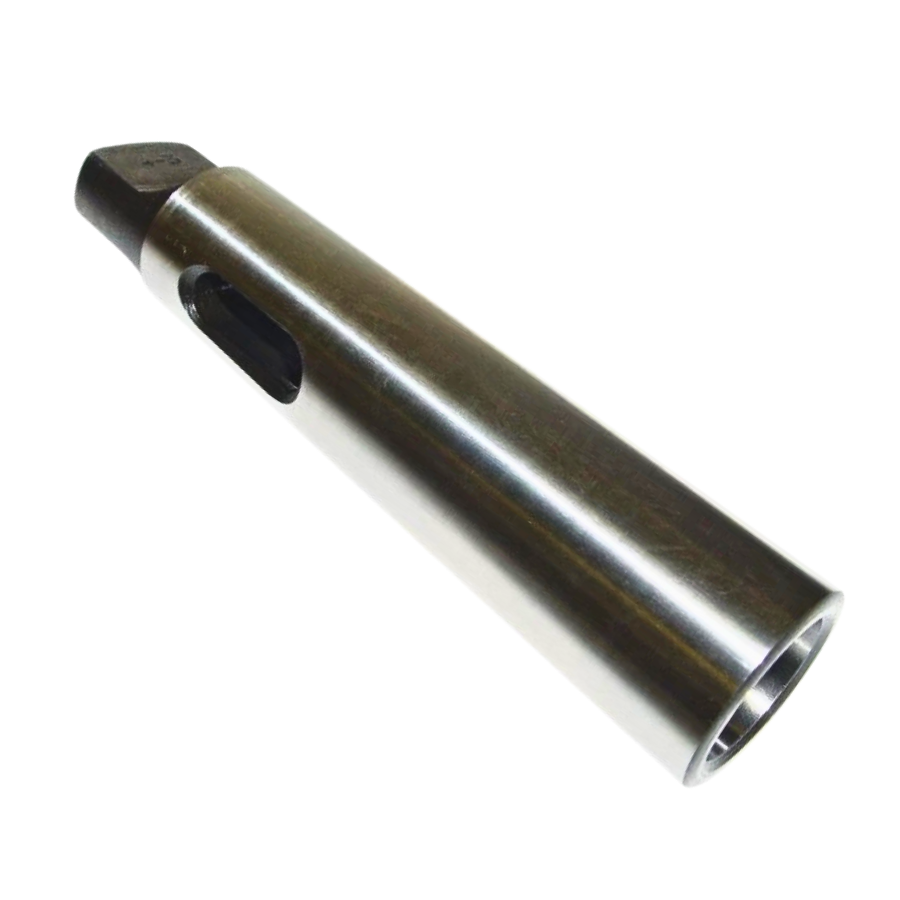

The Jimy Tools Drill Reduction Sleeve MT5 x MT4 is a precision ground Morse taper adaptor designed to allow MT4 shank tooling to be accurately used in MT5 spindle machines. Manufactured from hardened steel and precision ground both internally and externally, it delivers reliable alignment and consistent performance for drilling, milling and general machining operations.
Key Features
- Allows MT4 shank tooling to be used in MT5 machine spindles
- Hardened and precision ground construction
- Hardness rated to 52–55 HRC
- Precision ground internally and externally for high concentric accuracy
- Concentricity tolerance to 0.010 mm
- Conforms to DIN 2185
- Suitable for drilling, milling and general machine shop applications
Usage:
Ideal for adapting MT4 drills and tooling for use in MT5 spindle machines while maintaining accurate alignment and low run-out.
