PRODUCT SUMMARY:

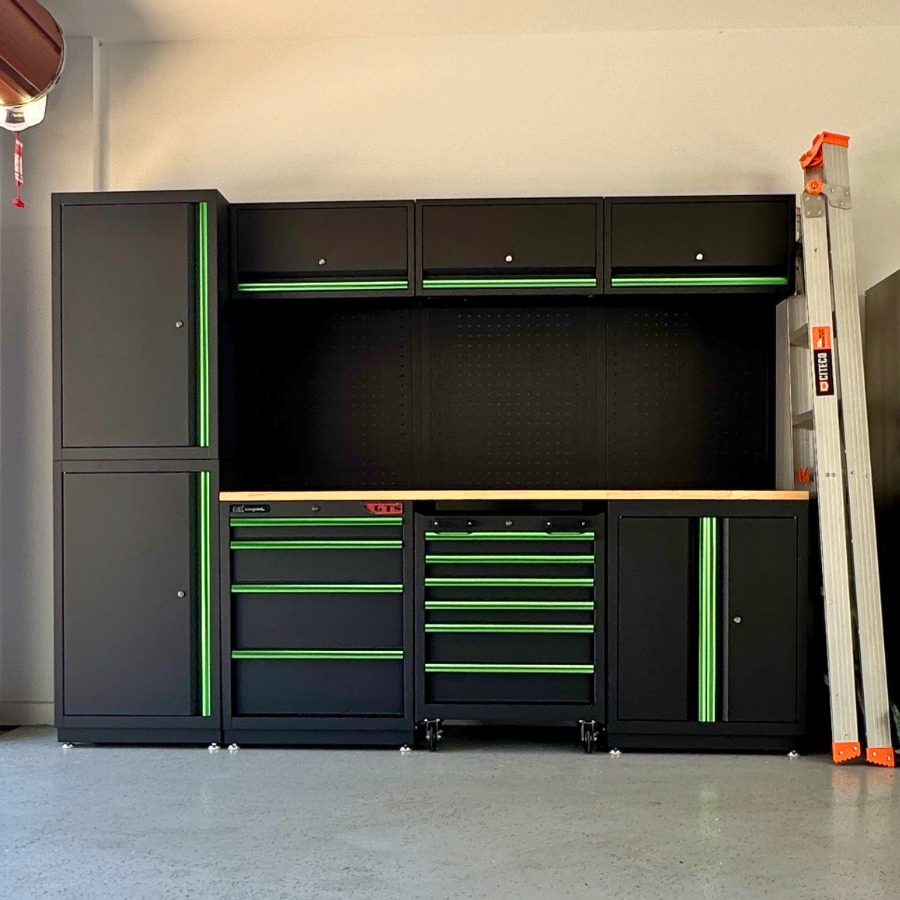

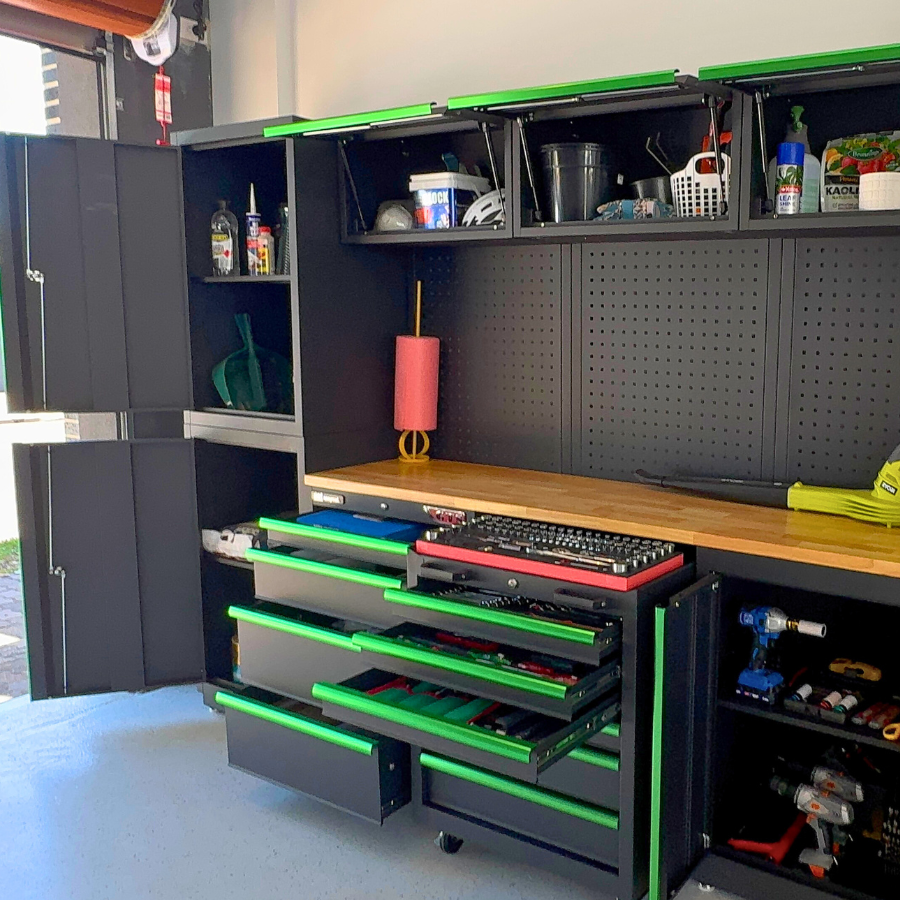

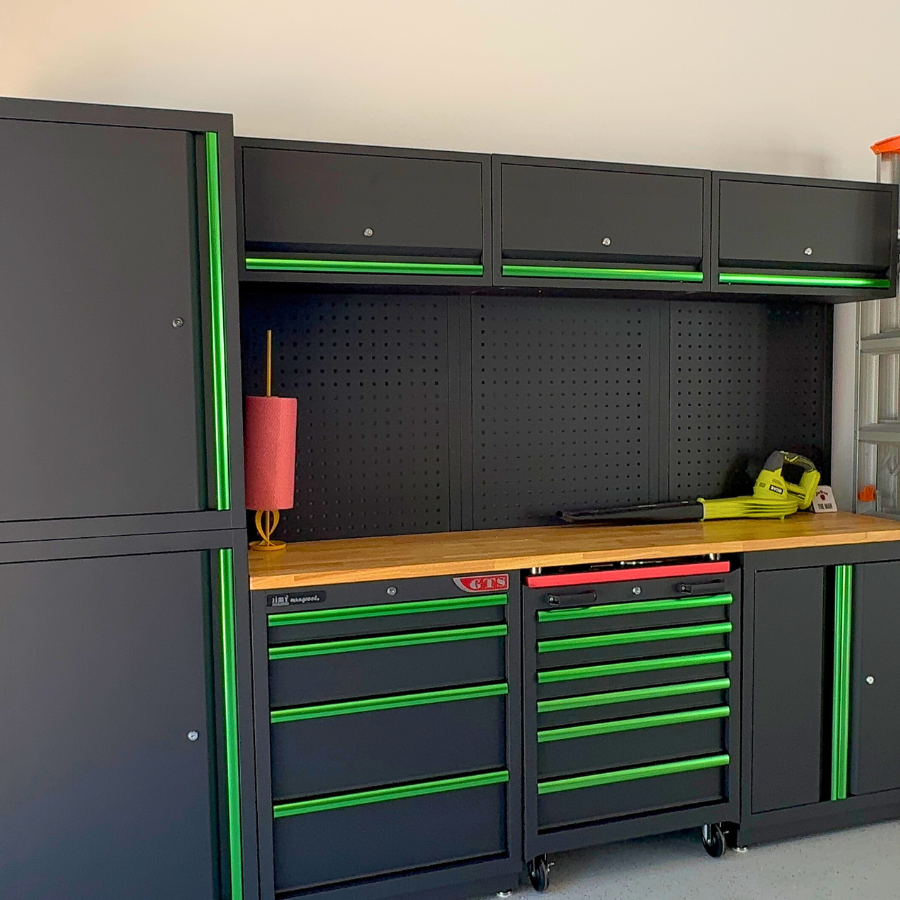

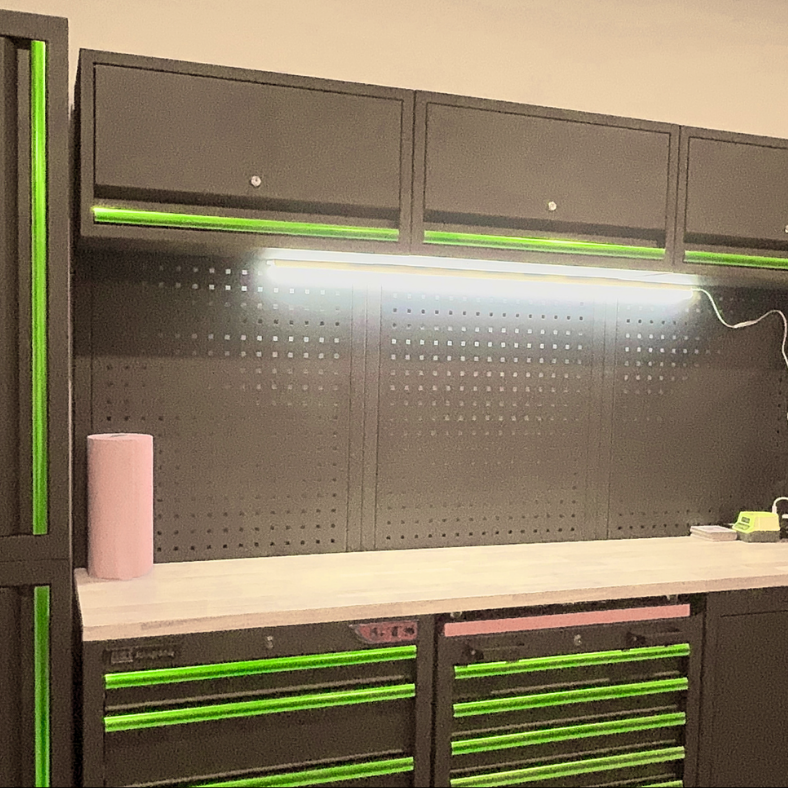

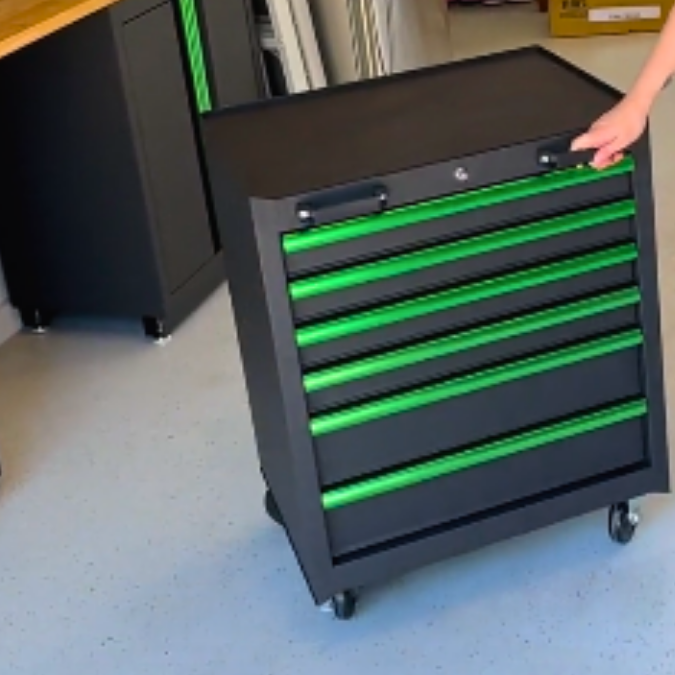

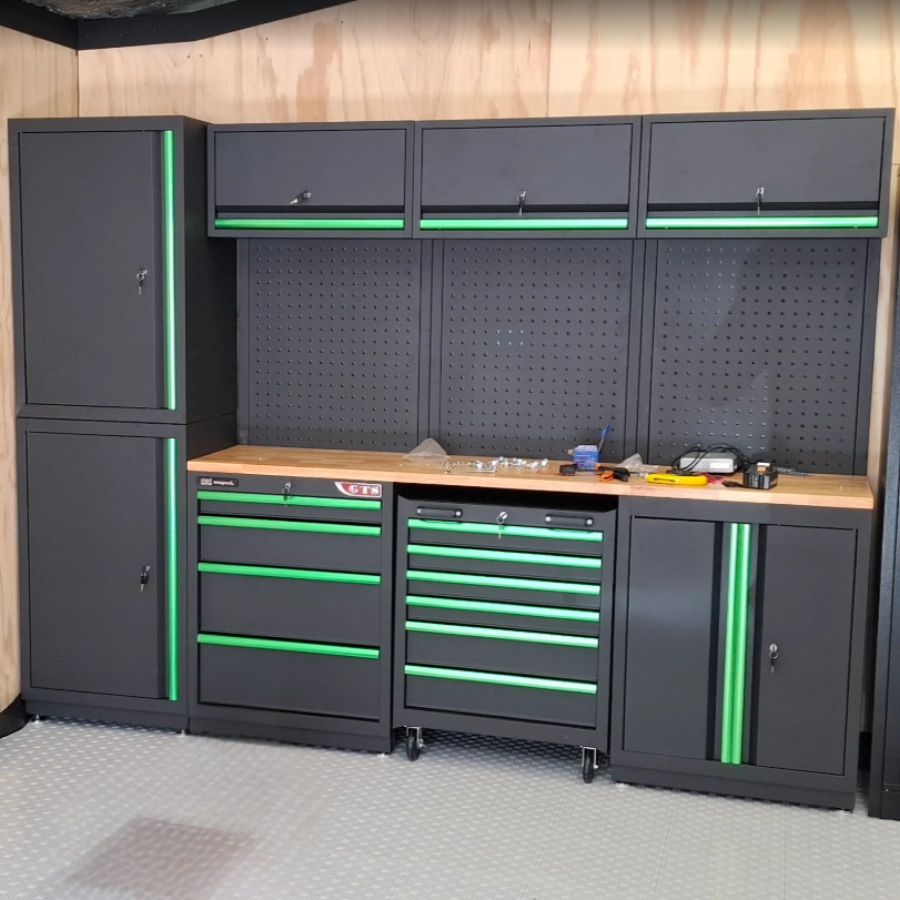

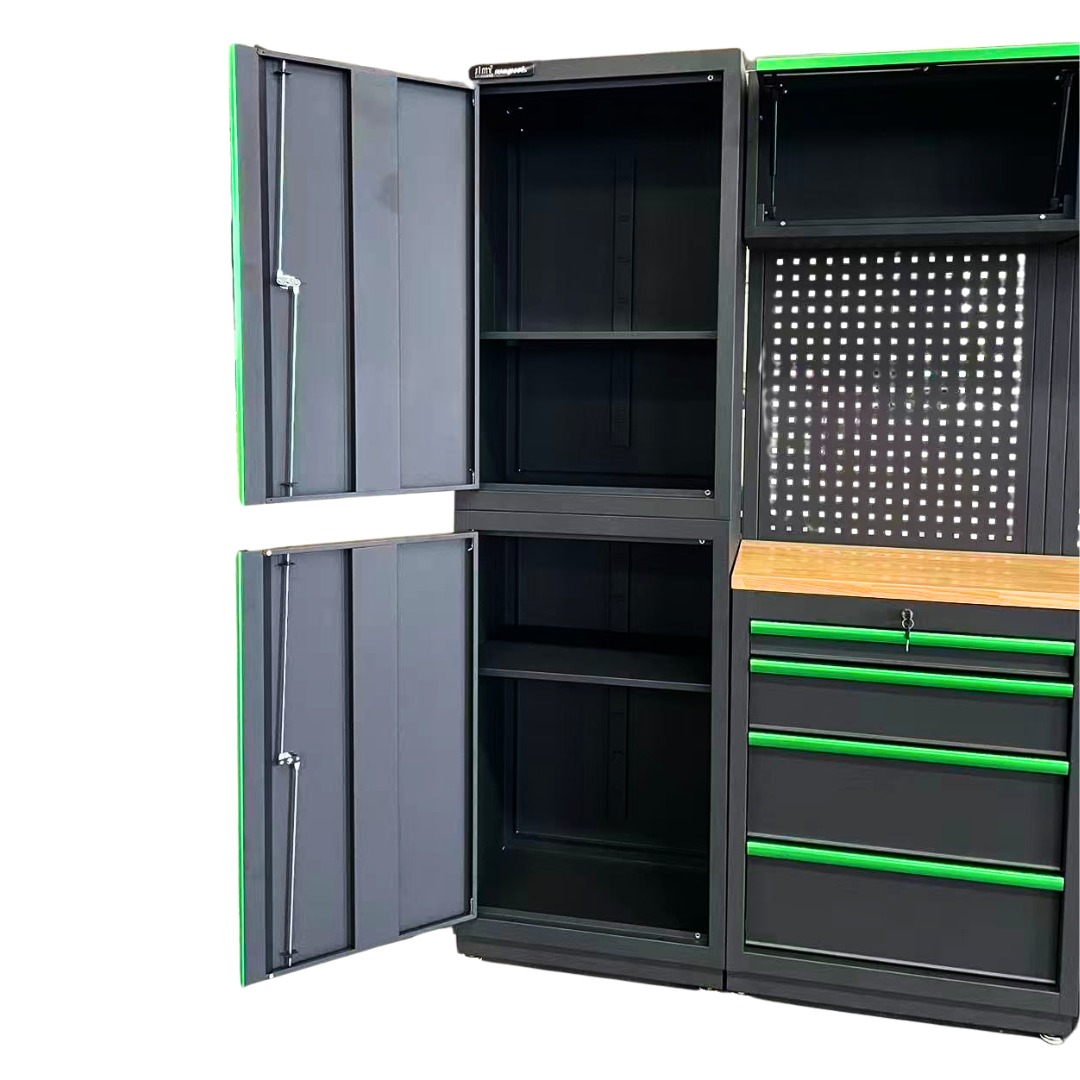

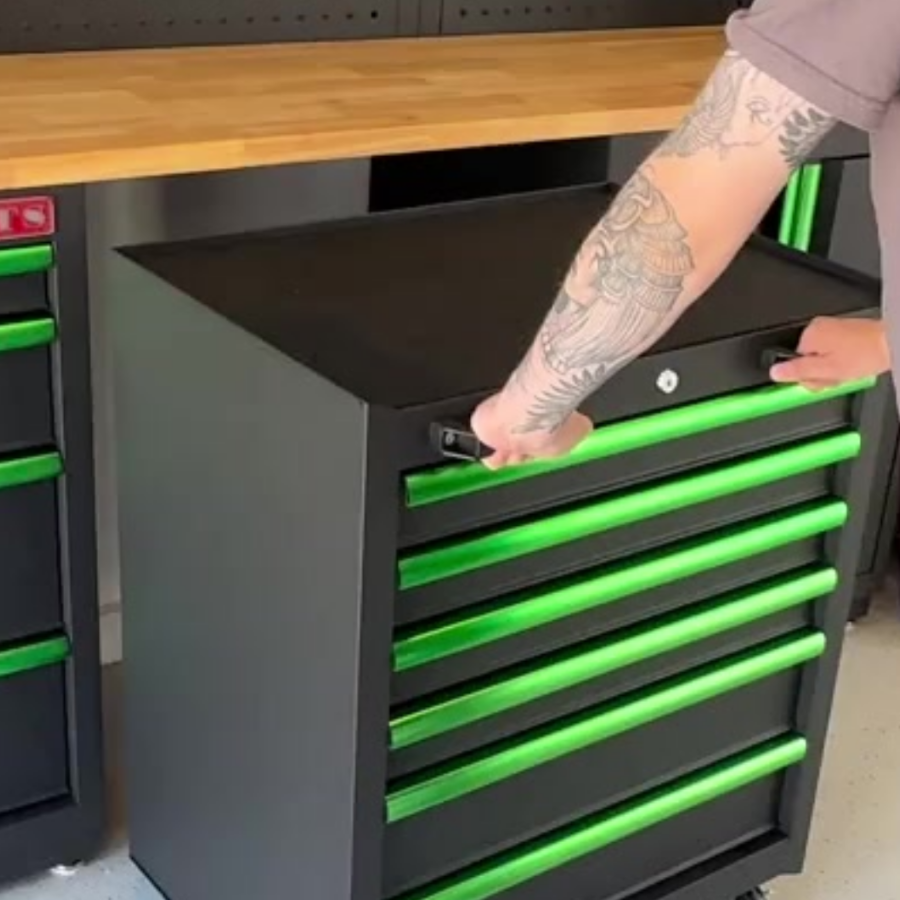

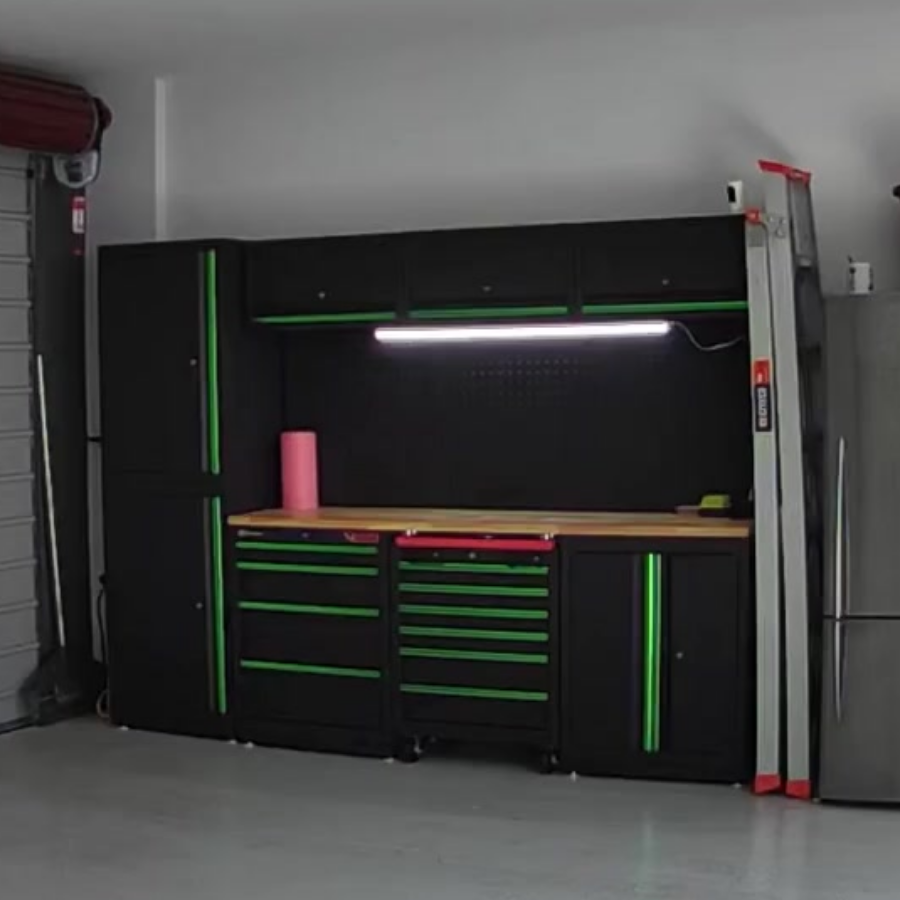

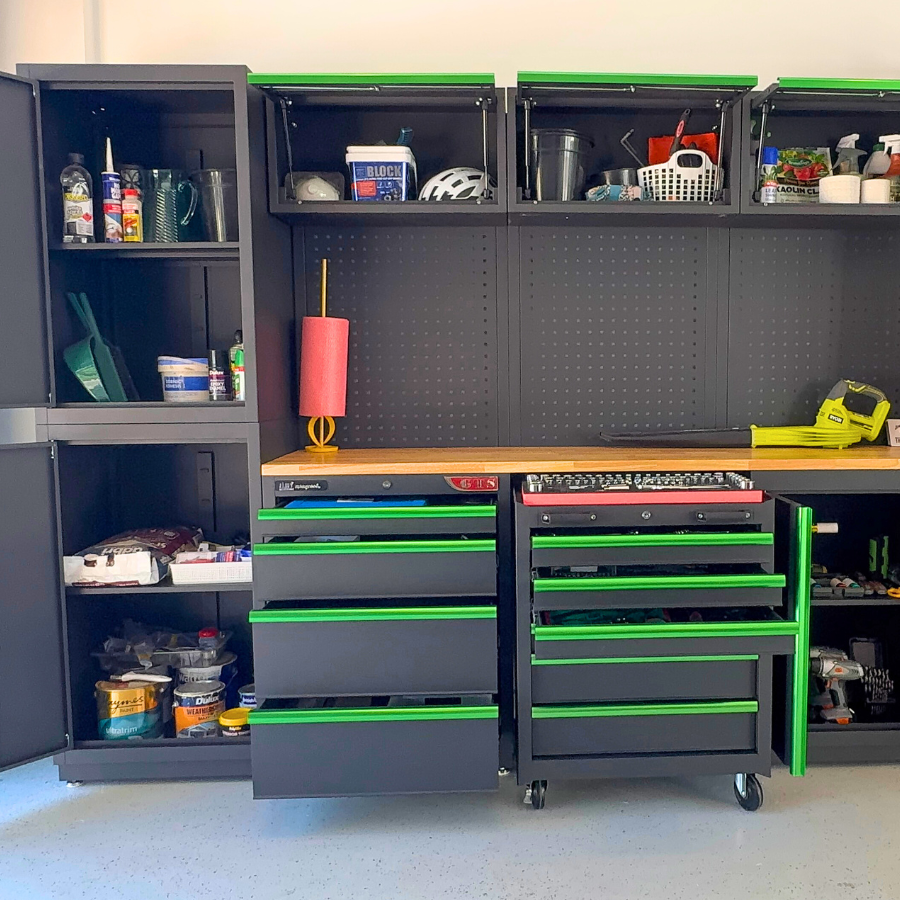

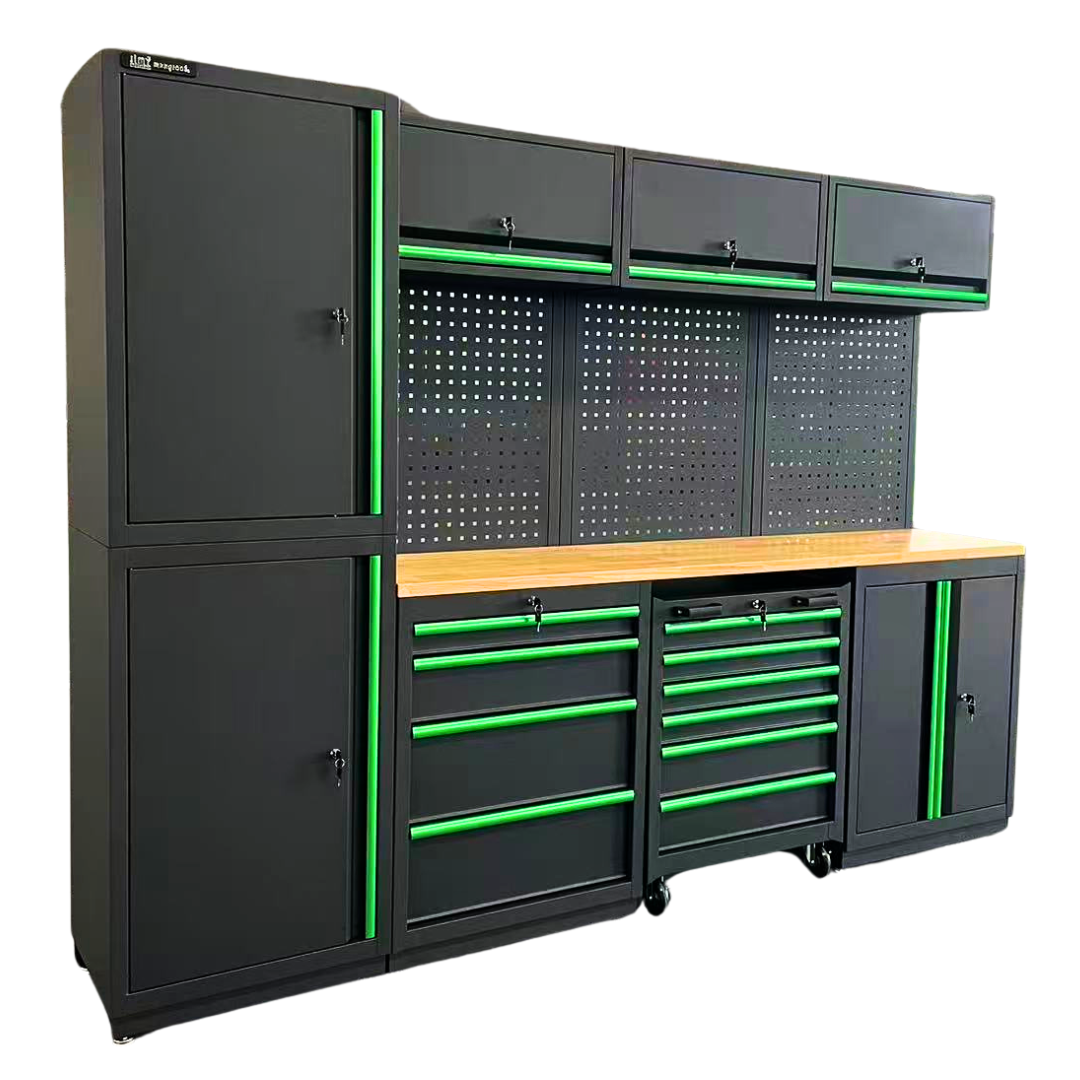

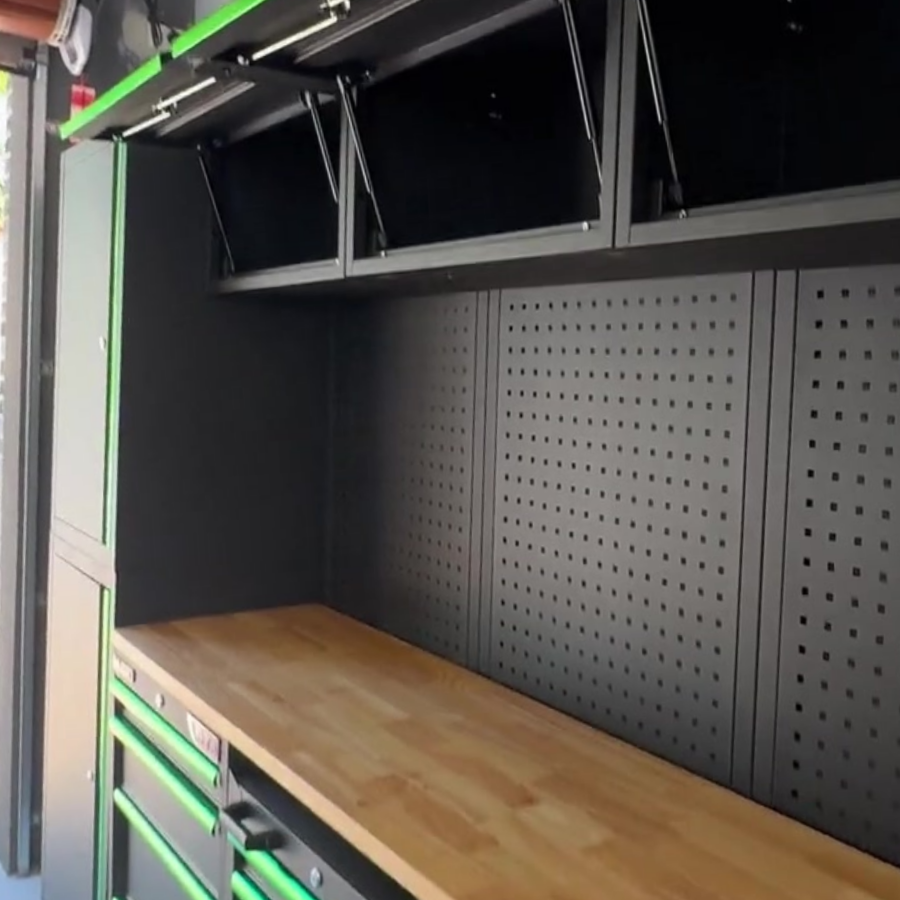

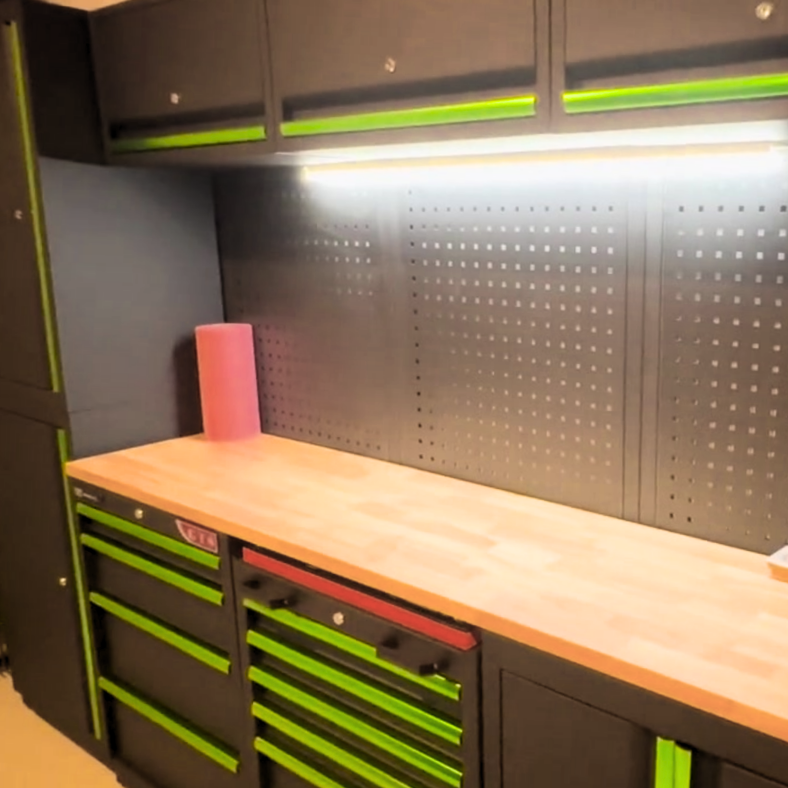

10 DRAWER 124″ GARAGE SERIES  WORKSTATION

Part number: K41.TBWS.20

PRODUCT SUMMARY:

The Jimy Tools Garage Series Workstation is a premium storage and organisation solution designed to elevate your home garage or shed. Built with a full welded steel structure and finished in a scratch and stain-resistant black powder coat with green trim, this workstation is as tough as it is stylish.

For convenience and safety, the workstation includes magnetic door latches, adjustable levelling legs, and back slots for wall anchoring to prevent tipping. Delivered pre-assembled on pallets, setup is fast and straightforward.

This workstation blends functionality, durability, and professional-grade design, making it an essential for any work area.

KEY FEATURES:

• 1587KG Total Weight Capacity
• Scratch and stain resistant powder coated finish
• Full welded structure
• Shelves are adjustable in 100mm increments

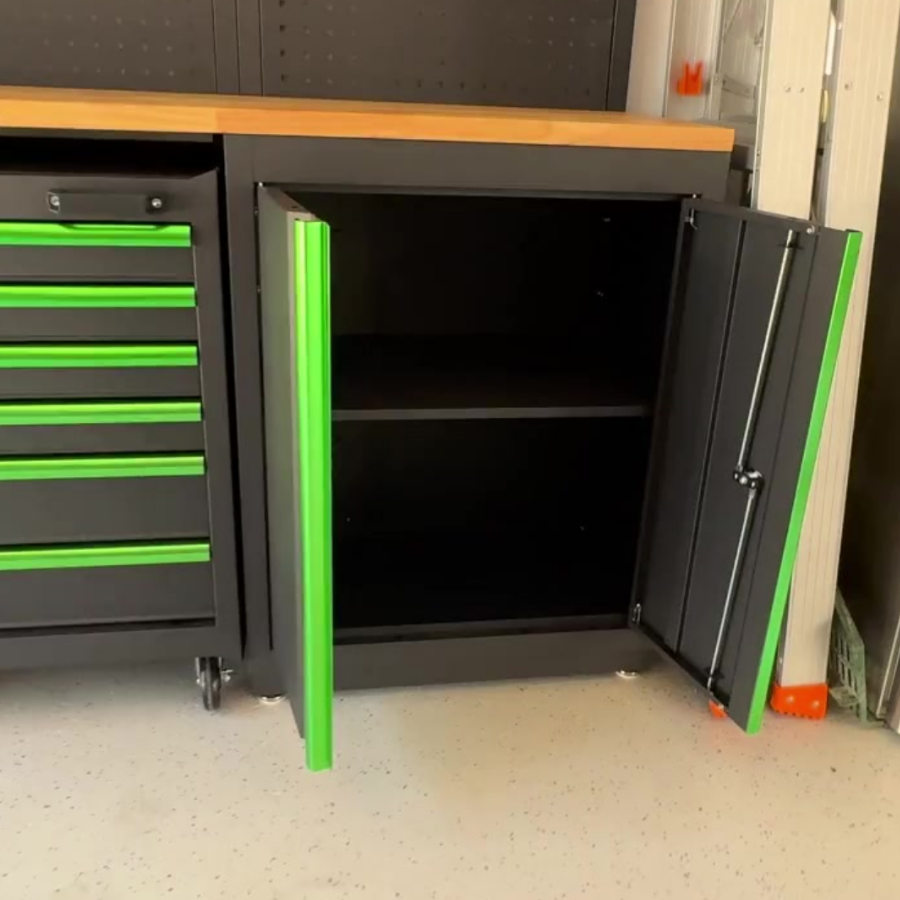

• Each cabinet is fully lockable
• Magnetic door latches

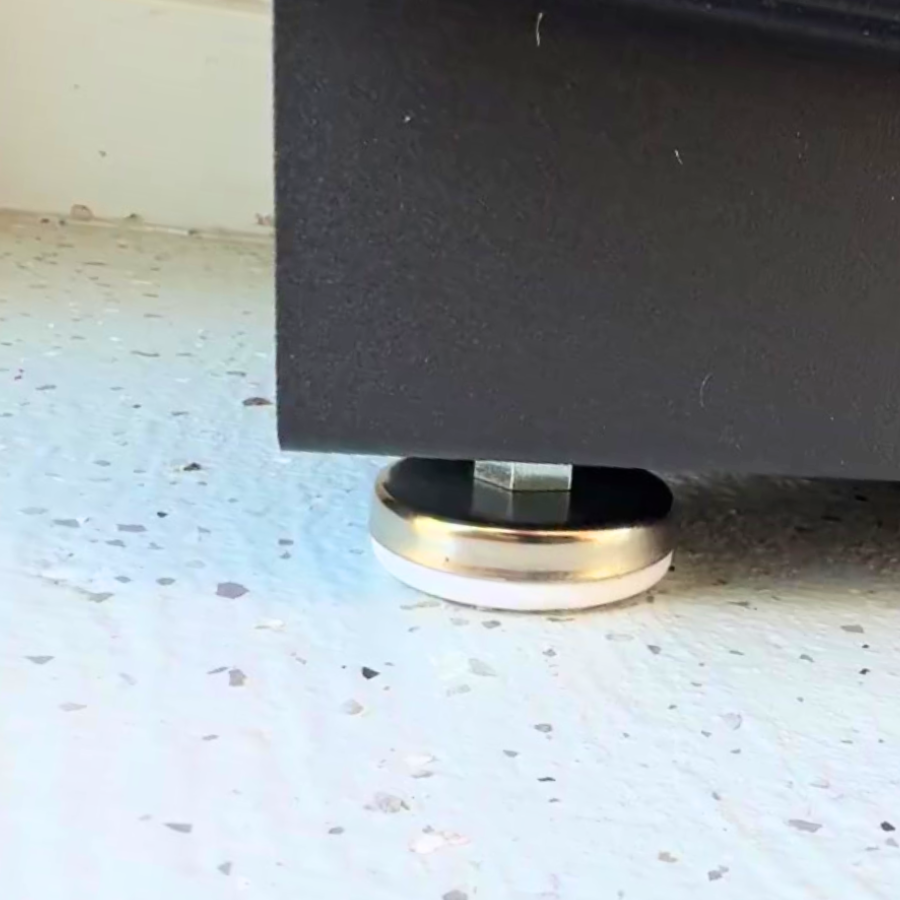

• Adjustable leveling legs to keep the cabinets level and grounded
• Back slots for connecting to the wall to prevent the cabinets from tipping

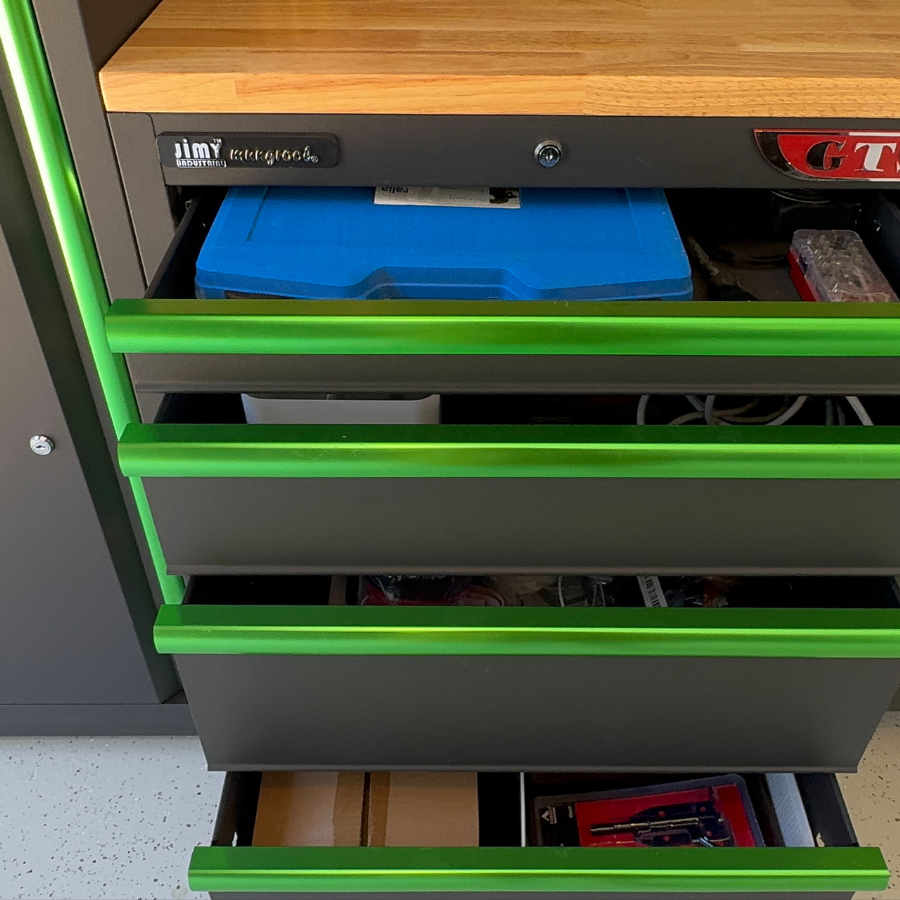

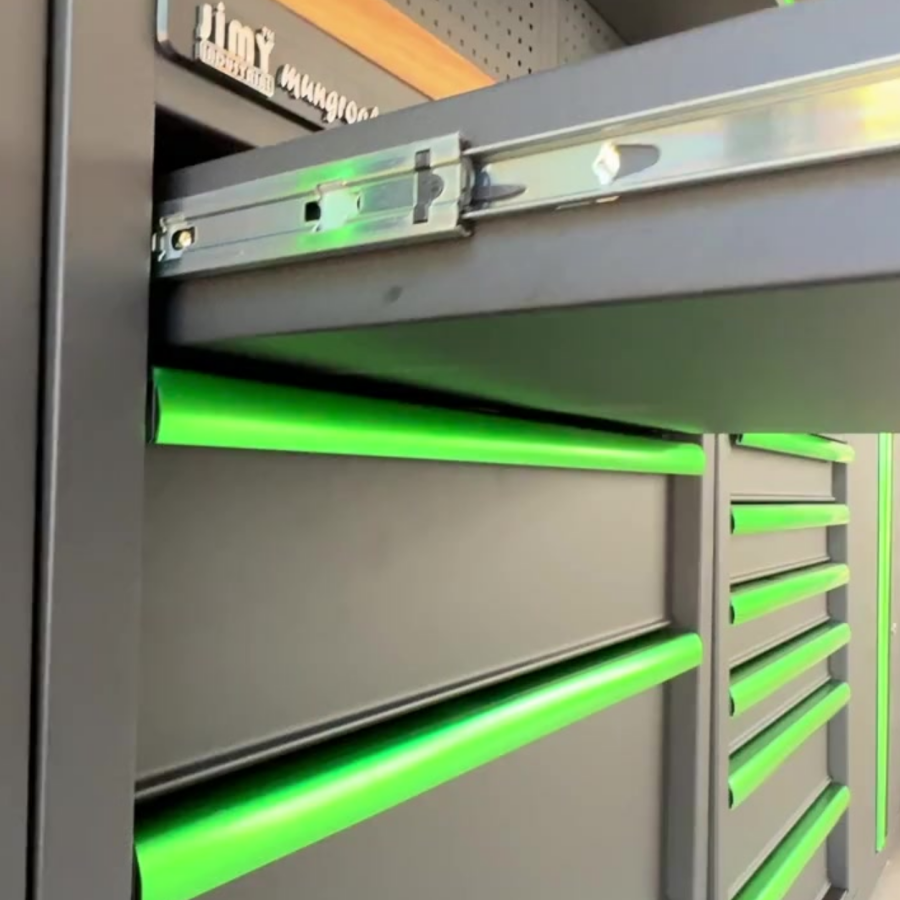

• Ball bearing slides for the drawer cabinets, the drawer slides are rated to 45KG

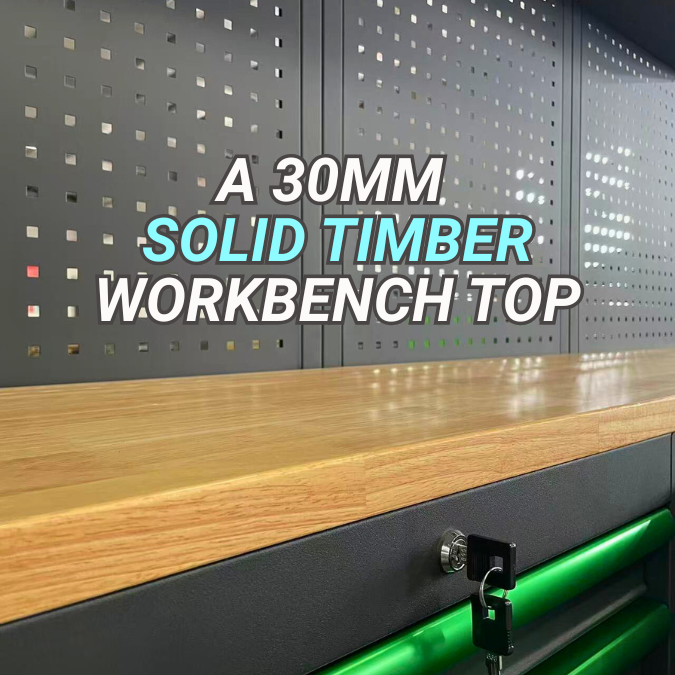

• 30mm rubber wood work top
• Pre-assembled and delivered on pallets

SPECIFICATIONS:

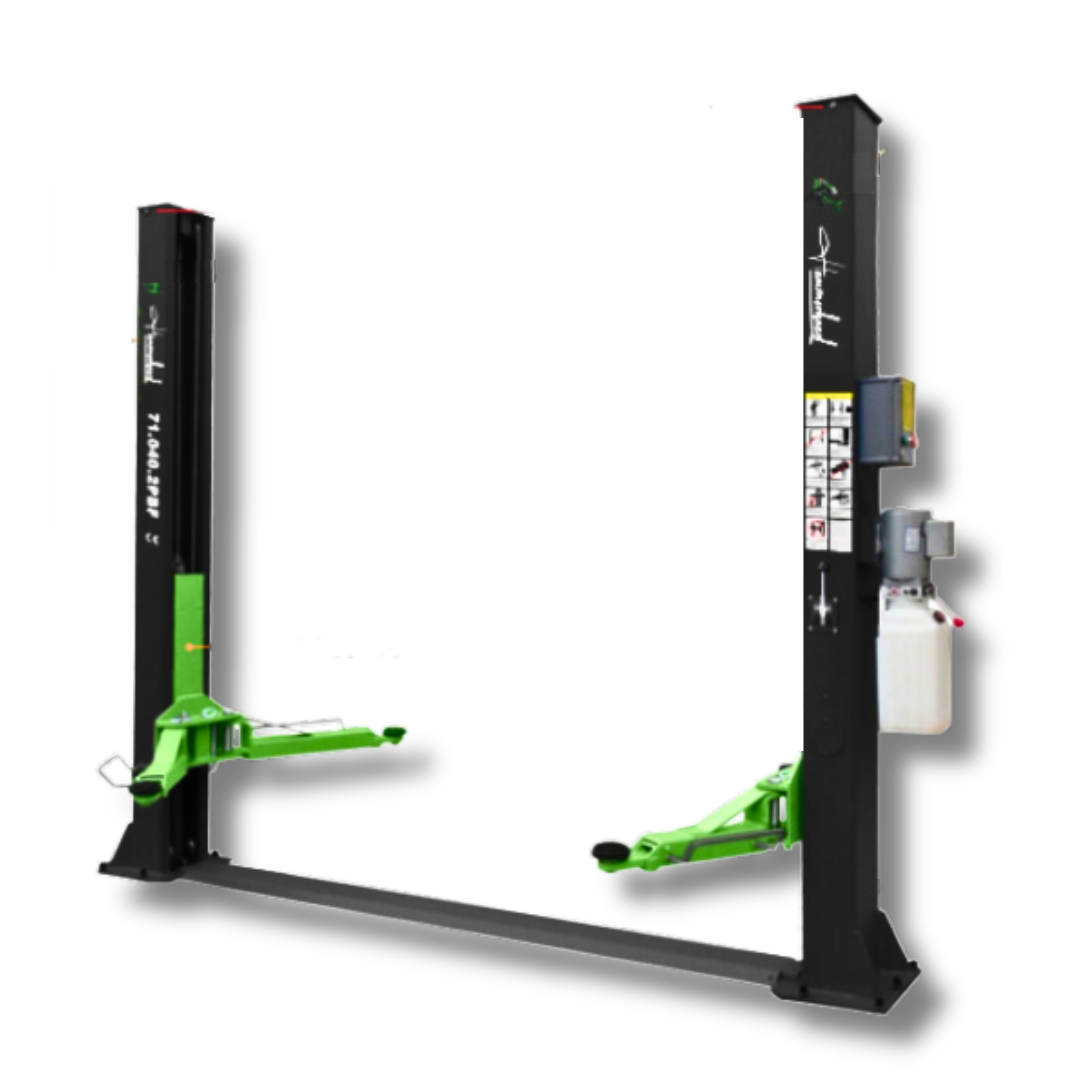

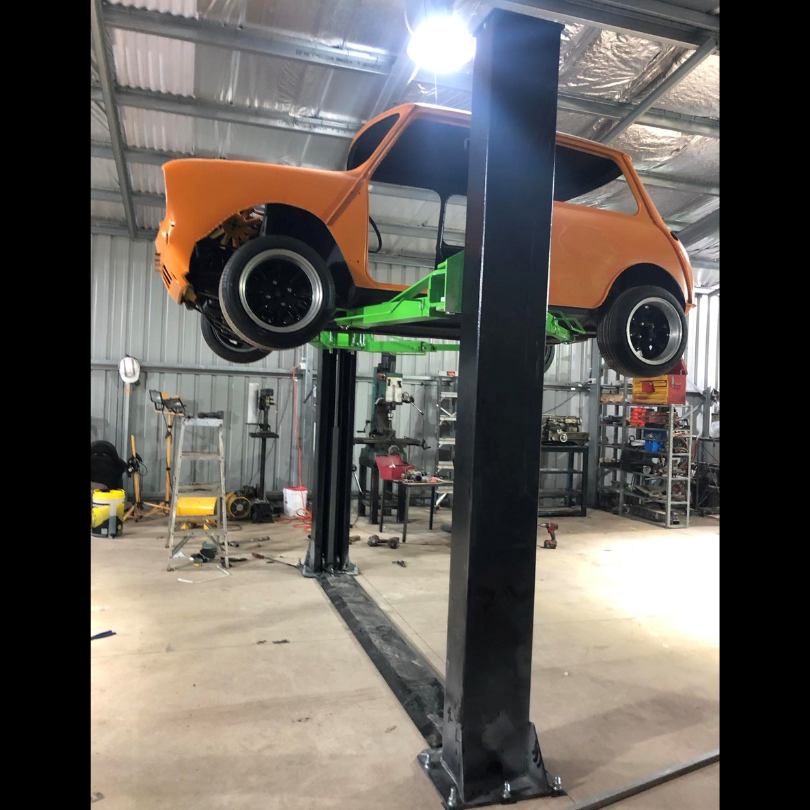

HAMMERHEAD 4.0T BASE FRAME TWO POST LIFT HOIST

Part number:  71.040.2PBF

PRODUCT SUMMARY:

Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Perfect for busy workshops, professional garages, and dedicated home enthusiasts, the Hammerhead 4.0 Ton 2 Post Baseframe Hoist is engineered for general servicing, mechanical repairs, wheel and suspension work, and more.

The Hammerhead 4.0 Ton 2 Post Baseframe Hoist offers robust lifting capability with a 4,000 kg (4.0 ton / 8,800 lbs) capacity, making it ideal for sedans, SUVs, 4WDs, and light commercial vehicles. This baseframe model features a low profile 50mm base plate. Suitable for low ceiling heights with only a 2820mm max height!

Its symmetrical post configuration ensures balanced lifting and easy positioning of vehicles, while the dual hydraulic cylinders and durable chain-driven system ensure smooth and reliable performance every time. Whether you’re a professional mechanic or a serious car enthusiast, the Hammerhead 2 Post Baseframe Hoist delivers the strength, safety, and performance you can trust.

Base Plate Hoist Features

•             4000kg / 4 tonne safe load limit
•             Lifting height of 1.93m
•             Dual hydraulic cylinders with chain driven carriages
•             Adjustable screw pads and 4 additional raising adapters are included
•             Strong single piece column design
•             Durable powder coated finish
•             Rubber door protectors
•             Symmetric two and three stage arms
•             Low profile 50mm high base plate

Safety Features

• Manual safety locking system with safety latches in each column
• Dual point release system
• Heavy duty 5mm thick columns ,6mm carriages
• 9.3mm steel wire rope equalising cables
• Sub-frame design provides additional safety

What’s included?

• 2 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts

What’s Not Included?

• Power Plug
• Installation of unit
• Hydraulic Oil

Area Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 3 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified

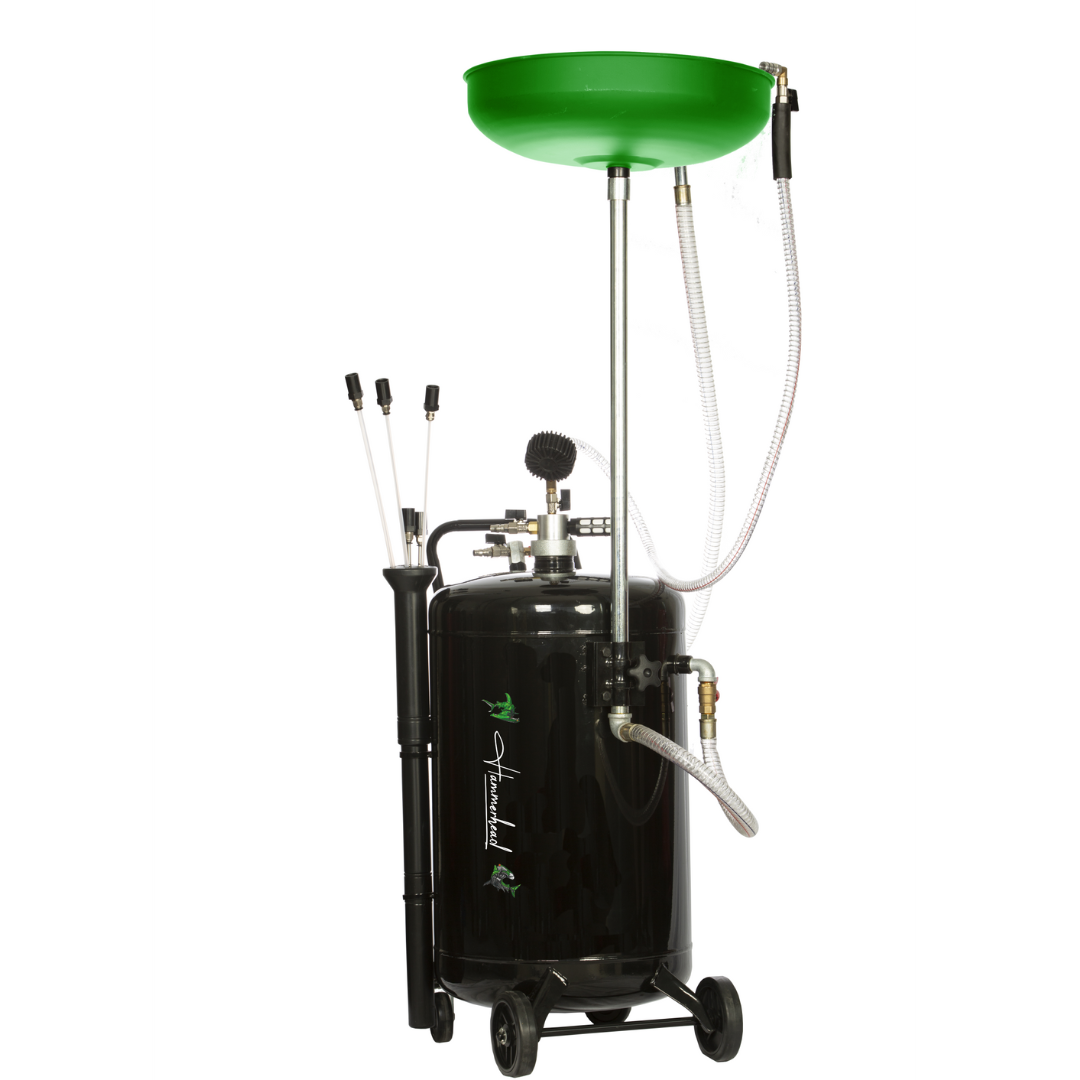

HAMMERHEAD PNEUMATIC OIL WASTE EXTRACTION TANK W/ 70 LTR RESEVOIR

Part number: 71.POE.70

The Hammerhead Oil Waste Extraction Tank features a 70L Steel Tank Resevoir. With an adjustable height, it is suitable for use in a variety of applications such as collecting, transferring and extracting engine oils, transmission fluids, power steering fluids etc (not corrosive or flammable fluids). Included is 2 fixed and 2 swivel castor wheels for smooth, convenient movement and storage.

The extraction oil drainer makes it easy to collect used oil from even the most hard to reach drain plugs.

Connect the unit to compressed air and use the supplied hoses to suck the oil out, leaving your workspace clean and dry. When the tank is full, simply fill it with compressed air to quickly and easily push out the waste oil.

Features:

• 70L Steel Tank Capacity
• 10L Basin Capacity
• Collection Bowl Diameter: 400mm
• Max Drain Bowl Height: 1610mm
• Min Drain Bowl Height: 1000mm
• Degree of Pressure: 8-10 bar
• Net Weight: 18KG
• Up to 1.6L/Min Collecting Speed

Warranty & Certifications

• 12 Months Australian Warranty

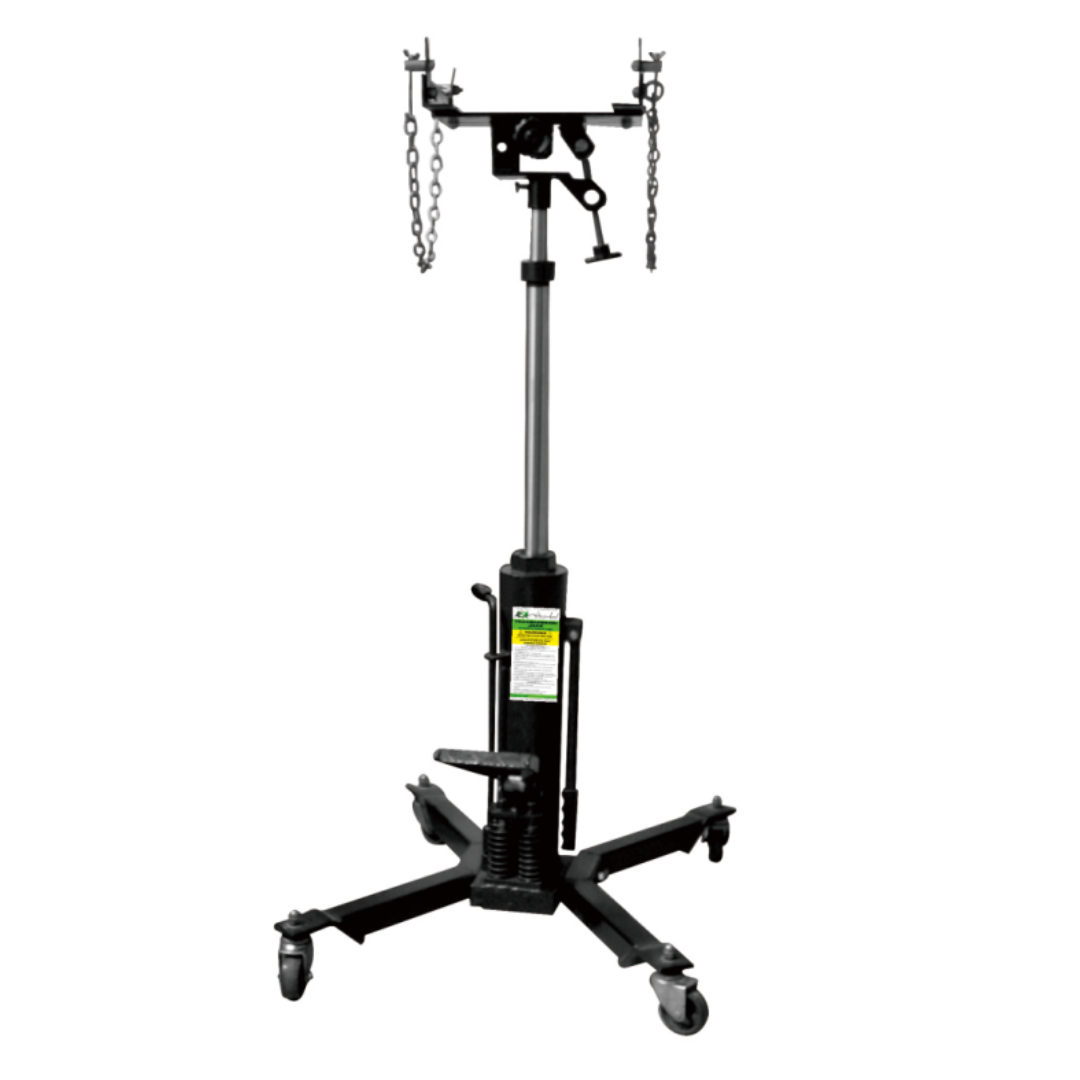

Hammerhead 2 Stage Heavy-Duty Hydraulic Transmission Jack 500KG

Part number: 71.910.05

Product Summary:

The Hammerhead Transmission Jack is a compact and efficient hydraulic jack designed for removal and installation tasks in automotive repair settings. Featuring a lightweight construction and a long lift range, this jack is optimized for ease of use and high performance. It offers fast lift speed and has replaceable connection parts, ensuring firm and reliable operation.

Ideal for motor repair shops and mobile service units, this jack aids in assembling and disassembling heavy components that require lifting or lowering during maintenance.

Key Specifications:

• Rated Load: 500 kg
• Minimum Saddle Height: 855 mm
• Maximum Saddle Height: 1760 mm
• Net Weight: 52 kg
• Dimensions: 530 × 230 × 800 mm

Its portability, durability, and precision make the Hammerhead Transmission Jack an essential tool for professional mechanics.
