PRODUCT SUMMARY:

Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Designed for professional garages, commercial service centres, and well-equipped home workshops, the Hammerhead 4.5 Ton 4 Post Repair Hoist delivers reliable, heavy-duty performance for all your maintenance and servicing needs.

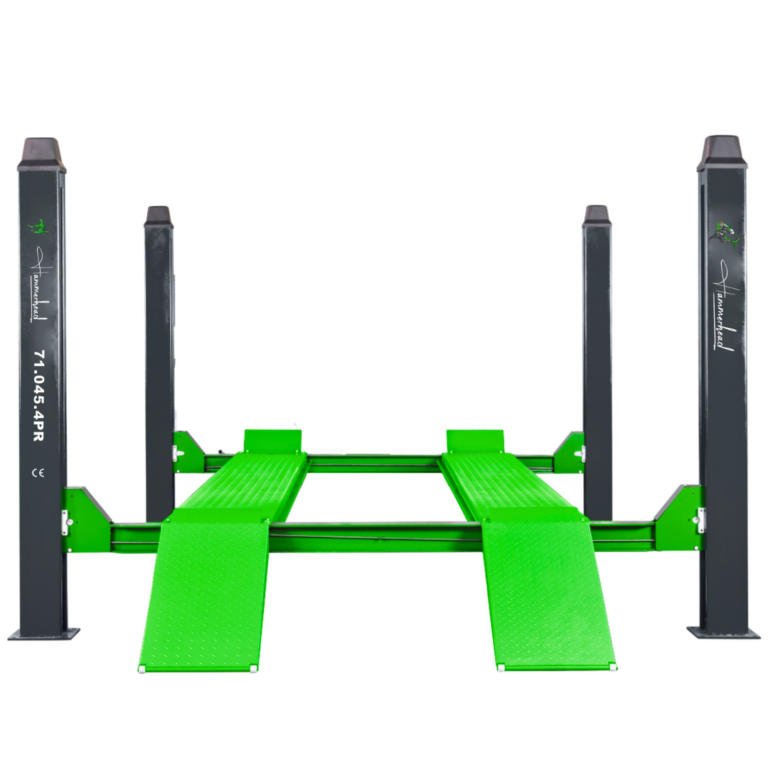

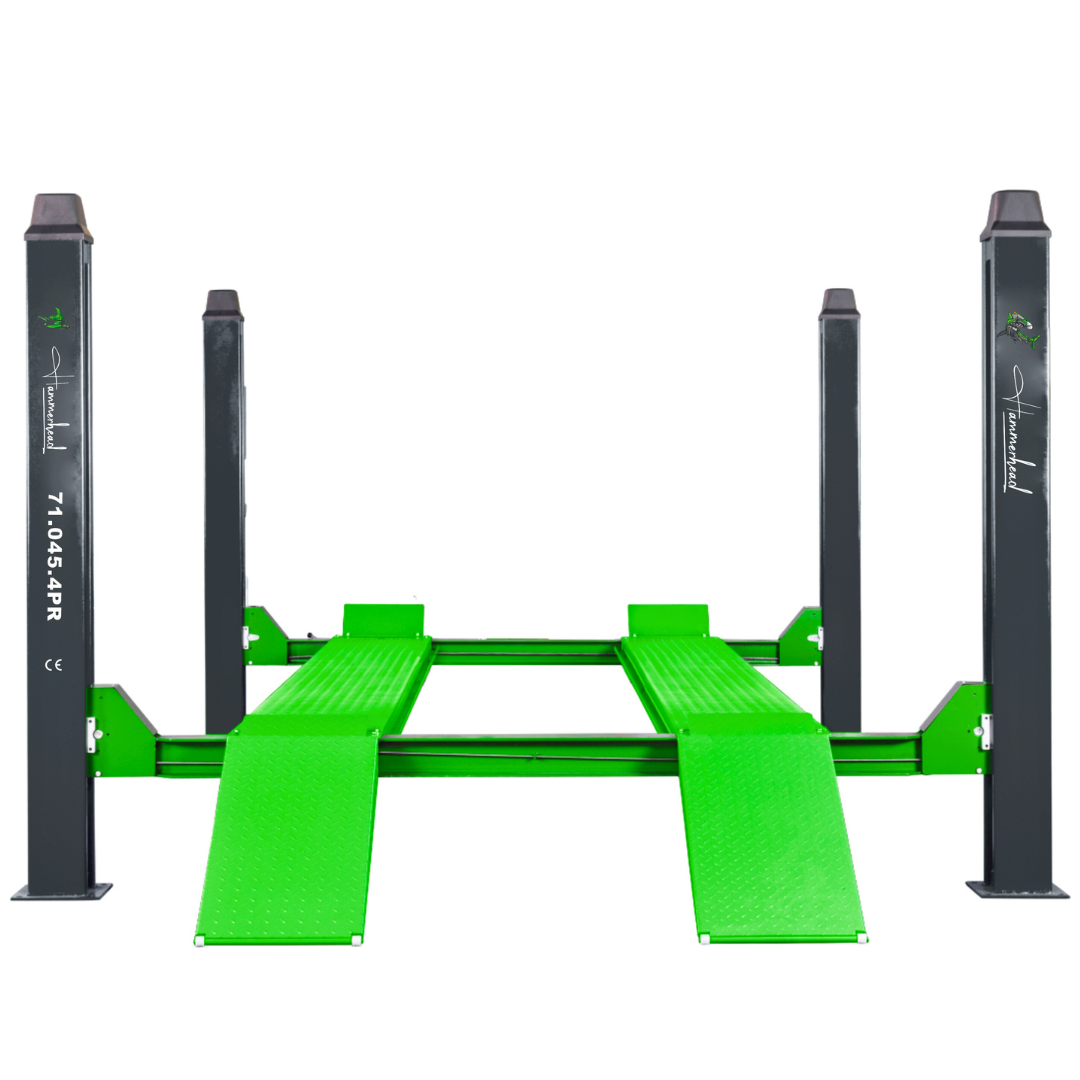

The Hammerhead 4.5 Ton 4 Post Repair Hoist is engineered for versatility and strength, with a 4,500 kg (4.5 ton / 9,900 lbs) lifting capacity that makes it ideal for a wide range of vehicles—from sedans and SUVs to 4WDs and light commercial vehicles. It’s perfect for general servicing, underbody repairs, exhaust work, and inspections.

This hoist features a durable four-post structure with wide drive-on ramps and an open-centre design for easy under-vehicle access. For even greater functionality, it includes a secondary lifting jack, allowing wheels-free access for brake, suspension, and tyre work—without needing to reposition the vehicle.

Built with stability, safety, and operator convenience in mind, the Hammerhead 4.5 Ton 4 Post Hoist is the ideal solution for workshops focused on efficient, full-service vehicle maintenance.

• FEATURES
  • 4500KG / 4.5 Tonne Load Limit
  • Powder Coated Finish

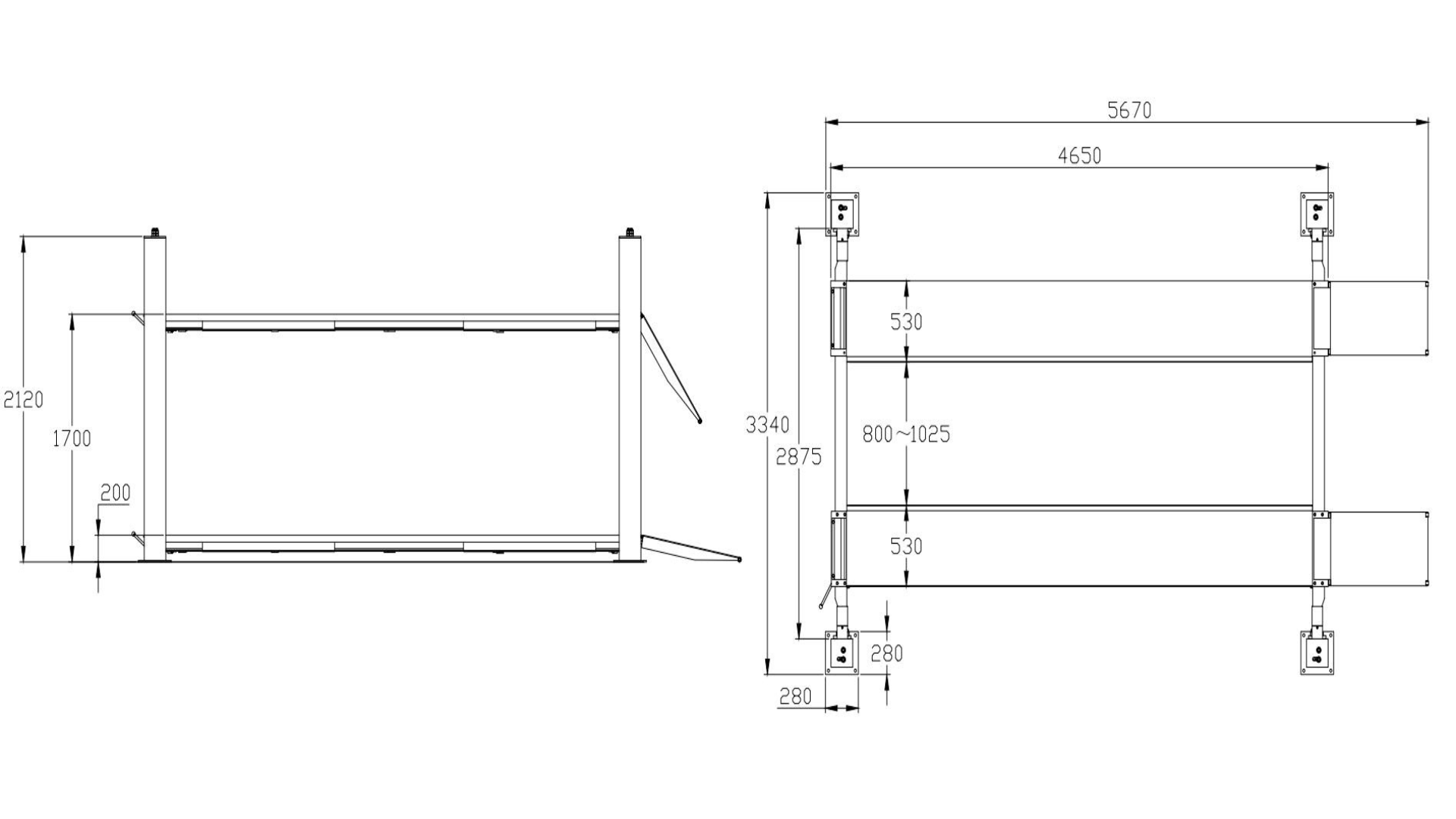

  • Adjustable lifting height with maximum height of 1.7m
  • One side release for safety locks, easy for descent operation
  • External Locking

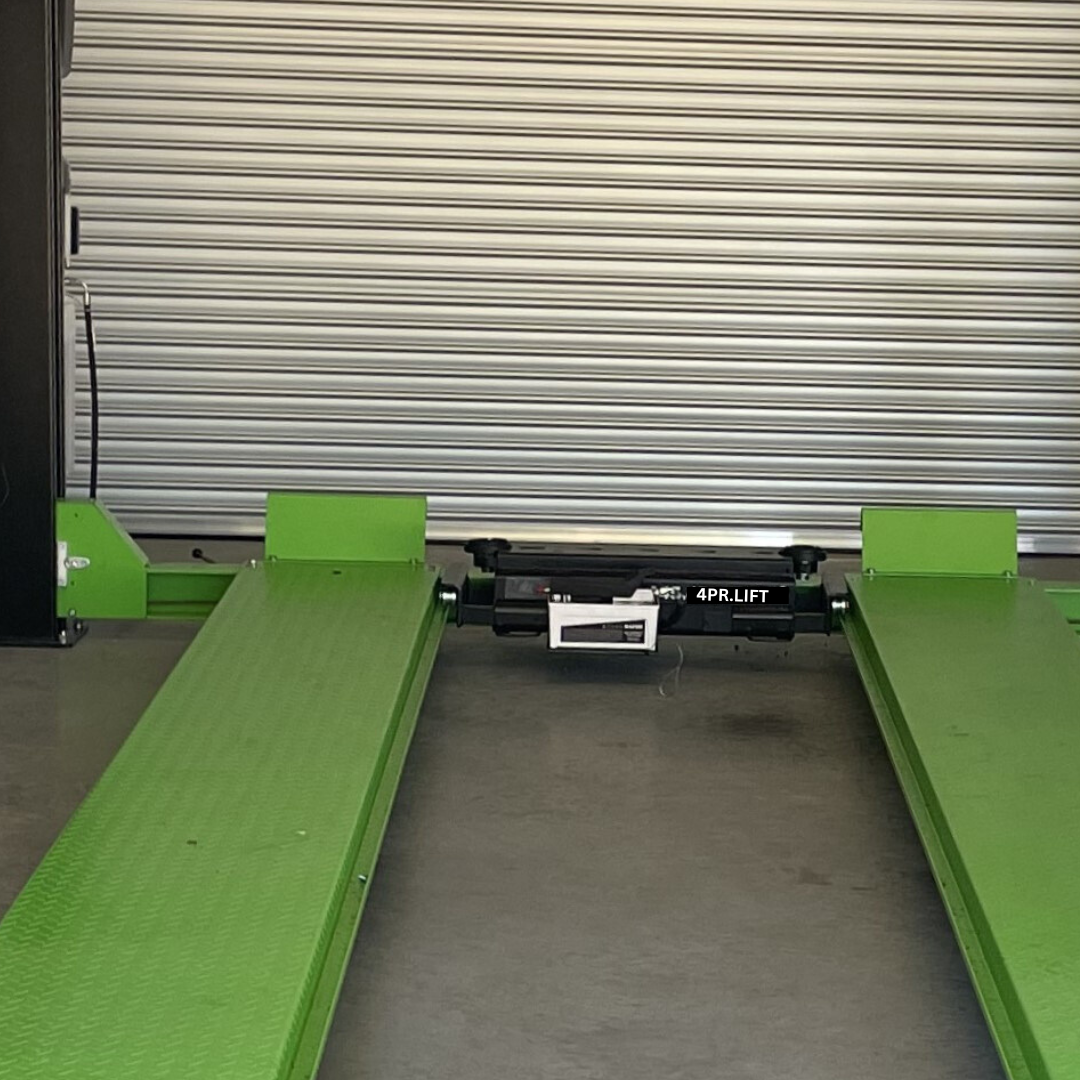

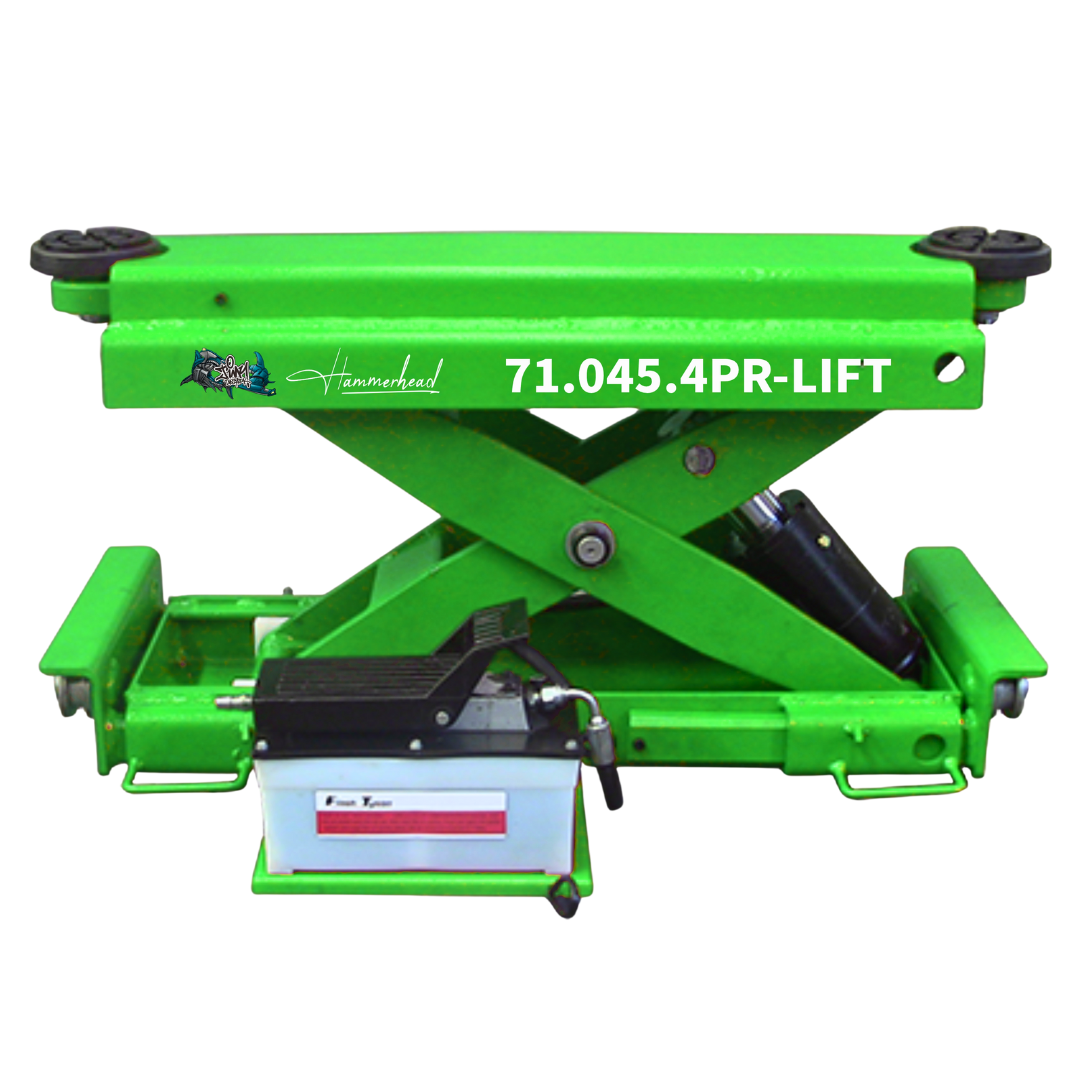

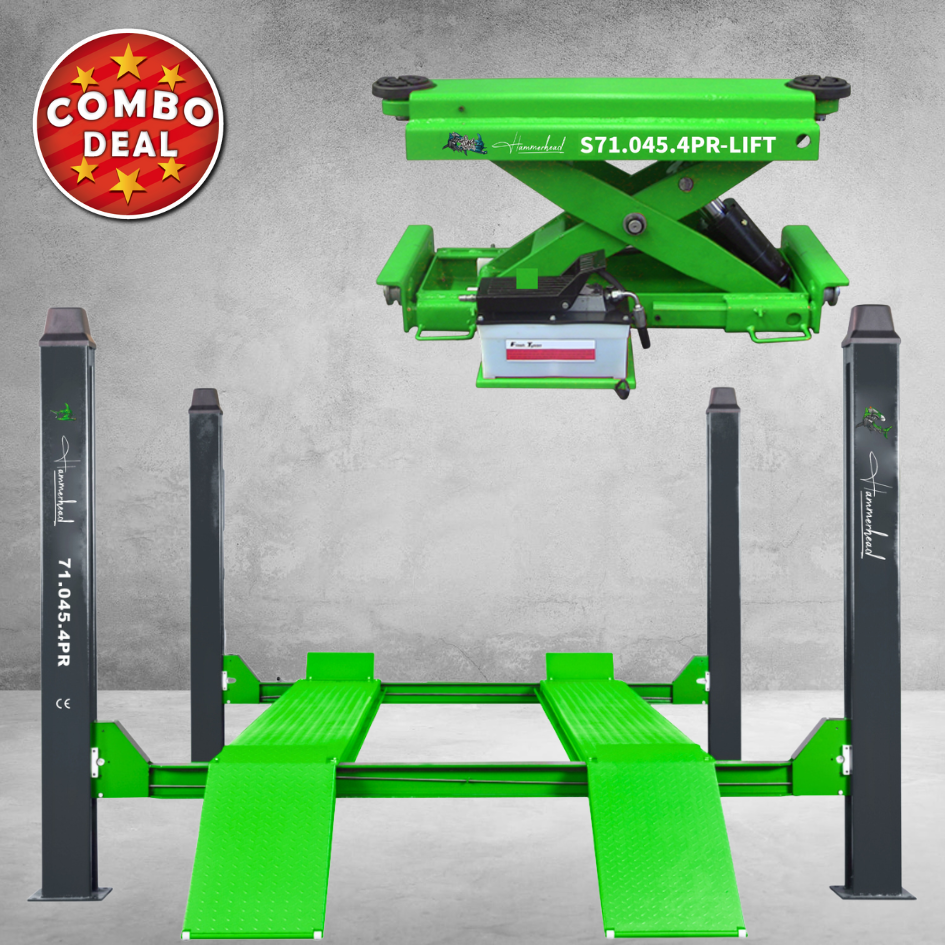

  • Includes a 2 Tonne pneumatic secondary lift

Safety Features

• 4-point pneumatic safety lock releases
• Additional secondary safety lock when weight comes off the cables
• Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
• Heavy duty 6mm thick cross beams and 5mm thick runways
• 9.53mm steel wire rope equalising cables
• Anti-surge valve

What’s Included?

• 4 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• 2 Tonne pneumatic secondary lift

What’s Not Included?

• Power Plug
• Installation of unit
• Hydraulic Oil

Shed Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 4 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified
