PRODUCT SUMMARY:

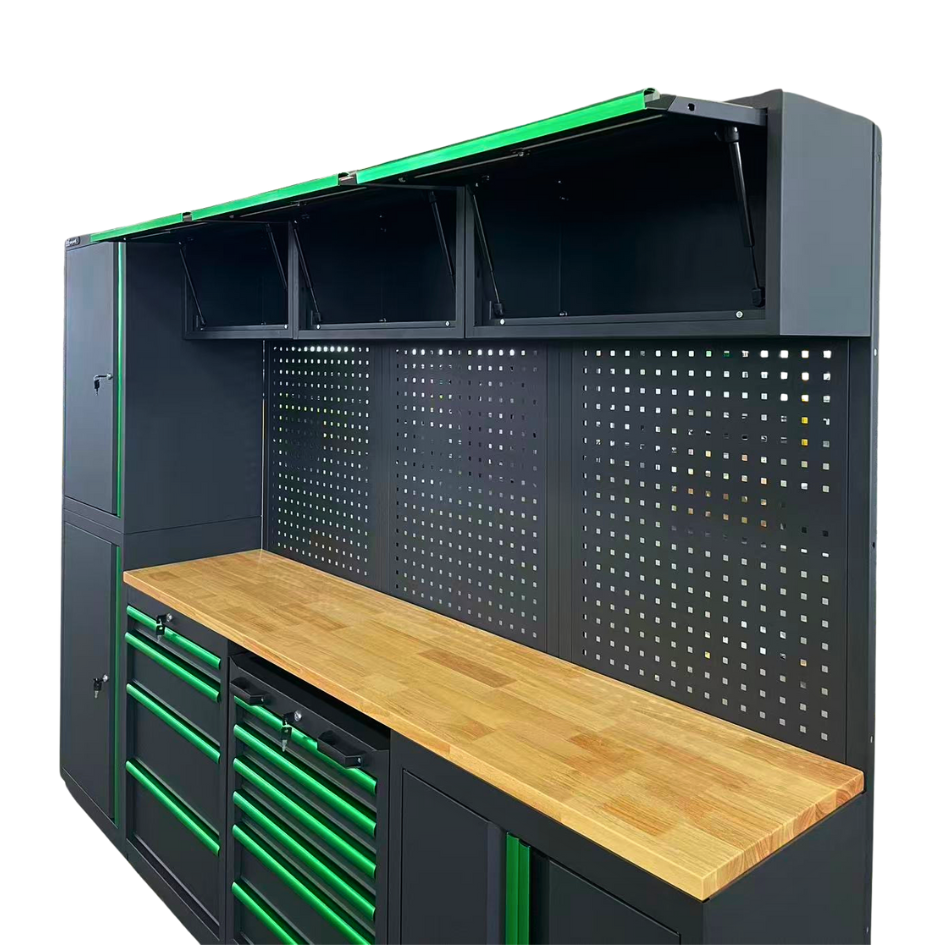

10 DRAWER 124″ GARAGE SERIES  WORKSTATION

Part number: K41.TBWS.20

PRODUCT SUMMARY:

The Jimy Tools Garage Series Workstation is a premium storage and organisation solution designed to elevate your home garage or shed. Built with a full welded steel structure and finished in a scratch and stain-resistant black powder coat with green trim, this workstation is as tough as it is stylish.

For convenience and safety, the workstation includes magnetic door latches, adjustable levelling legs, and back slots for wall anchoring to prevent tipping. Delivered pre-assembled on pallets, setup is fast and straightforward.

This workstation blends functionality, durability, and professional-grade design, making it an essential for any work area.

KEY FEATURES:

• 1587KG Total Weight Capacity
• Scratch and stain resistant powder coated finish
• Full welded structure
• Shelves are adjustable in 100mm increments
• Each cabinet is fully lockable
• Magnetic door latches
• Adjustable leveling legs to keep the cabinets level and grounded
• Back slots for connecting to the wall to prevent the cabinets from tipping
• Ball bearing slides for the drawer cabinets, the drawer slides are rated to 45KG
• 30mm rubber wood work top
• Pre-assembled and delivered on pallets

SPECIFICATIONS:

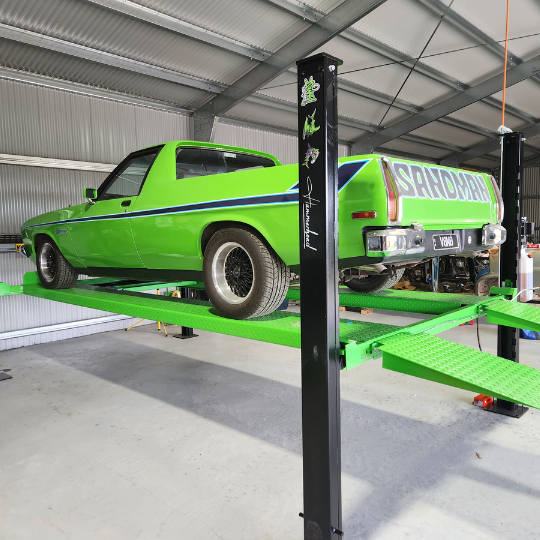

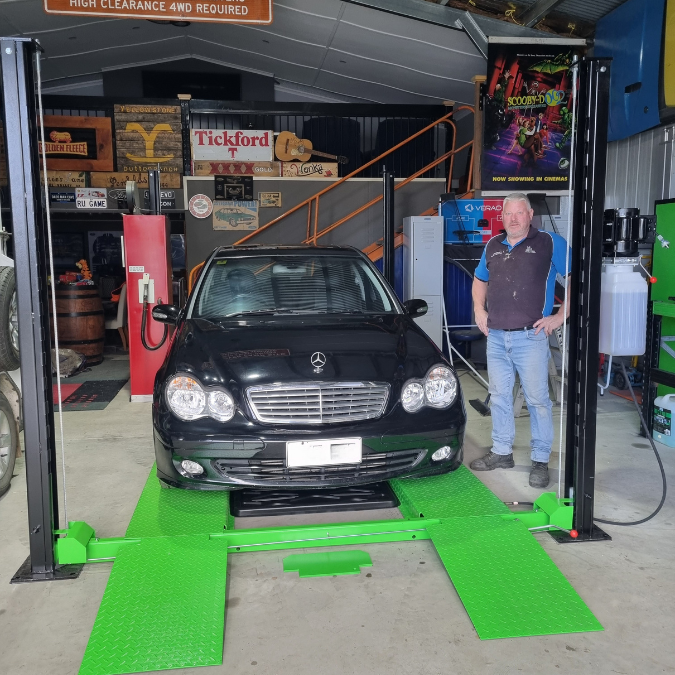

JIMY TOOLS HAMMERHEAD 4.0T FOUR POST PARKING LIFT HOIST

Part number:  71.040.4PN

PRODUCT SUMMARY:

Australia’s Newest Best Value 4 Post Parking Lift has arrived. It’s perfect for recreational or home use. Our Hammerhead Hoists have got you covered.

• FEATURES
  • 4000KG / 4.0 Tonne Load Limit
  • Powder Coated Finish
  • Adjustable lifting height with maximum height of 2.0 m
  • One side release for safety locks, easy for descent operation
  • External Locking

Safety Features

• 4-point pneumatic safety lock releases
• Additional secondary safety lock when weight comes off the cables
• Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
• Heavy duty 6mm thick cross beams and 5mm thick runways
• 9.53mm steel wire rope equalising cables
• Anti-surge valve

What’s Included?

• 4 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Oil Drip Trays are available to keep your area clean from any spills.
• Castor Wheels available upon request

What’s Not Included?

• Power Plug
• Installation of unit

Shed Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 2.4 Metres

Warranty & Certifications

• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified

Hoist Related Questions

• What is the recommend ceiling height of a hoist?
  • The recommended ceiling height of a hoist is based on being able to physically install the hoist. You’ll also need to consider how much space you’ll have to work with underneath the vehicle once lifted from the hoist.
  • The height of your vehicle from the jacking point to the roof + the maximum lifting height of the hoist is the maximum ceiling height that would be required to lift your vehicle.
  • Most people will not need to lift the hoist to the maximum lifting height to work on a vehicle comfortably and in most situations, you’ll be able to work underneath the vehicle as long as your shed meets the minimum ceiling height requirement.
• Which hoist is the best option for me?
  • The main factors for selecting a hoist are. The area that you’ll be storing the hoist, the weight of your vehicles and what you’ll be using the hoists for. If you know the answer to all of these, call our helpful team at 08 8269 9700 and we can assist you with the right hoist for you.
• Is my concrete appropriate for a hoist?
  • We recommend a minimum of 150mm of concrete thickness to safely fix our hoists. If you are laying new concrete, please check with a professional regarding appropriate times to drill into the fresh concrete.
• What about Warranty or Spare Parts?
  • We offer 3 Year Warranty on all Structural, Hydraulic & Electronics. We keep stock of main components if you need a replacement part, otherwise we will organise another option for you.
• How can I get a freight quote?
  • For some Metro delivery areas, freight will be calculated automatically, but in some circumstances, our team will contact you to organise the best freight option for you.
  • If you would like to contact our team, we can send you a quote to give you a full price overview.

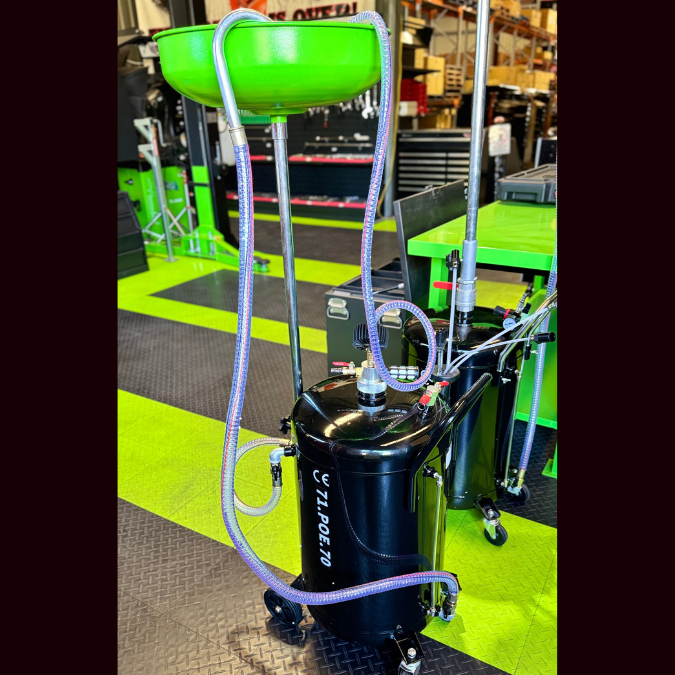

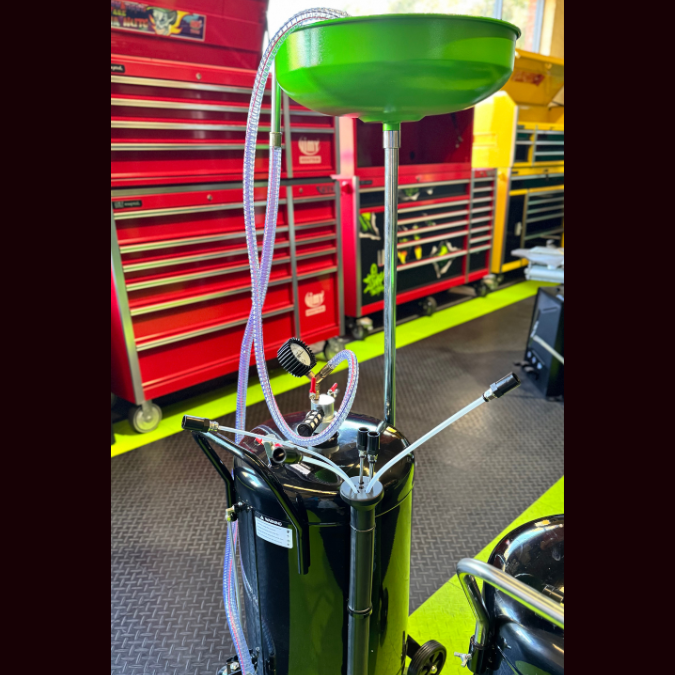

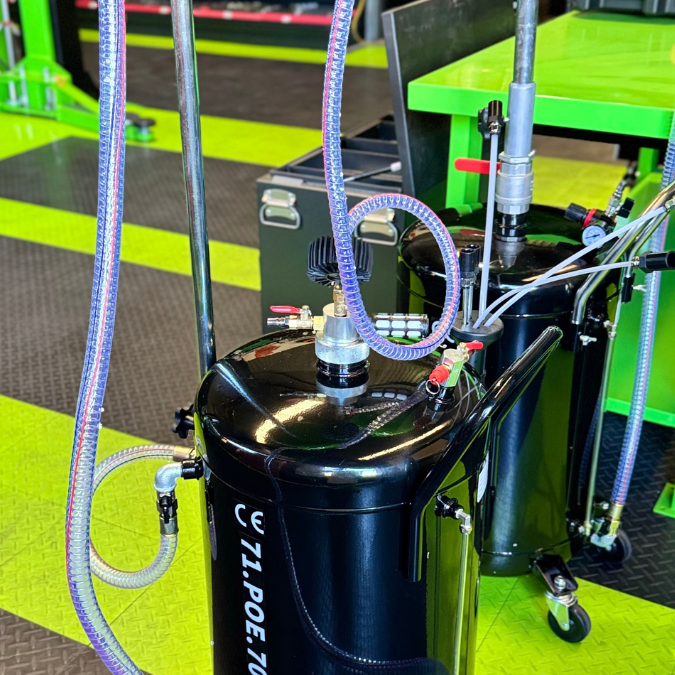

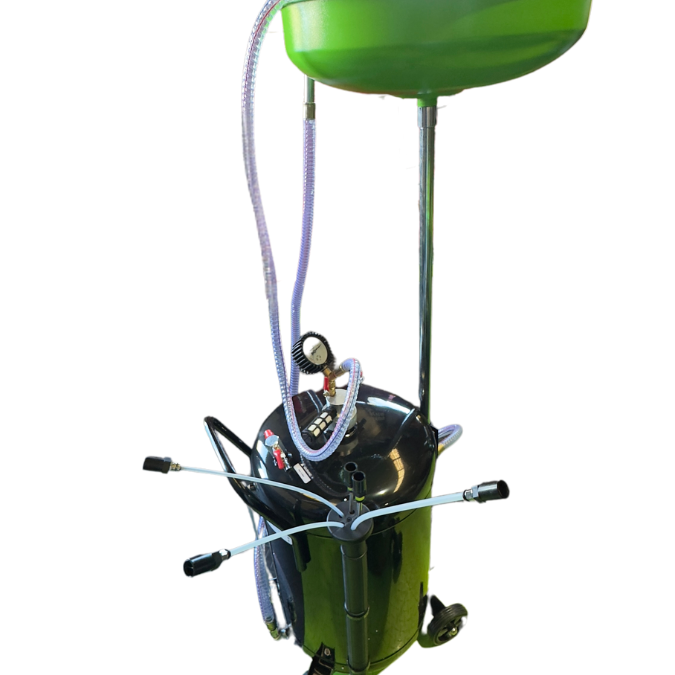

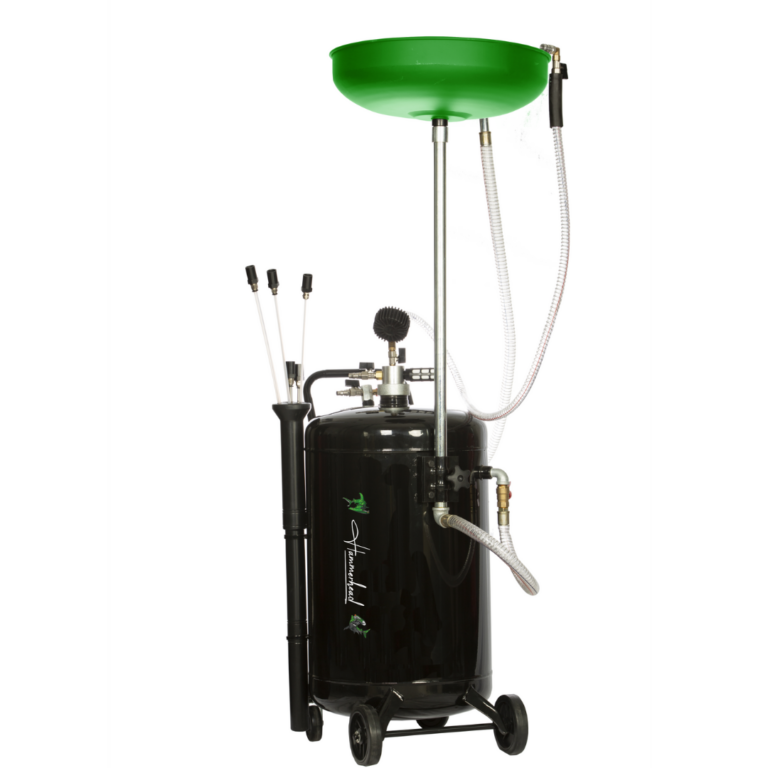

HAMMERHEAD PNEUMATIC OIL WASTE EXTRACTION TANK W/ 70 LTR RESEVOIR

Part number: 71.POE.70

The Hammerhead Oil Waste Extraction Tank features a 70L Steel Tank Resevoir. With an adjustable height, it is suitable for use in a variety of applications such as collecting, transferring and extracting engine oils, transmission fluids, power steering fluids etc (not corrosive or flammable fluids). Included is 2 fixed and 2 swivel castor wheels for smooth, convenient movement and storage.

The extraction oil drainer makes it easy to collect used oil from even the most hard to reach drain plugs.

Connect the unit to compressed air and use the supplied hoses to suck the oil out, leaving your workspace clean and dry. When the tank is full, simply fill it with compressed air to quickly and easily push out the waste oil.

Features:

• 70L Steel Tank Capacity
• 10L Basin Capacity
• Collection Bowl Diameter: 400mm
• Max Drain Bowl Height: 1610mm
• Min Drain Bowl Height: 1000mm
• Degree of Pressure: 8-10 bar
• Net Weight: 18KG
• Up to 1.6L/Min Collecting Speed

Warranty & Certifications

• 12 Months Australian Warranty

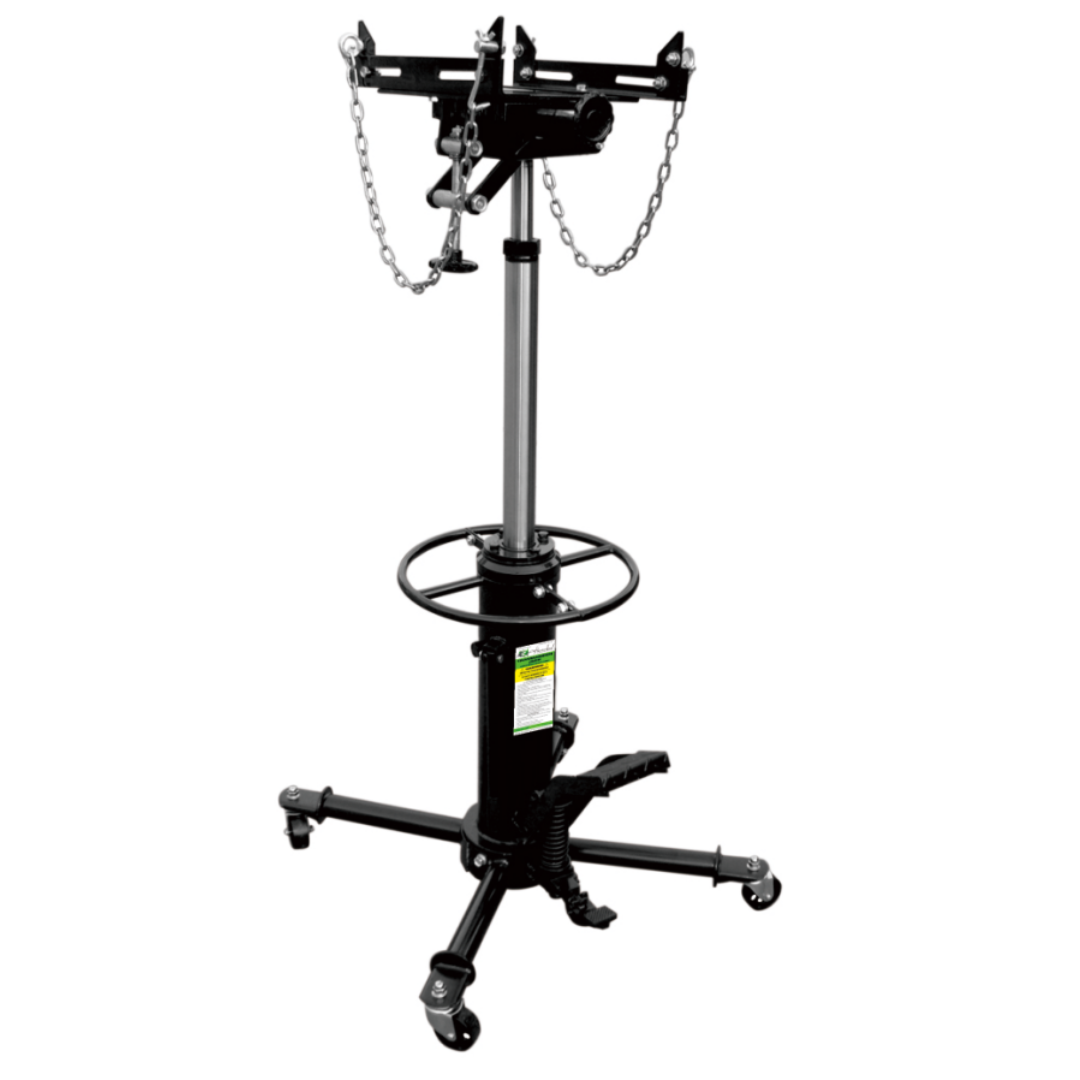

Hammerhead 2 Stage Hydraulic Transmission Jack 500KG

Part number: 71.910.05

Product Summary:

The Hammerhead Transmission Jack is a compact and efficient hydraulic jack designed for removal and installation tasks in automotive repair settings. Featuring a lightweight construction and a long lift range, this jack is optimized for ease of use and high performance. It offers fast lift speed and has replaceable connection parts, ensuring firm and reliable operation.

Ideal for motor repair shops and mobile service units, this jack aids in assembling and disassembling heavy components that require lifting or lowering during maintenance.

Key Specifications:

• Rated Load: 500 kg
• Minimum Saddle Height: 855 mm
• Maximum Saddle Height: 1760 mm
• Net Weight: 52 kg
• Dimensions: 530 × 230 × 800 mm

Its portability, durability, and precision make the Hammerhead Transmission Jack an essential tool for professional mechanics.
