Product Summary:

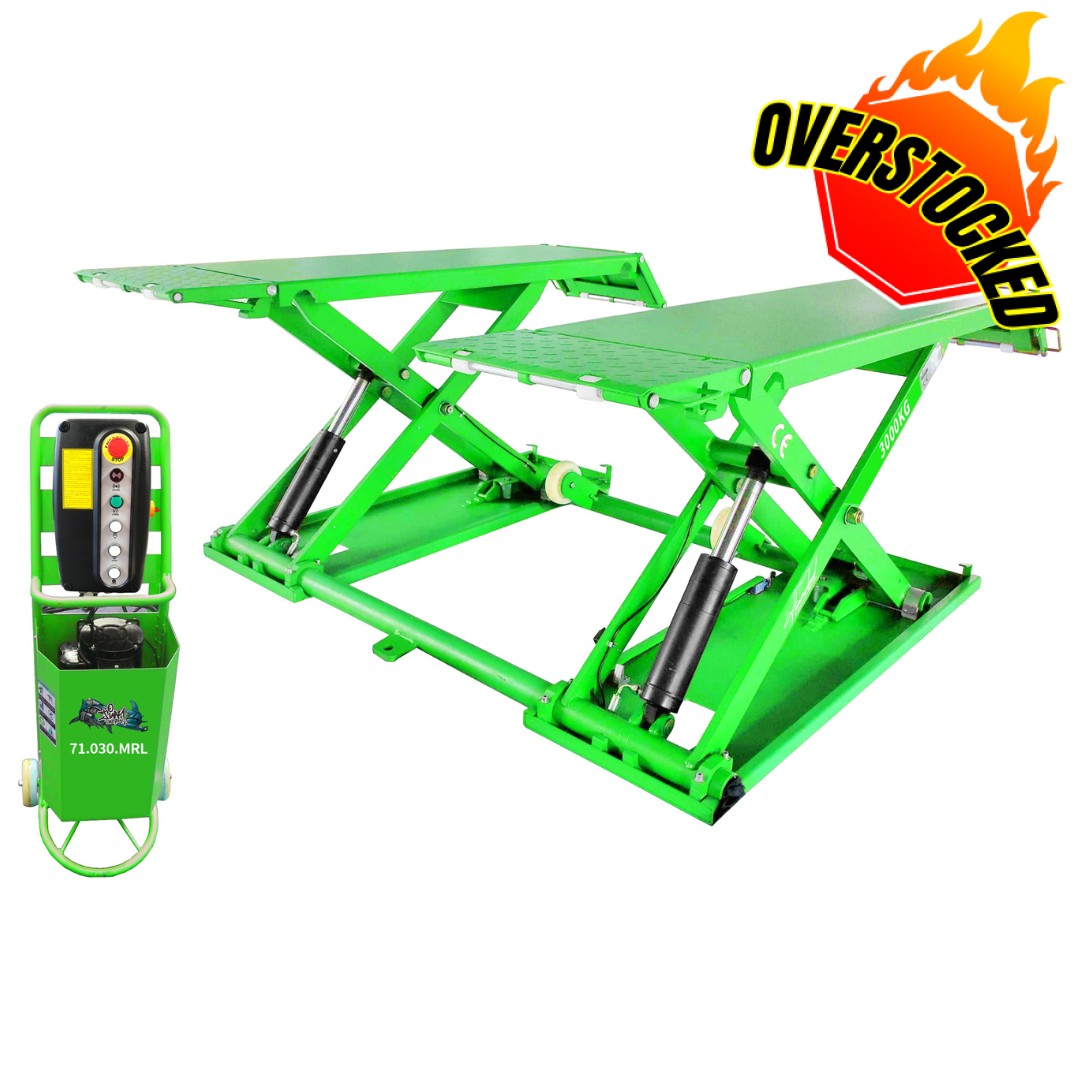

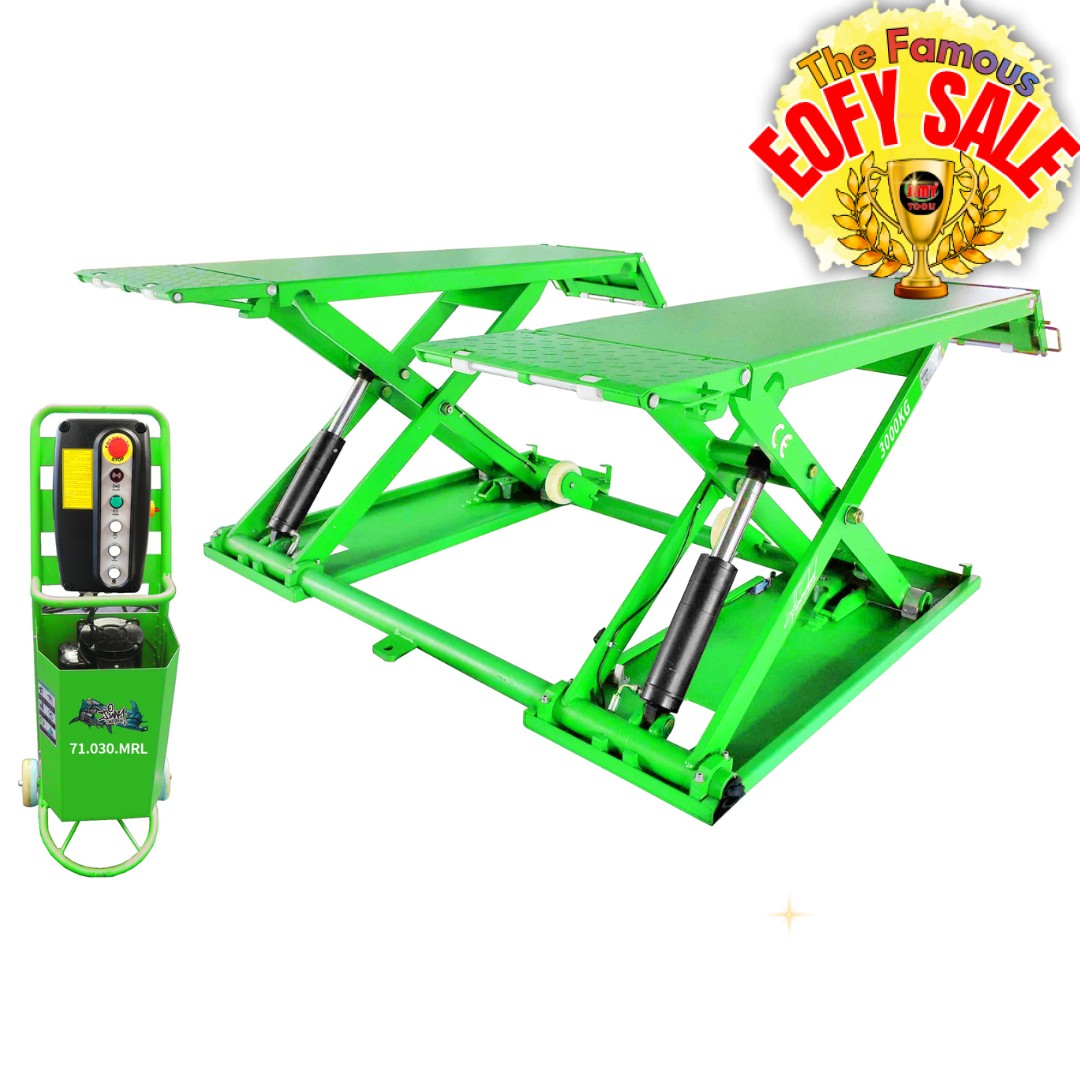

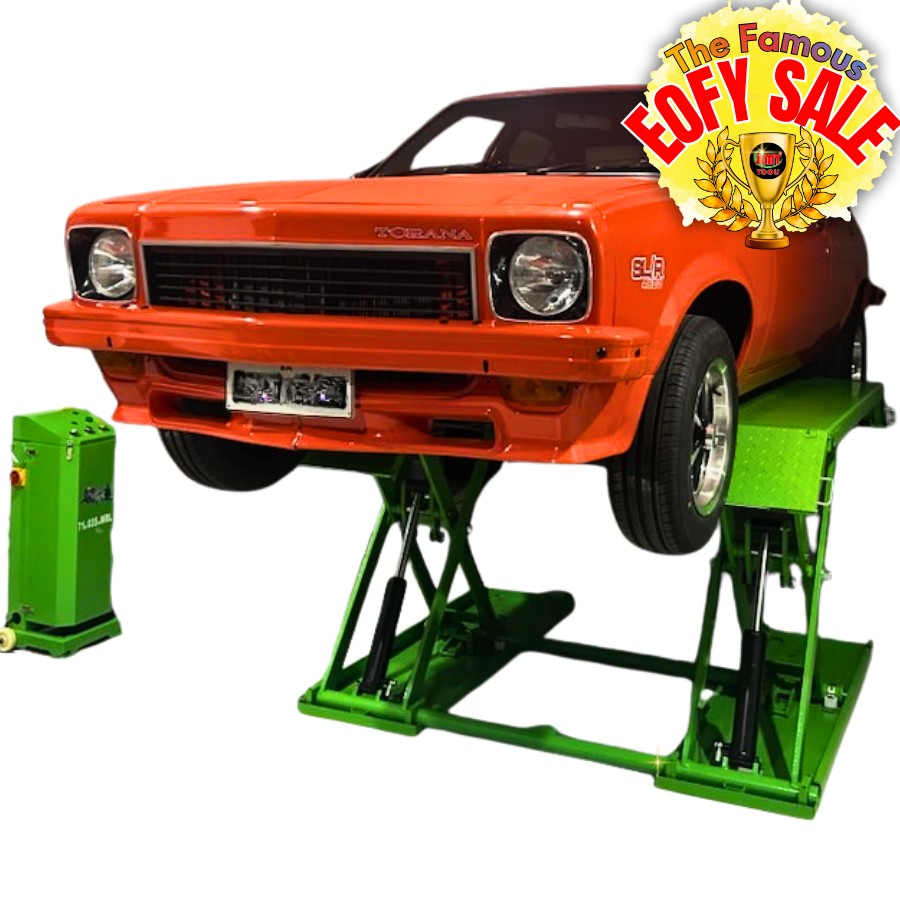

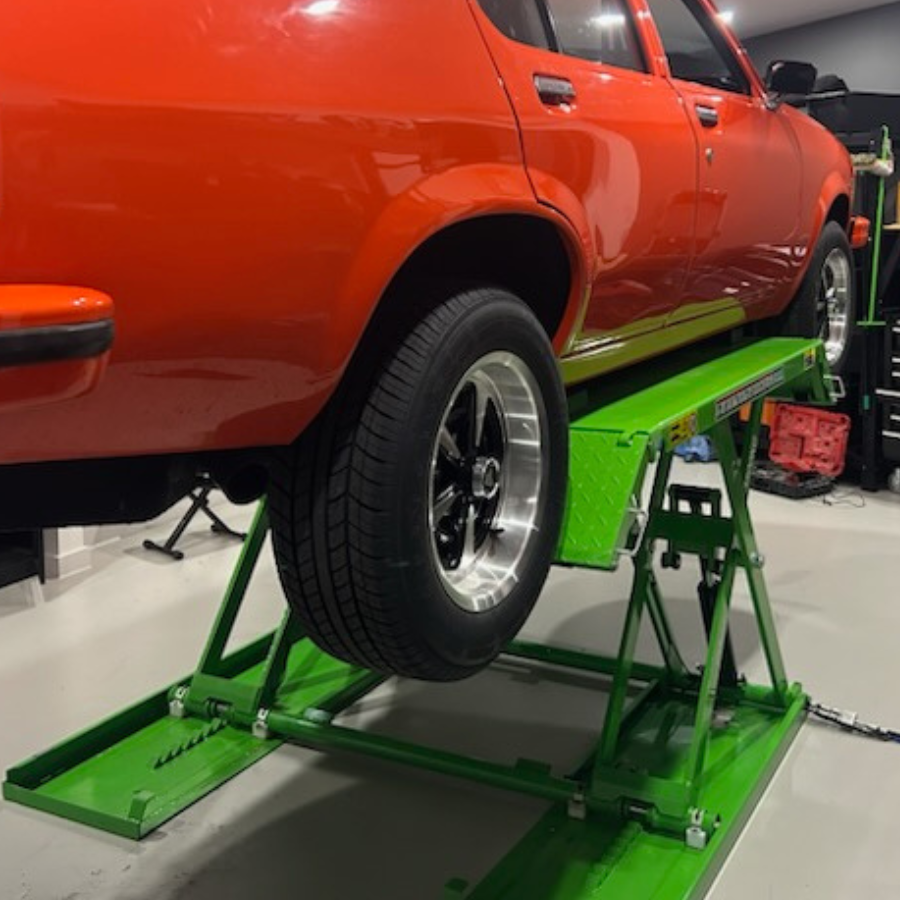

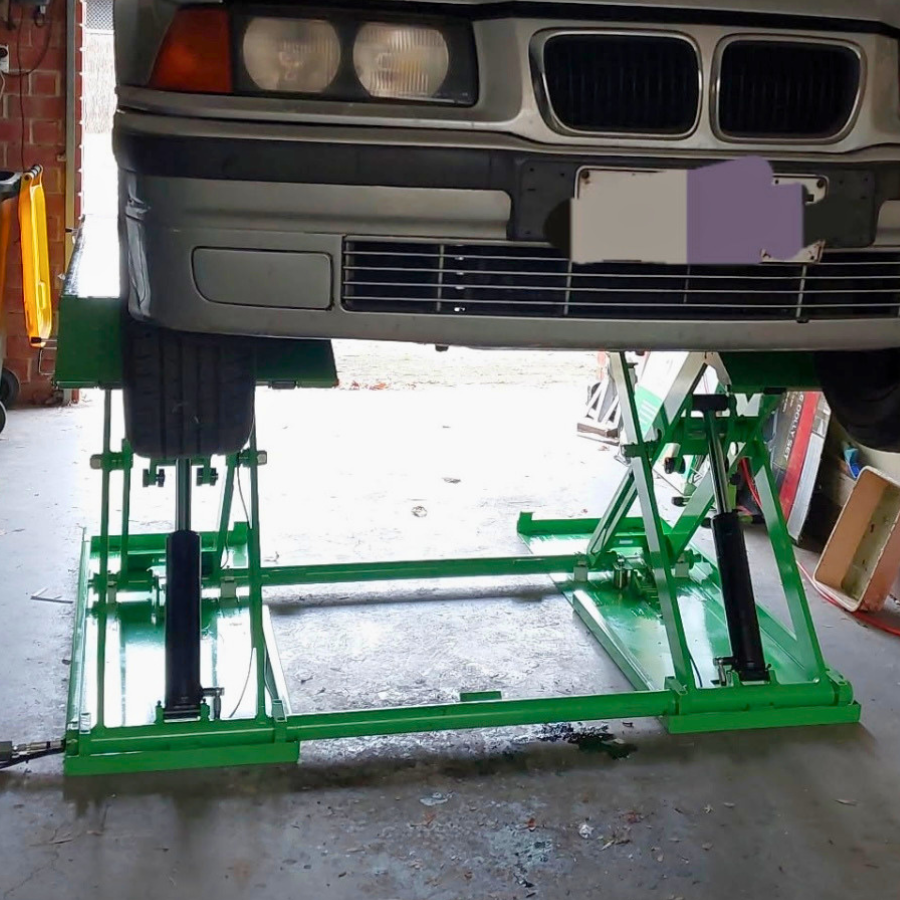

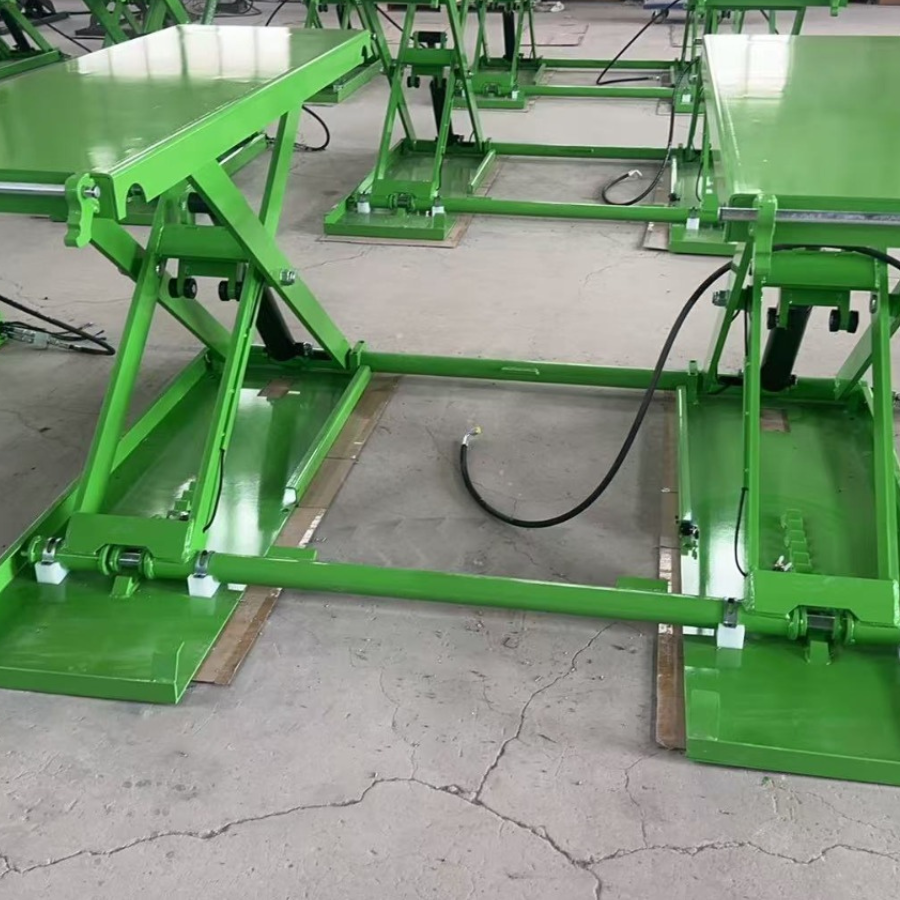

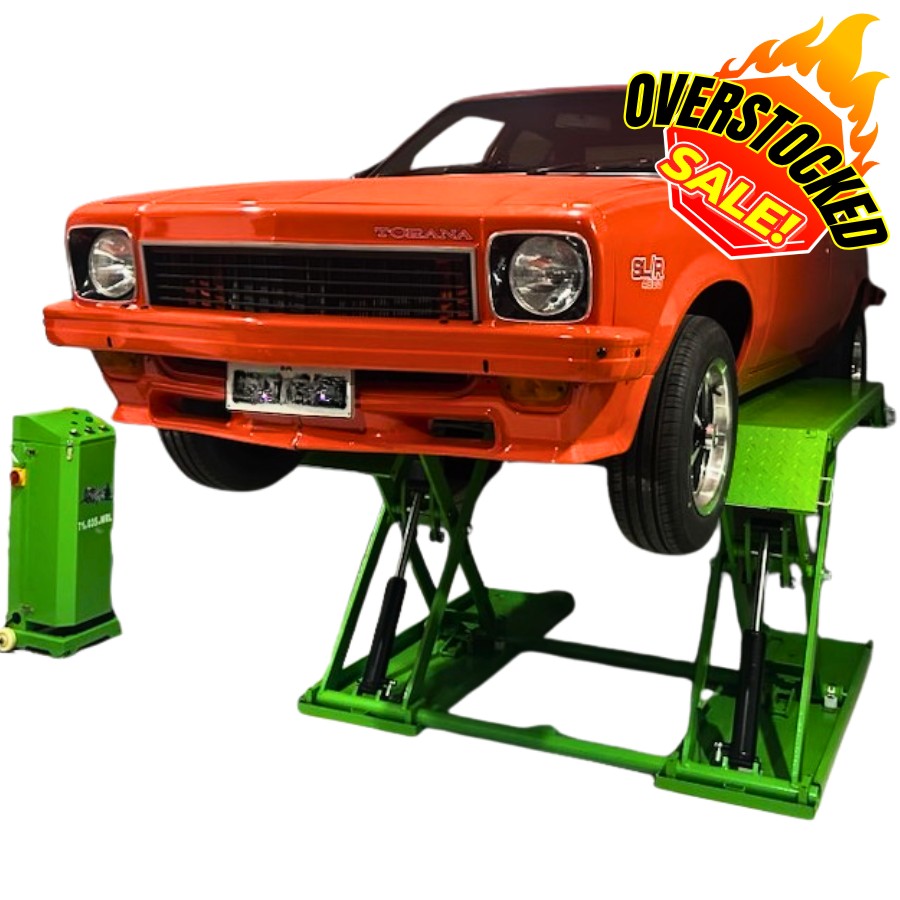

The Jimy Tools Hammerhead 3.5 Ton Mid Rise Scissor Lift is a portable compact, electro-hydraulic lifting solution. With an ultra-low profile and adjustable drive-on platforms, this lift provides fast, stable and safe under-vehicle access for servicing, tyre, brake and general mechanical work. The integrated mechanical safety lock system and synchronised scissor structure ensure smooth, controlled lifting and reliable operator safety. Standard with portable kit to be able to move the scissor lift around as needed.
A great substitute for a car hoist when your garage is not high enough. The Mid Rise Lift is the perfect solution to make light servicing, break repair jobs and any panel work quicker and easier.
Mid Rise Lift Features
- 3500kg/3.5 Tonne Safe Load Limit
- Lifting Height of 1200mm
- Ability to bolt to floor or moveable when not in use
- Durable powder coat finish
- Low initial height platform of 110mm to get underneath most vehicles
Safety Features
- Automatic mechanical height locks with electrical release system
- Lifting Support
What’s Included?
- 3.5 Tonne Mid Rise Lift
- 240V Single Phase Power Unit
- 4x Rubber Lifting Blocks

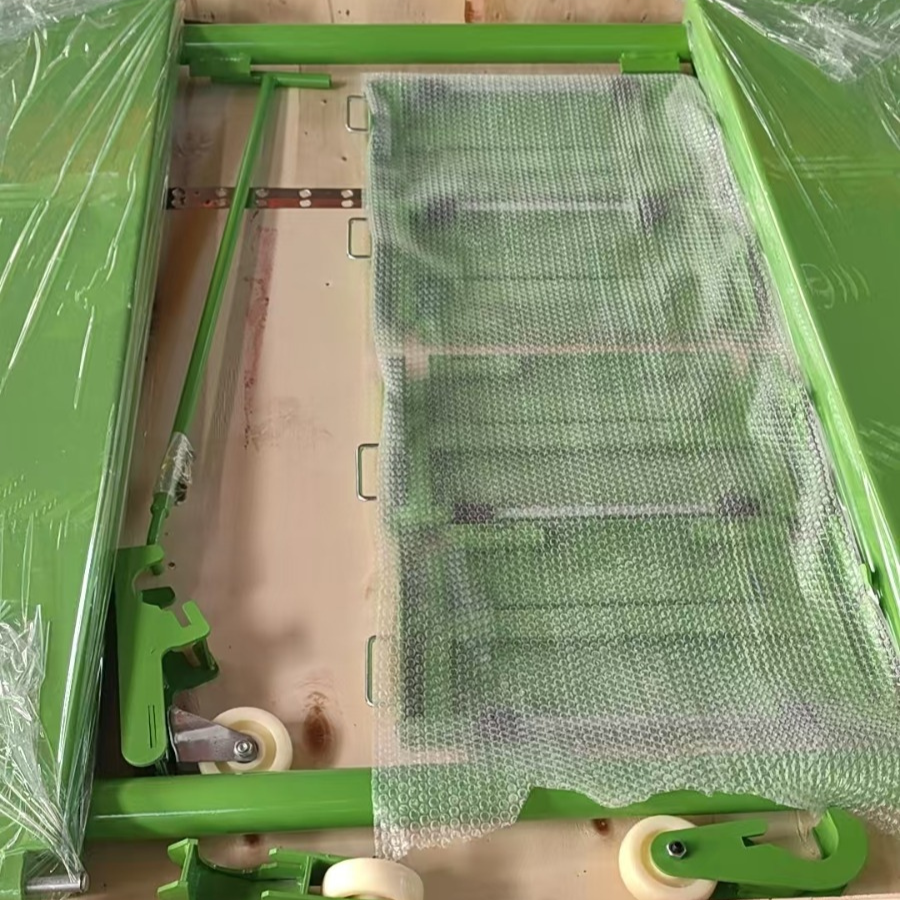

- Portable Moving Kit
What’s Not Included?
- Hydraulic Oil
- Power Connection
- Anchor Bolts

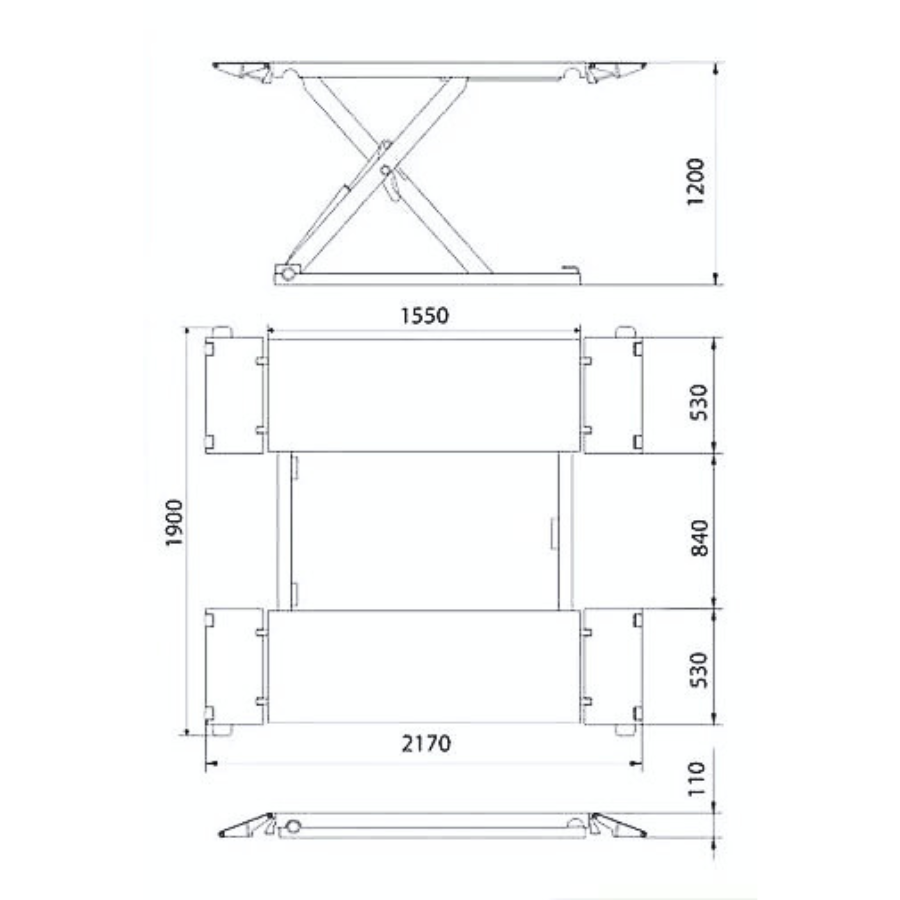

Specifications:
|
Lifting Capacity |
3500kg |
|
Maximum Lift Height |
1200mm |
|
Platform Initial Height |
110mm |
|
Platform Length |
1550-2170mm |
|
Platform Width |
530mm |
|
Lifting Time |
~35 seconds |
|
Descent Time |
~35 seconds |
|
Whole Machine Length |
2170mm |
|
Whole Machine Width |
1900mm |
|
Power Supply |
240V (Single Phase) |
|
Motor Power |
2.2kw |
|
Net Weight |
500KG |
|
Noise Level |
<70 dB |
|
Hydraulic Oil |
10L – Corresponds to wearable hydraulic oil |
Warranty:
12 Months Warranty
