PRODUCT SUMMARY:

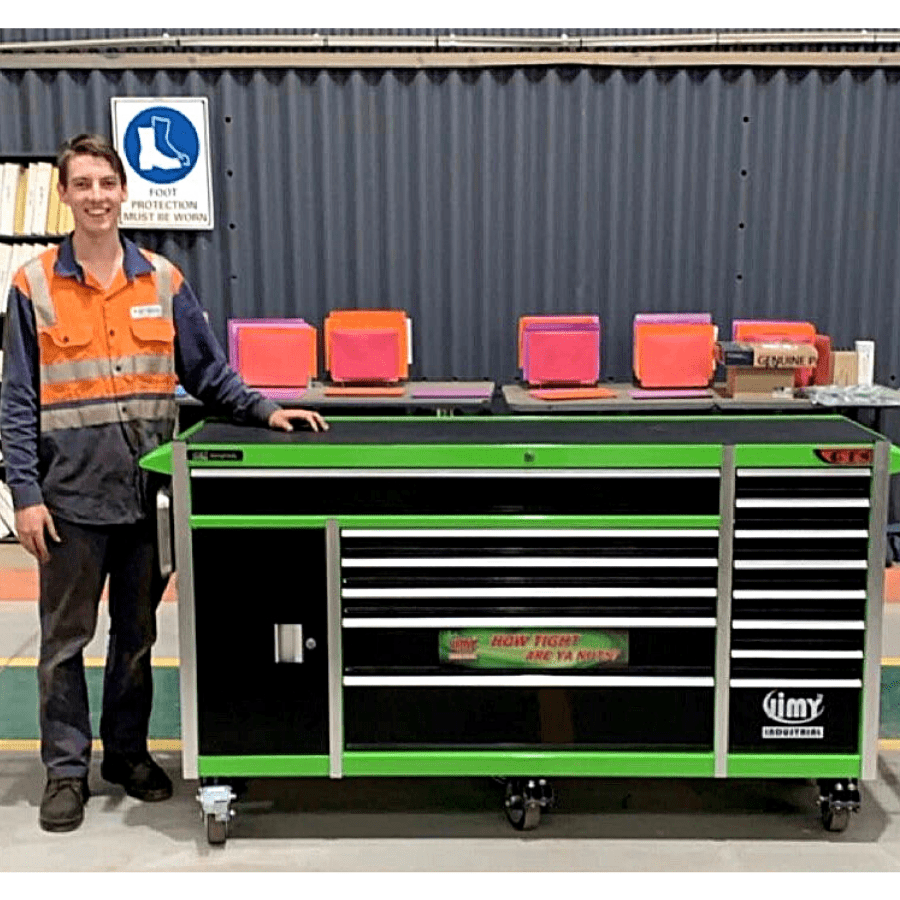

14 DRAWER 72” ROLLER CABINET TOOL BOX
Jimy tool boxes are built to last with a tough industrial powder coating, 1.2mm thick steel, fully lockable with a rear internal locking system, ball bearing slide drawers with twin slides on the deeper drawers and 6” x 2” heavy duty spring loaded castors. There is also a lockable side cupboard with shelving for added convenience.
PRODUCT SPECIFICATIONS:
|
14 DRAWER 72″ ROLLER CABINET |
|
|
No. |
DESCRIPTION |
|
41.TB08.14 |
14 DRAWER 72″ ROLLER CABINET |
|
|
14 DRAWER ROLLER CABINET. BOX SIZE (no castors): |
|
|
1 DRAWER: 1321 X 499 X 122.5MM |
|
|
3 DRAWERS: 942 X 499 X 75.5MM |
|
|
1 DRAWER: 942 X 499 X 155MM |
|
|
1 DRAWER: 942 X 499 X 208MM |
|
|
7 DRAWERS: 309 X 499 X 75.5MM |
|
|
1 DRAWER: 309 X 499 X 208MM |
|
|
N.W.: 230KGS |
|
|
STEEL THICKNESS |
|
|
BODY: 1.2MM |
|
|
DRAWER: 1.0MM |

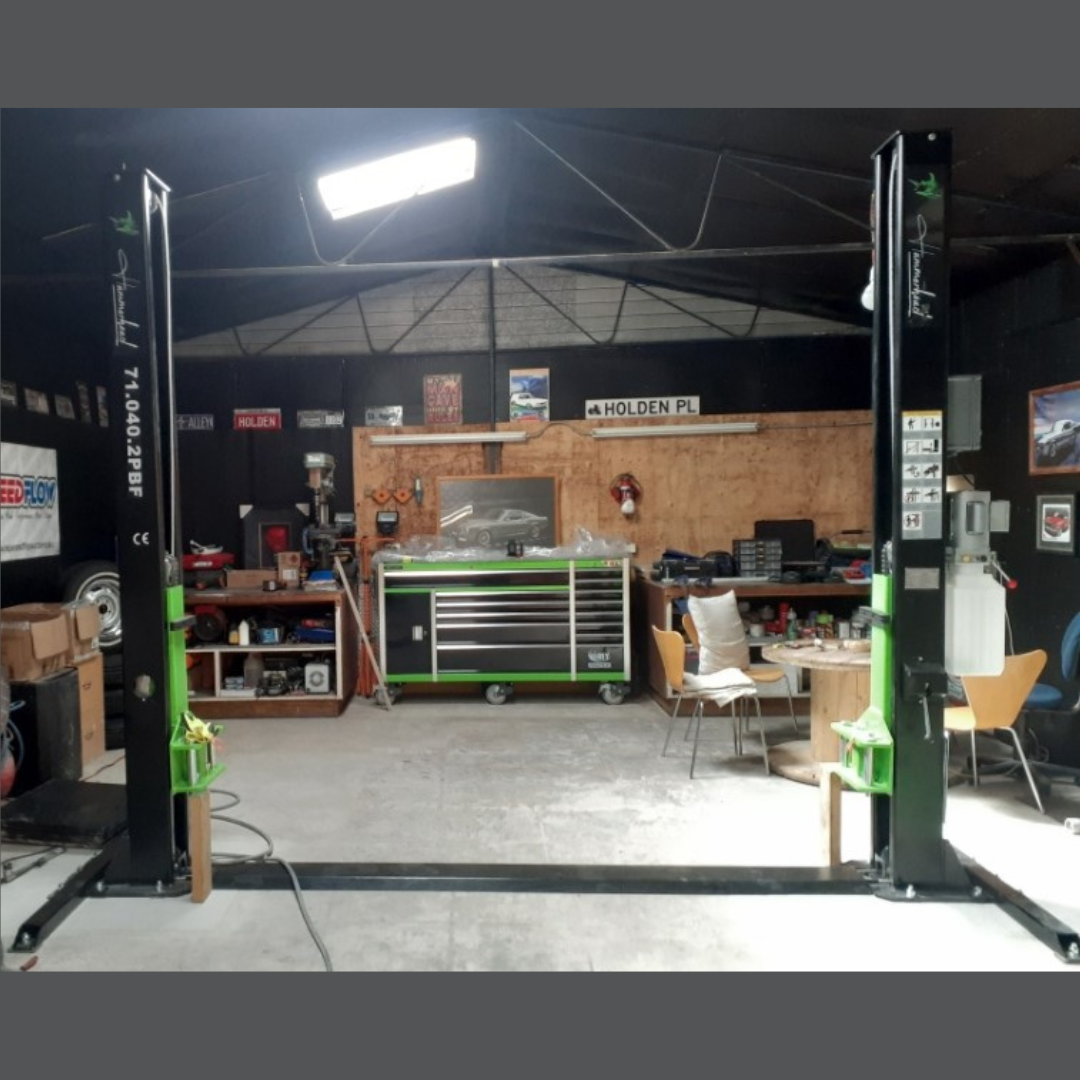

HAMMERHEAD 4.0T BASE FRAME TWO POST LIFT HOIST
Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Perfect for busy workshops, professional garages, and dedicated home enthusiasts, the Hammerhead 4.0 Ton 2 Post Baseframe Hoist is engineered for general servicing, mechanical repairs, wheel and suspension work, and more.
The Hammerhead 4.0 Ton 2 Post Baseframe Hoist offers robust lifting capability with a 4,000 kg (4.0 ton / 8,800 lbs) capacity, making it ideal for sedans, SUVs, 4WDs, and light commercial vehicles. This baseframe model features a low profile 50mm base plate. Suitable for low ceiling heights with only a 2820mm max height!
Its symmetrical post configuration ensures balanced lifting and easy positioning of vehicles, while the dual hydraulic cylinders and durable chain-driven system ensure smooth and reliable performance every time. Whether you’re a professional mechanic or a serious car enthusiast, the Hammerhead 2 Post Baseframe Hoist delivers the strength, safety, and performance you can trust.
Base Plate Hoist Features
- 4000kg / 4 tonne safe load limit
- Lifting height of 1.93m
- Dual hydraulic cylinders with chain driven carriages
- Adjustable screw pads and 4 additional raising adapters are included
- Strong single piece column design
- Durable powder coated finish
- Rubber door protectors
- Symmetric two and three stage arms
- Low profile 50mm high base plate
Safety Features
- Manual safety locking system with safety latches in each column
- Dual point release system
- Heavy duty 5mm thick columns ,6mm carriages
- 9.3mm steel wire rope equalising cables
- Sub-frame design provides additional safety
What’s included?
- 2 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Concrete anchor bolts
What’s Not Included?
- Power Plug
- Installation of unit
- Hydraulic Oil
Area Requirements
- 150mm deep concrete
- Minimum Ceiling Height – 3 Metres
Warranty & Certifications
- Australian Worksafe Registered Design
- 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
- CE Certified
|
SPECIFICATIONS |
|
|
Motor |
240V Single Phase |
|
Lifting Height |
1930MM |
|
Total Height |
2824MM |
|
Total Width |
3365MM |
|
Drive Through Clearance |
2500MM |
|
Base Plate Drive Over Length |
50MM |
|
Lifting Arm Min. Length |
2 stage arm min: 820mm |
|
Lifting Arm Max. Length |
2 stage arm max: 1260mm |
|
Lifting Pad Min. Height |
90MM |
|
Lifting Pad Max. Height |
125MM |
|
Lifting Time |
50 Seconds |
|
Net Weight/Gross Weight |
585KGS |
|
Min. Concrete Thickness |
150MM |
|
MATERIALS |
|
|
Cable Thickness |
9.3MM |
|
Column Thickness |
5MM |
|
Carriage Thickness |
6MM |
