Product Summary:

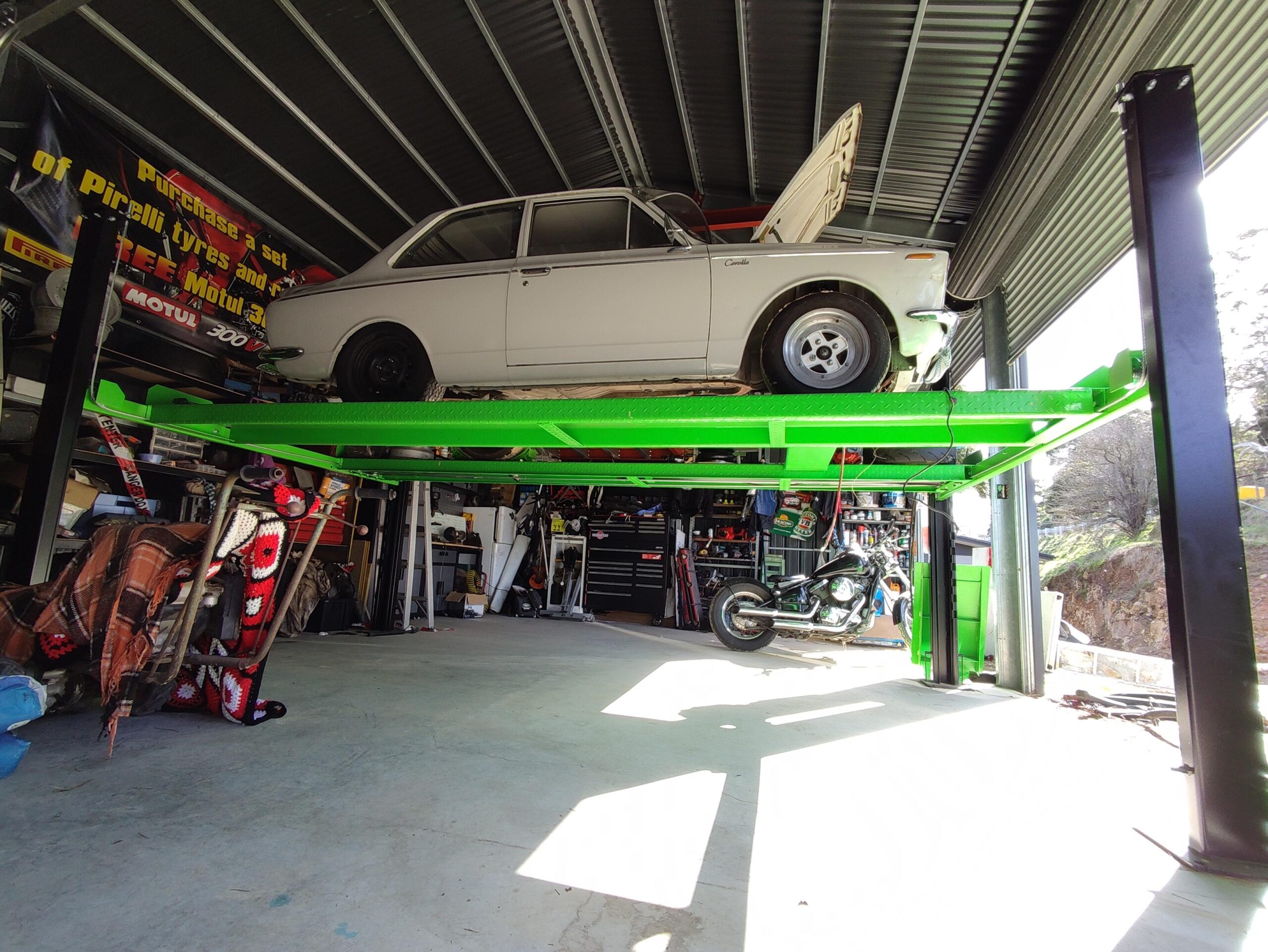

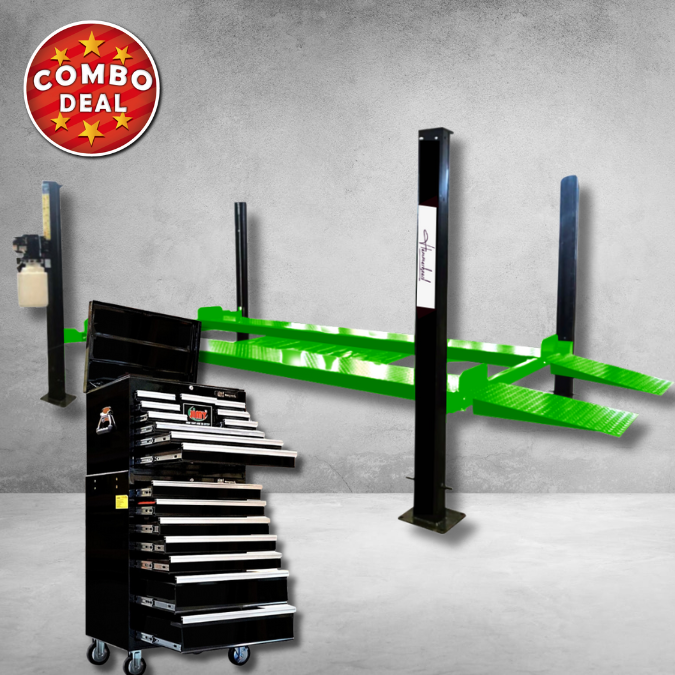

HAMMERHEAD 4.0T FOUR POST PARKING LIFT HOIST
Australia’s Newest Best Value 4 Post Parking Lift has arrived. It’s perfect for recreational or home use. Our Hammerhead Hoists have got you covered.
- FEATURES
- 4000KG / 4.0 Tonne Load Limit
- Powder Coated Finish
- Adjustable lifting height with maximum height of 2.0 m
- One side release for safety locks, easy for descent operation
- External Locking
Safety Features
- 4-point pneumatic safety lock releases
- Additional secondary safety lock when weight comes off the cables
- Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
- Heavy duty 6mm thick cross beams and 5mm thick runways
- 9.53mm steel wire rope equalising cables
- Anti-surge valve
What’s Included?
- 4 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Casters, Jack Tray , Drop Tray
- Detailed installation instructions
Optional Accessories
- We offer a secondary lift to be able to easily jack your cars up while on the hoist.
- S71.040.4PSTD-LIFT
- Oil Drip Trays are available to keep your area clean from any spills.
Shed Requirements
- 150mm deep concrete at 32mpa
- Minimum ceiling height of 3.6m
Warranty & Certifications
- 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
- CE Certified
|
SPECIFICATIONS |
||
|
Motor |
240V 20A Single Phase |
|
|
Lifting Height |
2000MM |
|
|
Total Height |
2328MM |
|
|
Total Width |
3080MM |
|
|
Overall Length Not Including Ramps |
4831MM |
|
|
Overall Length Including Ramps Down |
5572MM |
|
|
Lifting Time |
50 Seconds |
|
|
Weight |
815KG |
|
|
Min. Concrete Thickness |
150MM |
|
|
MATERIALS |
||
|
Cable Thickness |
10MM |
|
|
Column Thickness |
6MM |
|
|
Carriage Thickness |
6MM |
|
INTRODUCTORY RED DEVIL TOOL KIT WORKSHOP (RED)
Part number: 41.TB02.20KM(R)
The 17 drawer mechanic’s tool kit from Jimy Tools what a good place to start if your new to the mechanical trades or an old hand this tool kit makes sense a full complement of sockets in 1/4” 3/8” and 1/2” drives with extension bars, ratchets and breaker bars to suit . There are both ratchet and standard ring open end spanners in metric and SAE, pliers, screwdrivers, flare nut spanners, Allen and Torx® key sets etc.. Check out the full list of contents below. With the high density foam drawer inserts you can easily see if you have left a tool on the job. Jimy tool boxes are built to last tough industrial powder coating, 1.2mm thick steel, fully lockable with a rear internal locking system and ball bearing slide drawers.
Jimy Tools sockets, spanners and wrenches are manufactured to meet and exceed international quality standards. So you can be sure your Jimy Tools are tough enough to stand up to the harshest working environments. Trade grade quality absolute value for money is what Jimy Tools will stand by!
PRODUCT SPECIFICATIONS:
|
17 DRAWER MECHANIC’S TOOL KIT |
|
|
No. |
DESCRIPTION |
|
41.TB02.20KM |
17 DRAWER MECHANIC’S TOOL KIT |
|
41.TB03.10 |
10 DRAW TOP TOOL BOX. BOX SIZE: 660MM (W) X 455MM (L) X 483MM (H) |
|
41.TB03.07 |
7 DRAW ROLLER CABINET. BOX SIZE: 670MM (W) X 460MM (L) X 812MM (H) |
|
|
DEEP TRAY 1 |
|
41.TEVAD.01F |
97PC SOCKET ACCESSORY TRAY |
|
|
1/4″Dr 6pt Sockets – 4-14mm & 5/32-1/2″ |
|
|
3/8″Dr 6pt Sockets – 9-19mm &3/8″- 13/16″ |
|
|
1/2″ Dr 12pt Sockets – 8-32mm & 1/2″-1-1/4″ |
|
|
TRAY 3 |
|
41.TEVA.03F |
26PC COMBINATION SPANNER SET TRAY |
|
|
7,8,9,10,11,12,13,14,15,16,17,18,19,21MM |
|
|
1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ |
|
|
DEEP TRAY 4 |
|
41.TEVAD.04F |
26PC COMBINATION RATCHETING SPANNER TRAY (CUT IN 2) |
|
|
8,9,10,11,12,13,14,15,16,17,18,19,21MM |
|
|
1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″,1″ |
|
|
FILLER TRAY 1 |
|
41.TEVAF.01F |
8PC PHILLIPS/SLOTTED SCREWDRIVER SET TRAY |
|
41.2014.08M |
8PC DEEP 1/4″DR SOCKET SET RAIL – MM |
|
|
5.5, 6, 7, 8, 9, 10, 11, 12MM |
|
41.2038.08M |
8PC DEEP 3/8″DR SOCKET SET RAIL – MM |
|
|
10, 11, 12, 13, 14, 16, 17, 19MM |
|
41.2012.08M |
8PC DEEP 1/2″DR SOCKET SET RAIL – MM |
|
|
13, 14, 16, 17, 19, 21, 22, 24MM |
|
41.2014.08S |
8PC DEEP 1/4″DR SOCKET SET RAIL – SAE |
|
|
3/16″, 7/32″, 1/4″, 9/32″, 5/16″, 11/32″, 3/8″, 7/16″ |
|
41.2038.08S |
8PC DEEP 3/8″DR SOCKET SET RAIL – SAE |
|
|
3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″ |
|
41.2012.08S |
8PC DEEP 1/2″DR SOCKET SET RAIL – SAE |
|
|
1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 13/16″, 7/8″, 15/16″ |
|
41.4020.DM |
10 PIECE DEEP IMPACT SOCKET SET |
|
|
10,11,12,13,14,17,19,21,22 & 24MM |
|
41.4005DIS.A |
5 PIECE DEEP IMPACT SOCKET RAIL 1/2″ DRIVE SAE |
|
|
7/16″-11/16″ |
|
41.4005DIS.B |
5 PIECE DEEP IMPACT SOCKET RAIL 1/2″ DRIVE SAE |
|
|
3/8″-1″ |
|
41.2610.16 |
16OZ BALL PEIN HAMMER |
|
41.992.08 |
8M TAPE MEASURE |
|
41.AW04.08 |
8″ ADJUSTABLE WRENCH |
|
41.AW04.10 |
10″ ADJUSTABLE WRENCH |
|
41.004.20 |
4PC PLIER SET |
|
|
8.5″ COMBINATION PLIER, 8″ LONG NOSE PLIER, 6″ SIDE CUTTING PLIER & |
|
|
10″ CURVED JAW LOCKING PLIER |
|
41.004.30 |
4PC CIRCLIP PLIER SET |
|
|
7″ INTERNAL/EXTERNAL STRAIGHT/BENT |
|
41.038.10 |
38PC BIT AND 1/4″DR WRENCH SET |
|
51.285.36M |
36PC COMO FEELER GAUGE SET |
|
41.009.50 |
9PC HANDLE BALL NOSE HEX KEY SET – MM |
|
41.009.55 |
9PC HANDLE BALL NOSE HEX KEY SET – SAE |
|
41.025.35 |
9PC LONG TAMPER STAR & STAR SET |
|
41.3110.10 |
10″ (250MM) MULTI GRIP |
|
41.994.12 |
HACKSAW – 12″ X 24TPI |
