PRODUCT SUMMARY:

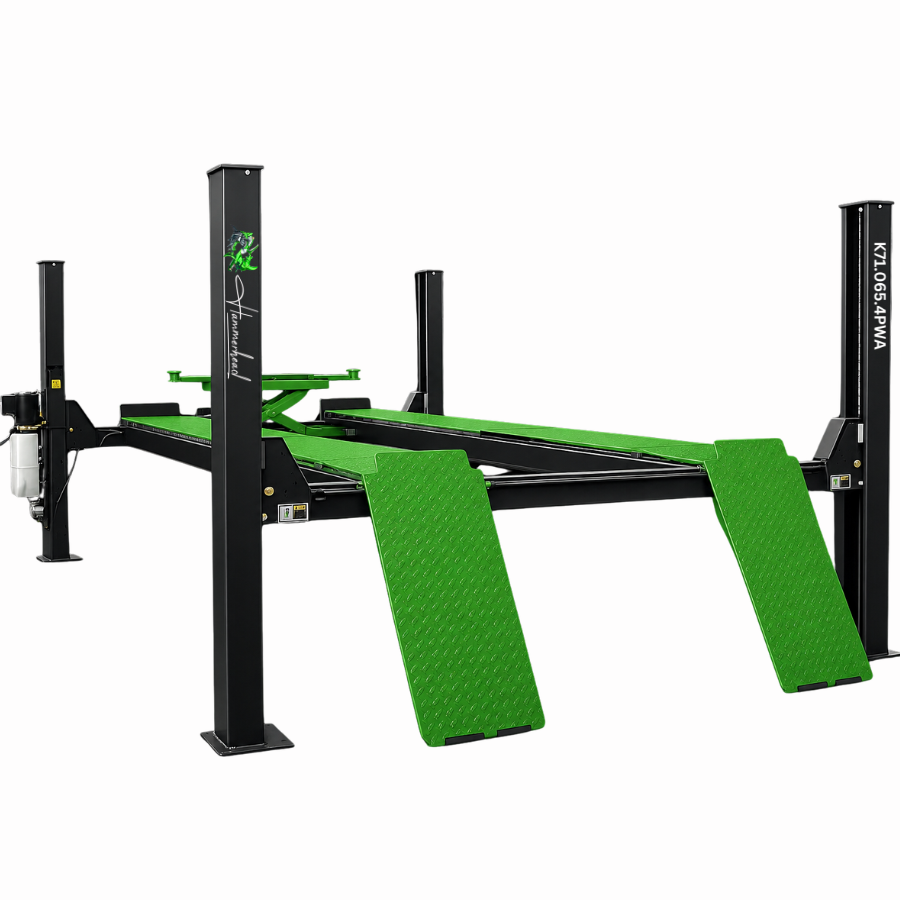

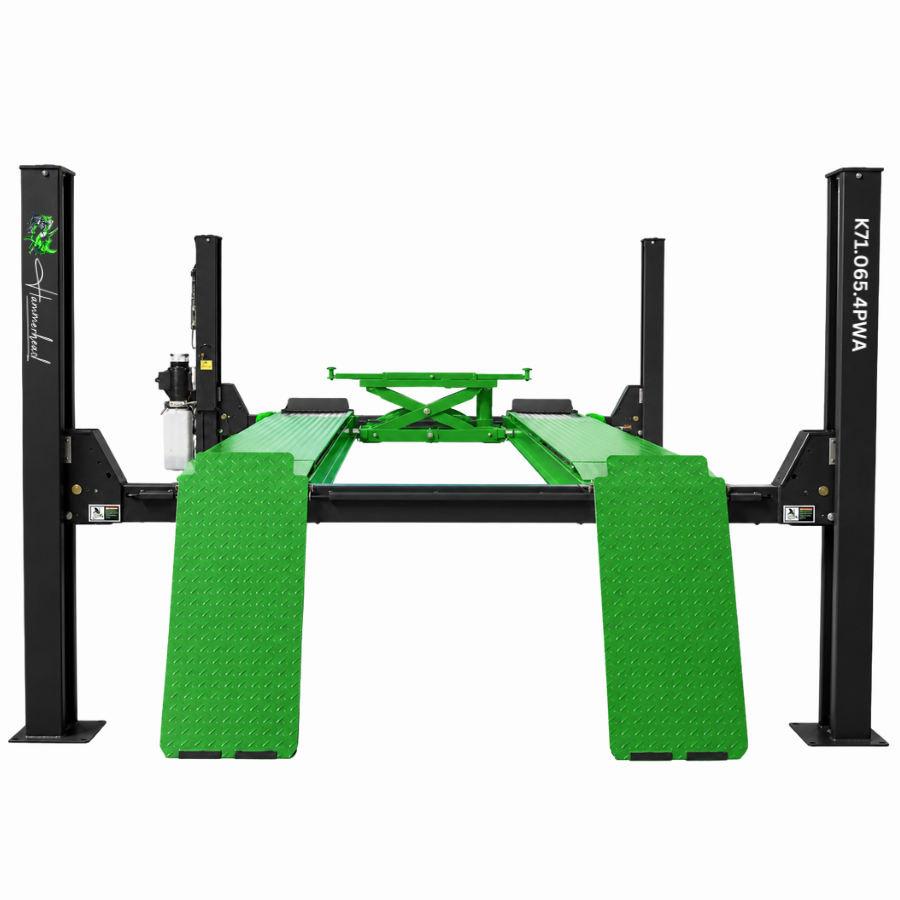

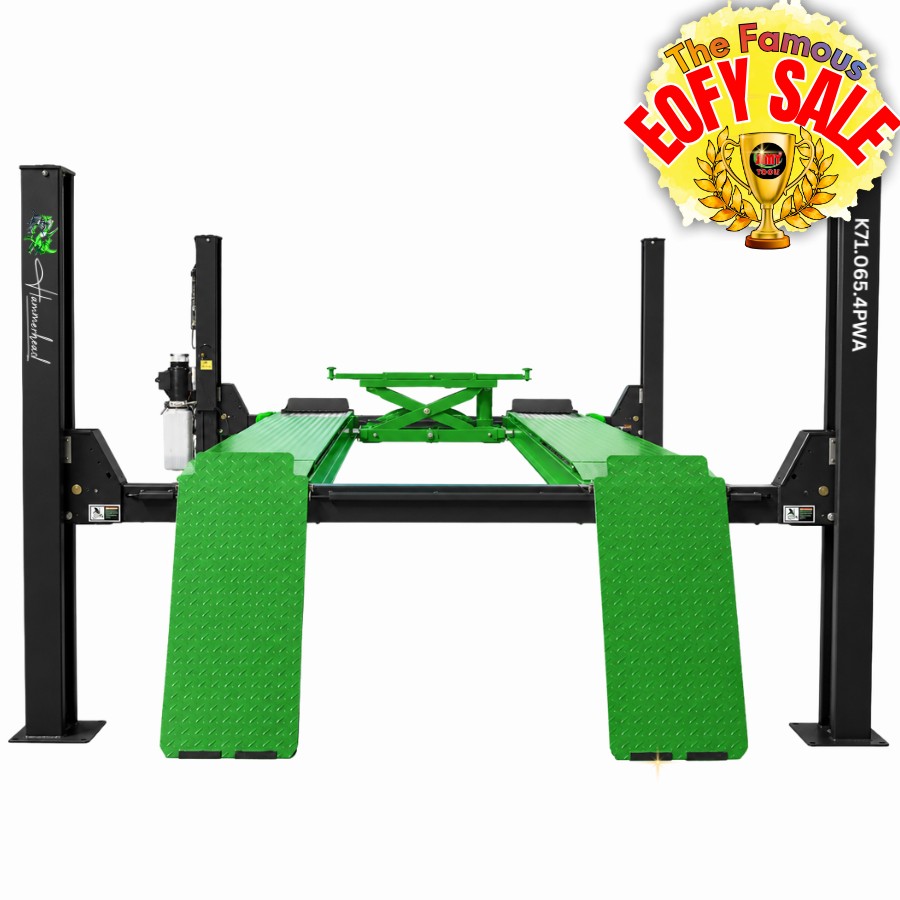

The Jimy Tools 6.5T 4-Post Wheel Alignment Hoist is a premium heavy-duty workshop lift designed for professional wheel alignment, servicing, inspections, suspension work, and general vehicle repairs. Supplied complete with front turntables, rear sliding slip plates, a 3.0T electric rolling jack, and a 24V low-voltage control box, this hoist provides a complete alignment solution straight out of the box.

The hydraulic cylinder and steel cable lifting system delivers smooth, reliable lifting performance, while the pneumatic safety lock system ensures safe operation at multiple locking positions. With a massive 6.5 tonne lifting capacity and extra-long runways, this hoist is ideal for passenger vehicles, 4WDs, vans, and light commercial vehicles.

Designed for busy workshops, the integrated alignment equipment and low-voltage control system provide improved operator safety, convenience, and precision for professional alignment and repair work.

Key Features

• 6.5T lifting capacity
• Front wheel alignment turntables included
• Rear sliding slip plates included

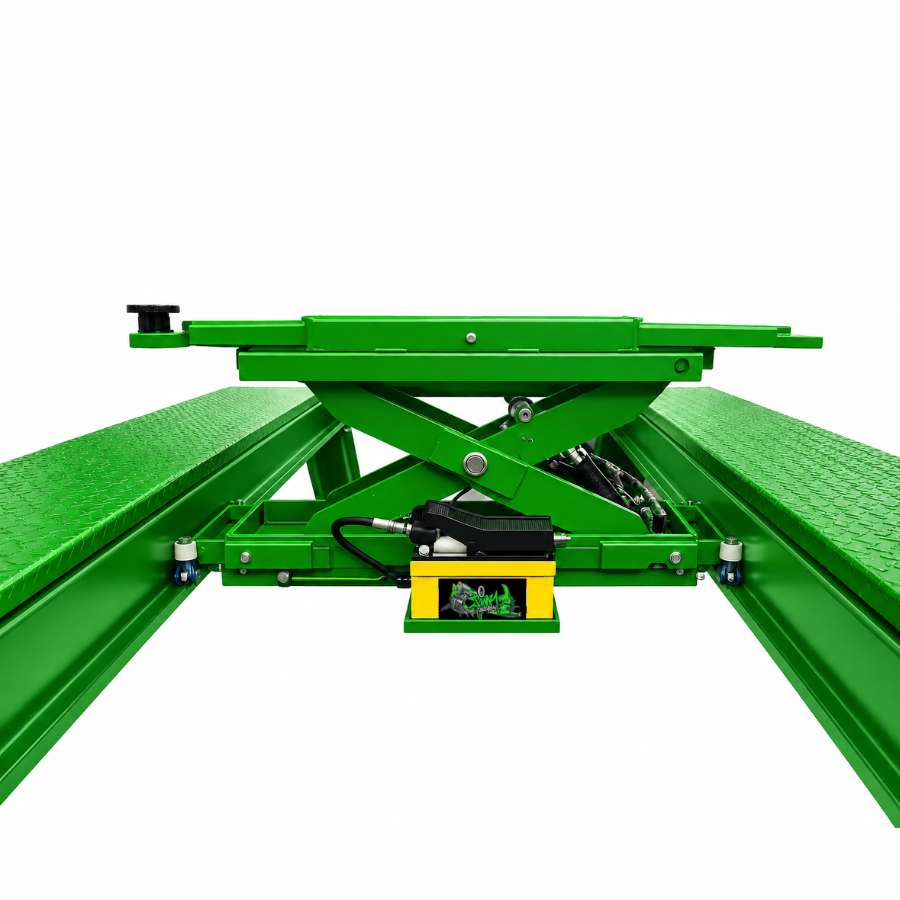

• 3.0T electric rolling jack included for secondary lifting
• Adjustable runway levelling for accurate alignment work
• Extra-long 5770mm runways
• High-quality hydraulic power unit
• Quiet and reliable operation
• Double pulley cable system for improved stability and reduced cable load
• Suitable for wheel alignments, suspension repairs, inspections, servicing, and parking applications

Safety Features

• 24V low-voltage control box included
• Hydraulic cylinder and steel cable lifting system
• Pneumatic safety lock system
• Ball-bearing supported slip plates for smooth operation
• Protective runway ramps and wheel stops

What’s Included?

• Electric Secondary Lifting Jack
• Turntables & Rear Sliding Slip Plates
• 4 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• 24V Control Box

What’s Not Included?

• Hydraulic Oil
• Power Plug
• Installation of unit

Shed Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 4 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified
