PRODUCT SUMMARY:

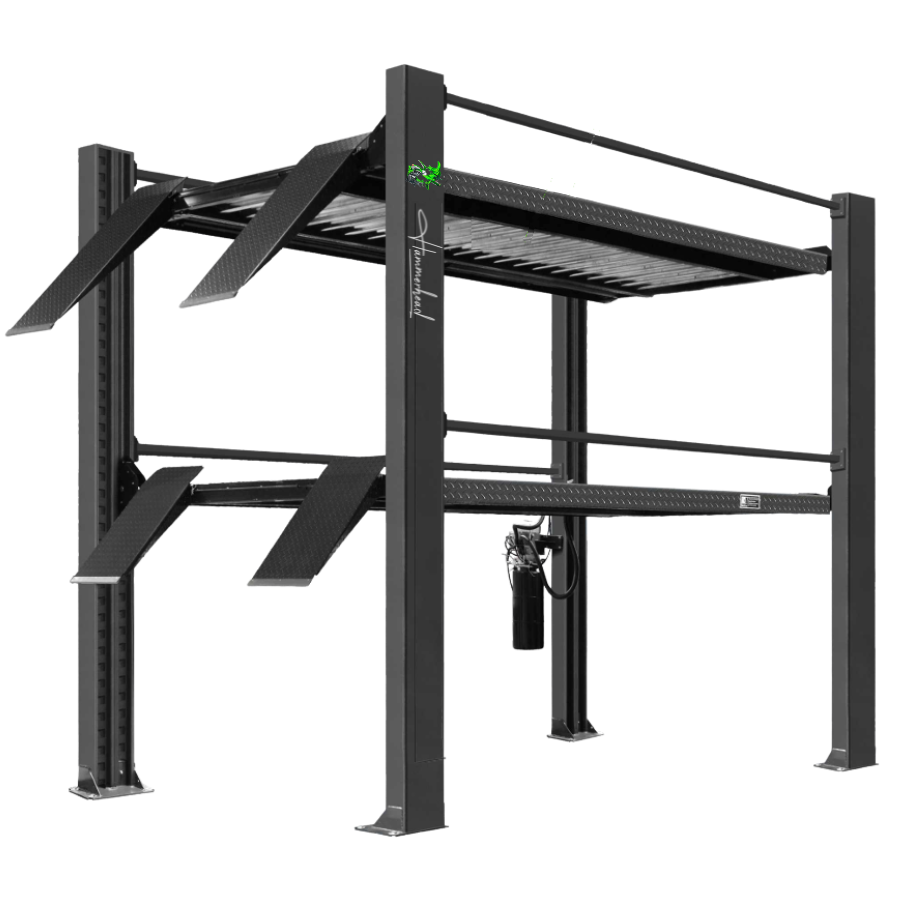

The Hammerhead 7 Ton Triple Stacker Parking Hoist is a heavy-duty multi-level parking solution designed to maximise vehicle storage capacity while maintaining safe and reliable lifting performance. Featuring a combined 7-ton lifting capacity across dual platforms, this triple stack parking system is the ideal storage solution.

Designed with independent upper and lower lifting platforms, the system allows for efficient vertical vehicle stacking while maintaining excellent platform width and vehicle accessibility. With a total machine height of 4174mm and an overall width of 2806mm, this unit delivers high-capacity parking capability in a compact footprint.

Key Features

• Massive combined 7 Ton lifting capacity
• Lower platform rated to 4 Ton
• Upper platform rated to 3 Ton
• Triple stack parking configuration
• Space-saving vertical vehicle storage solution
• Suitable for sedans, SUVs, sports cars & light commercial vehicles
• Independent lifting platforms for flexible operation
• Heavy-duty steel construction
• Wide platform design for easier vehicle positioning
• Safety locking system for secure vehicle holding

Power Requirements

• 220V / 50Hz / 60Hz / 1PH

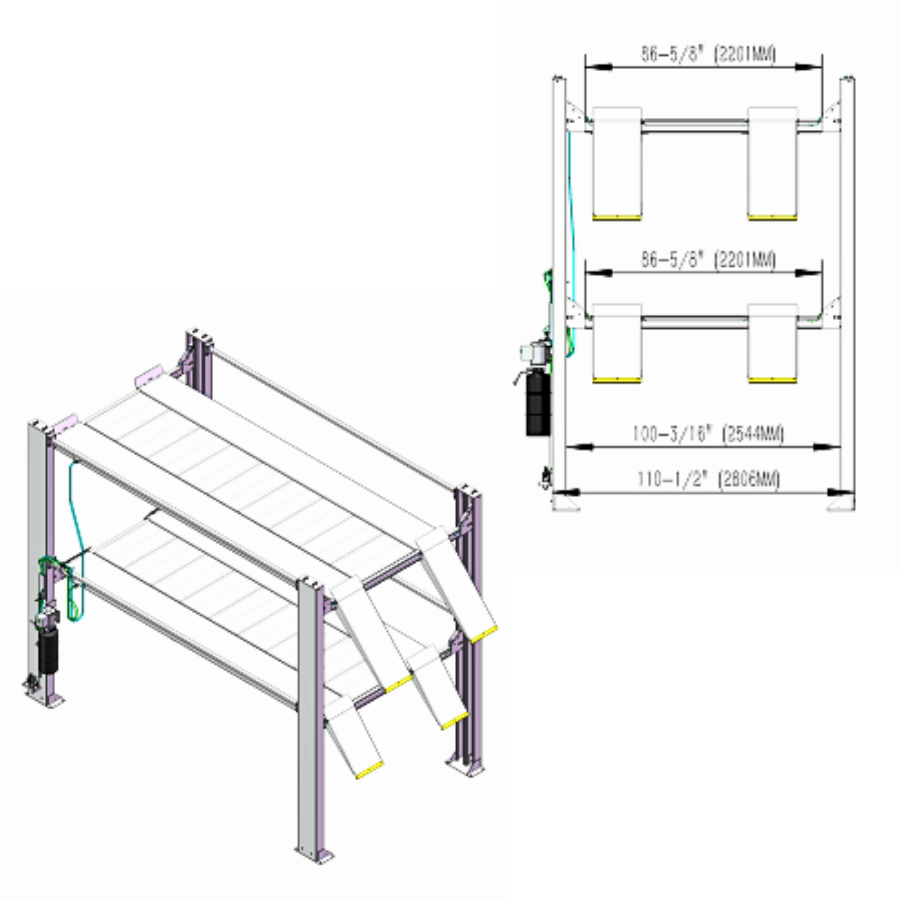

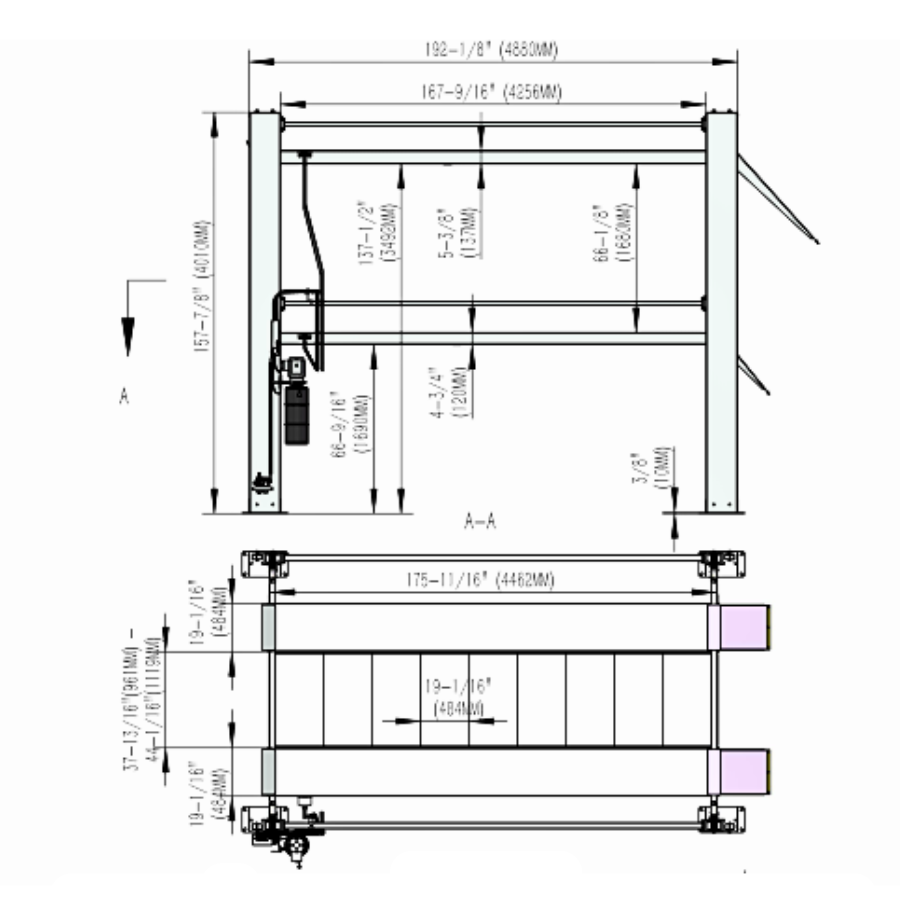

Dimensions

• Overall Machine Height: 4174mm
• Overall Machine Width: 2806mm
• Maximum Vehicle Width: 2164mm
• Platform Width: 484mm

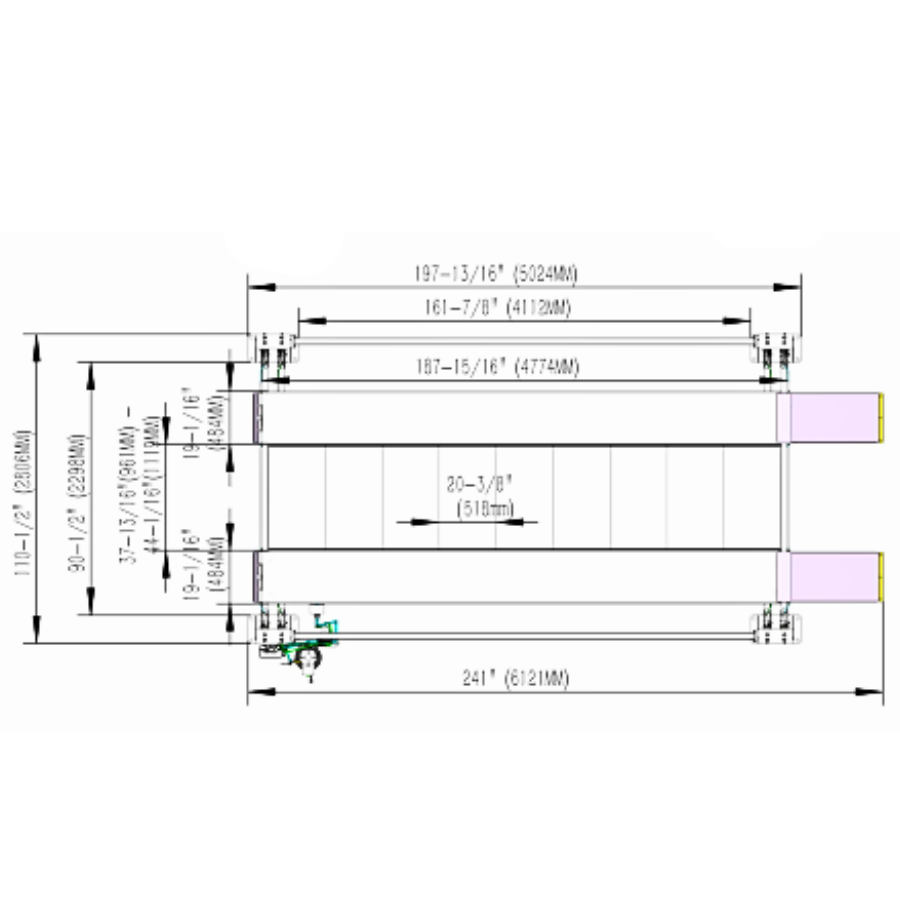

Platform Lengths

• Bottom Platform Length: 4456mm
• Upper Platform Length: 4768mm

Safety & Operation Features

• Mechanical safety lock system
• Hydraulic lifting operation
• Stable four-post structure
• Designed for long-term parked vehicle storage
• Wide drive-on platforms for easier loading
• Heavy-duty synchronisation system
• Low-maintenance commercial design

Important Installation Information

• Professional installation recommended
• Suitable concrete slab specifications required
• Vehicle heights and site ceiling heights must be checked prior to installation
• Designed primarily for vehicle parking and storage applications

A premium heavy-duty parking hoist solution designed to maximise parking capacity while maintaining safe and efficient vehicle storage.

Warranty & Certifications

• 3 Year Australian Warranty – Includes Structure, Hydraulics & Electrical
• CE Certified
