Product Summary:

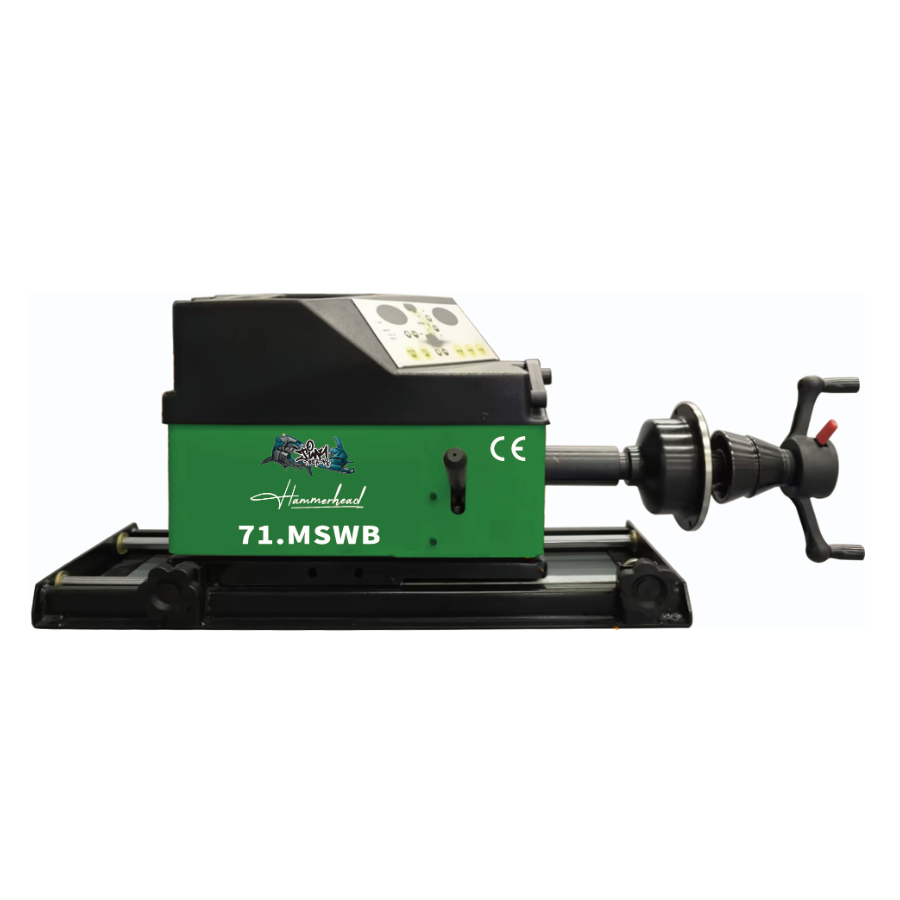

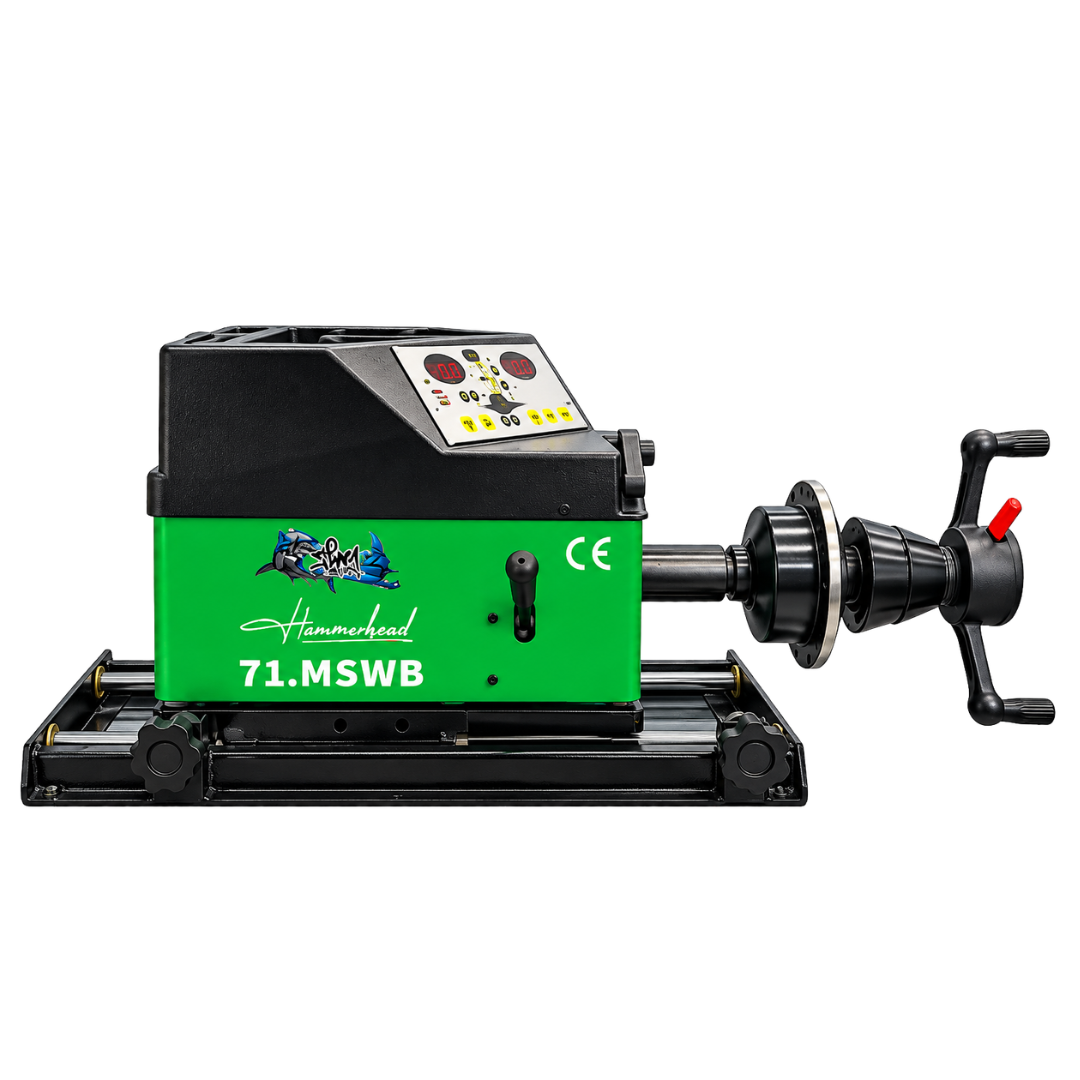

The Jimy Tools Mobile Service Wheel Balancer is a compact and lightweight wheel balancing solution designed specifically for mobile tyre servicing, service vans and workshops where space is limited.

Weighing only 30kg and measuring just 860 x 426 x 490mm, the unit can be securely mounted to a suitable platform inside a mobile service vehicle, providing professional wheel balancing capability on the go.

Unlike conventional motor-driven wheel balancers, this unit uses a manual hand-spin system, eliminating the need for a drive motor while retaining electronic measurement and a clear 6-LED display. With an approximately 8-second measurement cycle, multiple balancing modes and intelligent self-calibration, it provides a practical solution for balancing both steel and alloy wheels.

Supporting rims from 10″ to 24″, widths up to 20″ and wheels weighing up to 65kg, it is an ideal companion to the Jimy Tools Mobile Service Tyre Changer for a complete mobile tyre servicing setup.

KEY FEATURES:

• Specifically suited to mobile tyre servicing and service van installations
• Compact and lightweight design – only 30kg
• Manual hand-spin operation – no drive motor required
• Approx. 8-second balancing cycle
• Maximum wheel weight of 65kg
• Suitable for 10″ – 24″ diameter rims
• Handles rim widths from 1.5″ – 20″
• Suitable for steel and aluminium alloy wheels
• 6-LED digital display
• Multiple dynamic and static balancing modes
• ALU-1, ALU-2, ALU-3 and ALU-S alloy wheel modes
• Hidden-stick weight positioning function
• Split weight function
• Wheel imbalance optimisation function
• Intelligent self-calibration
• Automatic self-diagnosis and protection functions
• Gram/ounce measurement selection
• Millimetre/inch measurement selection
• Low operating noise of less than 70dB
• 240V single-phase power supply


PRODUCT SPECIFICATIONS:

• Maximum Wheel Weight: 65kg
• Rim Diameter: 10″ – 24″ (256 – 610mm)
• Rim Width: 1.5″ – 20″ (40 – 510mm)
• Operating Speed: Approx. 120 RPM
• Balancing Cycle Time: Approx. 8 seconds
• Power Supply: 240V / 50Hz / Single Phase
• Drive System: Manual hand spin
• Display: 6 LED digital display
• Noise Level: <70dB
• Overall Dimensions: 860 x 426 x 490mm
• Net Weight: 30kg

WHAT’S INCLUDED:

• Mobile Service Wheel Balancer
• Drive shaft screw stud
• Balancing pliers
• Allen wrench
• Measuring caliper
• Quick-release wheel nut
• 3 x centring cones
• 17 x 100g counterweights

The Jimy Tools Mobile Service Wheel Balancer combines compact dimensions, lightweight construction and professional balancing functions, making it an ideal choice for mobile tyre fitters wanting to offer tyre changing and wheel balancing from a service vehicle.
