PRODUCT SUMMARY:

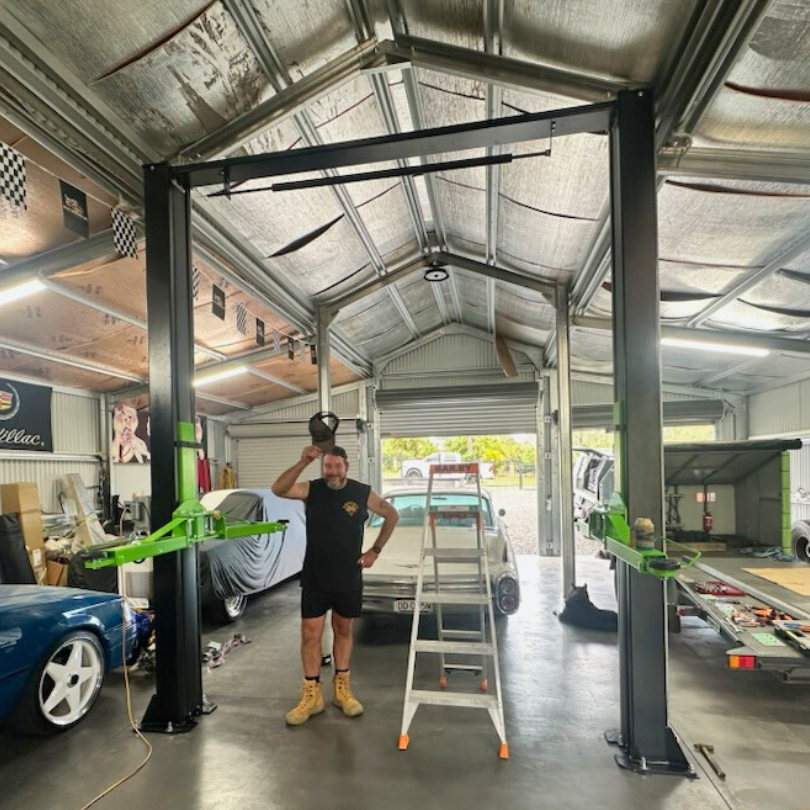

HAMMERHEAD 5.0T CLEAR FLOOR TWO POST LIFT HOIST

Part number:  71.050.2PCF

Hammerhead Hoists – Australia’s Fastest Growing Hoist Range! Designed to meet the demands of professional workshops, busy service centres, and advanced home garages, the Hammerhead 5.0 Ton 2 Post Clear Floor Hoist delivers heavy-duty performance for serious lifting tasks.

Built for strength, reliability, and versatility, this powerful hoist offers a massive 5,000 kg (5.0 ton / 11,000 lbs) lifting capacity, making it ideal for a broader range of vehicles—from standard passenger cars and SUVs to large 4WDs and light commercial vehicles. Whether you’re carrying out general servicing, mechanical repairs, or underbody inspections, this hoist is up to the challenge.

The clear floor design removes the need for a base plate, providing an unobstructed space between the columns—perfect for rolling toolboxes, creepers, transmission jacks, and other workshop equipment freely beneath the vehicle. With its robust construction, symmetrical post layout, and user-focused safety features, the Hammerhead 5 Ton Clear Floor Hoist is the ideal upgrade for any serious workshop.

Clear Floor Hoist Features

• 5000kg / 5.0 tonne safe load limit
• Lifting height of 1.9M
• Dual hydraulic cylinders lift the carriages by direct hydraulic force
• Screw pads and 4 additional raising adapters are included
• Strong 2 step column design
• Durable powder coated finish
• Rubber door protectors
• Symmetric three stage arms
• No floor plate restrictions

Safety Features

• Manual safety locking system with safety latches in each column
• Manual single point release system
• Heavy duty 6mm thick columns 6mm thick carriages
• 9mm steel wire rope equalising cables

What’s Included?

• 2 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts

What’s Not Included?

• Power Plug
• Installation of unit
• Hydraulic Oil

Area Requirements

• Minimum Ceiling Height – 4.25 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified

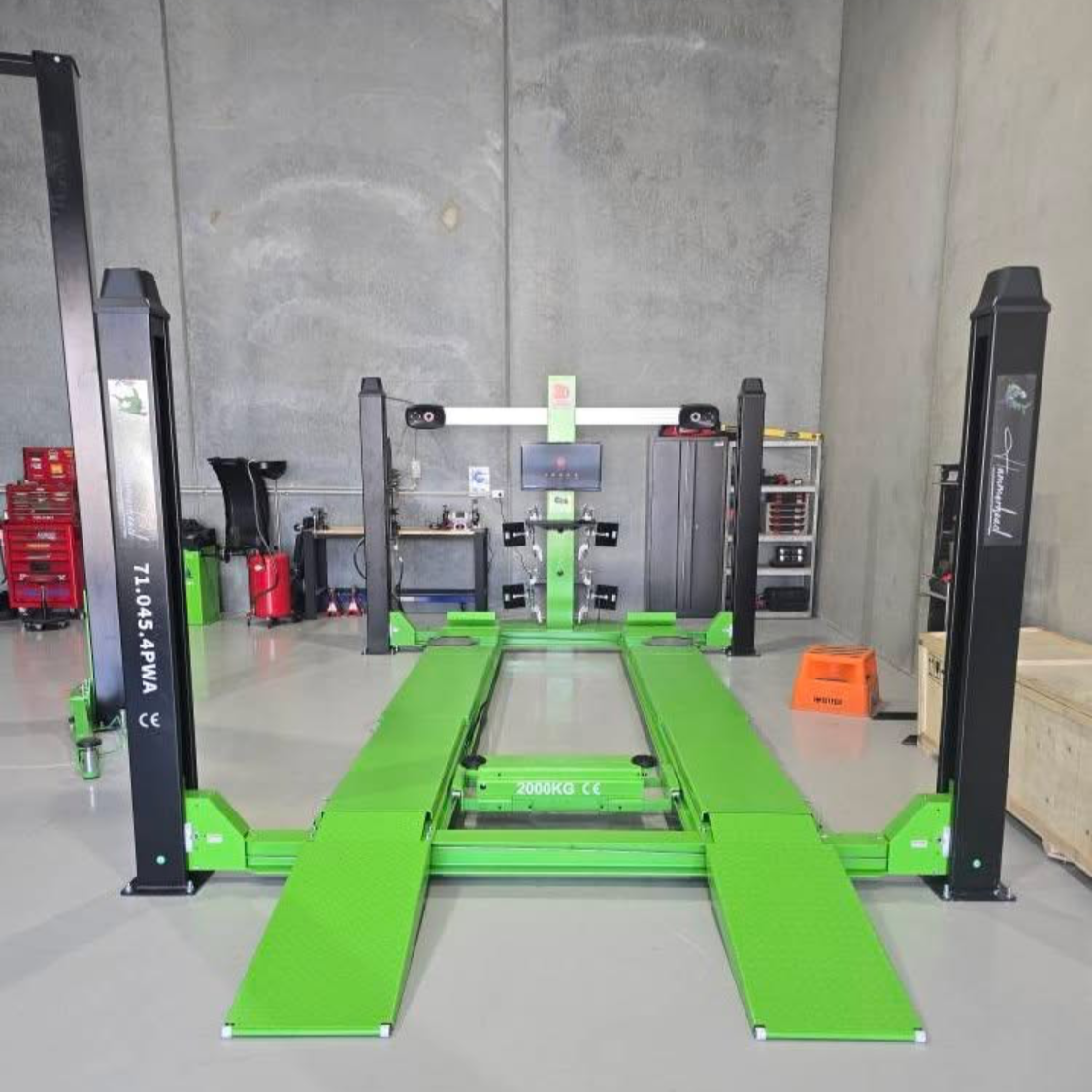

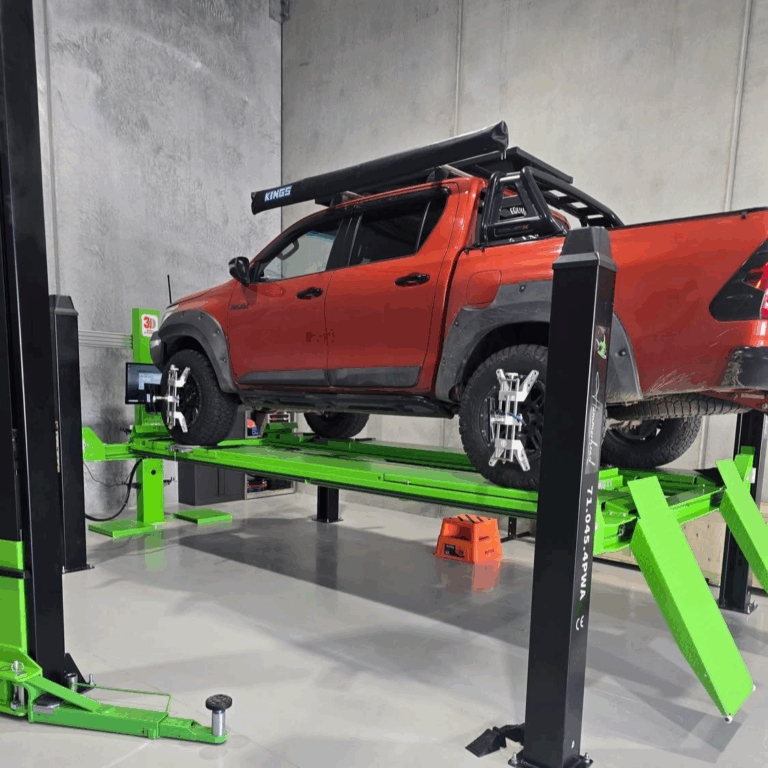

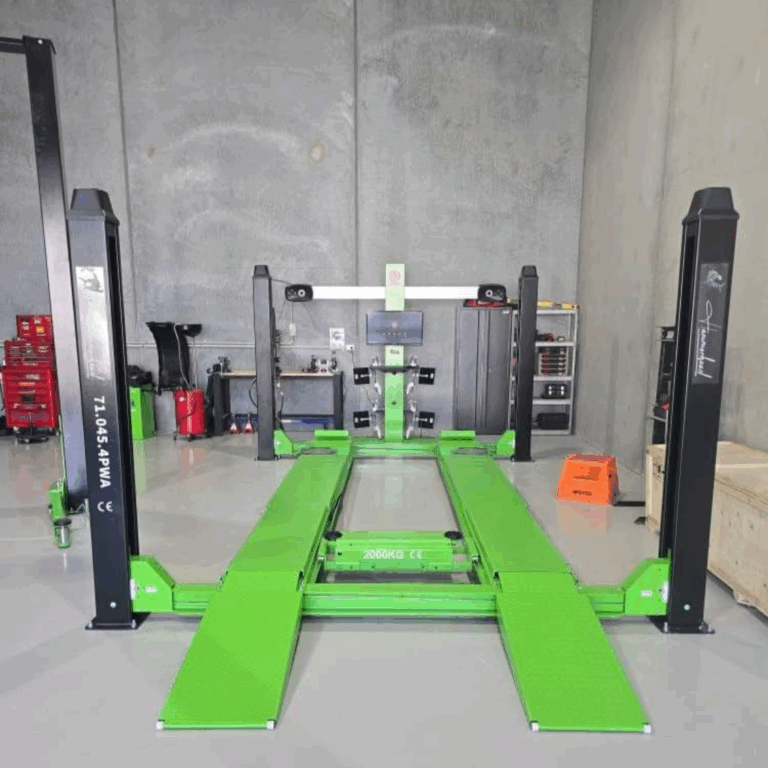

HAMMERHEAD 4.5T FOUR POST WHEEL ALIGNMENT HOIST

Part number:  71.045.4PWA

Engineered for professional workshops, alignment specialists, and high-end service centers, the Hammerhead 4.5 Ton 4 Post Wheel Alignment Hoist is the ultimate solution for precision vehicle servicing and diagnostics.

Designed for accurate and efficient wheel alignments, this heavy-duty hoist boasts a 4,500 kg (4.5 ton / 9,900 lbs) lifting capacity, making it suitable for a wide range of vehicles, including sedans, SUVs, 4WDs, and light commercial trucks. Whether you’re performing suspension work, alignment checks, or underbody inspections, this hoist is built to deliver.

The integrated electric secondary lift allows for easy lifting of all four wheels off the runways, enabling wheel-free work without repositioning the vehicle. Equipped with precision turntables and sliding rear slip plates, it ensures smooth and accurate alignment adjustments with minimal effort.

With a durable four-post structure and spacious drive-on design, the Hammerhead 4.5T Wheel Alignment Hoist offers unmatched stability, accessibility, and efficiency—making it a must-have for any workshop focused on alignment and advanced vehicle maintenance.

• FEATURES
  • 4500KG / 4.5 Tonne Load Limit
  • Powder Coated Finish
  • Adjustable lifting height with maximum height of 1.75m
  • One side release for safety locks, easy for descent operation
  • External Locking

Safety Features

• Additional secondary safety lock when weight comes off the cables
• Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
• Heavy duty 6mm thick cross beams and 4mm thick runways
• 9mm steel wire rope equalising cables
• Anti-surge valve

What’s Included?

• Electric Secondary Lifting Jack (Optional Additional Pneumatic Secondary Lift)
• Turntables
• 4 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit

What’s Not Included?

• Hydraulic Oil
• Power Plug
• Installation of unit

Shed Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 4 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified

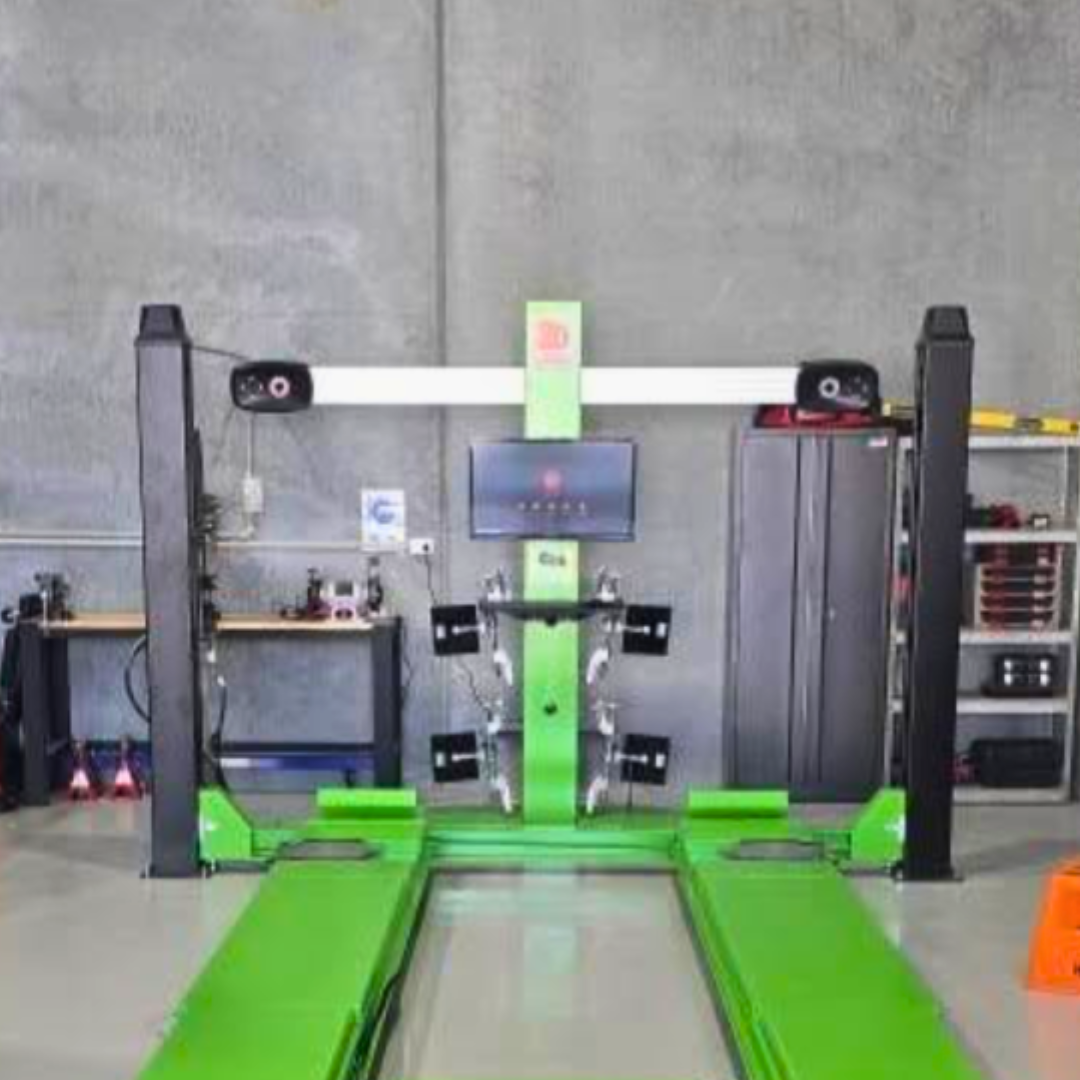

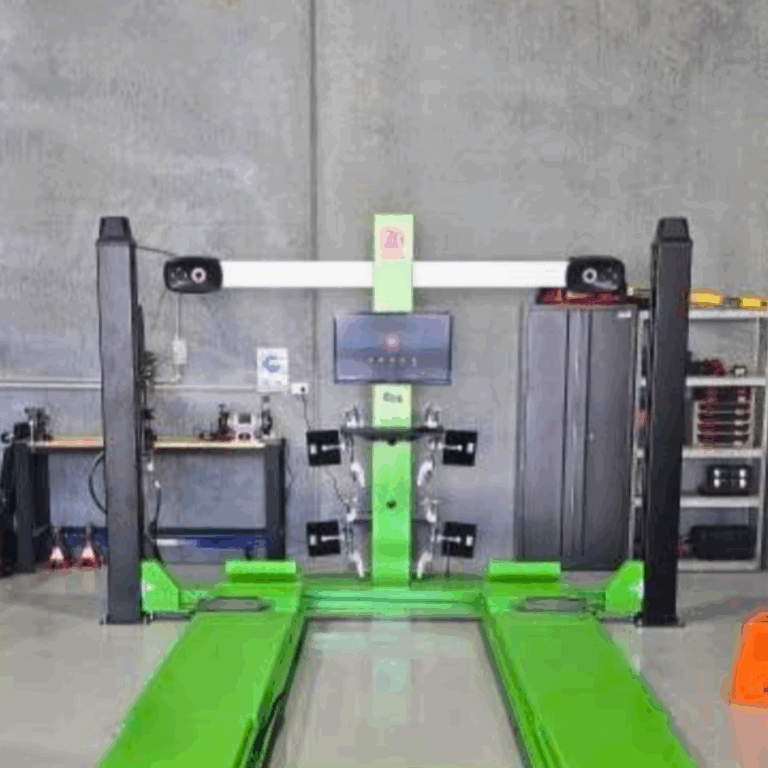

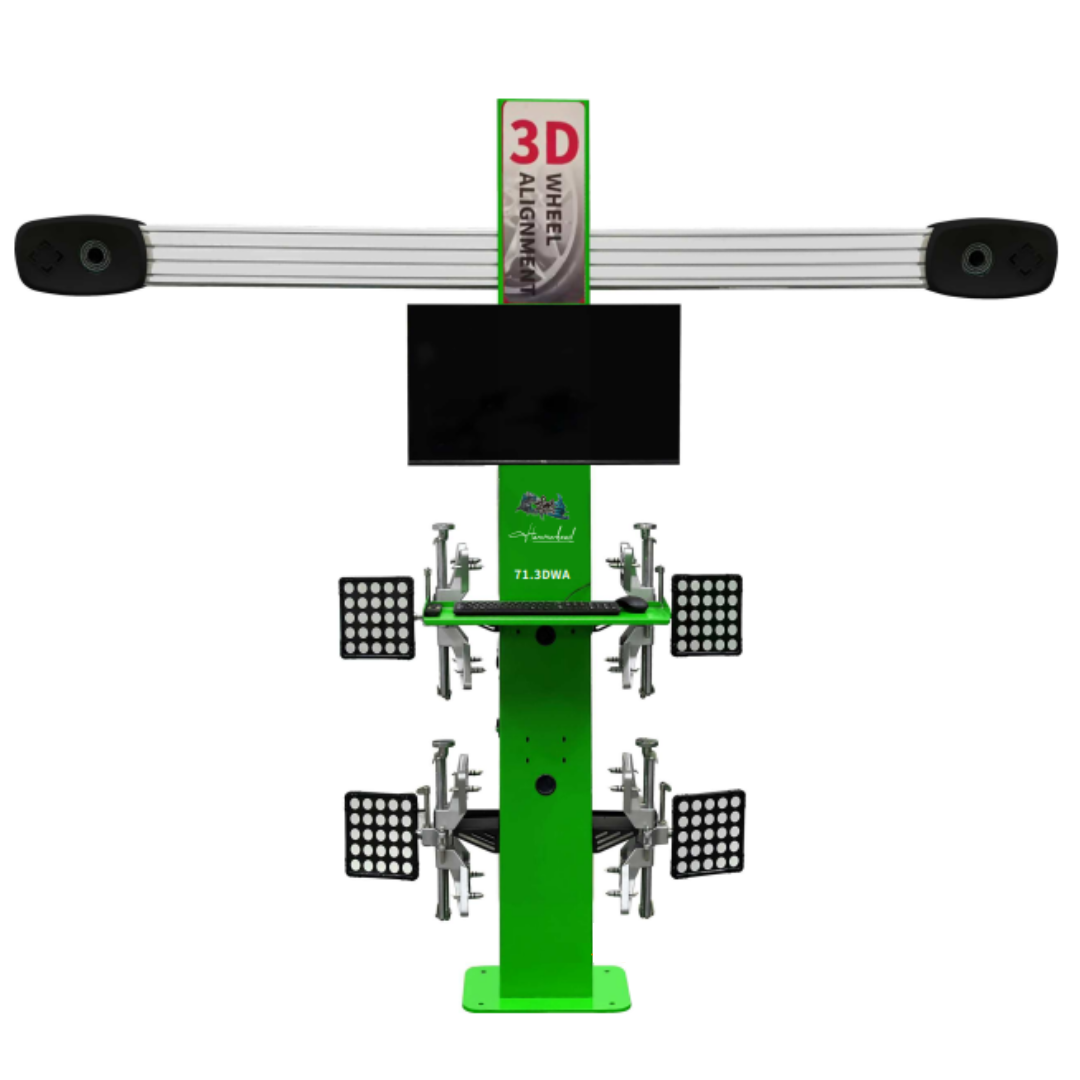

HAMMERHEAD WHEEL ALIGNMENT MACHINE

Part number: 71.3DWA

Jimy Tools Hammerhead Wheel Alignment Machine is used to detect the wheel alignment parameters of your car and compare them with the standard parameters designed by the original vehicle manufacturers.

Features:

• Fast & Accurate Readings with advanced 3D image acquisition technology
• Easy to operate software interface with step-by-step instructions
• Programmed with up to 40,000 types of vehicle wheel alignment data with the option to download input or download new data as needed
• Equipped with printer to print out measurement results
• Historical functionality to store user information which can be printed out at a later date

Specifications:

Warranty:

12 Months Warranty

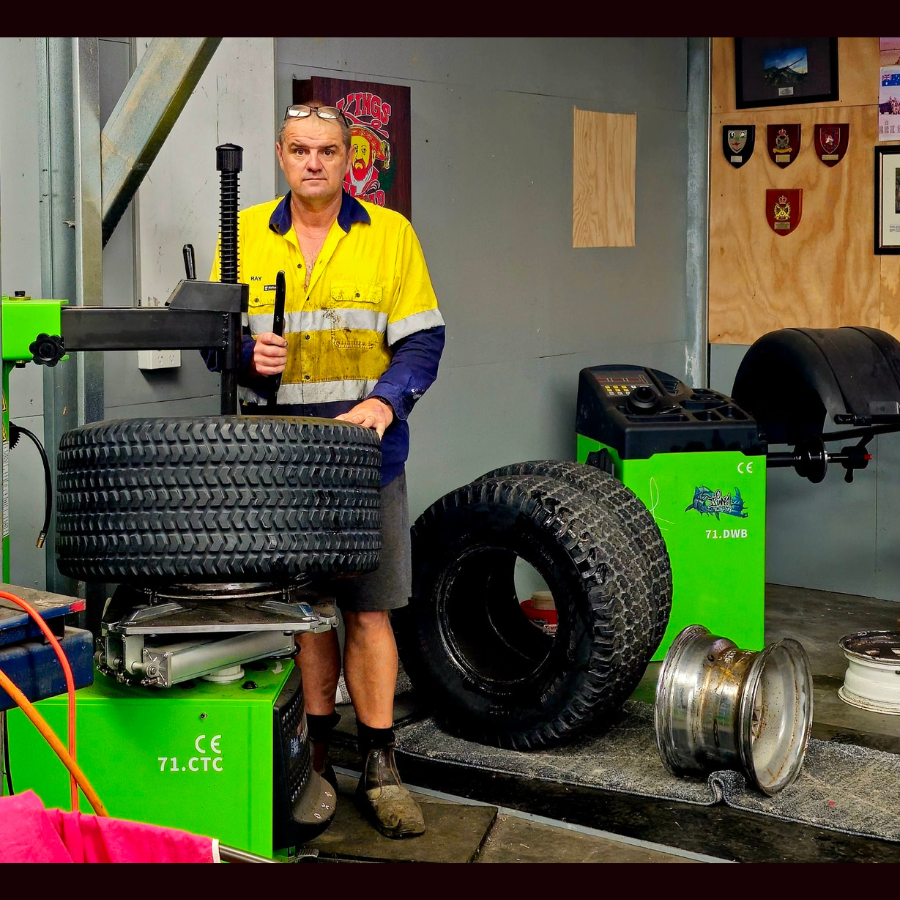

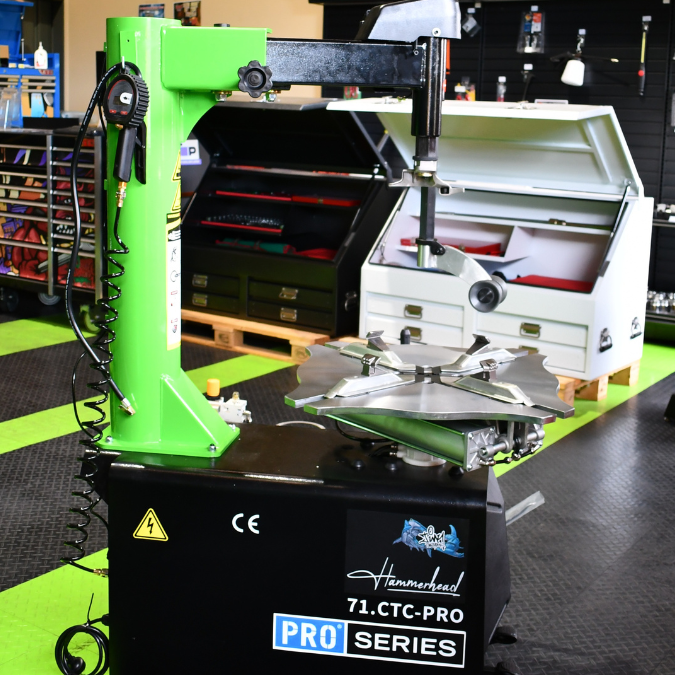

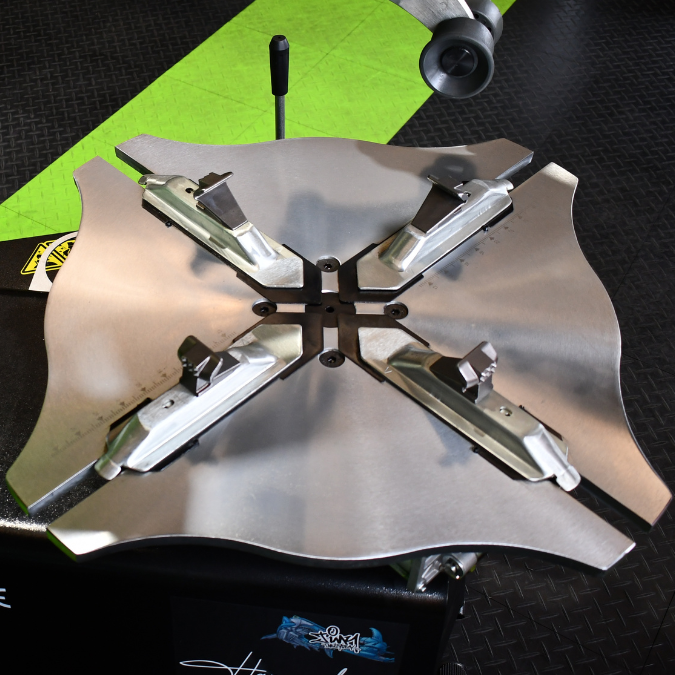

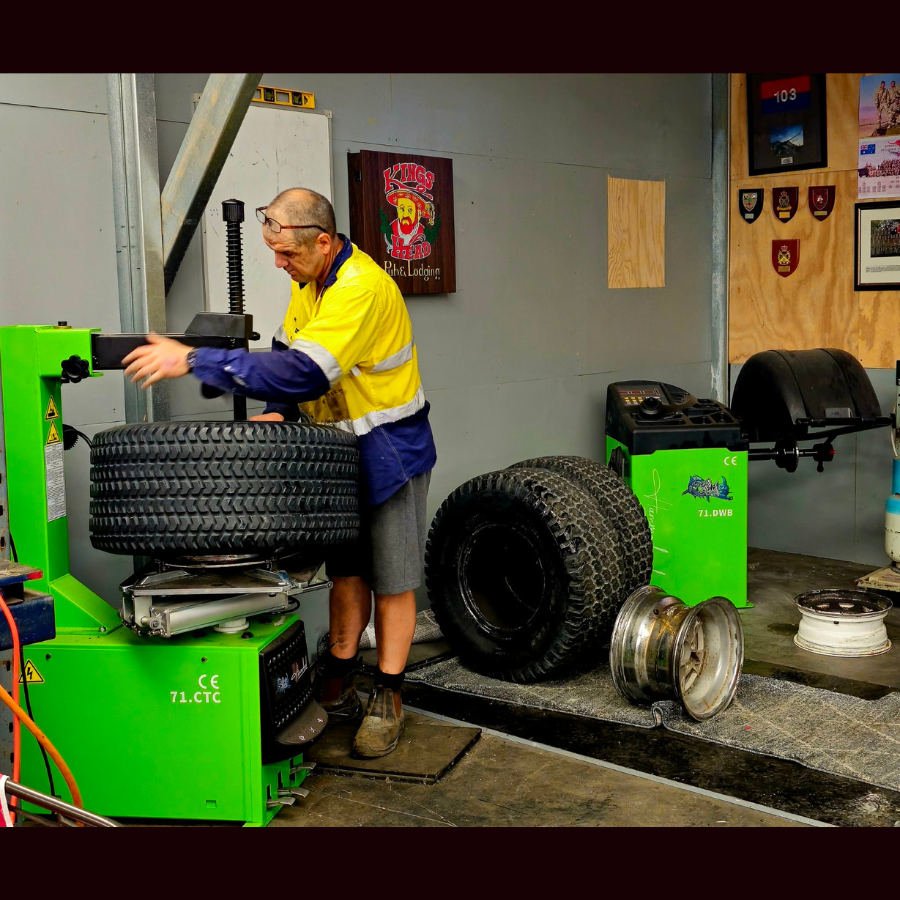

HAMMERHEAD PRO FULLY AUTOMATIC TILT CAR TYRE CHANGER WITH HELP ARM SYSTEM

Part number: 71.CTC-TILT

The HAMMERHEAD PRO Automatic Tilt Tyre Changer is a premium, fully automatic tyre changer featuring a tilt-back column and an integrated Help Arm System, engineered for high-efficiency, safe, and ergonomic tyre handling in busy automotive workshops. Built for strength and precision, this machine simplifies the mounting and demounting of modern tyre assemblies including run-flats and low-profile tyres.

Key Features & Functional Advantages

• Tilt-Back Design:
  Offers enhanced clearance and operator space. Unlike side-swing models, tilt-back arms automatically retract, allowing faster wheel changes and minimizing rim contact risks.
• Help Arm System:
  A powerful multi-function assist arm with a rotating arm, bead pressing roller, tyre lifting roller, and pressing head. Ideal for mounting/demounting stiff or performance tyres.
• Heavy-Duty Bead Breaker:
  Four-position adjustable bead breaker with a strong shovel and safety buffer to handle wide and high-profile tyres easily.
• User-Friendly Operation Pedals:
  Four pneumatic pedals control jaw clamping, turntable direction, bead breaking, and tilt-back mechanisms—all foot-operated for hands-free convenience.

Advantages of Tilt-Back Over Side-Swing Arm Tyre Changers

• Faster Setup: No manual repositioning of the column after every tyre—just tilt back and go.
• Better Clearance: Easier access for larger rims and deep-dish wheels.
• Improved Ergonomics: Reduces bending and strain, improving operator comfort.
• Higher Throughput: Ideal for high-volume shops with frequent tyre changes.

Technical Specifications

Operational Highlights

• Bead Breaking:
  Pedal-controlled shovel compresses tyre bead safely; suitable for both sides of the tyre.

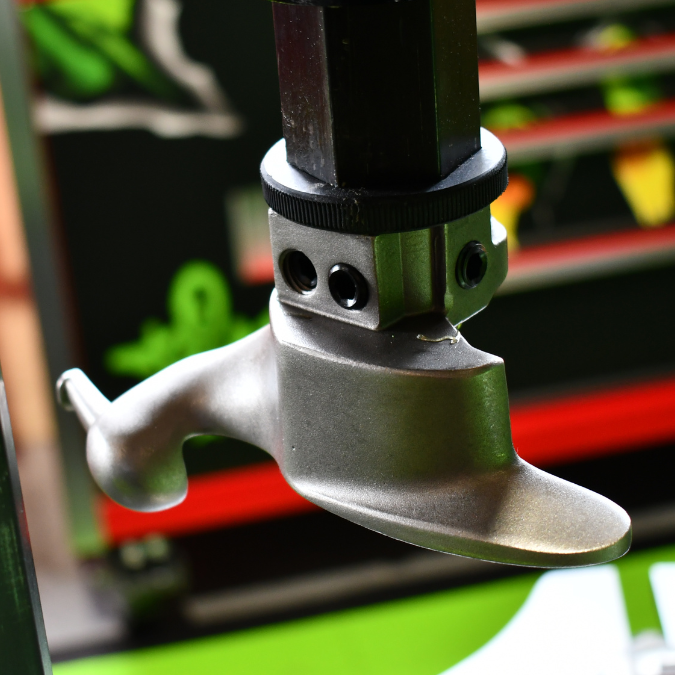

• Mounting & Demounting:
  Uses a lifting lever and assist arm to securely work around tight tyre beads with minimal rim contact.
• Inflation System:
  Safe tyre inflation process includes air pressure monitoring and safety guards—compliant with strict industry standards.
• Maintenance Friendly:
  Daily and monthly cleaning routines extend equipment lifespan. Oil-fog system for pneumatic tools included.

Safety Features

• Clear warning labels and grounding requirements.
• Secure locking systems on the vertical and horizontal arms.
• Strict installation guidelines to avoid electrical and pneumatic hazards.

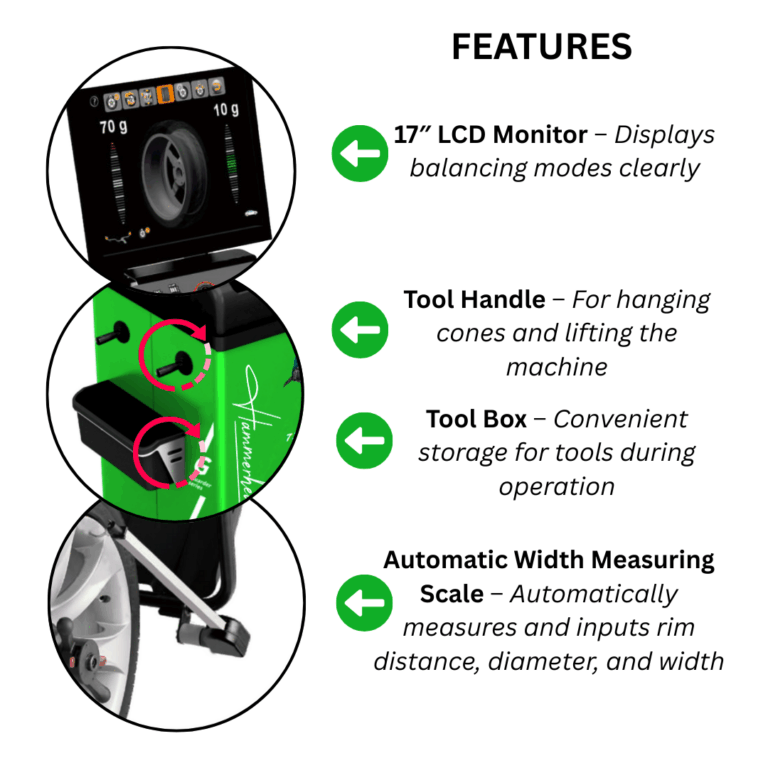

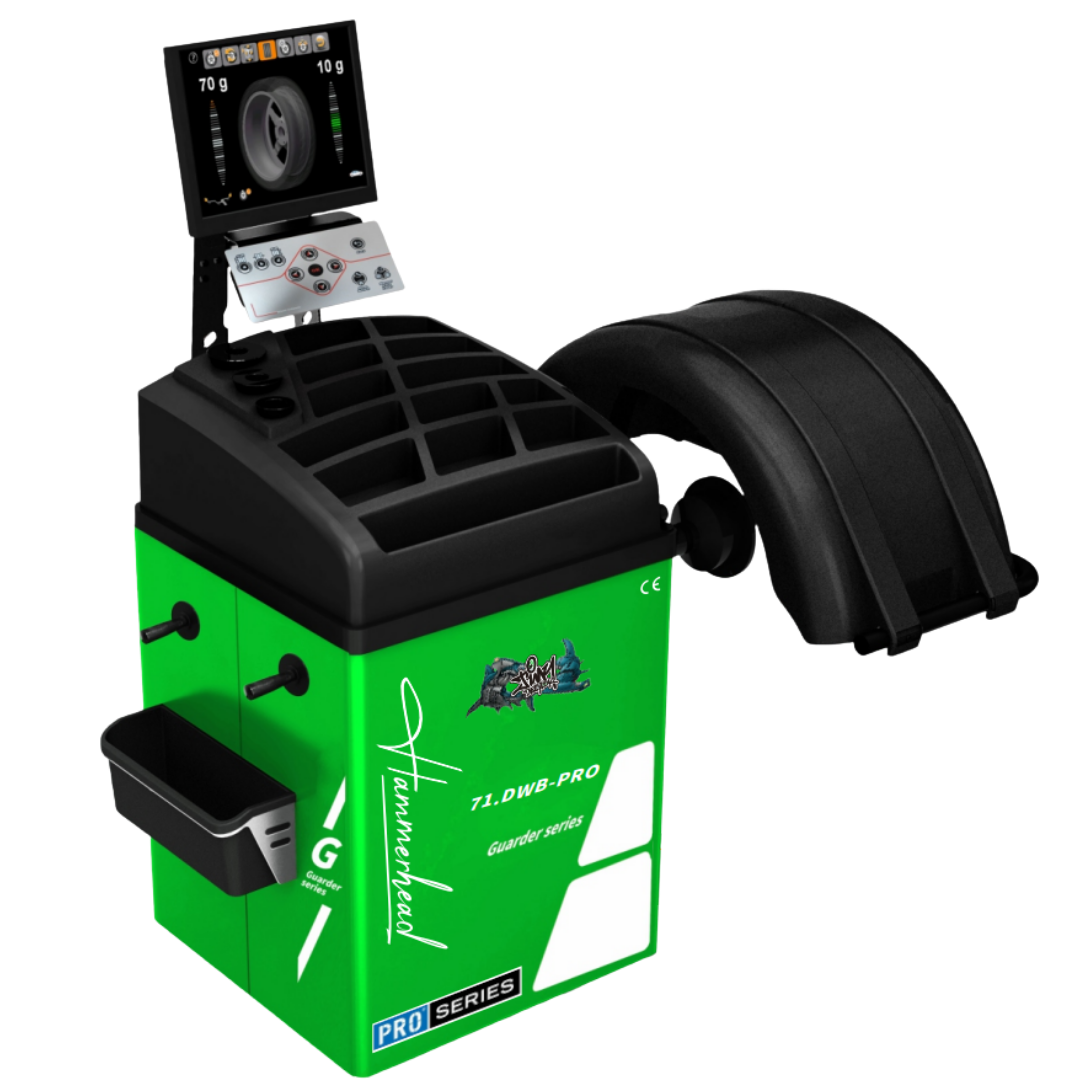

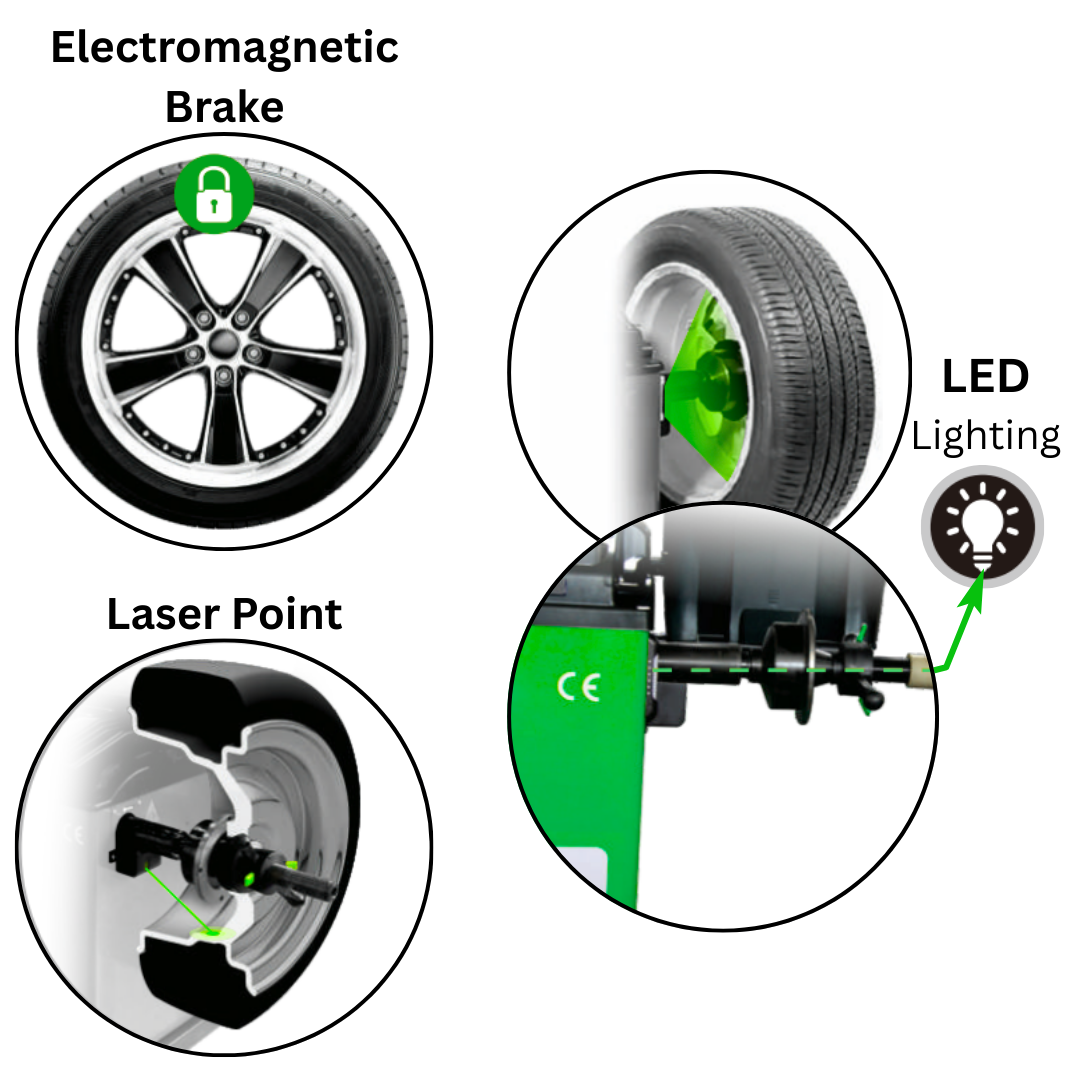

HAMMERHEAD PRO WHEEL BALANCER

Part number: 71.DWB-PRO

An imbalanced wheel will make the wheel jump and steering wheel wobble while driving. A properly balanced wheel will help avoid these problems.

The Professional Digital Wheel Balancer is designed for workshops demanding higher precision, a larger weight capacity, and advanced balancing features. Complete your workshop setup with Jimy Tools’ Professional Car Tyre Changer and Hoist Range

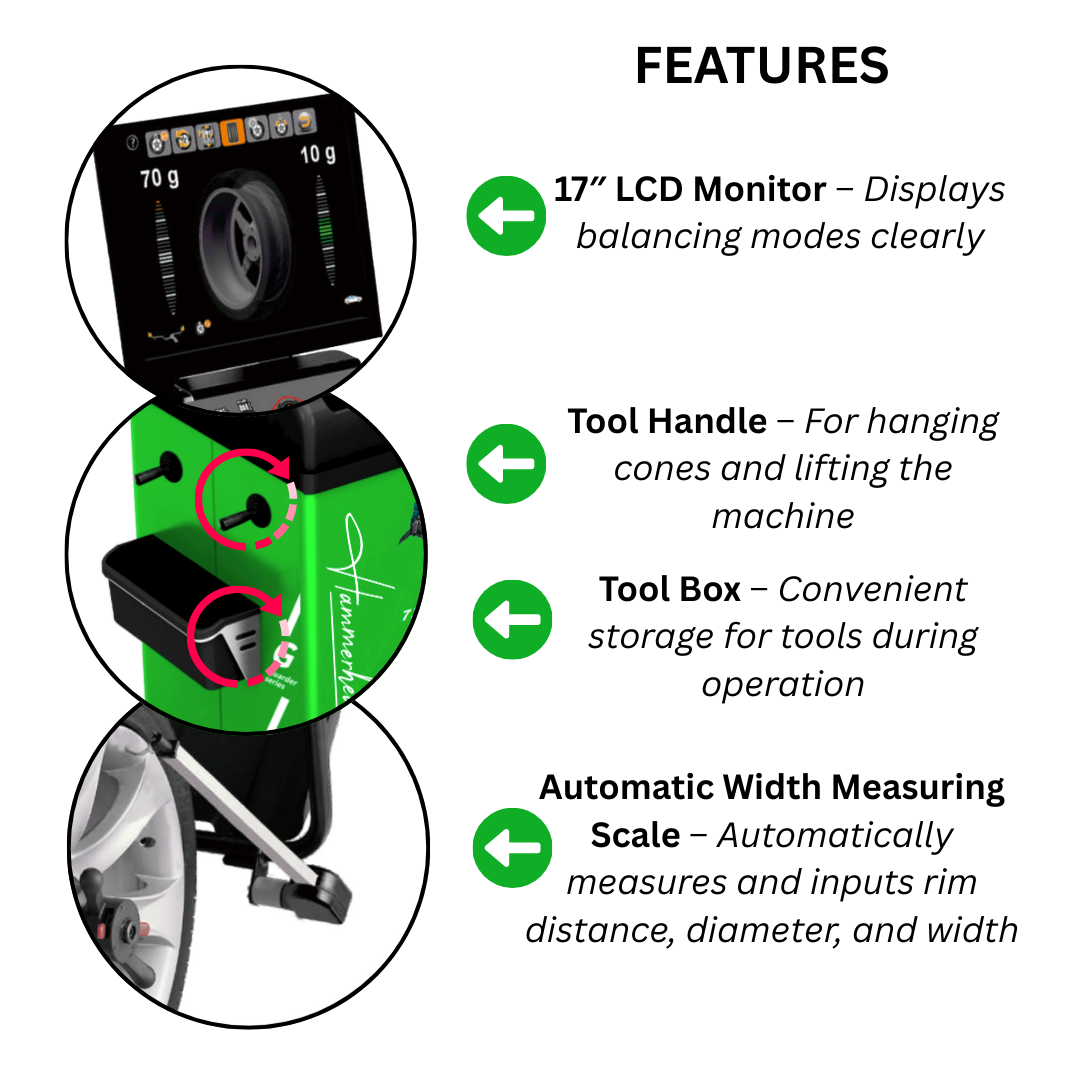

Features:

                     Adopt high-definition 17″ LCD screen with intelligent 3D animation interface

                     Dynamic message display for easy operation across all balancing modes

                     Various balancing modes available – stick, clamp, hidden stick, static, dynamic etc

                     Automatic input of rim data via measure scale

                     Intelligent self-calibrating and automatic scale labeling function

                     Self-diagnosis and protection function

                     Counterweight hide-stick function for improved wheel aesthetics

                     Auto-positioning function for easy weight application

                     Applicable for various rims of steel and duralumin structures

                     Safety Hood included

                     Supplied with accessories: tyre sizing caliper, quick release nut, 4 cones, counterweight, and balancing pliers

Specifications:

• Max Wheel Weight 65kg
• Motor Power 240W
• Power Supply 240V / 50Hz
• Balancing Precision ±1g
• Rotating Speed 200r/min
• Position Accuracy 1.5°
• Cycle Time 8s
• Rim Diameter 10-24″ (256mm-610mm)
• Rim Width 1.5″-20″ (40mm-510mm)
• Noise <70dB
• Net Weight 116kg
• Dimensions 960 x 760 x 1160 mm

Warranty:

                     12 Months Warranty

HAMMERHEAD PNEUMATIC OIL WASTE EXTRACTION TANK W/ 70 LTR RESEVOIR

Part number: 71.POE.70

The Hammerhead Oil Waste Extraction Tank features a 70L Steel Tank Resevoir. With an adjustable height, it is suitable for use in a variety of applications such as collecting, transferring and extracting engine oils, transmission fluids, power steering fluids etc (not corrosive or flammable fluids). Included is 2 fixed and 2 swivel castor wheels for smooth, convenient movement and storage.

The extraction oil drainer makes it easy to collect used oil from even the most hard to reach drain plugs.

Connect the unit to compressed air and use the supplied hoses to suck the oil out, leaving your workspace clean and dry. When the tank is full, simply fill it with compressed air to quickly and easily push out the waste oil.

Features:

• 70L Steel Tank Capacity
• 10L Basin Capacity
• Collection Bowl Diameter: 400mm
• Max Drain Bowl Height: 1610mm
• Min Drain Bowl Height: 1000mm
• Degree of Pressure: 8-10 bar
• Net Weight: 18KG
• Up to 1.6L/Min Collecting Speed

Warranty & Certifications

• 12 Months Australian Warranty

3 DRAWER 79” HEAVY DUTY WORKBENCH (MUTANT)

Part number: 41.TBW.20(GB)

Jimy Tools Workshop Benches are the perfect new addition to your workspace! These workbenches have plenty of storage space in our fully lockable drawers and a good workspace on the worktop. The tough high gloss enamel paint finish is designed to provide years of protection against normal wear and tear. This large workbench can be bolted into the floor to be extra secure.

Description:

-          53 Litre Storage Capacity

-          3x Lockable Drawers

-          Oil, grease and dirt resistant paint for easy clean up

-          Load Capacity: 450 kg

Dimensions

Workbench Dimensions:

-          2000mm (W) x 640 (L) x 865mm (H)

3x Drawers Dimensions (Each):

-          449mm (W) x 391 (L) x 142mm (H)

Weight:

-          73kg

Warranty:

12 Months Warranty

6 DRAWER 33” DIAGNOSTIC TOOL CART (GREEN)

Part number: 41.TBC.06(G)

Jimy tool boxes are career spanning and built to last! Jimy’s diagnostic tool carts are the perfect middleman between your toolbox and your job! A necessary convenience for working in any workshop or even just for a small storage area at home. With a complete internal locking system, ensure complete security for your tools on the job.

• Full drawer extension capabilities
• Internal locking system for extra security
• Heavy duty ball bearing drawer slides
• Convenient foldable side table
• Robust wall construction
• Double powder coating resists scratching
• 2x Lockable Heavy Duty Swivel Castors + 2 Fixed


PRODUCT SPECIFICATIONS:
