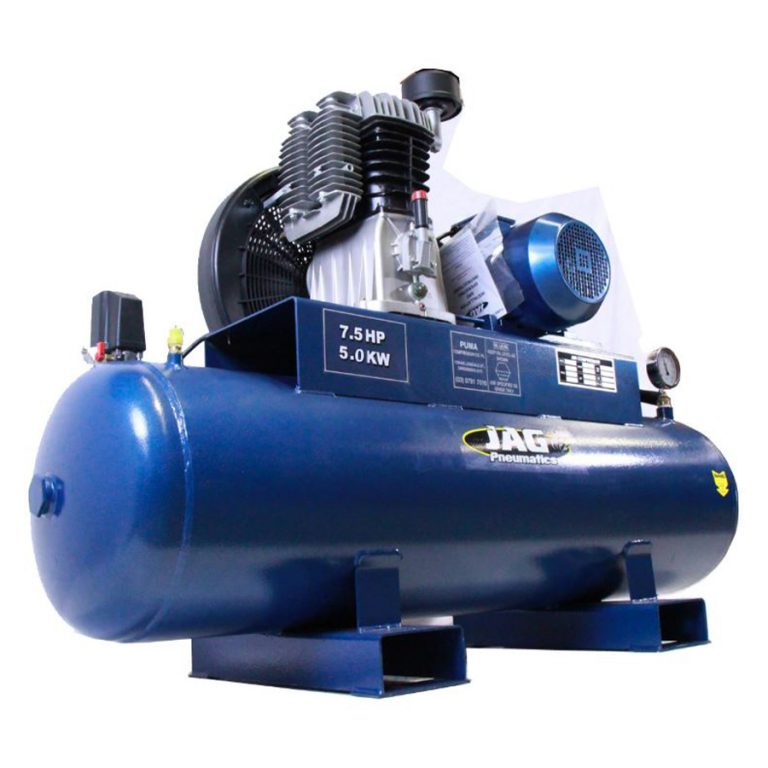

JAG NB75HP 280L 7.5HP BELT DRIVEN AIR COMPRESSOR

$3,499.00 Inc GST

SKU: NB75HP Category:

jimy-tools-finance-logo-300x75

Description






<br />


JAG NB75HP 280L 7.5HP BELT DRIVEN AIR COMPRESSOR

Part number: NB75HP

PRODUCT SUMMARY:

Assembled In Australia Using Quality Components This Unit Being The Pinnacle Of NO Comprimise For Quality, Performance And Reliability.
A Good Starting Point For A Mid Size Workshop Or Farm.
A Parallel Twin Cylinder 2-Stage High Pressure Cast Iron Pump With Alloy Heads To Speed Up Cooling Efficiency, Mounted On A 280 Litre, Australian Made And Certified Receiver. (Meets AS1210 And Certificate Provided)

With A Huge 787 L/Min Free Air Delivery.

Full Range Of Spare Parts In Stock

Specifications:
NB75HP – 7.5HP/5KW (415V – 3 Phase)
Cylinders: 2 Parallel – 2-Stage High Pressure
Motor Horsepower: 7.5HP/5KW
Receiver: 280 Lt *Test Certificate Can Be Provided – Meets AS1210
FAD: 28.0 Cfm – 787 Lt/Min
CFM Displacement: 37.6
Cast Iron Pump Pressure: 165 PSI
Gauge: 100mm Liquid Filled
Pallet Feet
Pulleys: Cast Iron
Power Coated
Built In Australia
Dimensions: L190 X H120 X W60cm
Weight: 235Kg
