PRODUCT SUMMARY:

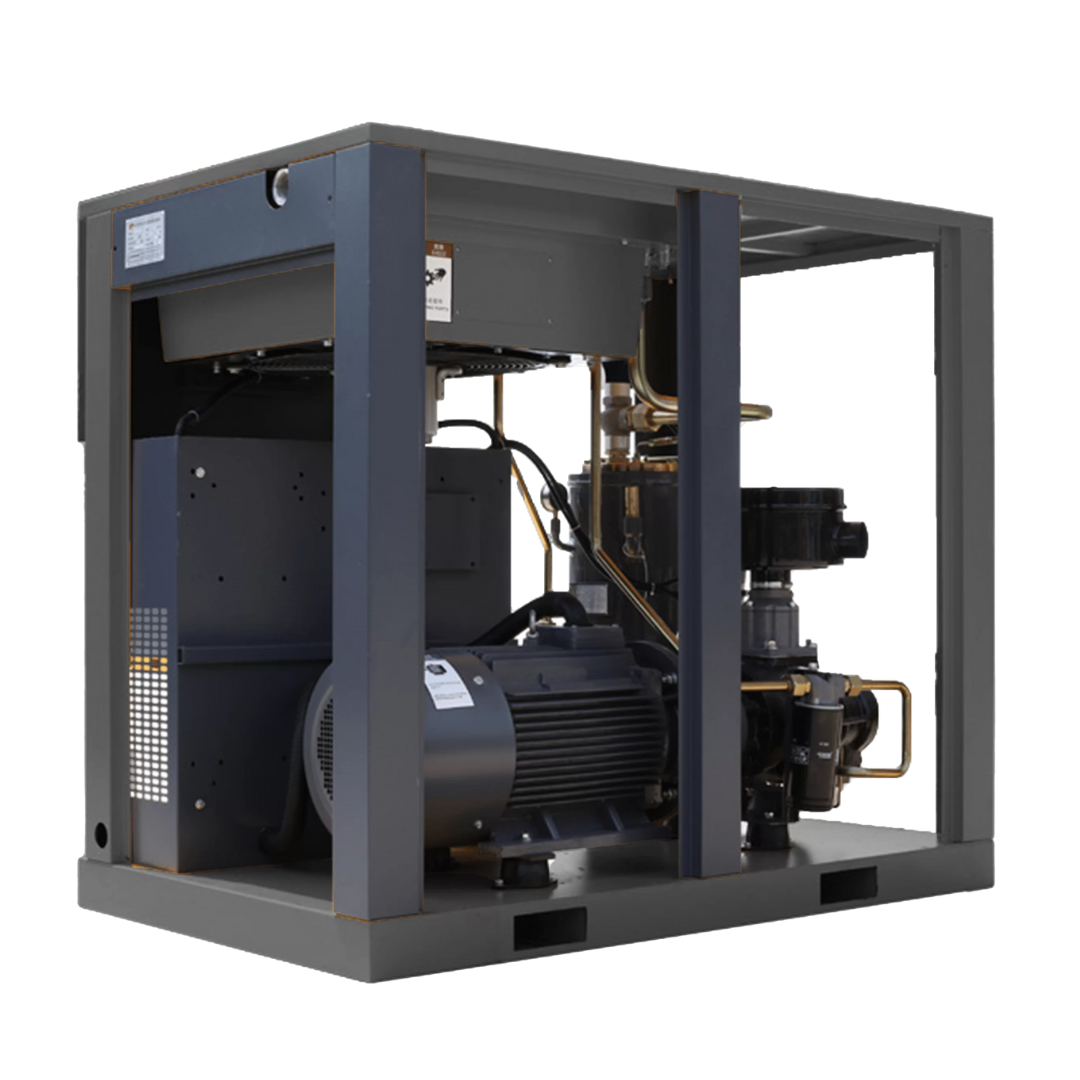

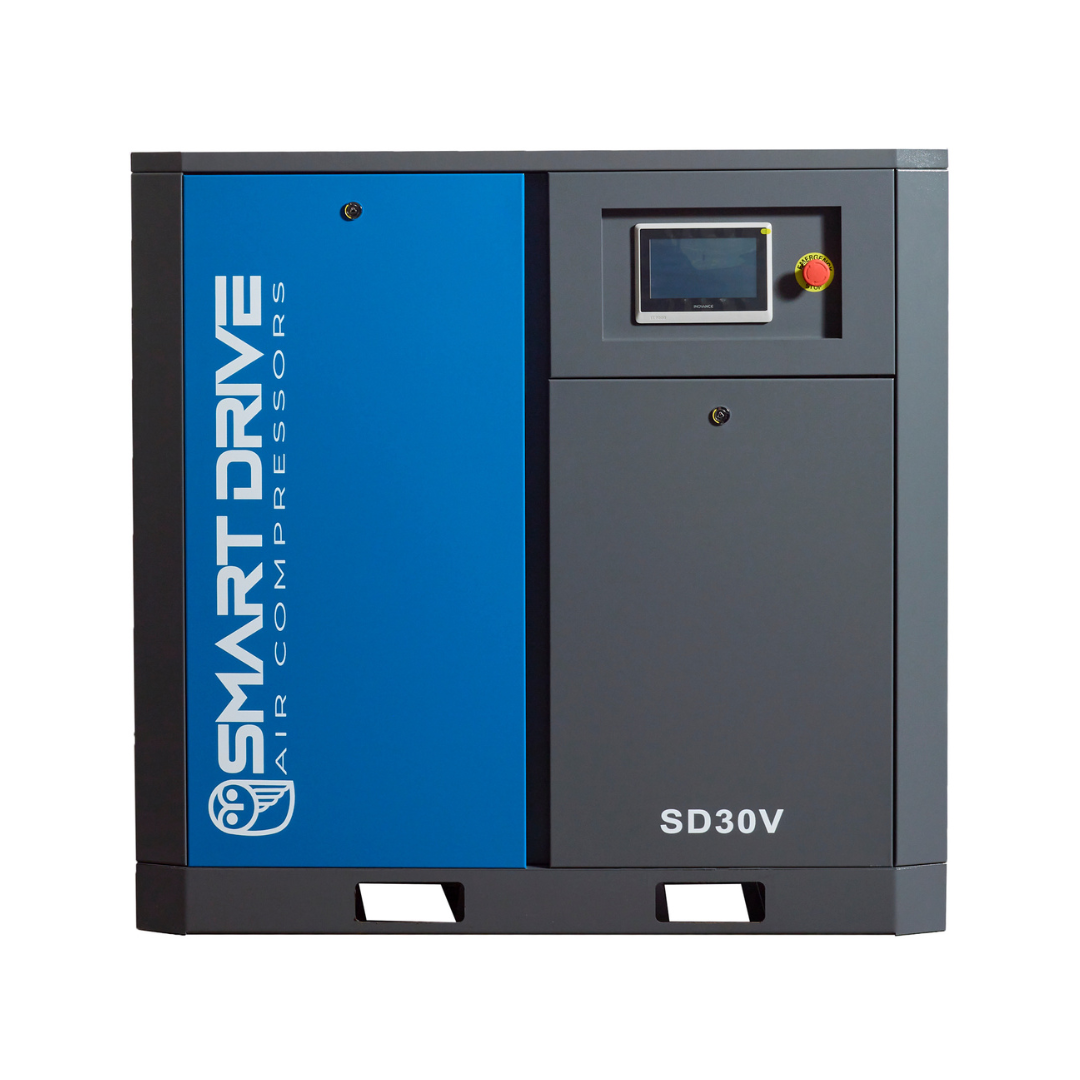

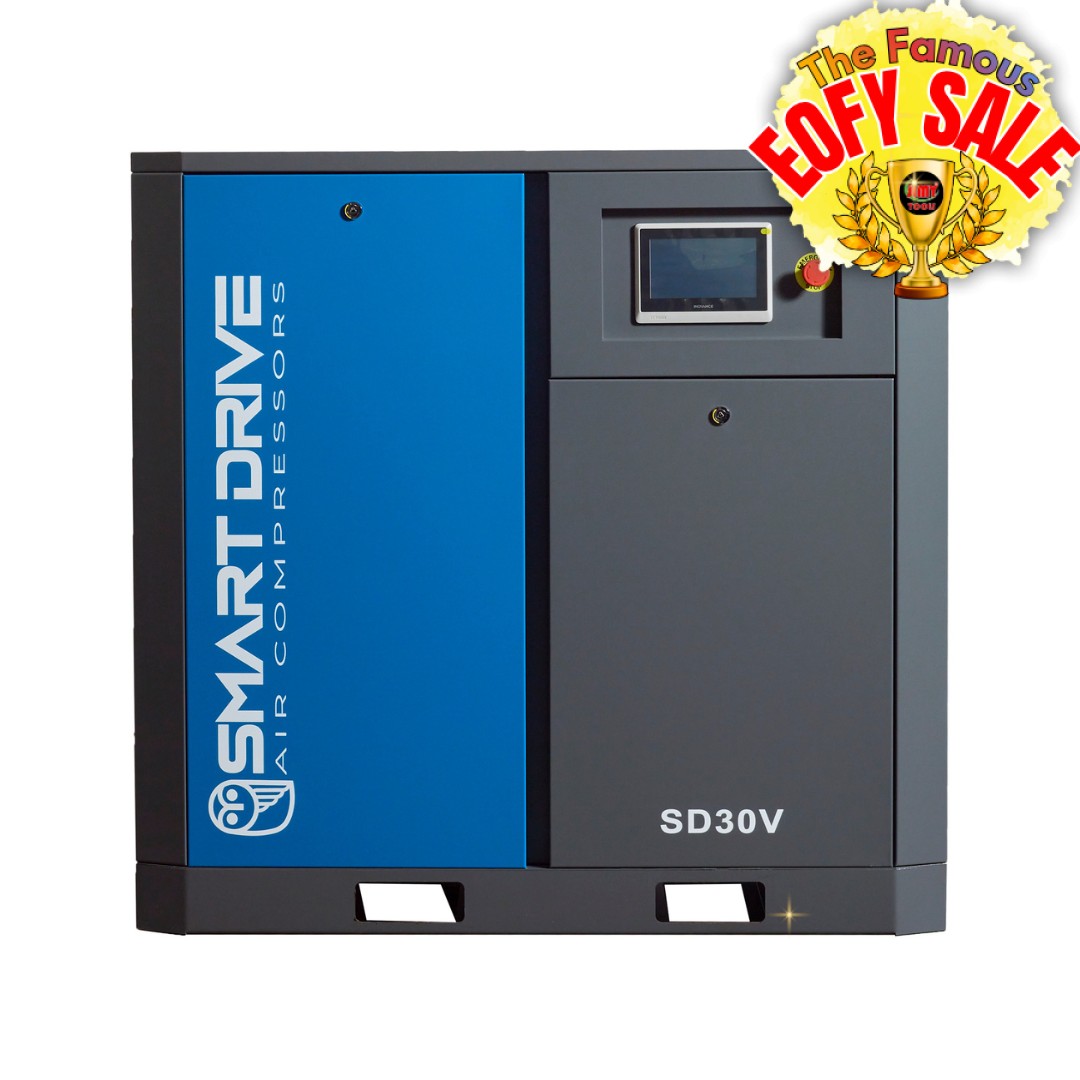

Jimy Tools introduces the SD30VBM Permanent Magnet Variable Speed Base Mount Screw Air Compressor – a compact yet powerful solution for workshops and industrial users who need consistent, efficient airflow without the footprint of a full featured unit.
Equipped with a 22kW / 30HP permanent magnet synchronous motor and an Inovance variable speed drive (VSD) with touchscreen control, the SD30VBM delivers 127CFM of free air delivery at 10 bar, adjusting output to match demand for superior energy efficiency.
Compact, quiet, and efficient, the SD30VBM is ideal for workshops seeking a premium, space-saving air compressor with the performance and durability to keep up with everyday demands.
Specifications:
Free Air Delivery: 127 cfm
Working pressure: 10bar
Motor Power 22KW/30HP
Air end: Hanbell
Electricity: 415V/3ph/50Hz
Compression Stage : Single Stage
Noise Level: 65dB
Direct driven, Air cooling, ASME Oil separator tank
Dimentions
1200x900x1150mm
Weight
365kg
Permanent Magnet Screw Compressor Features
- Has a low operation cost which will then save you money in the long run.
- High-efficiency induction motor, Integrated Variable Speed Driven (VSD) with speed control, Leading control and protection, Soft starting eliminates drive stress
- Top-notch performance is achieved by the state of the art airend design and it’s manufacturing processes.
- The gentle start cycle increases the life of service. To stop the risk of the compressor overheating, there are frequent stop and start cycles.
- The compressor maintains a steady state of operation and avoids load cycling which helps reduce the operating and maintenance costs
Warranty & Support
- 5 Year Australian Warranty – 2 years full warranty of parts and labour and further 3 years just parts ONLY when installed and serviced by an authorised technician and qualified electrician.
- Full Australian service and parts support
