PRODUCT SUMMARY:

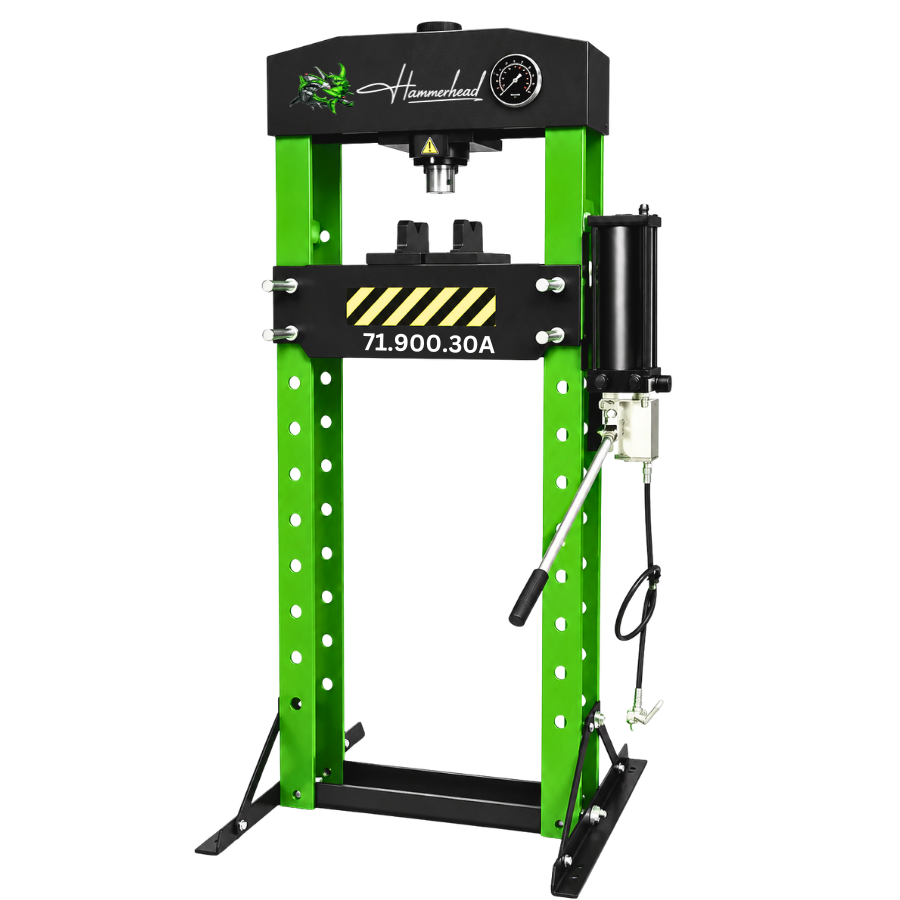

The Jimy Tools Hammerhead 30,000kg Air/Hydraulic Workshop Press is a heavy-duty press designed for automotive repairs, mechanical servicing, fabrication and industrial maintenance.
Featuring both air-assisted and manual hydraulic operation, it delivers a powerful 30-tonne pressing capacity while reducing operator effort during repetitive tasks. Manual operation also provides controlled positioning when greater precision is required.
The multi-position working bed offers an adjustable working-height range of 22–1090mm, allowing the press to accommodate components of various sizes. With 535mm clear width between the uprights, a 220mm-deep working bed and a 130mm ram stroke, it provides excellent versatility for pressing bearings, bushes, gears, shafts and other mechanical components.
A robust freestanding steel frame and integrated pressure gauge make this press suitable for demanding professional workshop environments.
KEY FEATURES
- Heavy-duty 30,000kg (30-tonne) pressing capacity
- Pneumatic air-assisted hydraulic operation
- Manual hydraulic operation for controlled positioning
- Multi-position adjustable working bed
- 22–1090mm working-height range
- 130mm hydraulic ram stroke
- 43mm press-head diameter
- 535mm clear width between uprights
- 220mm working-bed depth
- 190mm bed gap
- Integrated pressure gauge for monitoring pressing force
- Heavy-duty freestanding steel frame
- Suitable for pressing, straightening and bending
- Ideal for installing and removing bearings, bushes, gears, shafts and similar mechanical components
- Net weight: 168kg
- Gross weight: 204kg
SPECIFICATIONS
- Maximum Capacity: 30,000kg / 30 tonnes
- Operation: Air-assisted and manual hydraulic
- Overall Dimensions: 800 × 250 × 1800mm
- Clear Width Between Uprights: 535mm
- Working-Bed Depth: 220mm
- Bed Gap: 190mm
- Working-Height Range: 22–1090mm
- Ram Stroke: 130mm
- Press-Head Diameter: 43mm
- Net Weight: 168kg
- Gross Weight: 204kg
COMMON APPLICATIONS
Suitable for:
- Bearing installation and removal
- Bush installation and removal
- Gear removal
- Shaft pressing
- Straightening bent components
- Metal bending and forming
- General automotive repairs
- Mechanical workshops
- Agricultural equipment servicing
- Engineering and fabrication workshops
OPERATION
- Position and securely support the workpiece on the press bed.
- Adjust the working bed to the required height.
- Centre the workpiece beneath the press head wherever possible.
- Close the hydraulic release valve.
- Use the manual pump or pneumatic pump to lower the ram until it contacts the workpiece.
- Apply pressure gradually while monitoring the pressure gauge. Never exceed the press’s rated capacity.
- Once the task is complete, slowly open the release valve to release the pressure and retract the ram.
- Ensure the workpiece remains stable as the pressure is released.
- Remove the workpiece only after the ram has fully retracted.
SAFETY INFORMATION
- This press should only be operated by trained and experienced users.
- Never exceed the 30-tonne rated capacity.
- Inspect the press before each use and tighten any loose fasteners.
- Do not operate the press if any component is worn, damaged or leaking.
- Ensure the press is positioned on a firm, level and load-bearing surface.
- Always centre the load beneath the press head wherever possible.
- Ensure the workpiece is correctly supported and remains stable throughout the pressing operation.
- Never compress springs or unstable objects that may be ejected under pressure.
- Keep hands and other body parts clear of the working area and moving components.
- Apply pressure gradually and monitor the pressure gauge during operation.
- Always wear suitable personal protective equipment, including eye protection and safety footwear
