PRODUCT SUMMARY:

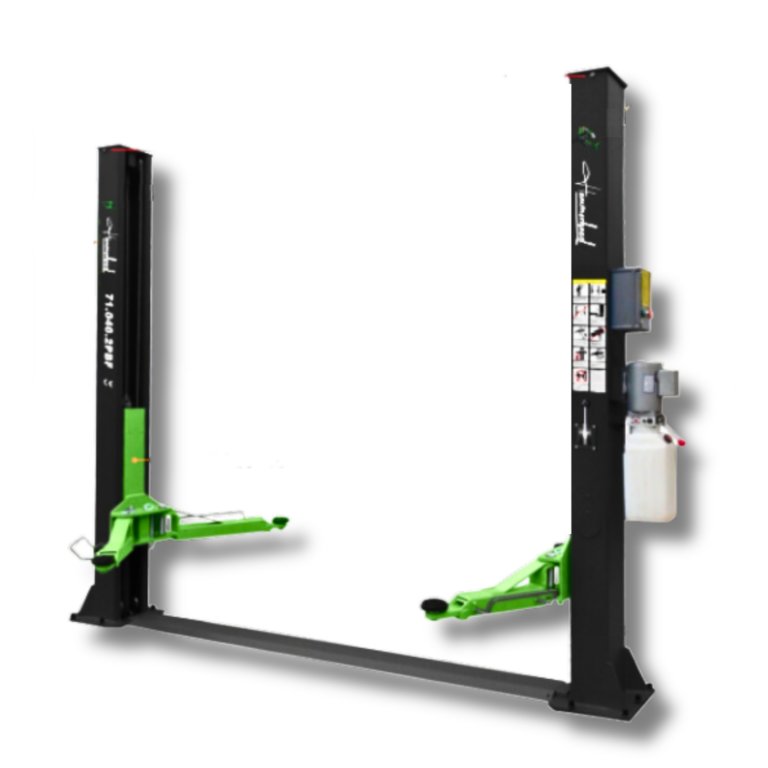

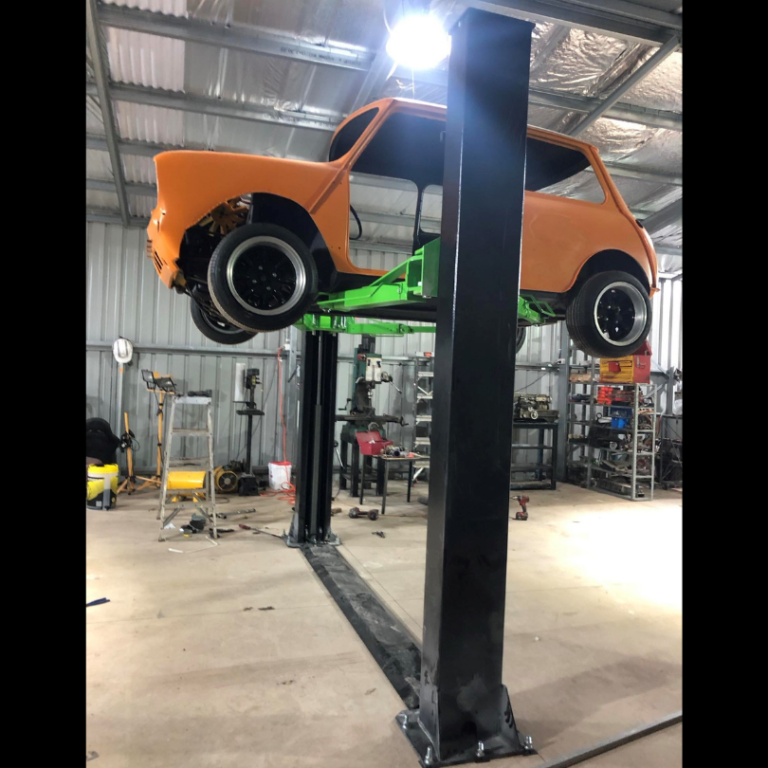

HAMMERHEAD 4.0T BASE FRAME TWO POST LIFT HOIST

Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Perfect for busy workshops, professional garages, and dedicated home enthusiasts, the Hammerhead 4.0 Ton 2 Post Baseframe Hoist is engineered for general servicing, mechanical repairs, wheel and suspension work, and more.

The Hammerhead 4.0 Ton 2 Post Baseframe Hoist offers robust lifting capability with a 4,000 kg (4.0 ton / 8,800 lbs) capacity, making it ideal for sedans, SUVs, 4WDs, and light commercial vehicles. This baseframe model features a low profile 50mm base plate. Suitable for low ceiling heights with only a 2820mm max height!

Its symmetrical post configuration ensures balanced lifting and easy positioning of vehicles, while the dual hydraulic cylinders and durable chain-driven system ensure smooth and reliable performance every time. Whether you’re a professional mechanic or a serious car enthusiast, the Hammerhead 2 Post Baseframe Hoist delivers the strength, safety, and performance you can trust.

Base Plate Hoist Features

• 4000kg / 4 tonne safe load limit
• Lifting height of 1.93m
• Dual hydraulic cylinders with chain driven carriages
• Adjustable screw pads and 4 additional raising adapters are included
• Strong single piece column design
• Durable powder coated finish
• Rubber door protectors
• Symmetric two and three stage arms
• Low profile 50mm high base plate

Safety Features

• Manual safety locking system with safety latches in each column
• Dual point release system
• Heavy duty 5mm thick columns ,6mm carriages
• 9.3mm steel wire rope equalising cables
• Sub-frame design provides additional safety

What’s included?

• 2 post hoist with all bolts, cables, lines and fixings
• 240V single phase hydraulic power unit
• Concrete anchor bolts

What’s Not Included?

• Power Plug
• Installation of unit
• Hydraulic Oil

Area Requirements

• 150mm deep concrete
• Minimum Ceiling Height – 3 Metres

Warranty & Certifications

• Australian Worksafe Registered Design
• 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
• CE Certified

HAMMERHEAD PNEUMATIC OIL WASTE EXTRACTION TANK W/ 70 LTR RESEVOIR

The Hammerhead Oil Waste Extraction Tank features a 70L Steel Tank Resevoir. With an adjustable height, it is suitable for use in a variety of applications such as collecting, transferring and extracting engine oils, transmission fluids, power steering fluids etc (not corrosive or flammable fluids). Included is 2 fixed and 2 swivel castor wheels for smooth, convenient movement and storage.

The extraction oil drainer makes it easy to collect used oil from even the most hard to reach drain plugs.

Connect the unit to compressed air and use the supplied hoses to suck the oil out, leaving your workspace clean and dry. When the tank is full, simply fill it with compressed air to quickly and easily push out the waste oil.

Features:

• 70L Steel Tank Capacity
• 10L Basin Capacity
• Collection Bowl Diameter: 400mm
• Max Drain Bowl Height: 1610mm
• Min Drain Bowl Height: 1000mm
• Degree of Pressure: 8-10 bar
• Net Weight: 18KG
• Up to 1.6L/Min Collecting Speed

Hammerhead 2 Stage Heavy-Duty Hydraulic Transmission Jack 500KG

This Heavy-Duty Hydraulic Transmission Jack is designed for precise and efficient removal and installation of vehicle components, particularly in motor repair shops and mobile service operations. It features a compact, lightweight design, offering a long lifting range with fast operation. The jack is equipped with replaceable connection parts and ensures firm, reliable performance.

Ideal for assembling and disassembling structural and removable parts, the jack supports operations that require stable lifting and controlled lowering during transport or repair.

Key Specifications:

• Safe Working Capacity: 500 kg
• Minimum Saddle Height: 870 mm
• Maximum Saddle Height: 1800 mm
• Net Weight: 80 kg
• Dimensions: 550 × 370 × 900 mm

With its rugged construction and mobility, this jack is a dependable tool for demanding mechanical tasks in both fixed and mobile environments.
