Product Summary:

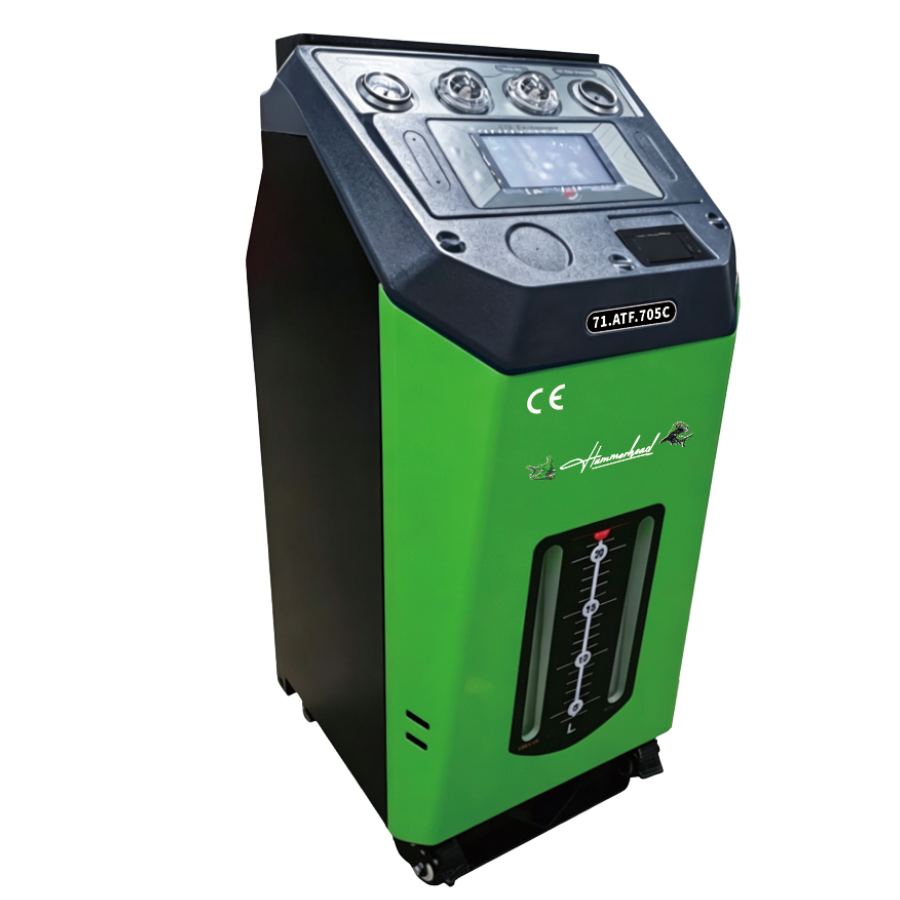

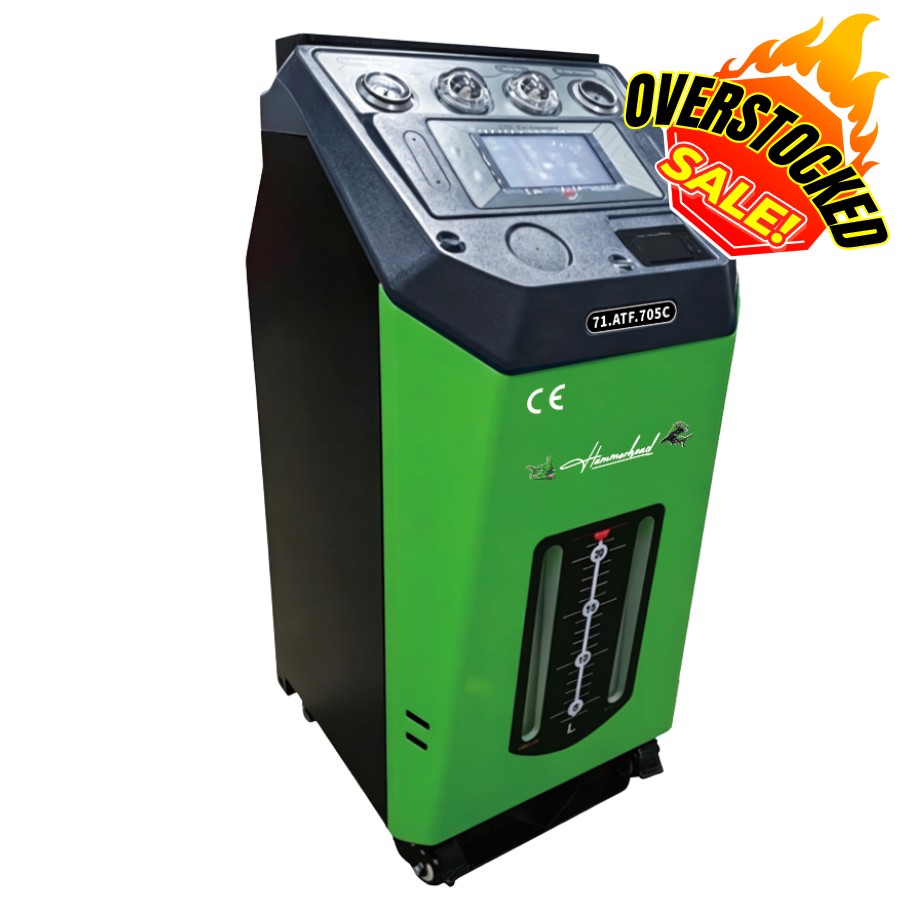

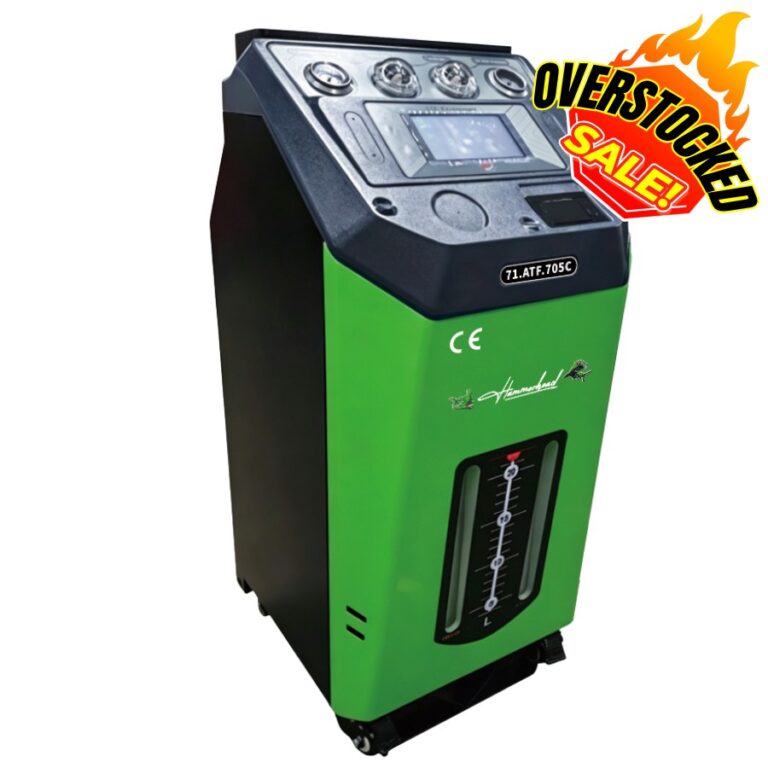

The Hammerhead Automatic Transmission Fluid Exchange Machine is a fully automatic ATF service unit designed to perform accurate transmission fluid exchanges while helping maintain transmission performance and longevity. Featuring intelligent equal-volume oil exchange technology, this unit ensures the amount of new fluid added, closely matches the amount of used fluid removed, reducing the risk of overfilling or underfilling during servicing.
Equipped with an integrated transmission cleaning function, a vehicle database, touchscreen controls and a wide range of transmission adaptors, this unit is suitable for servicing a broad range of passenger vehicles, SUVs and light commercial vehicles. Its user-friendly design makes transmission servicing faster, cleaner and more efficient for professional workshops.
KEY FEATURES
- Fully automatic ATF exchange operation
- Integrated transmission cleaning / flush function
- Intelligent equal-volume oil exchange system
- Vehicle database for guided servicing procedures
- Touchscreen control interface
- High-precision exchange accuracy of ±100ml
- Fine 5-micron filtration system
- 25L oil tank capacity
- Built-in 250ml cleaning fluid reservoir
- Automatic flow direction detection
- Oil level viewing window for easy monitoring
- Rotatable oil inlet and outlet hoses
- Height-adjustable hose support bar
- Heavy-duty 140W oil pump
- Suitable for a wide range of automatic transmissions
- Supplied with a comprehensive adaptor kit
- Integrated storage compartment for hoses and accessories
- Durable workshop-grade construction
- Operates on 240V single phase power
SPECIFICATIONS
|
Specification |
71.ATF.705C |
|
Operation Mode |
Fully Automatic |
|
Power Supply |
240V, 50/60Hz |
|
Cleaning Fluid Capacity |
250ml |
|
Exchange Accuracy |
±100ml |
|
Filtration |
5 Micron |
|
Oil Pump Power |
140W |
|
Oil Tank Capacity |
25L |
|
Inlet/Outlet Hose Length |
2.5m |
|
Discharge Hose Length |
1.5m |
|
Operating Temperature |
-20°C to +60°C |
|
Net Weight |
65kg |
|
Gross Weight |
72kg |
|
Machine Dimensions |
510 x 540 x 1075mm |
INCLUDED
- 71.ATF.705C Exchange Machine
- Transmission Cleaning Function
- Transmission Adaptor Kit
- Oil Hoses
- Hose Support Bar
- User Manual
IDEAL FOR
- Automotive repair workshops
- Transmission specialists
- Mechanical service centres
- Fleet maintenance facilities
- Vehicle dealerships
A professional automatic transmission service machine designed to provide fast, accurate fluid exchanges and transmission cleaning for modern workshop environments.
