Product Summary:

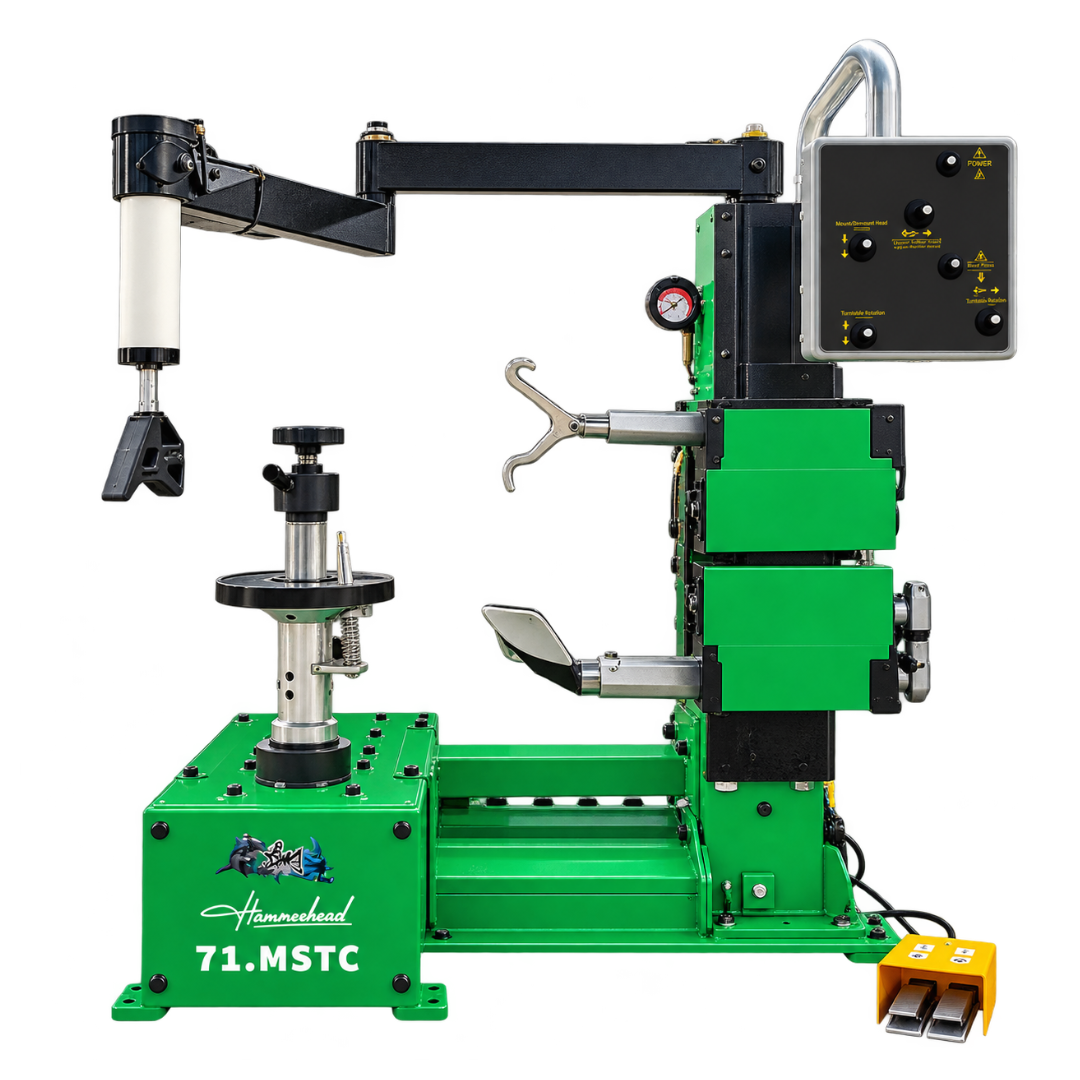

The Jimy Tools Mobile Service Tyre Changer is a compact, vehicle-mountable tyre changing solution designed for mobile tyre servicing and field service applications.

Purpose-built for installation inside a service van or mobile workshop, its compact 950mm x 600mm footprint provides professional tyre changing capability without requiring the space of a conventional workshop tyre changer.

Suitable for a wide range of passenger vehicle wheels, the machine accommodates rims from 8″ to 24″, wheels up to 900mm (35″) in diameter and widths up to 406mm (16″).

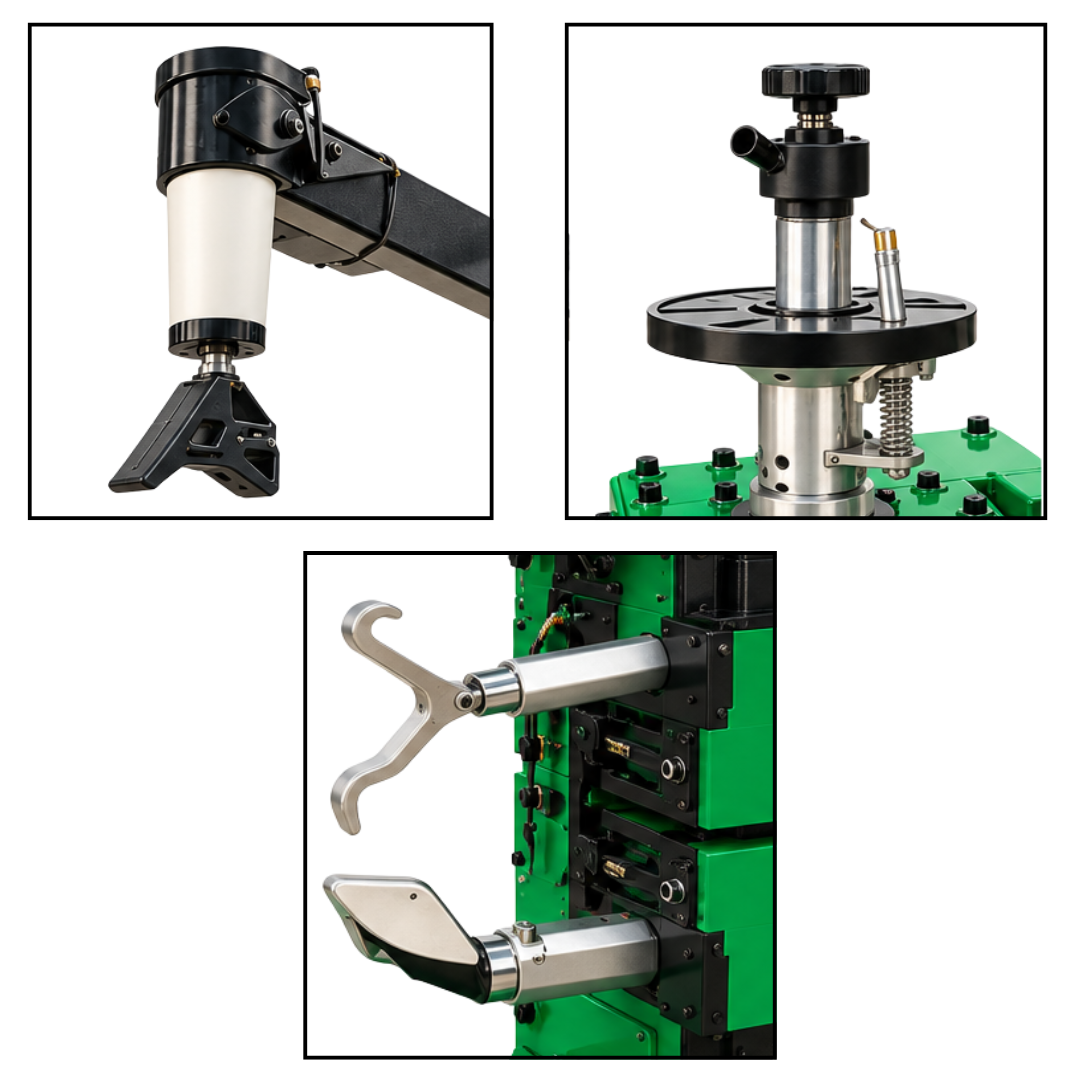

The centre-mounted turntable and quick-release wheel securing system firmly locate the wheel during operation. Pneumatically controlled tyre pressing and mount/demount functions assist with bead breaking, tyre removal and installation, while the powered turntable provides both clockwise and counter-clockwise rotation.

Ideal for mobile tyre fitters, roadside service vehicles and workshops looking to add an on-the-go tyre changing solution.

KEY FEATURES:

• Specifically designed for in-vehicle and mobile tyre servicing applications
• Compact 950mm x 600mm footprint
• External locking rim range: 8″ – 24″
• Maximum wheel diameter: 900mm / 35″
• Maximum wheel width: 406mm / 16″
• Centre-mounted wheel securing system
• Quick-release wheel locking nut
• Pneumatic tyre pressing roller for bead separation
• Pneumatic mount/demount hook operation
• Tyre pressing head assists during tyre installation
• Powered clockwise and counter-clockwise turntable rotation
• Lockable sliding arm for accurate positioning
• Digital tyre inflation gun
• 240V single-phase power supply
• Designed to be secured inside a service vehicle
• Compact 215kg construction


PRODUCT SPECIFICATIONS:

• Rim Capacity: 8″ – 24″
• Maximum Wheel Diameter: 900mm (35″)
• Maximum Wheel Width: 406mm (16″)
• Operating Air Pressure: 8 – 10 Bar (116 – 145 PSI)
• Power Supply: 240V / 50Hz / Single Phase
• Motor Power: 0.37kW
• Overall Dimensions: 950 x 600 x 1245mm (L x W x H)
• Machine Weight: 215kg
• Noise Level: 75dB

APPLICATIONS:

Ideal for:

• Mobile tyre fitting businesses
• Roadside tyre servicing
• Service vans
• Fleet maintenance vehicles
• Mobile mechanical workshops
• On-site tyre replacement and servicing

The Jimy Tools Mobile Service Tyre Changer brings workshop tyre-changing capability to the road, combining a compact vehicle-friendly design with the functionality required for professional mobile tyre servicing
