Product Summary:

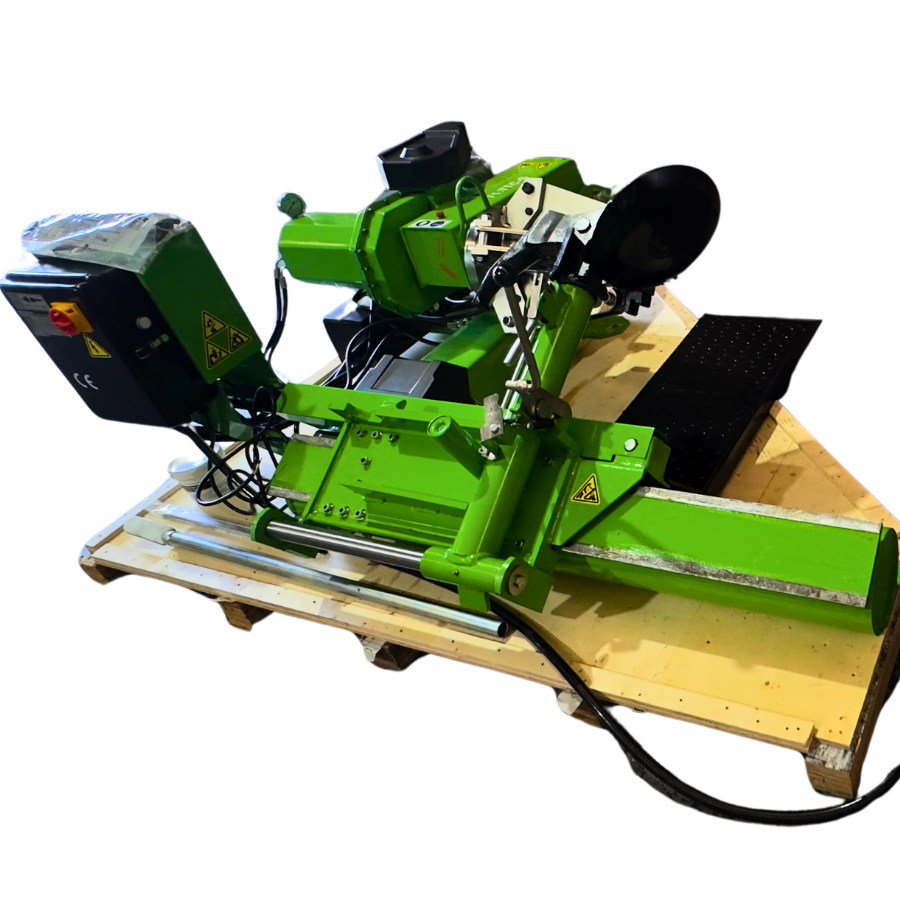

71.TTC-S
The Hammerhead Truck Tyre Changer has been specifically designed to demount and mount truck, bus, tractors & earth moving vehicle tyres. With rims from 14” to 26” and a maximum diameter of 1600mm
Complete your workshop setup with Jimy Tools’ Digital Wheel Balancer and Hoist Range
Specifications:
|
Max Wheel Diameter |
1600mm (63”) |
|
Max Wheel Width |
780mm (30”) |
|
Max Wheel Weight |
500kg |
|
Clamping Capacity |
14” – 26” |
|
Net/Gross Weight |
520kg/640kg |
|
Package Dimensions |
2000 (L) x 1580 (W) x 900 (H)mm |
|
Hydraulic Pump Motor |
415v 3 Phase |
|
Rotating Motor |
415v 3 Phase |
71.TWB
An imbalanced wheel will make the wheel jump and steering wheel wobble while driving. A properly balanced wheel will help avoid these problems.
Complete your workshop setup with Jimy Tools’ Car Tyre Changer and Hoist Range
Features:
- Adopt 6 LED display – has flexible indicator operating function
- Various balancing modes can carry out counterweights to stick, clamp, or hidden stick etc
- Intelligent self-calibrating
- Self fault diagnosis and protection function
- Applicable for various rims of steel structure and duralumin structures
- Balances both car & truck tyres with a maximum diameter of 1300mm .
- Display panels has lights to indicate tyre type .Car for Car Tyres & Truck for Truck Tyres
- Equipment with pneumatic lifting device
- Equipped with pedal braker for stable position and convenient adding weights
Specifications:
|
Max Wheel Weight |
150kg |
|
Motor Power |
0.75KW |
|
Power Supply |
240V / (1ph) / 10A Plug |
|
Rotating Speed |
200r/min |
|
Cycle Time |
8s |
|
Rim Diameter |
10-24″ (256mm-610mm) |
|
Rim Width |
1.5″-20″ (40mm-510mm) |
|
Noise |
<70dB |
|
Net Weight |
226kg |
|
Dimensions |
1220 x 960 x 1210 mm |
Warranty:
12 Months Warranty
