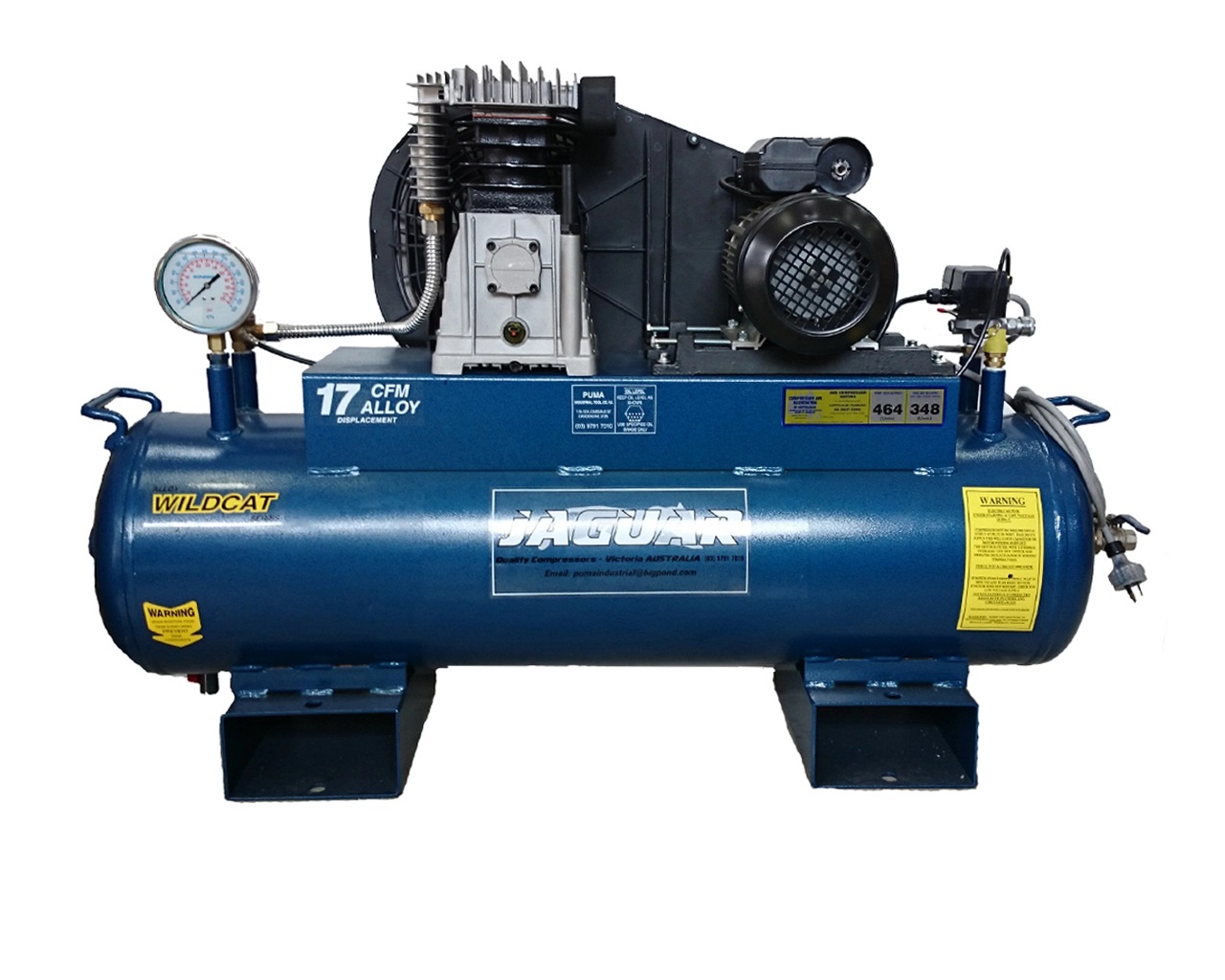

JAG WILDCAT AIR COMPRESSOR STATIONARY 3HP 17CFM 120L
Part number: WILDCAT17S
Assembled Here In Australia Using Italian Manufactured Pumps And High Quality Components.
The Guard Has Been Designed To Act As A Shroud To Increase Air Flow And To Provide A 110 Litre Receiver Provides A Larger Storage Capacity Than The Normal Belt Drive Units And The Pallet Feet Allow For Greater Stability.
An Ideal Unit For At Home Or A Small Workshop.
Must Be Used With A 15 Amp Outlet!!
Specifications:
Input Power: 240V – 15 Amp Plug
Pump: 2 Cylinders – Italian Made Alloy With Cast Iron Bore
Motor Horsepower: 3.0
Receiver: 110 Lt
FAD: 12.29 Cfm – 348 Lt/Min
Cast Iron Pump Pressure: 140 PSI
Oil Filled Gauge
Pallet Feet
Base Can Be Bolted To Ground
Powder Coated
Built In Australia
Dimensions: L1350 X H860 X W450mm
