PRODUCT SUMMARY:

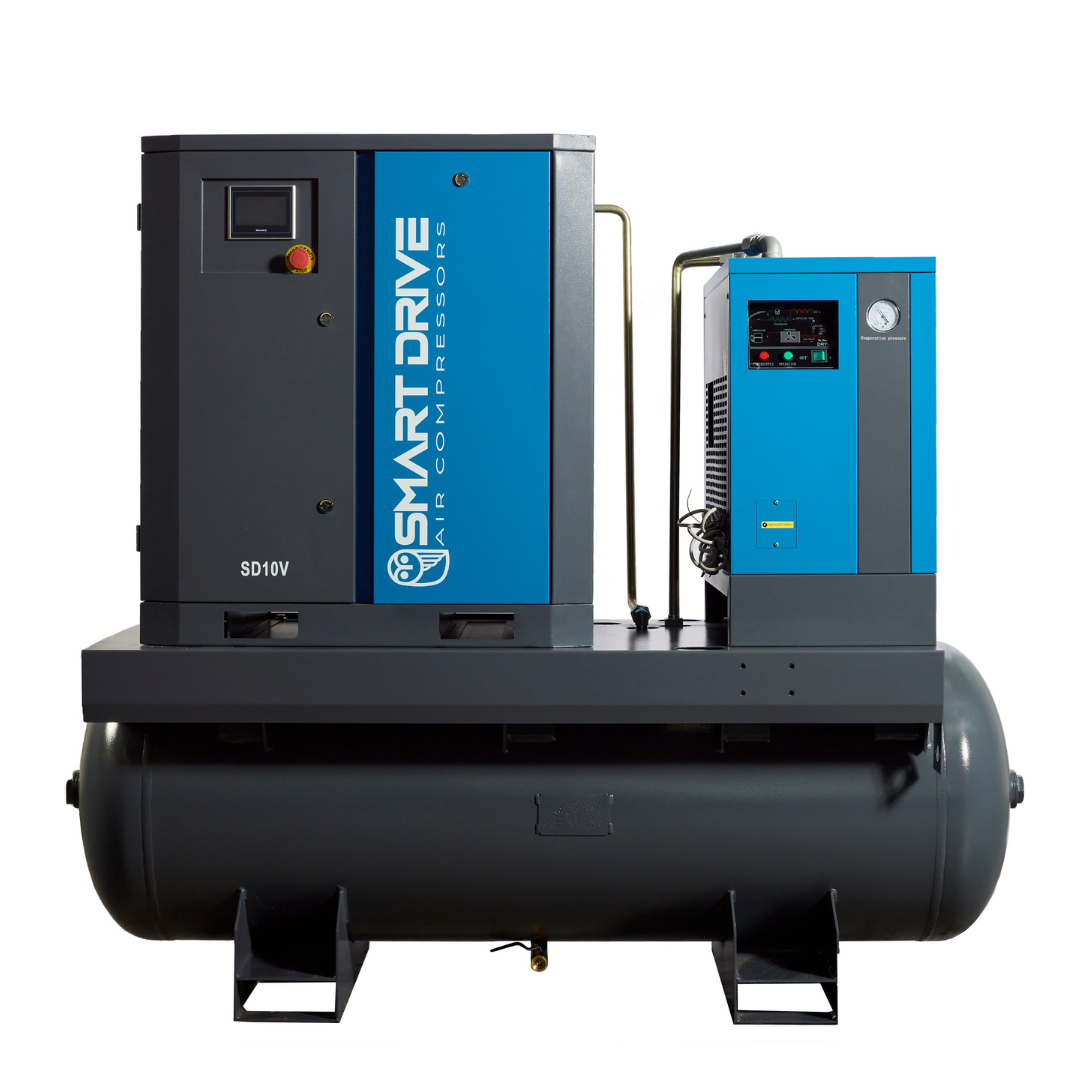

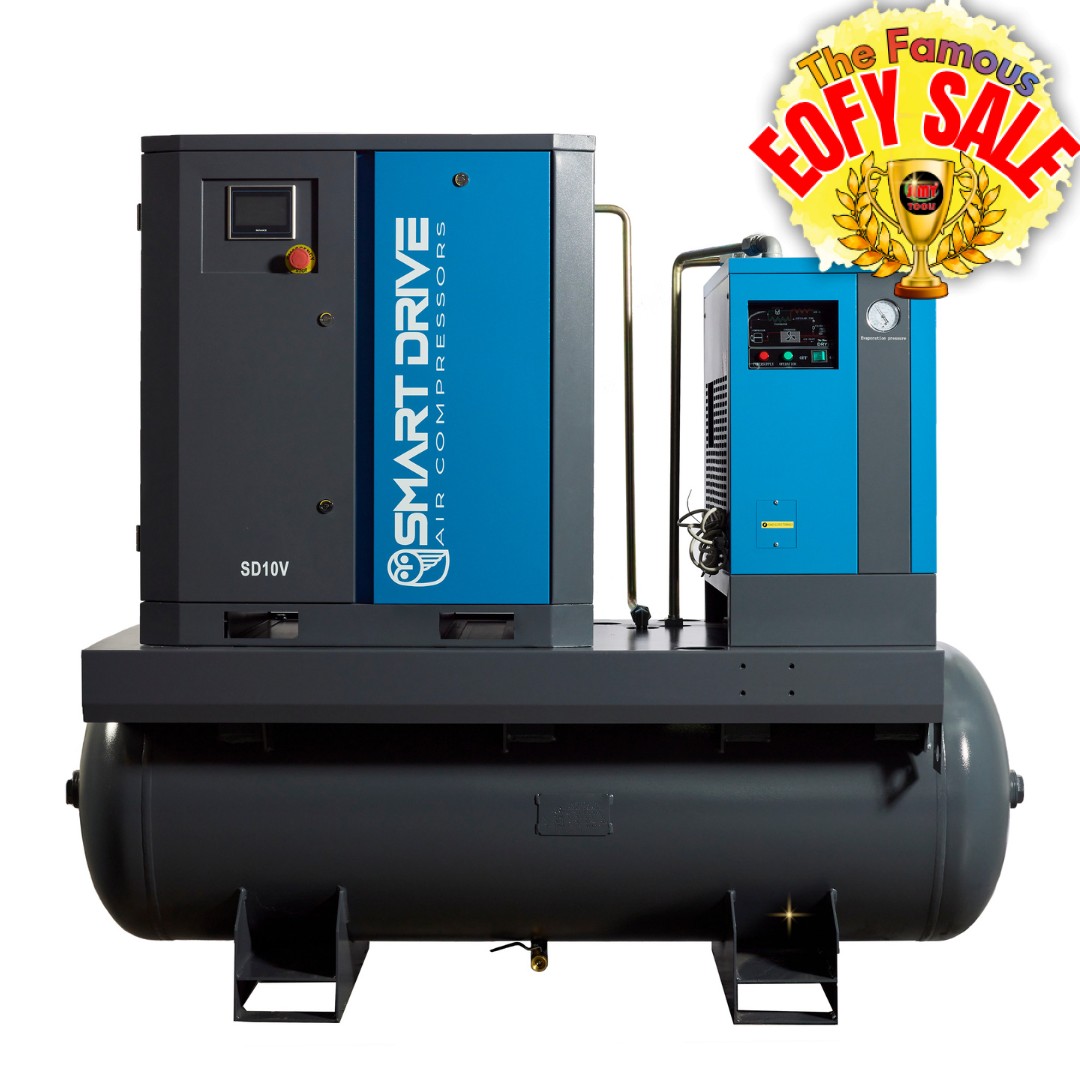

Jimy Tools is proud to partner with Smart Drive to deliver the SD10VFF Permanent Magnet Variable Speed Screw Air Compressor – a fully featured, energy-efficient air solution for professional workshops and industrial applications.
Powered by a 7.5kW / 10HP permanent magnet synchronous motor with an Inovance variable speed drive (VSD), the SD10VFF adjusts output to match demand, reducing power consumption while maintaining reliable airflow.
Built to meet the toughest standards, this model includes an ASME-certified 500L air tank, refrigerated dryer, and inline filtration system – ensuring clean, dry, and consistent air for your tools and machinery. Designed for durability and efficiency, the SD10VFF is the perfect all-in-one compressed air package.
Specifications:
Permanent magnet Variable speed screw air compressor with inverter (with tank, dryer and filters)
Free air delivery: 32 cfm
Working pressure: 10bar
Motor power: 7.5KW/10HP
With PM motor and inverter
Air end: Hanbell AB
Electricity: 415V/3ph/50Hz
Compression stage: Single stage
Direct driven, air cooling, ASME Oil separator tank and ASME 500L Air tank
Customer model: SD10VFF
Dimensions:
1860x800x1670mm
Weight:
430kg
High Pressure Variable Speed Air Compressor Four Advantages
Integrated Design
- Include variable speed Air Compressor, Air Dryer, Air Tank and Line Filters.
Intelligent Monitoring – Upgrade Option*
- Smart Drive Remote Monitoring is a 24-hour monitoring system where we are notified in some areas of concern. The early warning message is a safety feature that could save you a lot of money and downtime as we can determine if the issue is a malfunction, or if your variable speed air compressor needs a service.
High Quality Spare Parts
High-End Air End
- Saving you money the double screw system is the latest in design and technology. Smart Drive high precision processing can reduce compressed air leakages and power consumption. This is a great way to save money and increase income within your business.
Imported Electronic Accessories
- Smart Drive imported electrical components operate with a high level of safety and ensures stable operations at all times.
High Efficiency Precision Filter
- Due to our Smart Drive multi-filtration filters, our filters are high precision and high-pressure-resistant. This ensures that you have the best system available to you in every Compressor.
Large Capacity ASME Air Tank
- Our tanks have a large capacity and are more energy efficient and electrical saving. Smart drive materials are thicker and have more stable air pressure due to a better buffering, cooling and water removal system.
Warranty & Support
- 5 Year Australian Warranty – 2 years full warranty of parts and labour and further 3 years just parts ONLY when installed and serviced by an authorised technician and qualified electrician.
- Full Australian service and parts support
