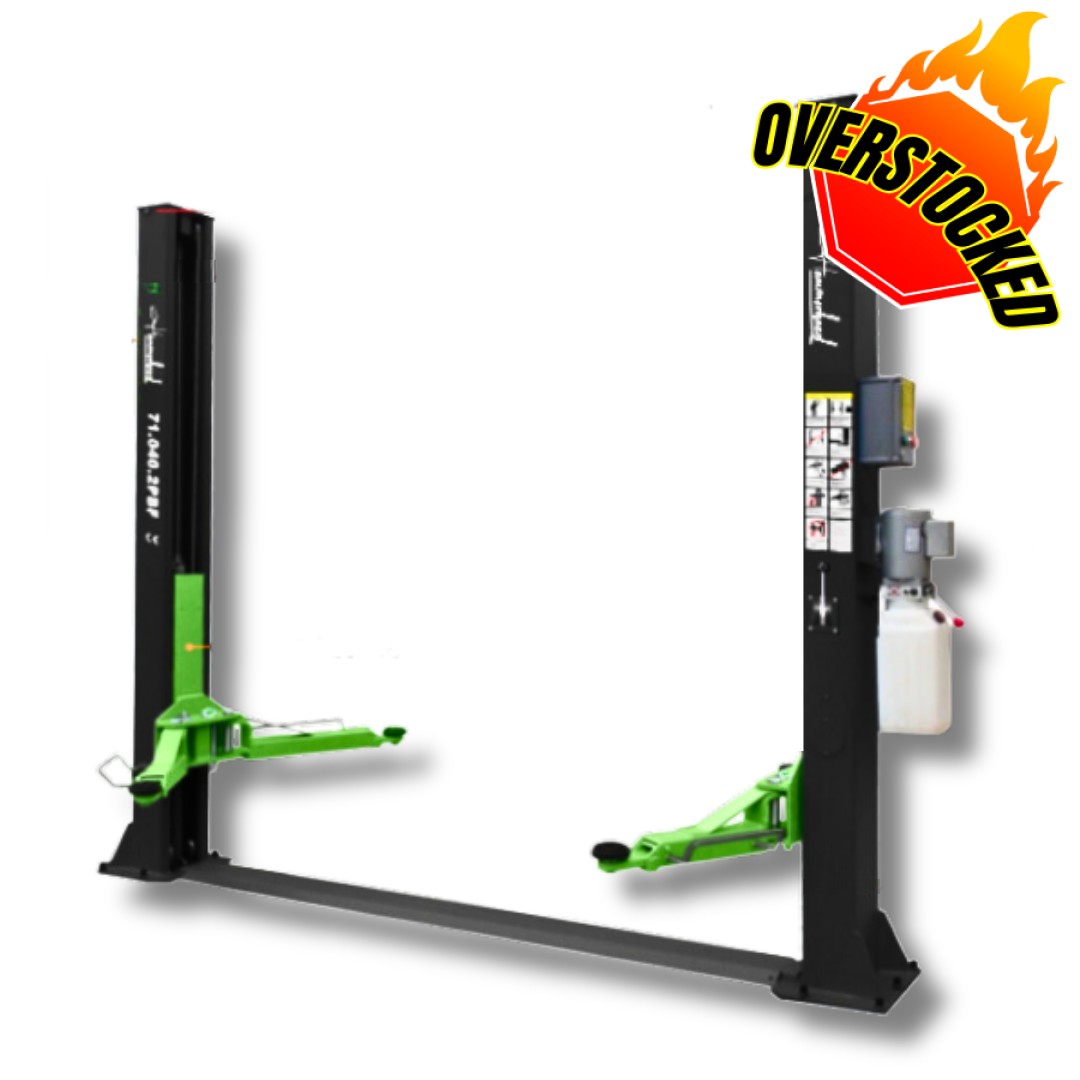

HAMMERHEAD 4.0T BASE FRAME TWO POST LIFT HOIST
SKU: 71.040.2PBF
Original price was: $3,280.00.Current price is: $3,180.00. Inc GST (3% OFF)

Please note that Monthly Promo prices are unavailable for payment using JIMY FINANCE.

30 day returns

Jimy Tools offers a "30 Day Money Back Guarantee" Learn more

Finance options available

How to apply for 24 months interest free Learn more

Zip Zip Zip Zip
Zip from $30.58 / week (24 Months Interest Free)

Lifetime Warranty

Jimy Tools offers lifetime guarantee on all Jimy Hand Tools, 12 Months Warranty on all Jimy Air Tools and more Learn more

Description

71.040.2PBF Manual (Baseframe)

Share on:

PRODUCT SUMMARY:

Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Perfect for busy workshops, professional garages, and dedicated home enthusiasts, the Hammerhead 4.0 Ton 2 Post Baseframe Hoist is engineered for general servicing, mechanical repairs, wheel and suspension work, and more.

The Hammerhead 4.0 Ton 2 Post Baseframe Hoist offers robust lifting capability with a 4,000 kg (4.0 ton / 8,800 lbs) capacity, making it ideal for sedans, SUVs, 4WDs, and light commercial vehicles. This baseframe model features a low profile 50mm base plate. Suitable for low ceiling heights with only a 2820mm max height!

Its symmetrical post configuration ensures balanced lifting and easy positioning of vehicles, while the dual hydraulic cylinders and durable chain-driven system ensure smooth and reliable performance every time. Whether you’re a professional mechanic or a serious car enthusiast, the Hammerhead 2 Post Baseframe Hoist delivers the strength, safety, and performance you can trust.



Base Plate Hoist Features

  • 4000kg / 4 tonne safe load limit
  • Lifting height of 1.93m
  • Dual hydraulic cylinders with chain driven carriages
  • Adjustable screw pads and 4 additional raising adapters are included
  • Strong single piece column design
  • Durable powder coated finish
  • Rubber door protectors
  • Symmetric two and three stage arms
  • Low profile 50mm high base plate



Safety Features

  • Manual safety locking system with safety latches in each column
  • Dual point release system
  • Heavy duty 5mm thick columns ,6mm carriages
  • 9.3mm steel wire rope equalising cables
  • Sub-frame design provides additional safety



What’s included?

  • 2 post hoist with all bolts, cables, lines and fixings
  • 240V single phase hydraulic power unit
  • Concrete anchor bolts

What’s Not Included?

  • Power Plug
  • Installation of unit
  • Hydraulic Oil



Area Requirements

  • 150mm deep concrete
  • Minimum Ceiling Height – 3 Metres

Warranty & Certifications

  • Australian Worksafe Registered Design
  • 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
  • CE Certified



SPECIFICATIONS

Motor

240V Single Phase

Lifting Height

1930MM

Total Height

2824MM

Total Width

3365MM

Drive Through Clearance

2500MM

Base Plate Drive Over Length

50MM

Lifting Arm Min. Length

2 stage arm min: 820mm
3 stage arm min: 700mm

Lifting Arm Max. Length

2 stage arm max: 1260mm
3 stage arm max: 1345mm

Lifting Pad Min. Height

90MM

Lifting Pad Max. Height

125MM

Lifting Time

50 Seconds

Net Weight/Gross Weight

585KGS

Min. Concrete Thickness

150MM



MATERIALS

Cable Thickness

9.3MM

Column Thickness

5MM

Carriage Thickness

6MM




Hoist Related Questions

  • What is the recommend ceiling height of a hoist?
    • The recommended ceiling height of a hoist is based on being able to physically install the hoist. You’ll also need to consider how much space you’ll have to work with underneath the vehicle once lifted from the hoist.
    • The height of your vehicle from the jacking point to the roof + the maximum lifting height of the hoist is the maximum ceiling height that would be required to lift your vehicle.
    • Most people will not need to lift the hoist to the maximum lifting height to work on a vehicle comfortably and in most situations, you’ll be able to work underneath the vehicle as long as your shed meets the minimum ceiling height requirement.
  • Which hoist is the best option for me?
    • The main factors for selecting a hoist are. The area that you’ll be storing the hoist, the weight of your vehicles and what you’ll be using the hoists for. If you know the answer to all of these, call our helpful team at 08 8269 9700 and we can assist you with the right hoist for you.
  • Is my concrete appropriate for a hoist?
    • We recommend a minimum of 150mm of concrete thickness to safely fix our hoists. If you are laying new concrete, please check with a professional regarding appropriate times to drill into the fresh concrete.
  • What about Warranty or Spare Parts?
    • We offer 3 Year Warranty on all Structural, Hydraulic & Electronics. We keep stock of main components if you need a replacement part, otherwise we will organise another option for you.
  • How can I get a freight quote?
    • For some Metro delivery areas, freight will be calculated automatically, but in some circumstances, our team will contact you to organise the best freight option for you.
    • If you would like to contact our team, we can send you a quote to give you a full price overview.
