PRODUCT SUMMARY:
SPECIAL ORDER
Special Order Products are available with an estimated wait time of 120 days. Available at low discounted prices, we can provide you with your needs for the very best prices!

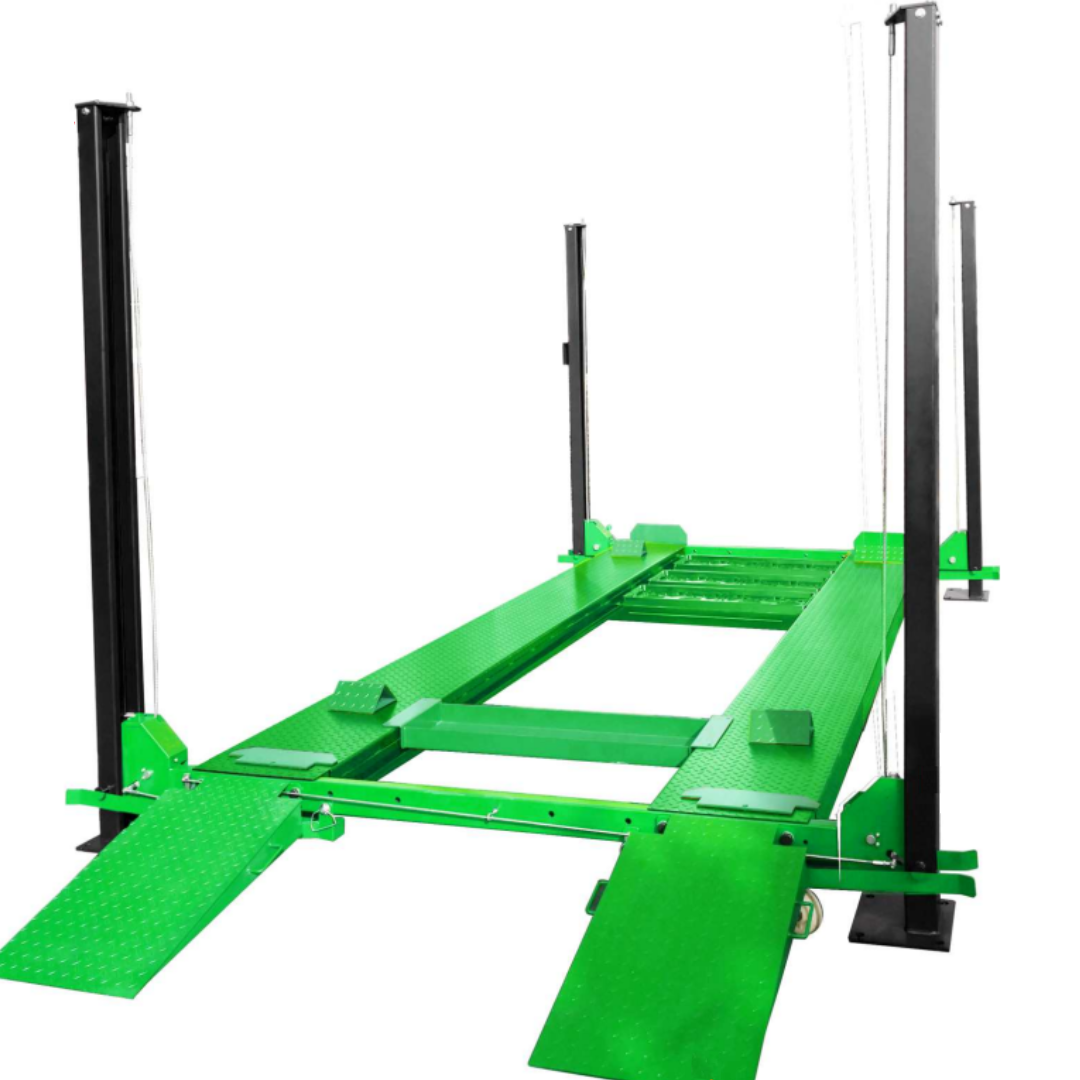

Australia’s Newest Best Value 4 Post Extra Long & Extra High Parking Lift has arrived. It’s perfect for recreational or home use. Our Hammerhead Hoists have got you covered.
- FEATURES
- 4000KG / 4.0 Tonne Load Limit
- Powder Coated Finish
- Adjustable lifting height with maximum height of 2210mm
- One side release for safety locks, easy for descent operation
- External Locking
Safety Features
- 4-point manual release safety lock
- Additional secondary safety lock when weight comes off the cables
- Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
- Heavy duty 6mm thick cross beams and 5mm thick runways
- 9.53mm steel wire rope equalising cables
- Anti-surge valve
What’s Included?
- 4 post hoist with all bolts, cables, lines and fixings
- 240V single phase hydraulic power unit
- Oil Drip Trays are available to keep your area clean from any spills.
- Castor Wheels
- Wheel Chocks
What’s Not Included?
- Power Plug
- Installation of unit
Shed Requirements
- 150mm deep concrete
- Minimum Ceiling Height – 2.8m
Warranty & Certifications
- 3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
- CE Certified
Hoist Related Questions
- What is the recommend ceiling height of a hoist?
- The recommended ceiling height of a hoist is based on being able to physically install the hoist. You’ll also need to consider how much space you’ll have to work with underneath the vehicle once lifted from the hoist.
- The height of your vehicle from the jacking point to the roof + the maximum lifting height of the hoist is the maximum ceiling height that would be required to lift your vehicle.
- Most people will not need to lift the hoist to the maximum lifting height to work on a vehicle comfortably and in most situations, you’ll be able to work underneath the vehicle as long as your shed meets the minimum ceiling height requirement.
- Which hoist is the best option for me?
- The main factors for selecting a hoist are. The area that you’ll be storing the hoist, the weight of your vehicles and what you’ll be using the hoists for. If you know the answer to all of these, call our helpful team at 08 8269 9700 and we can assist you with the right hoist for you.
- Is my concrete appropriate for a hoist?
- We recommend a minimum of 150mm of concrete thickness to safely fix our hoists. If you are laying new concrete, please check with a professional regarding appropriate times to drill into the fresh concrete.
- What about Warranty or Spare Parts?
- We offer 3 Year Warranty on all Structural, Hydraulic & Electronics. We keep stock of main components if you need a replacement part, otherwise we will organise another option for you.
- How can I get a freight quote?
- For some Metro delivery areas, freight will be calculated automatically, but in some circumstances, our team will contact you to organise the best freight option for you.
- If you would like to contact our team, we can send you a quote to give you a full price overview.
| |
Motor | 240V 20A Single Phase |
Lifting Height | 2210MM |
Total Height | 2490MM |
Total Width | 2780MM |
Platform Length | 4865MM |
Overall Length Not Including Ramps | 5123MM |
Overall Length Including Ramps Down | 5939MM |
Lifting Time | ~50 Seconds |
Weight | 1500KG |
Min. Concrete Thickness | 150MM |
MATERIALS | |
Cable Thickness | 10MM |
Column Thickness | 6MM |
Carriage Thickness | 6MM |
