71.MCL.500 Manual (Motorcycle Lift)Product Summary:
The Hammerhead Motorcycle Scissor Lift is the ideal lift for working on most types of Motorcycles. With a lifting capacity of 500KG and a lifting height of 1200mm – This lift suits a majority of these vehicles.
Features:
- 500KG Safe Load Limit
- Lifting height of 1200mm
- Convenient and portable structure, for tyre and wheelbase maintenance
- Electrically Drive with Pneumatic Unlock
- Double safety devices, hydraulic locking and mechanical safety clamp, ensure stability

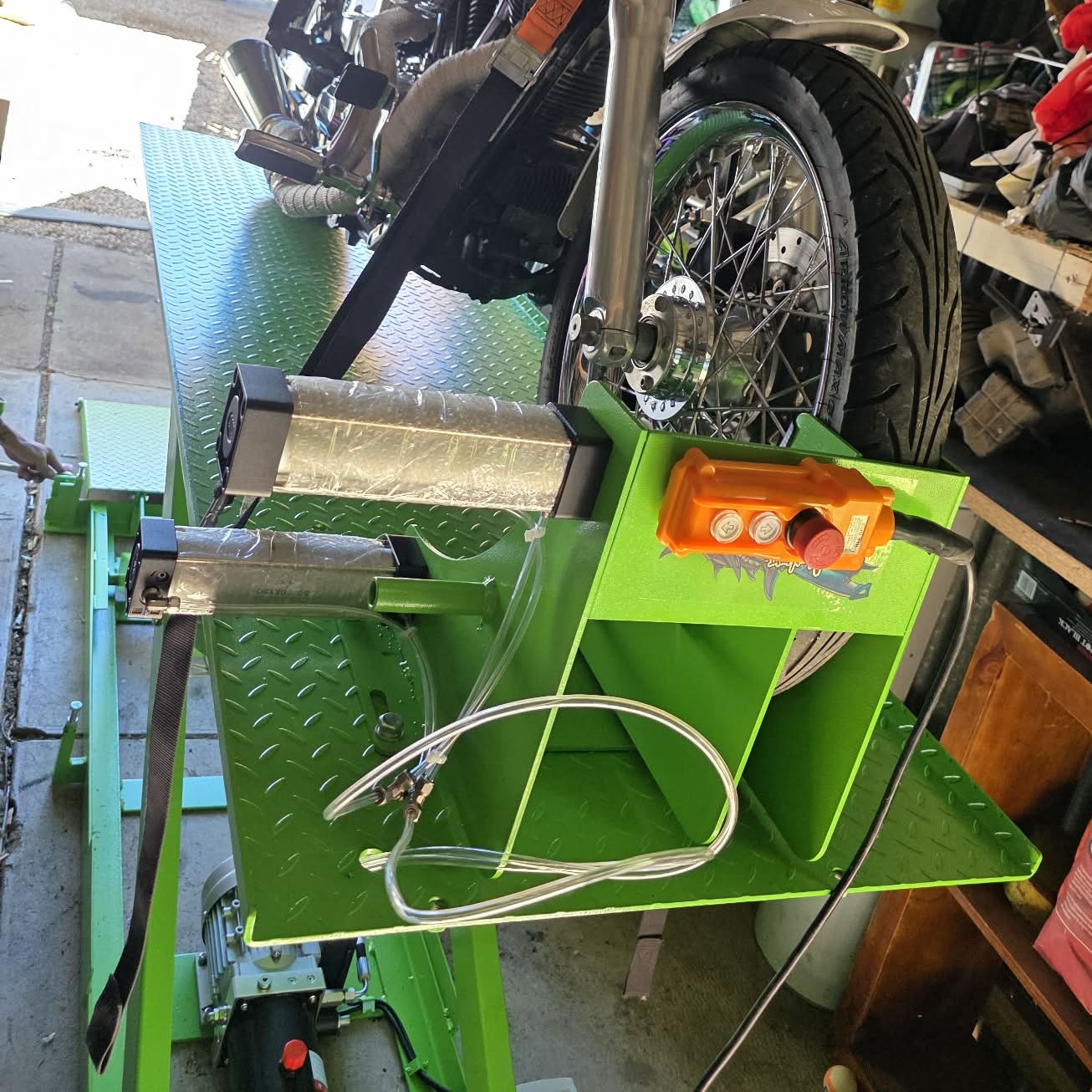

- Two pedal switches to control the pneumatic front tyre clamp.
Specifications:
|
Max Lifting Weight |
500kg |
|
Minimum Height |
200mm |
|
Max Lifting Height |
1200mm |
|
Table Size |
2480 (L) x 720 (W) MM |
|
Ramp Size |
690 (L) x 545 (W)MM |
|
Net Weight of Lift |
230KG |
Warranty & Certifications
- 3 Year Australian Warranty – Includes Structure & pneumatics
- CE Certified
