PRODUCT SUMMARY:

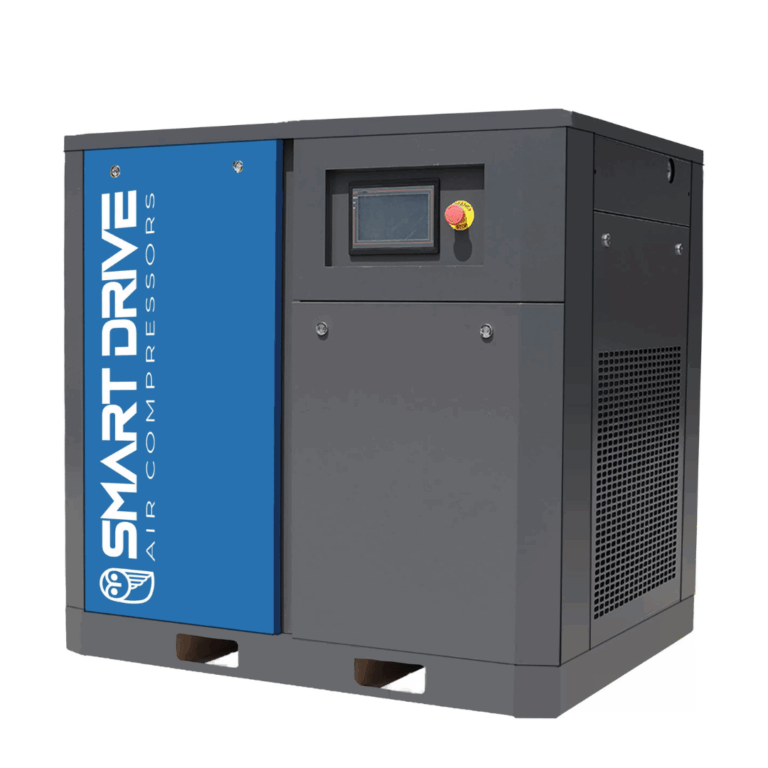

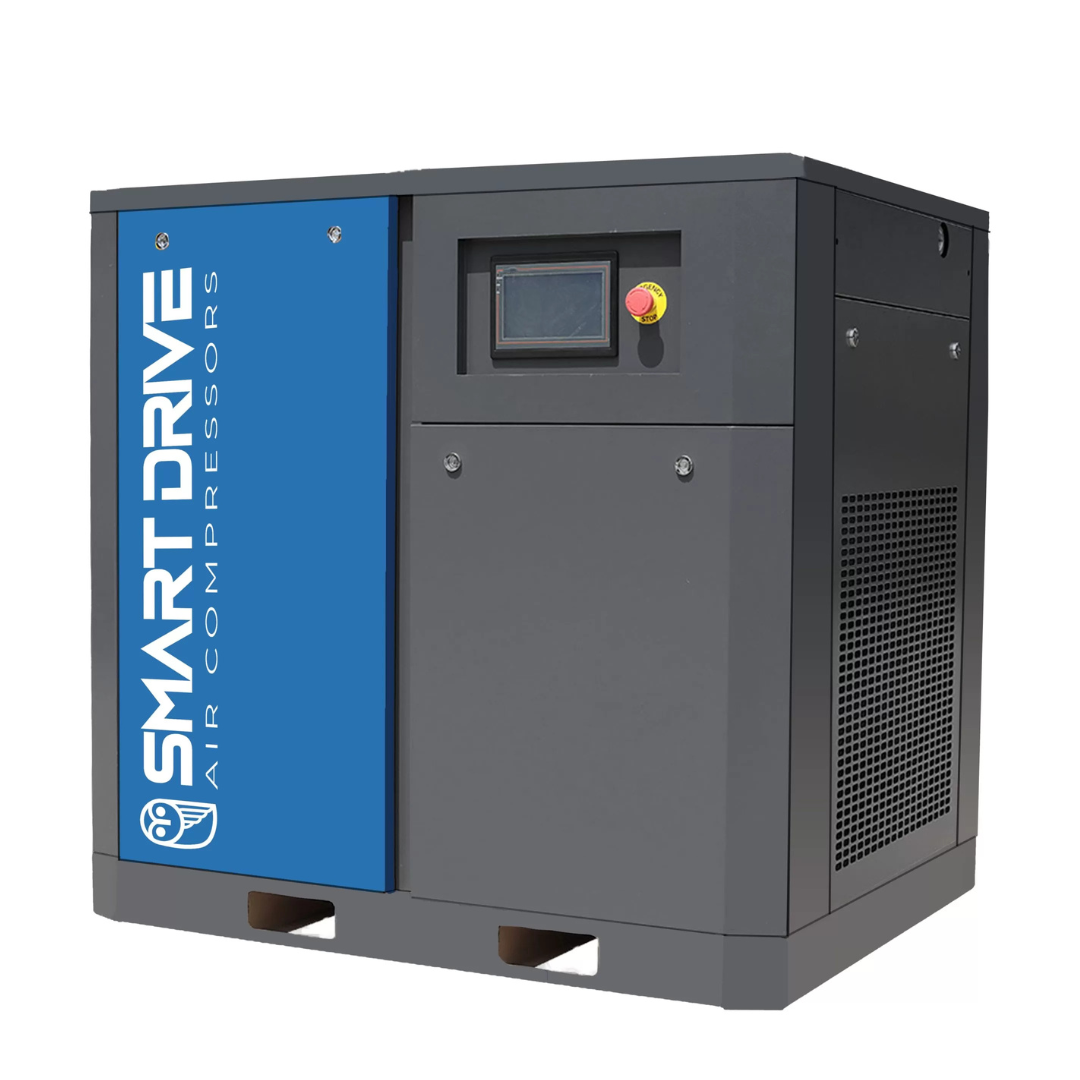

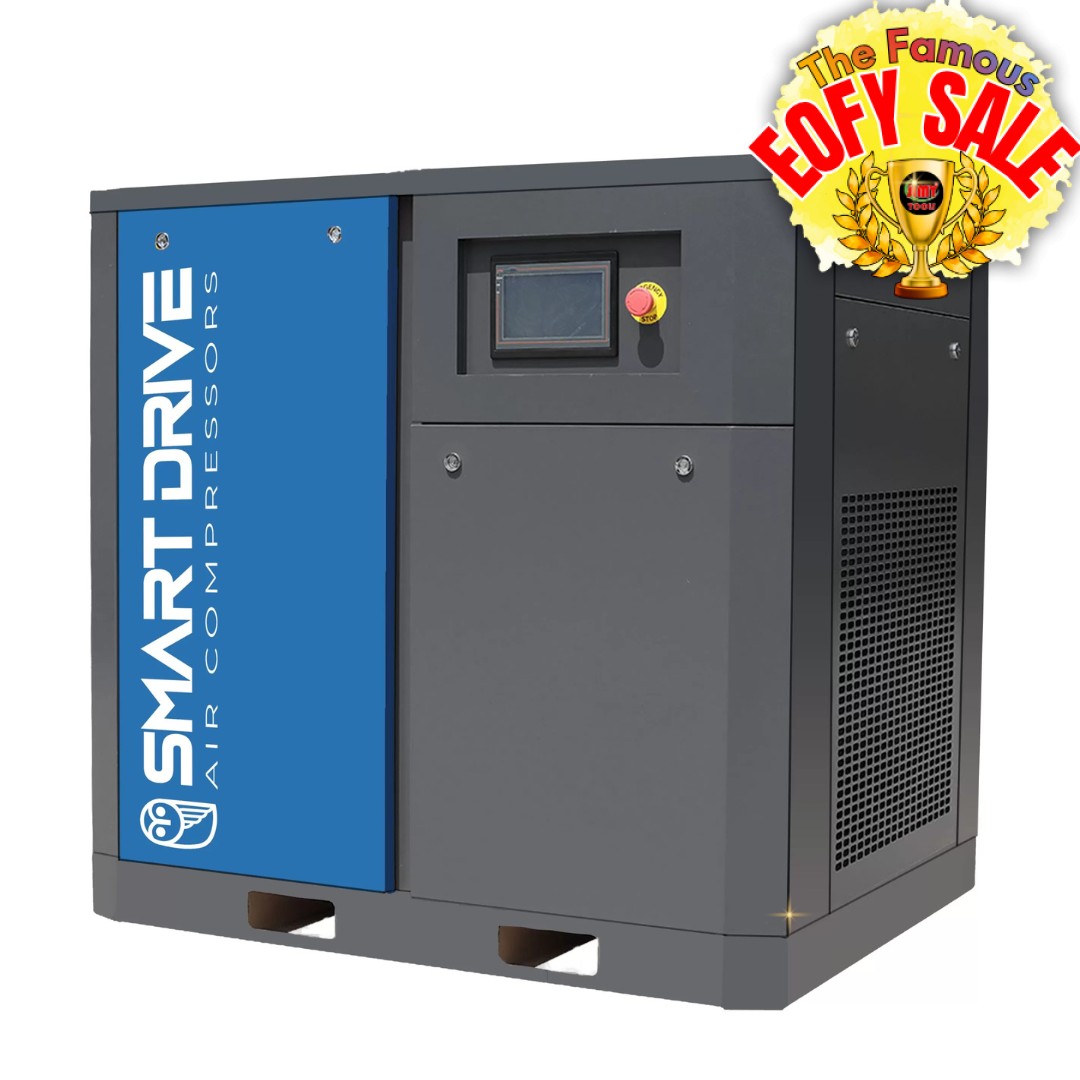

Jimy Tools introduces the SD50VBM Permanent Magnet Variable Speed Base Mount Screw Air Compressor – a compact yet powerful solution for workshops and industrial users who need consistent, efficient airflow without the footprint of a full featured unit.
Equipped with a 37kW / 50HP permanent magnet synchronous motor and an Inovance variable speed drive (VSD) with touchscreen control, the SD50VBM delivers 201CFM of free air delivery at 10 bar, adjusting output to match demand for superior energy efficiency.
Compact, quiet, and efficient, the SD50VBM is ideal for workshops seeking a premium, space-saving air compressor with the performance and durability to keep up with everyday demands.
Specifications:
Free Air Delivery: 201 cfm
Working pressure: 10bar
Motor Power 37KW/50HP
Air end: Hanbell
Electricity: 380V/3ph/50Hz
Compression Stage : Single Stage
Noise Level: 68dB
Direct driven, Air cooling, ASME Oil separator tank
Dimensions:
1560x1000x1365mm
Weight:
580kg
Screw Air Compressor Features
- Has a low operation cost which will then save you money in the long run.
- High-efficiency induction motor, Integrated Variable Speed Driven (VSD) with speed control, Leading control and protection, Soft starting eliminates drive stress
- Top-notch performance is achieved by the state of the art airend design and it’s manufacturing processes.
- The gentle start cycle increases the life of service. To stop the risk of the compressor overheating, there are frequent stop and start cycles.
- The compressor maintains a steady state of operation and avoids load cycling which helps reduce the operating and maintenance costs
Warranty & Support
- 5 Year Australian Warranty – 2 years full warranty of parts and labour and further 3 years just parts ONLY when installed and serviced by an authorised technician and qualified electrician.
- Full Australian service and parts support
